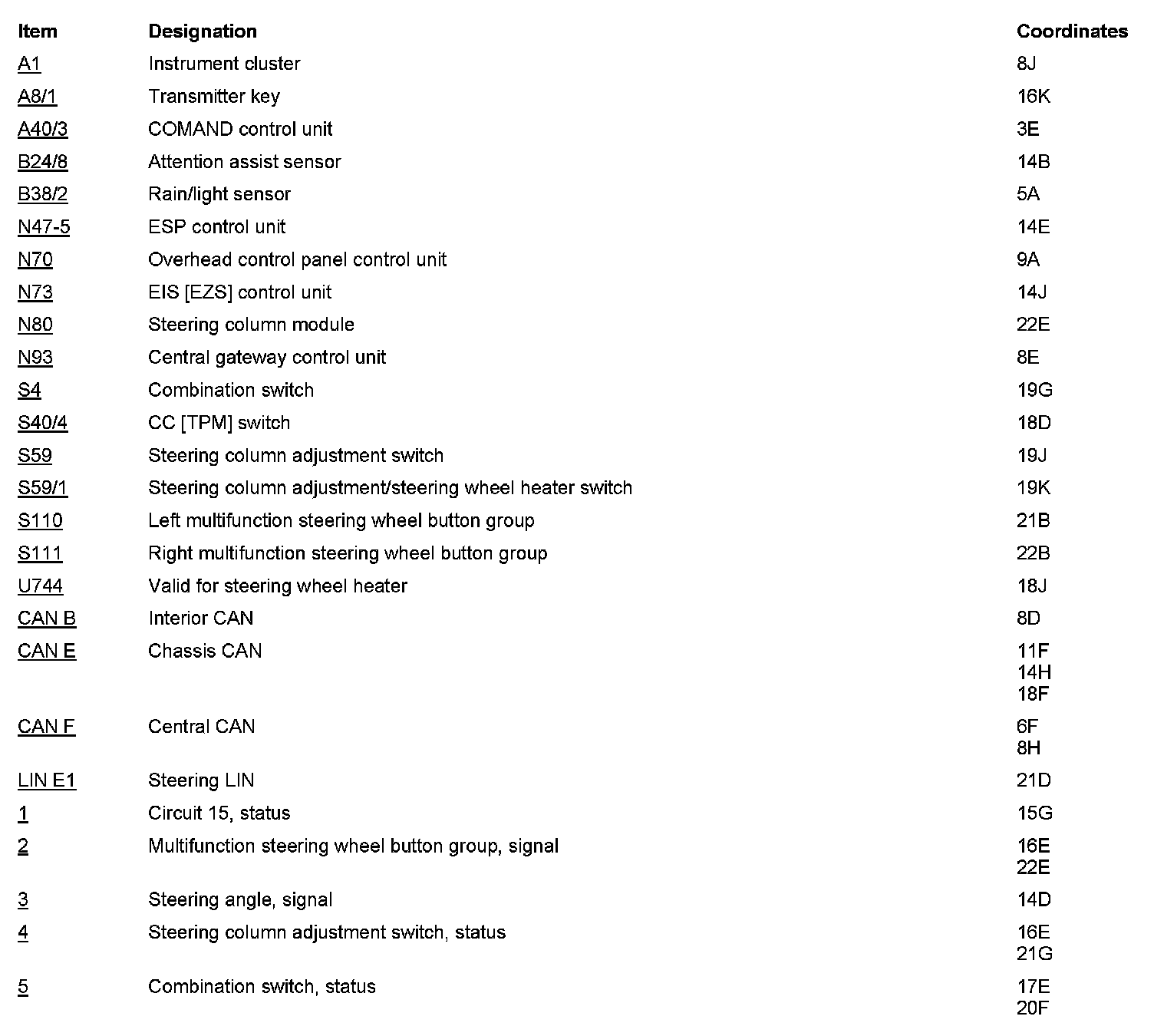

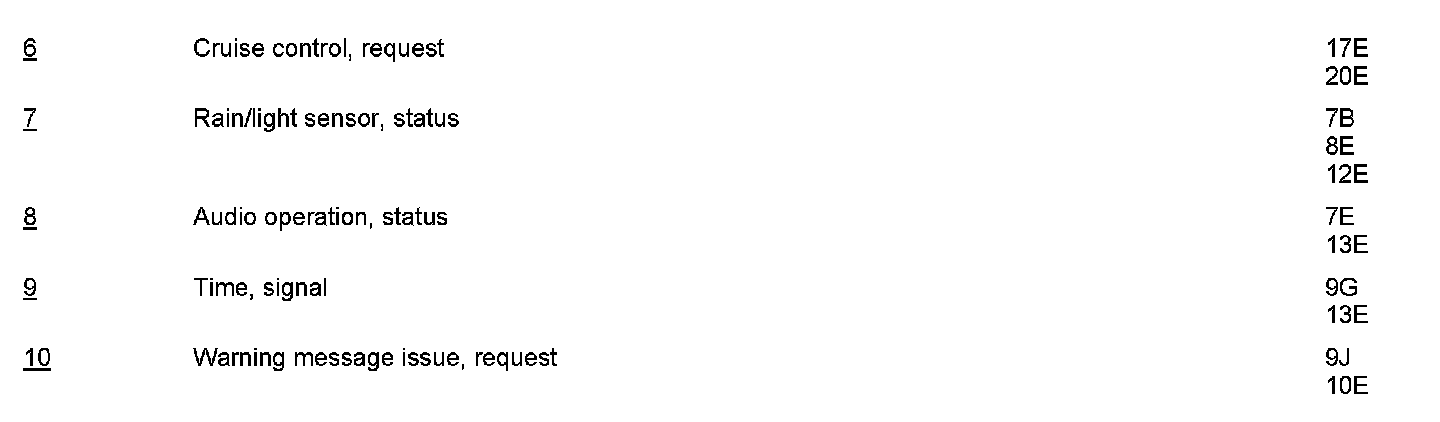

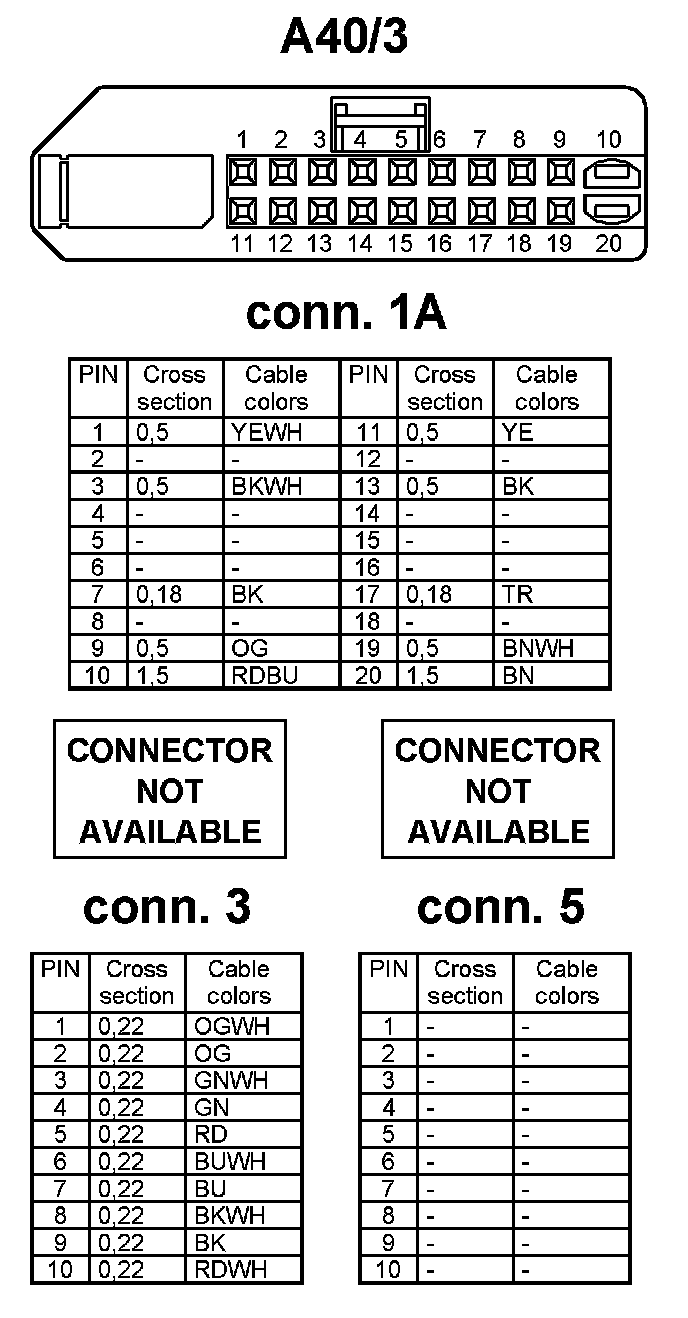

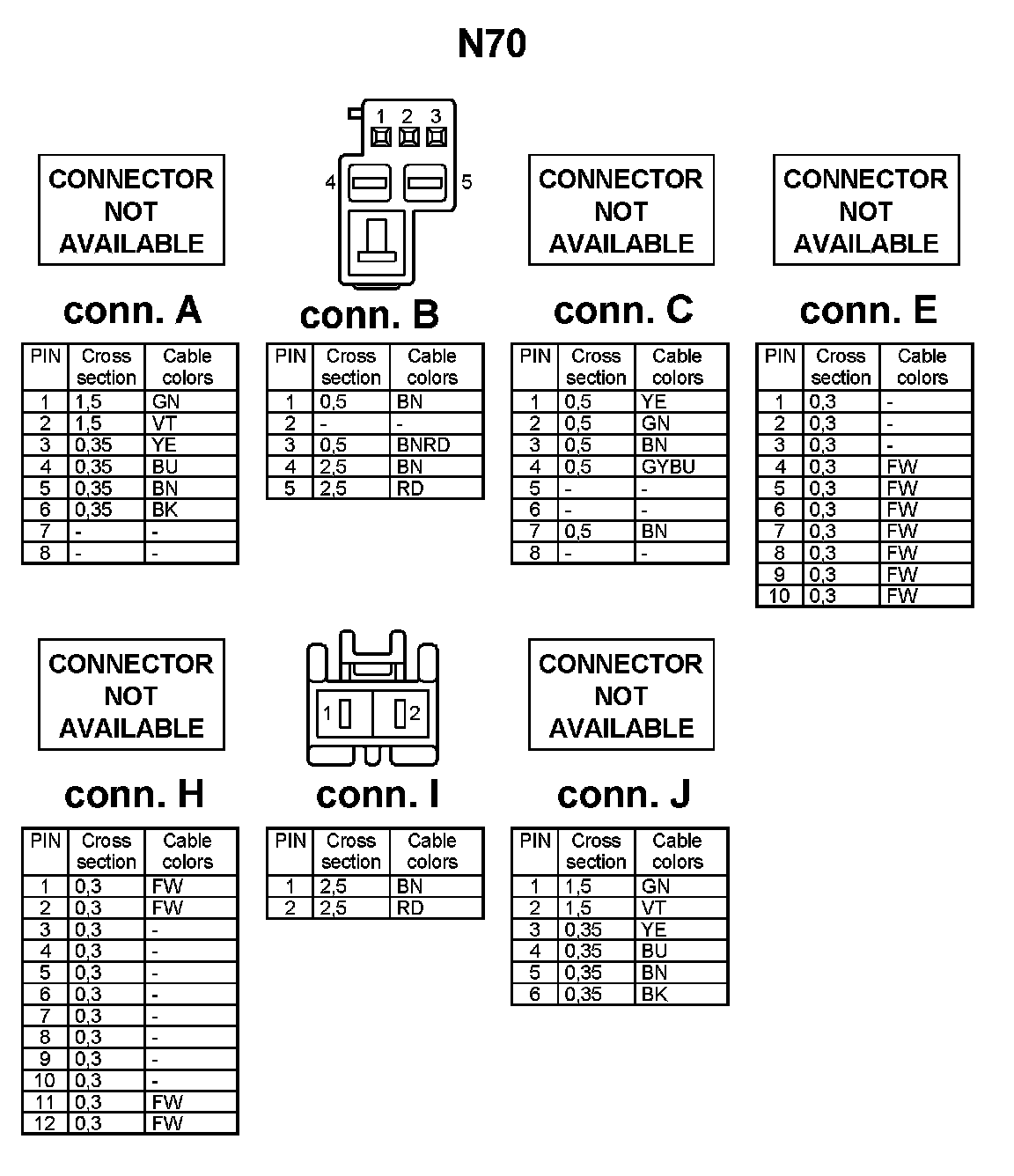

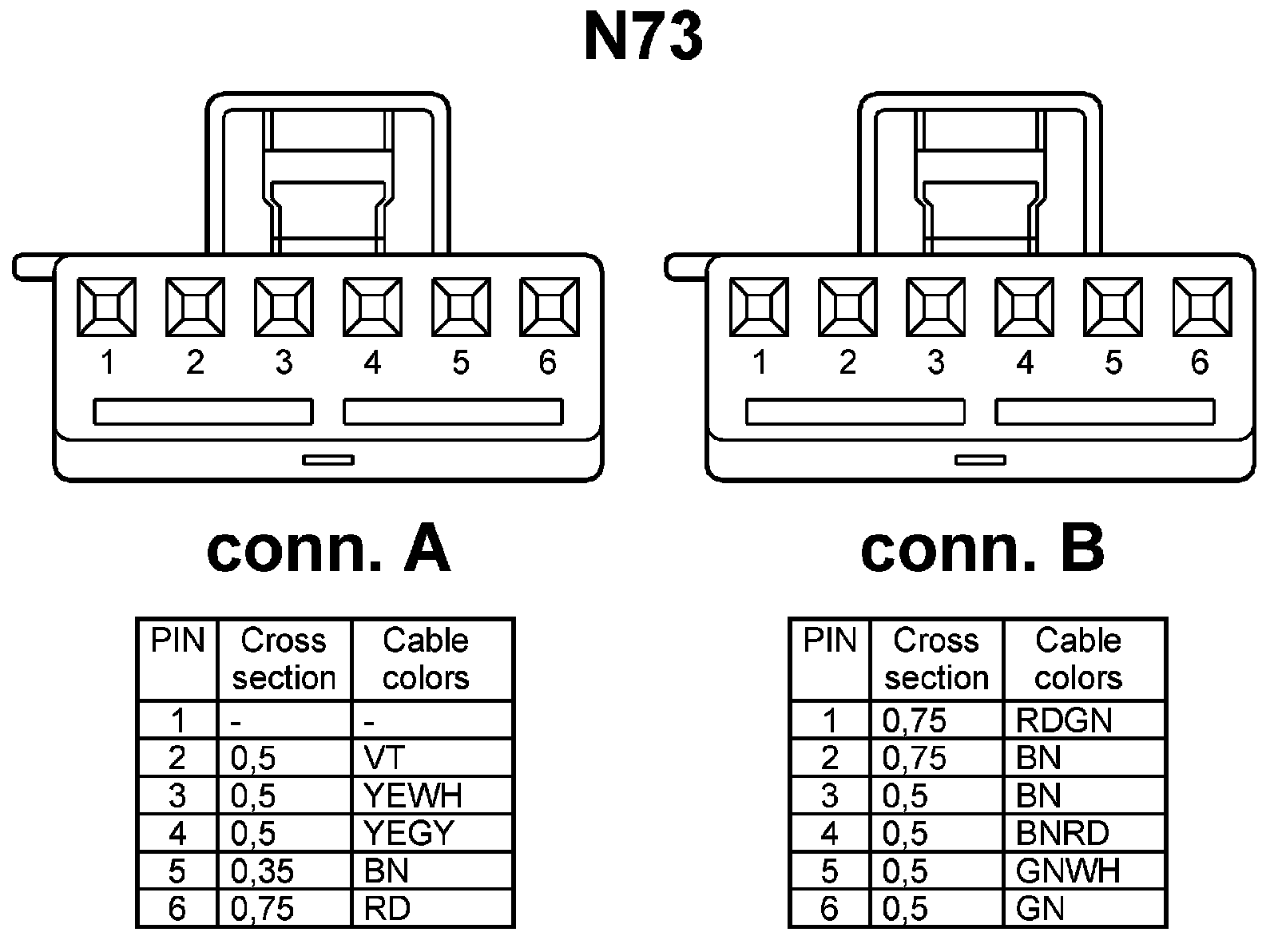

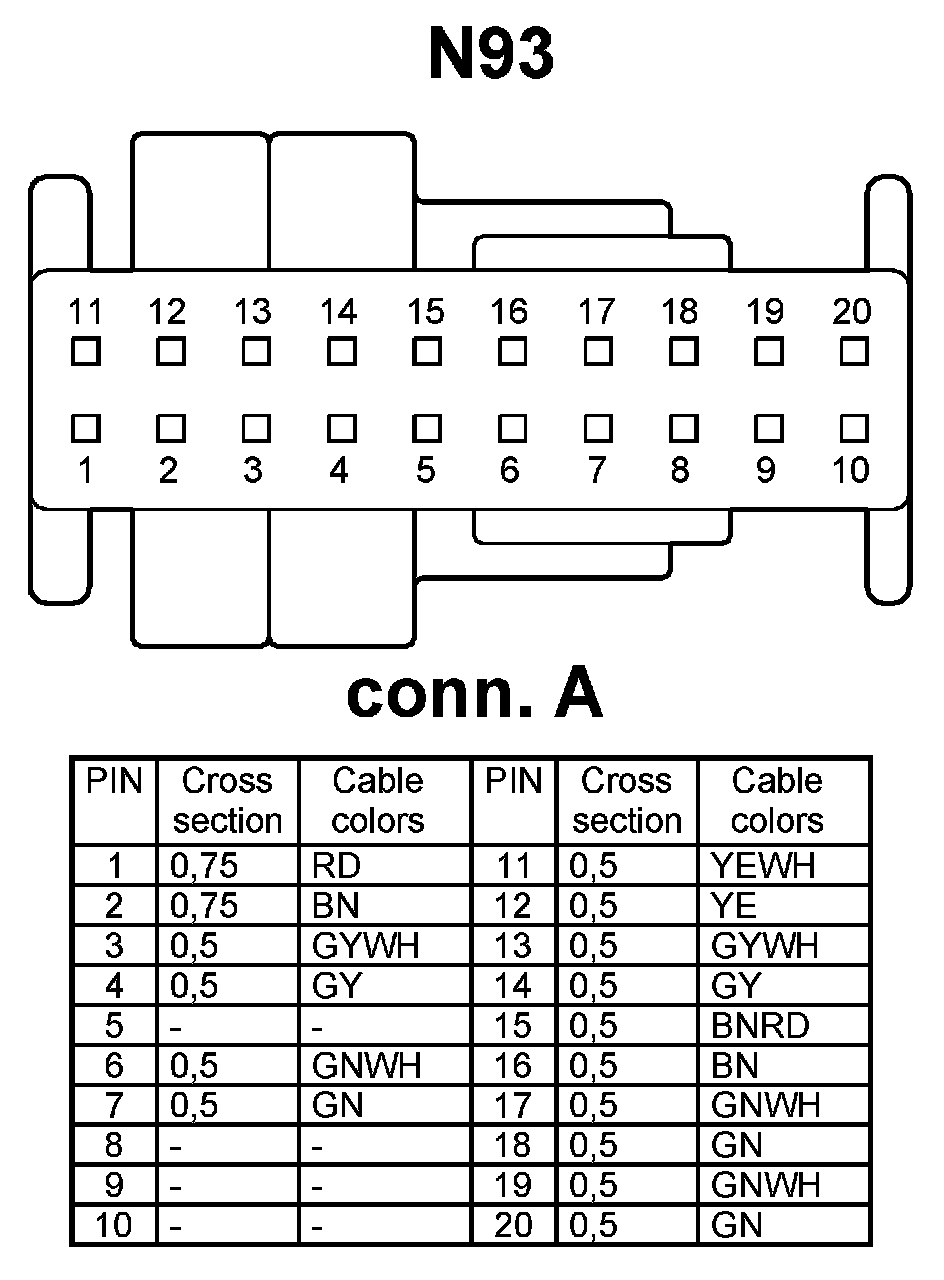

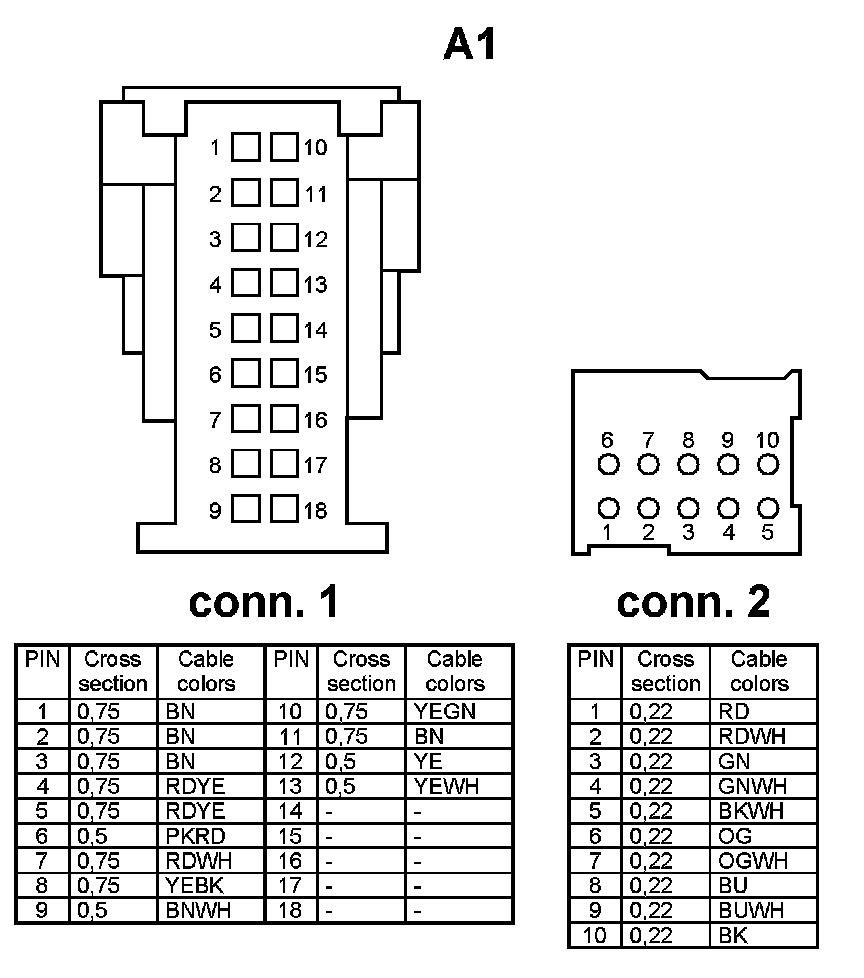

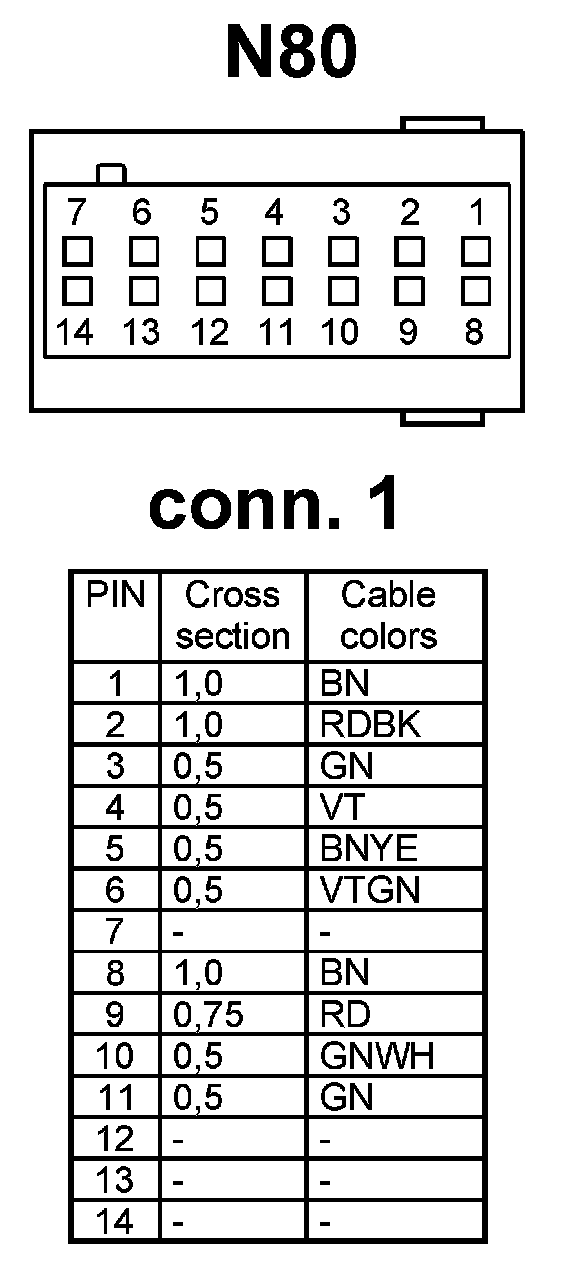

PE54.71-U-2050CAA Electrical Function Diagram For ATTENTION ASSIST



PE54.71-U-2050CAA Electrical Function Diagram For ATTENTION ASSIST

MODEL 216
- as of Model Year 2011











































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
