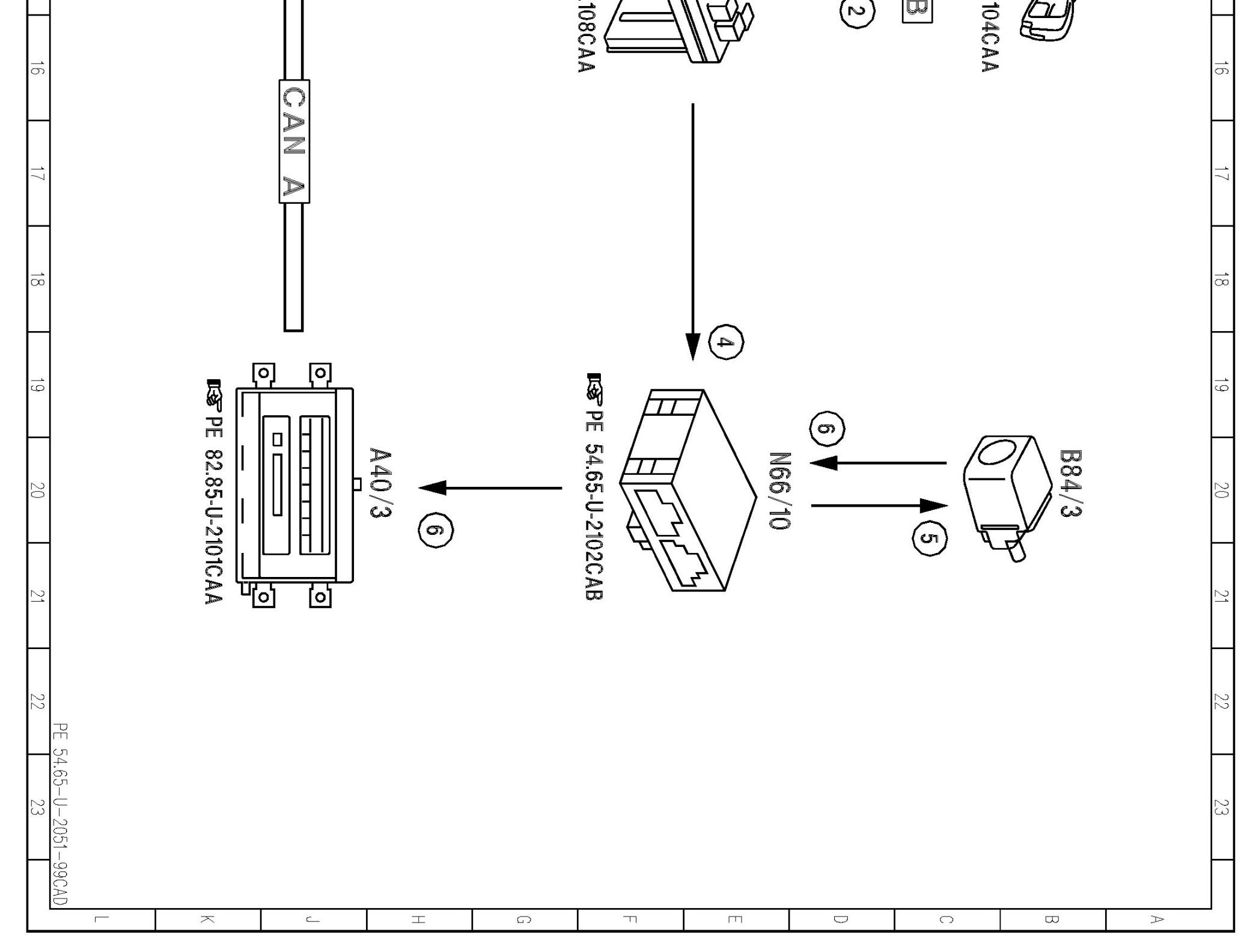

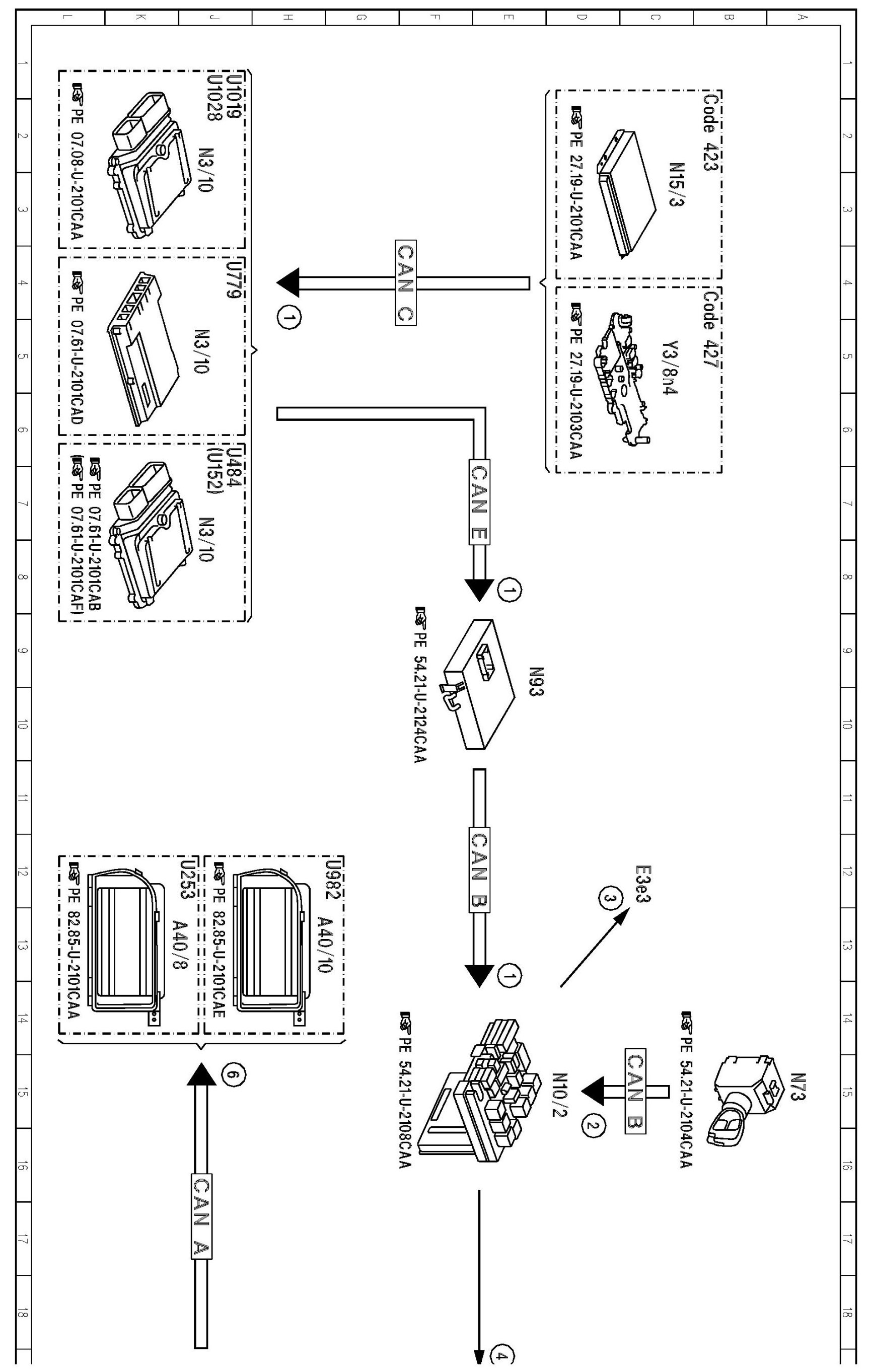

PE54.65-U-2051CAD Electrical Function Diagram For Backup Camera

PE54.65-U-2051CAD Electrical Function Diagram For Backup Camera

MODEL 216
- with CODE (218) Backup camera
- as of Model Year 2009























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
