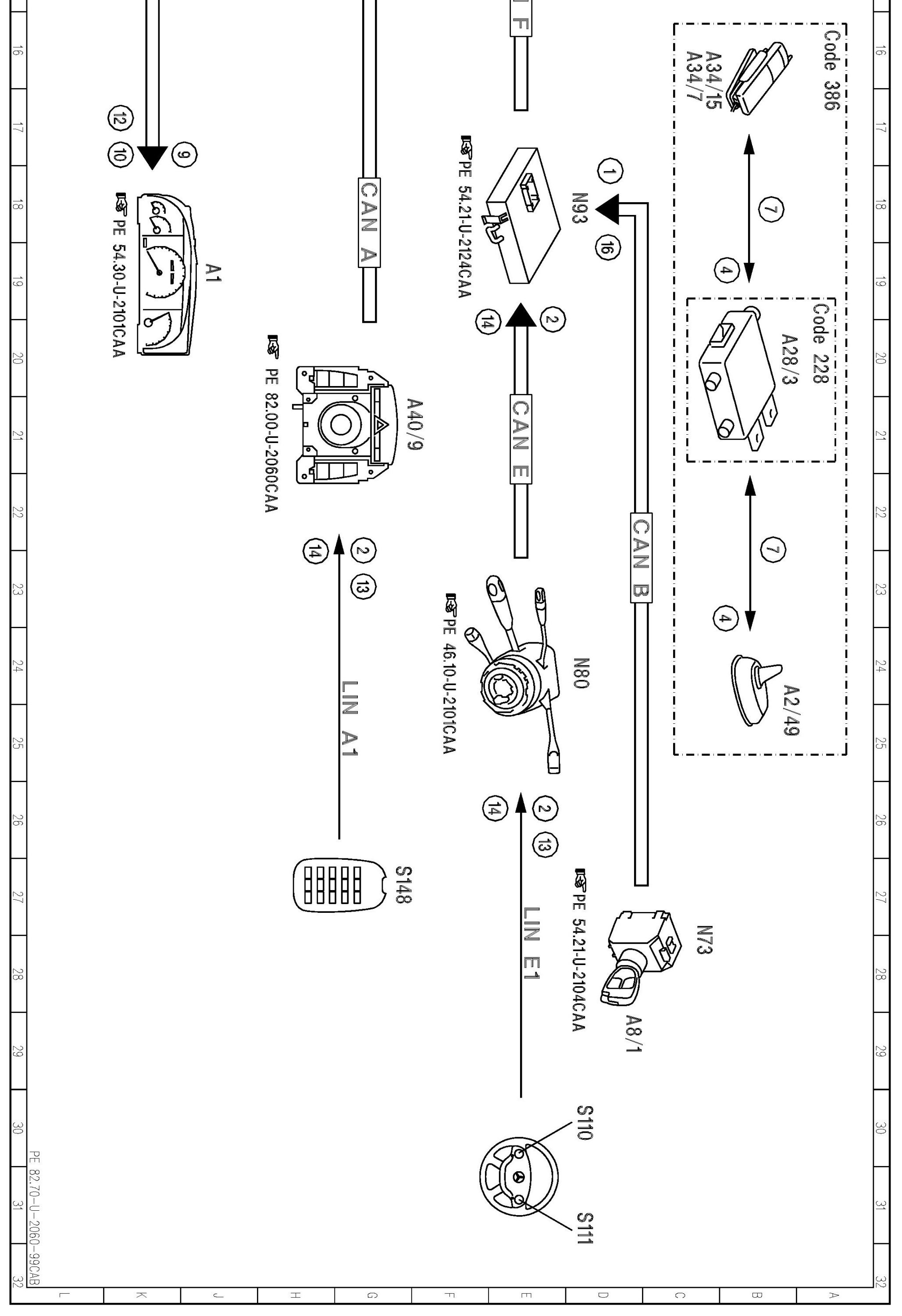

PE82.70-U-2060CAB Electrical Function Schematic For Mobile Phone, Setting Up Call and Ending Call

PE82.70-U-2060CAB Electrical Function Schematic For Mobile Phone, Setting Up Call and Ending Call

MODEL 216
- as of Model Year 2010

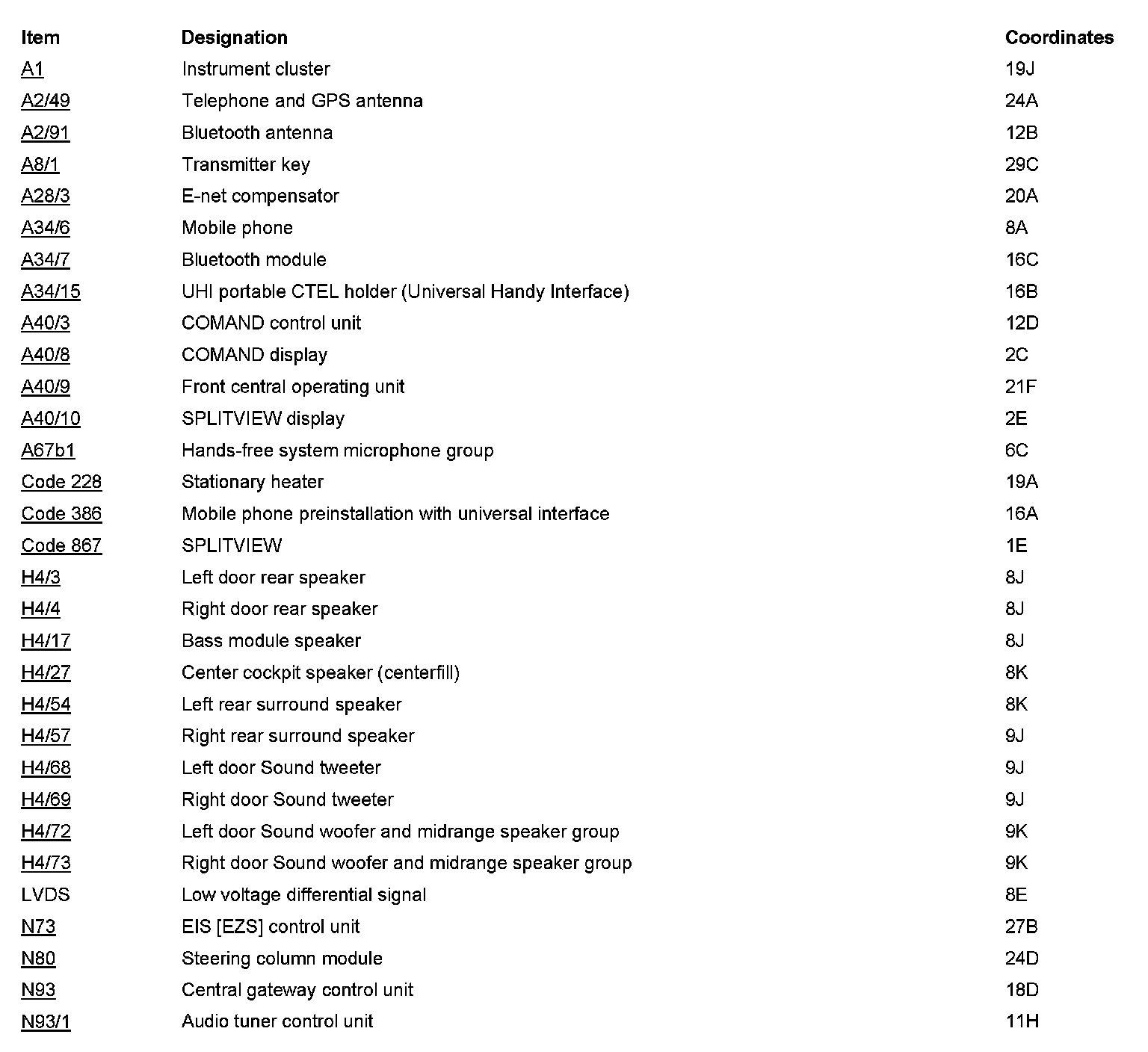

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
