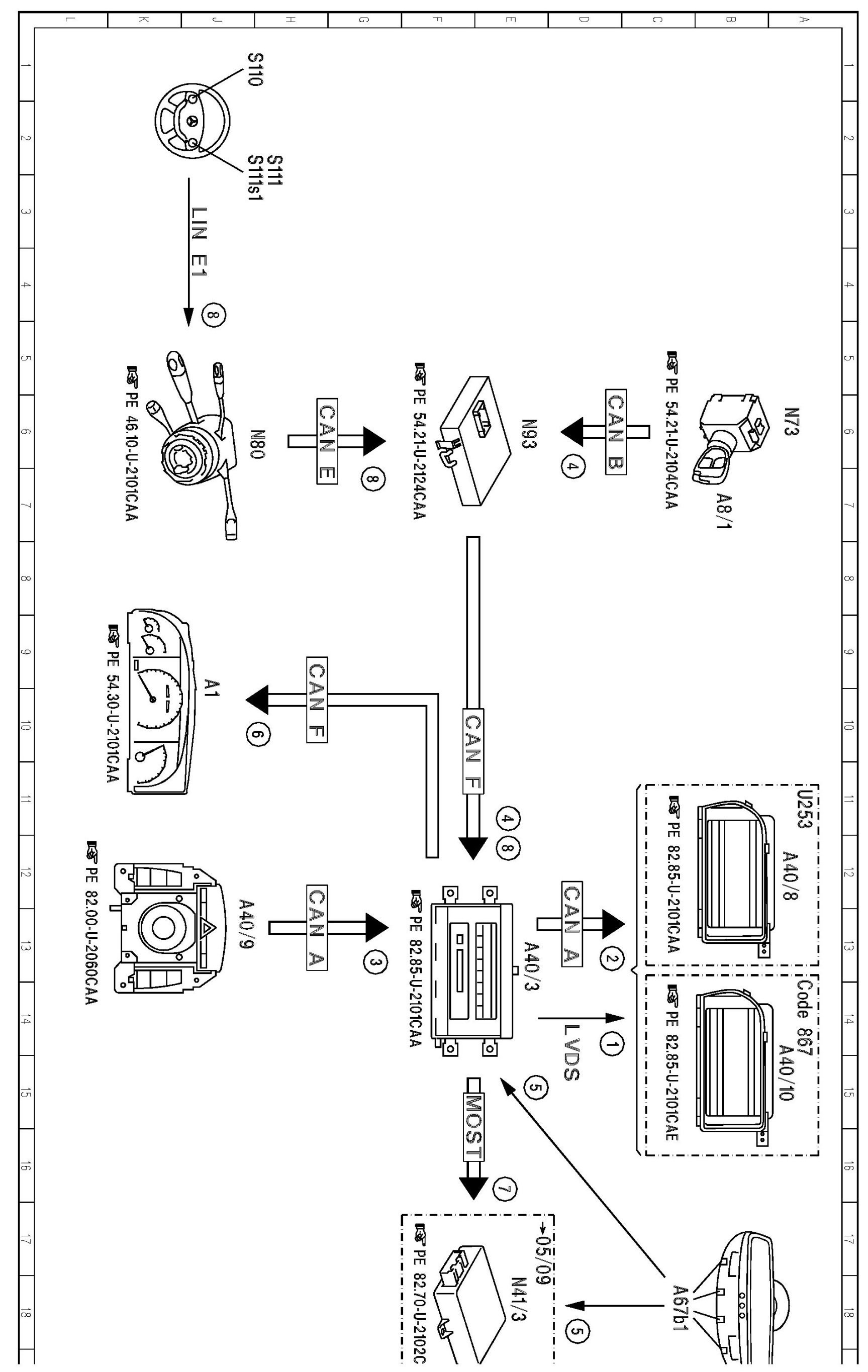

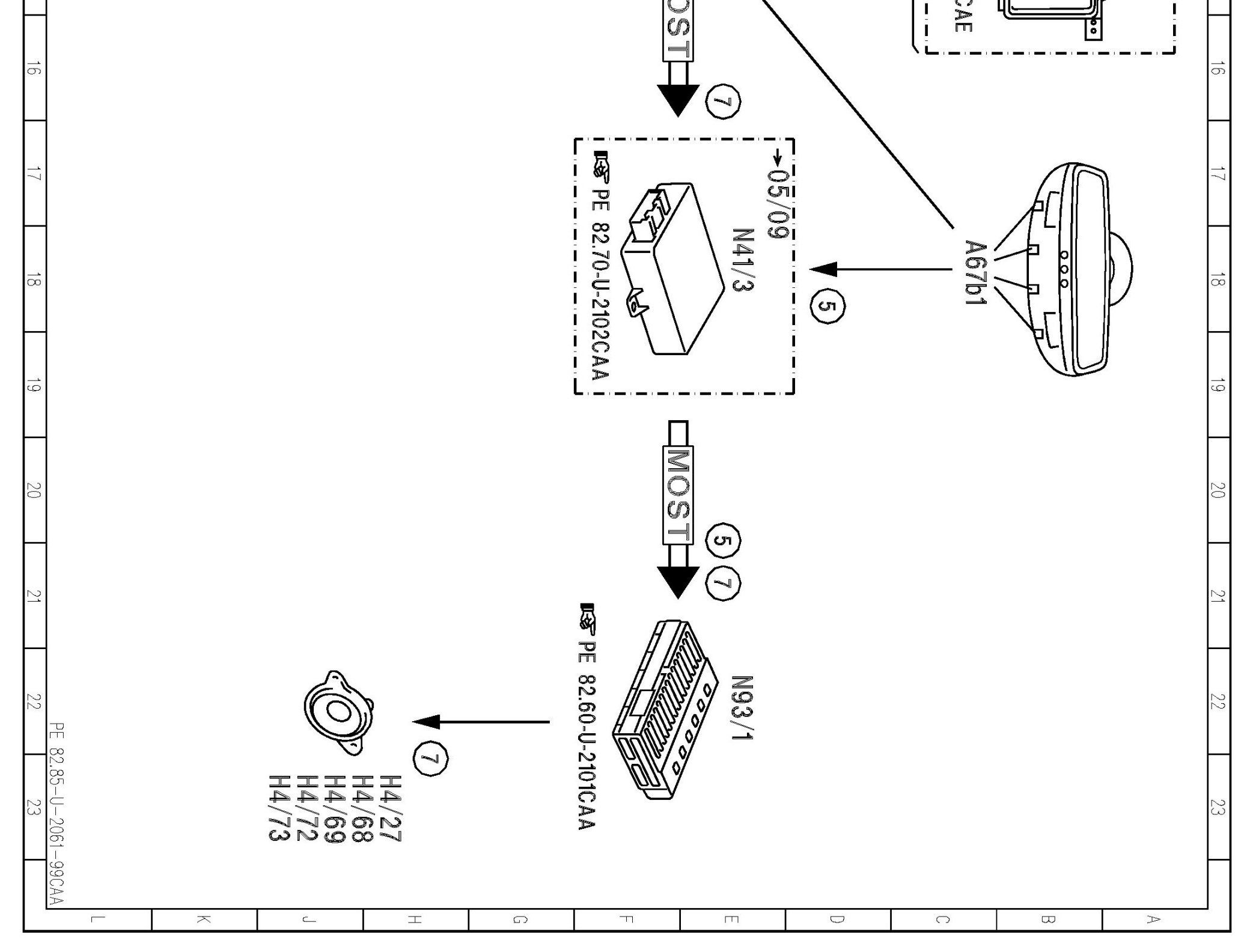

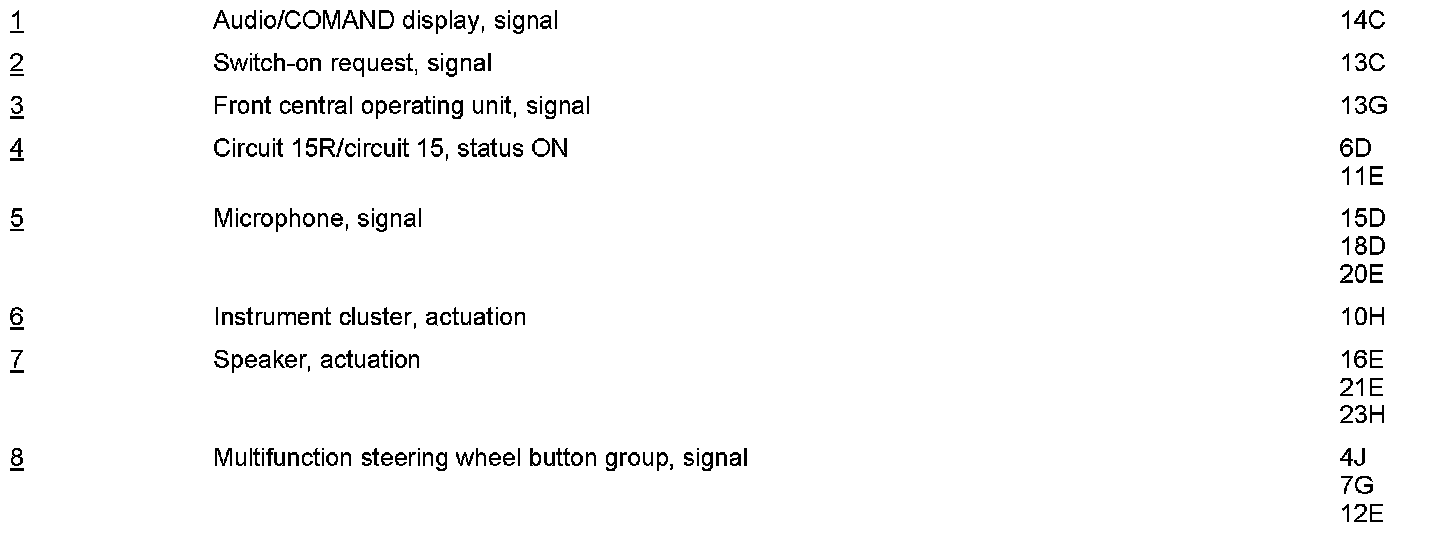

PE82.85-U-2061CAA Electrical Function Schematic For Route Guidance By Voice Output (COMAND), Function

PE82.85-U-2061CAA Electrical Function Schematic For Route Guidance By Voice Output (COMAND), Function

MODEL 216
- with CODE (527) COMAND APS
- with single DVD drive (with navigation)
- with CODE (530) COMAND APS USA (with navigation system)
- as of Model Year 2009

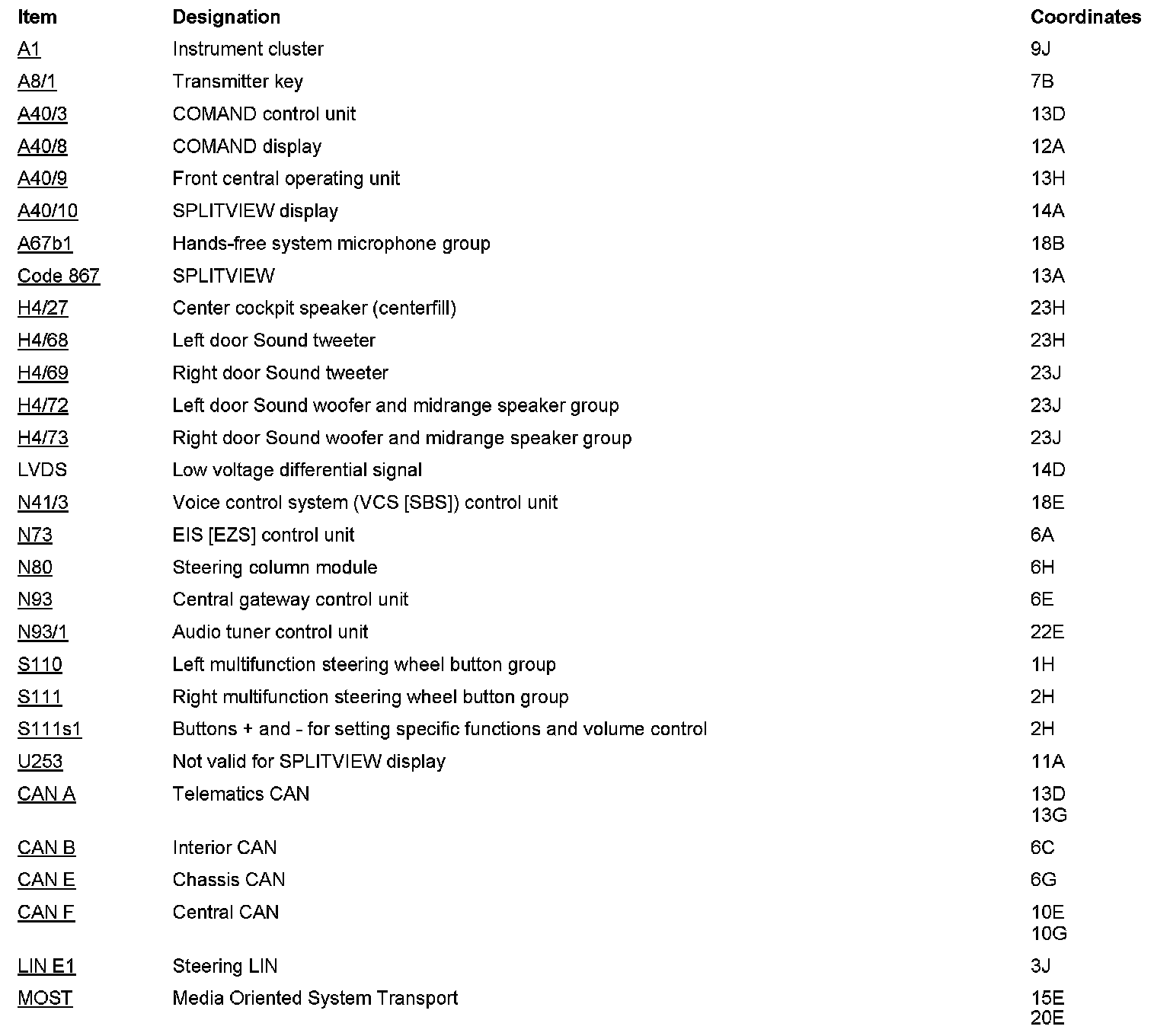

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
