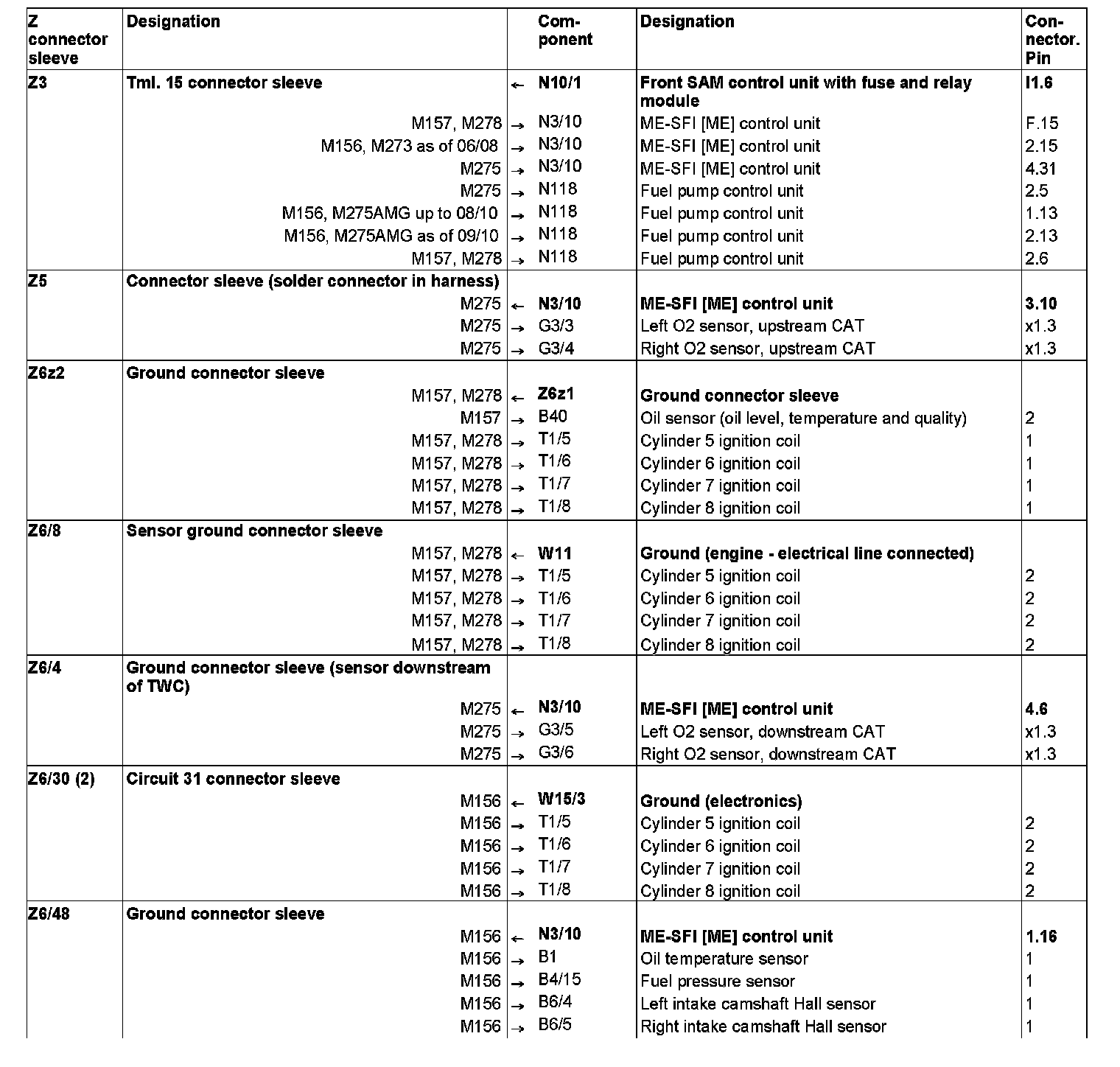

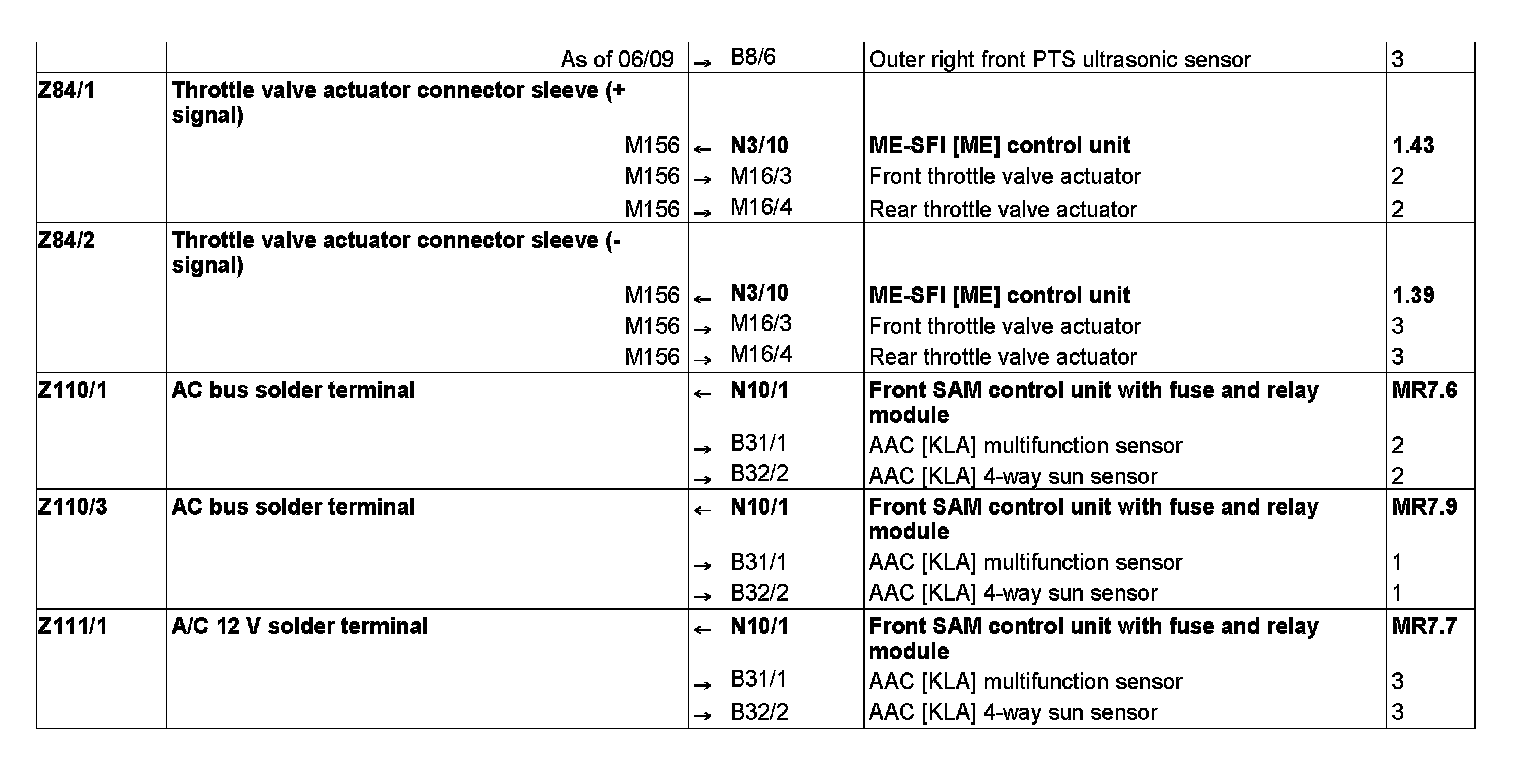

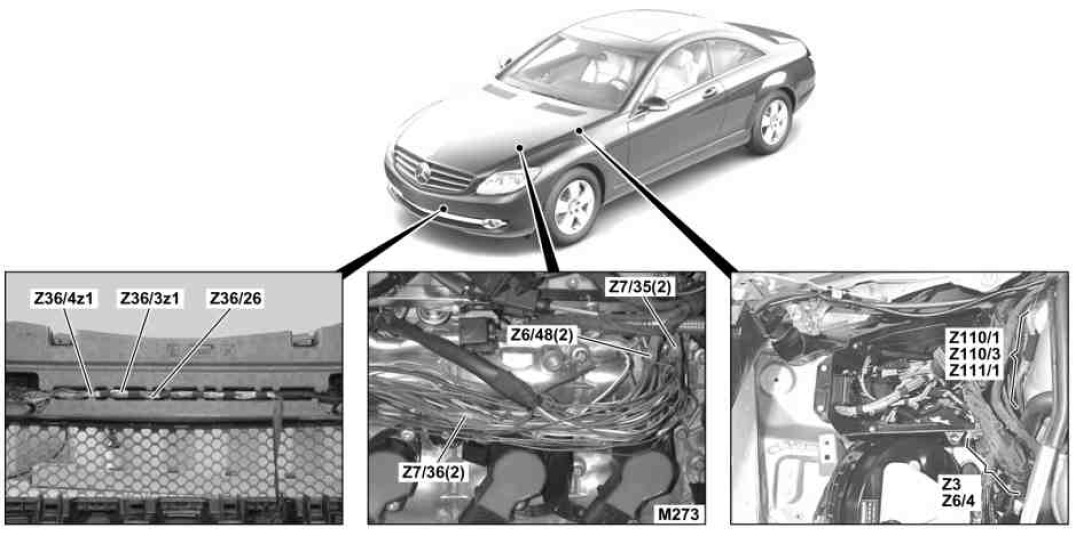

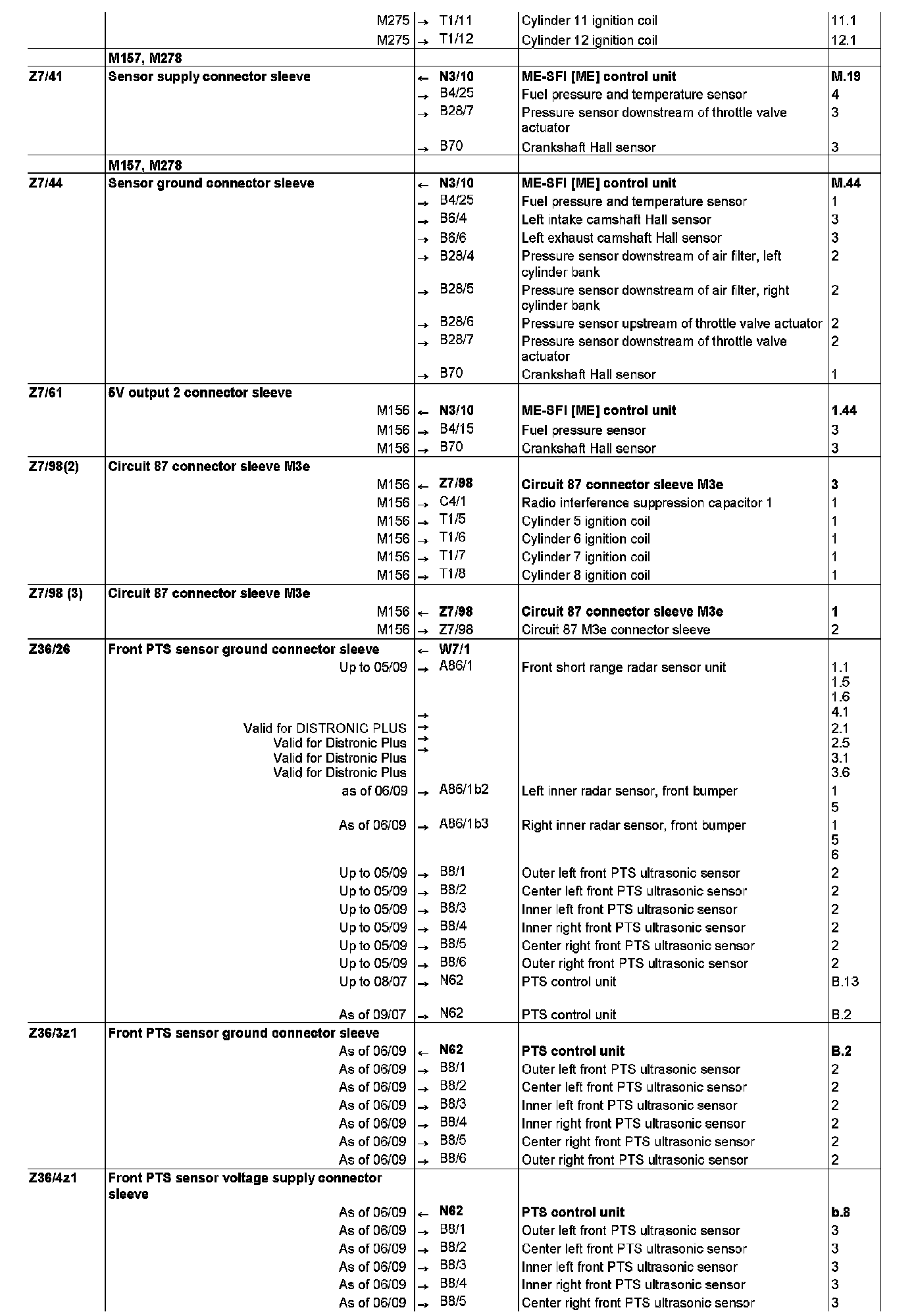

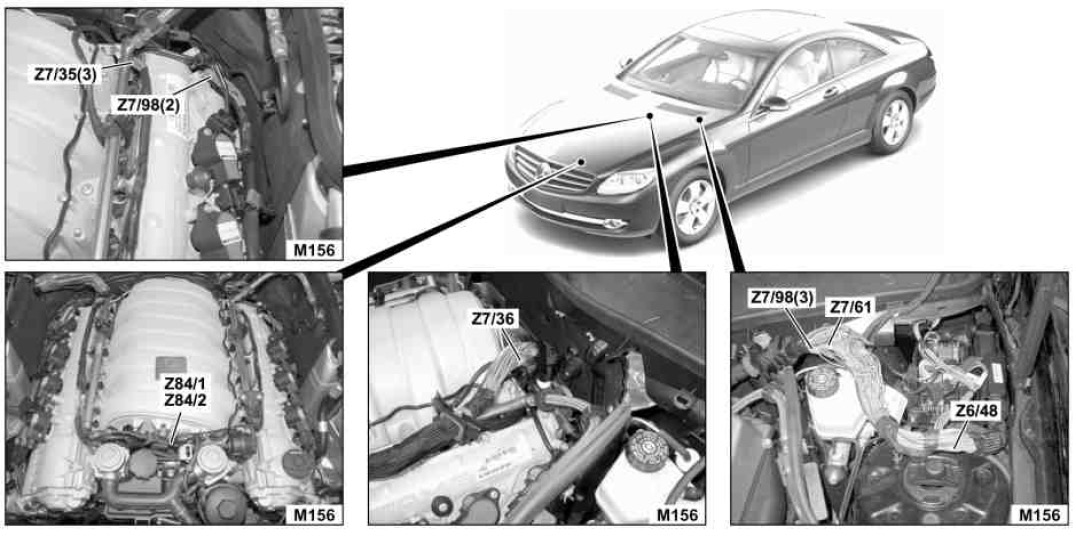

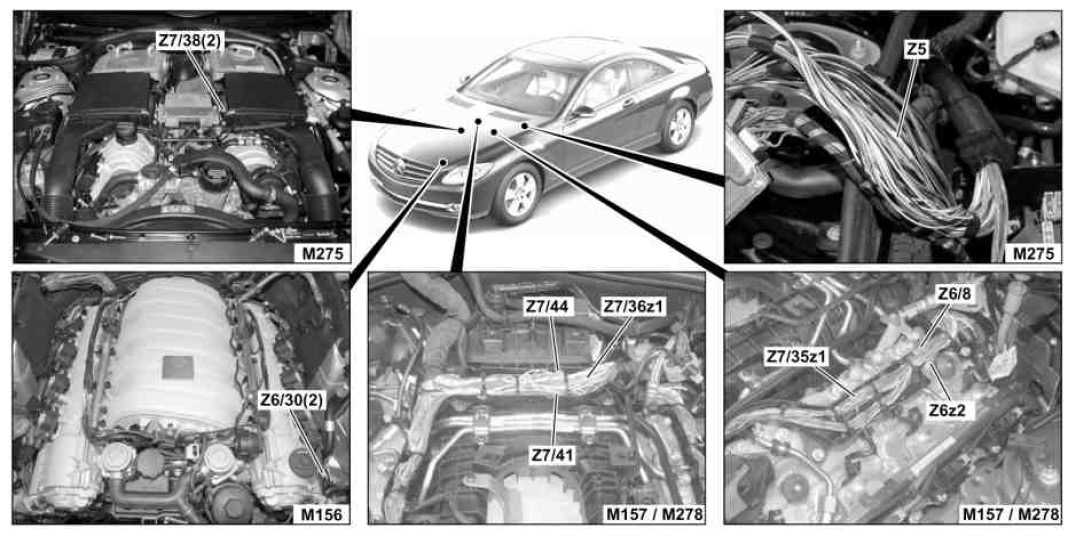

GF00.19-P-3000-01CAA Location and Assignment of Z Connector Sleeves (Cable Connections In Wiring Harness) - Engine Compartment



GF00.19-P-3000-01CAA Location and Assignment of Z Connector Sleeves (cable Connections in Wiring Harness) - Engine Compartment Left
Model 216
