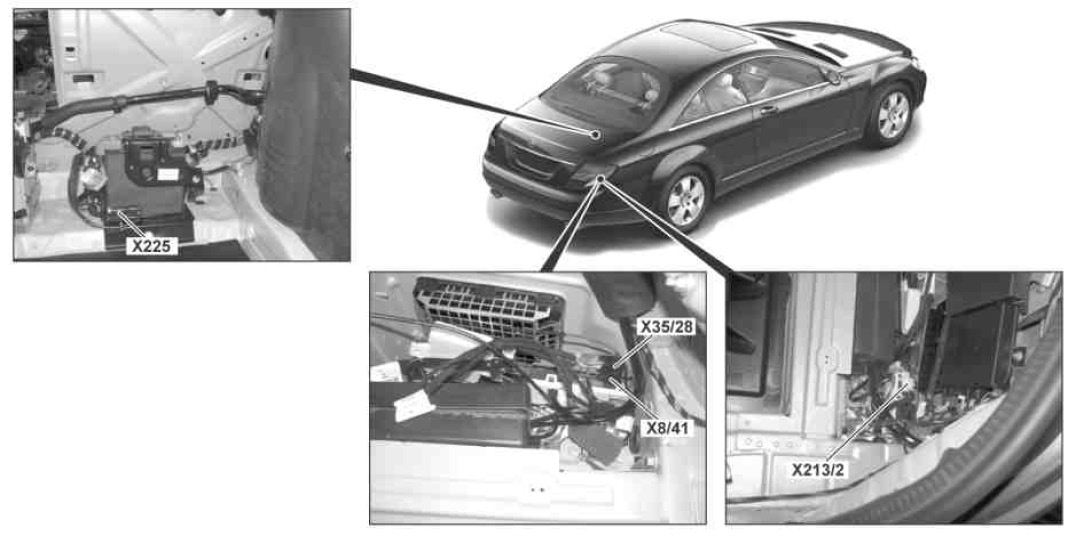

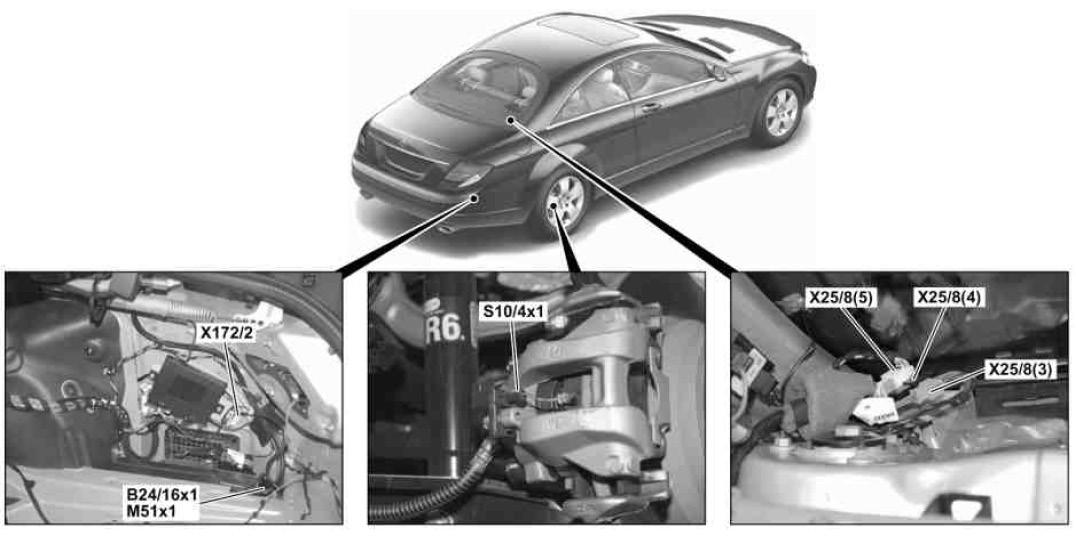

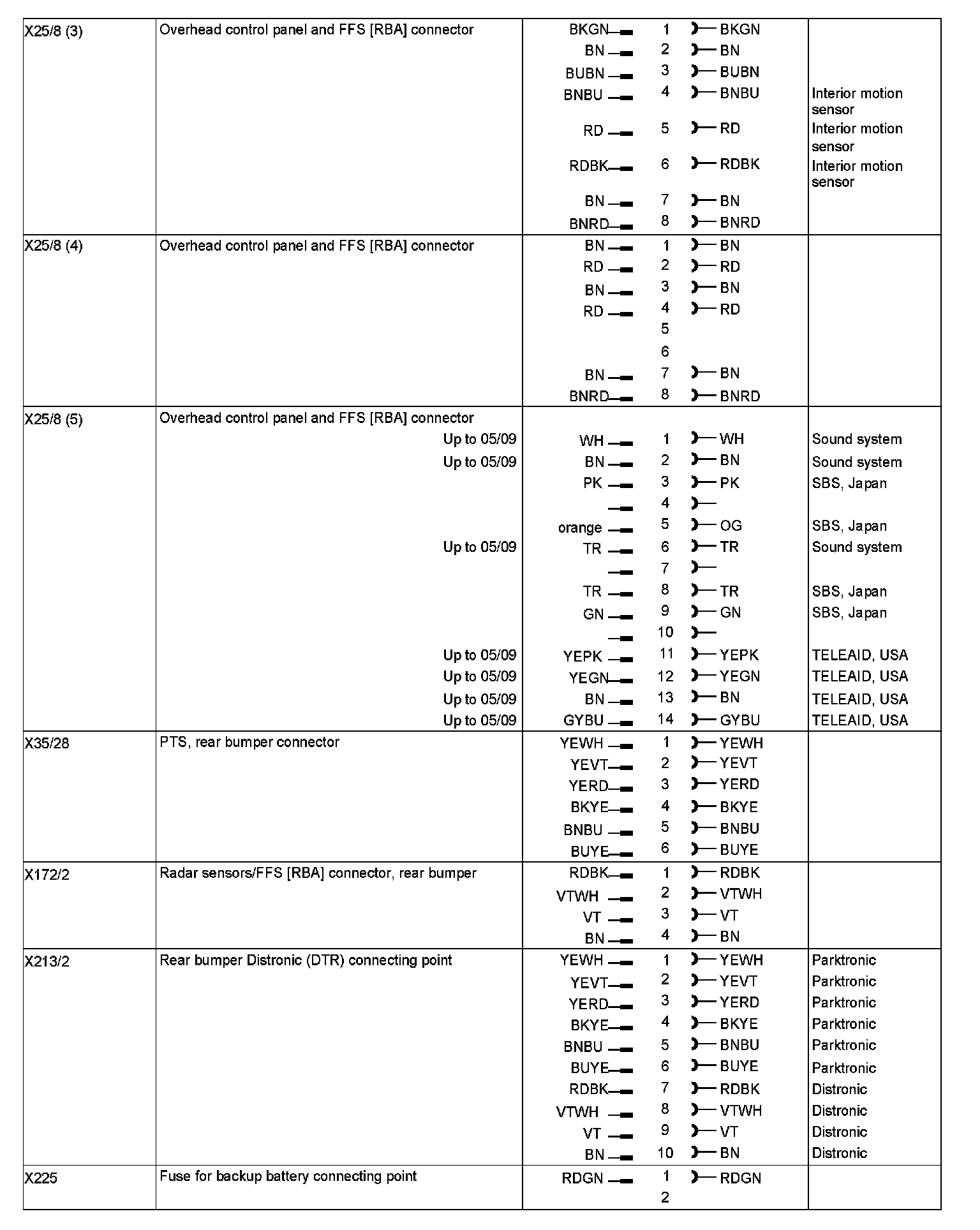

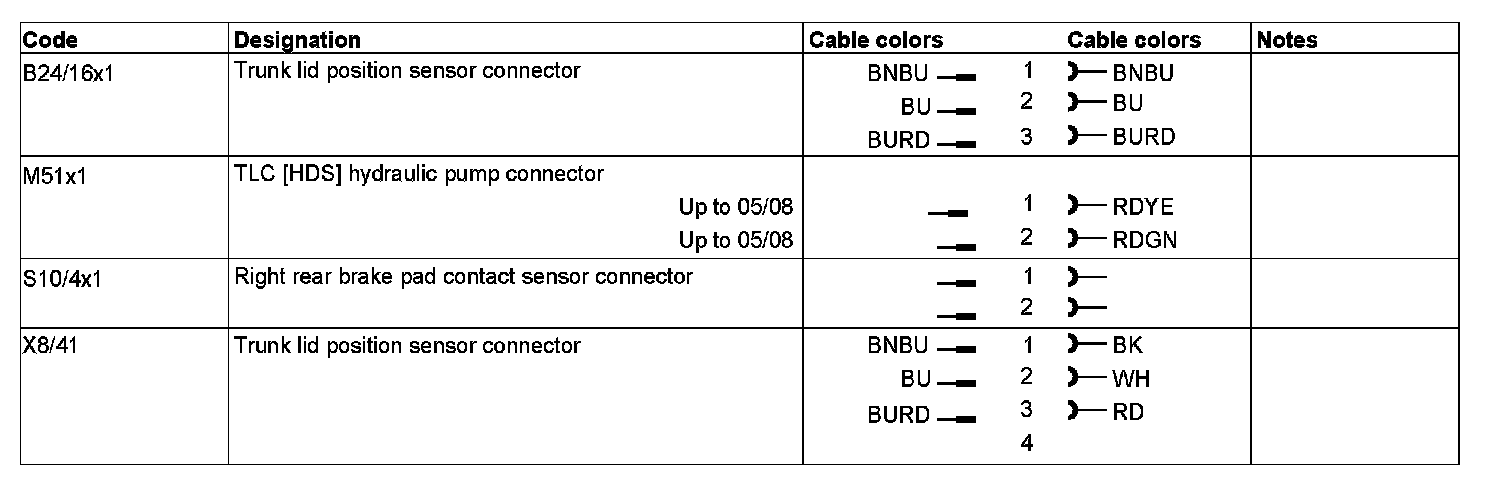

GF00.19-P-1000-07CAA Location and Assignment of Line and Plug Connectors, Trunk, Right



GF00.19-P-1000-07CAA Location and Assignment of Line and Plug Connectors, Trunk, Right
Model 216
