Vacuum Pump: Service and Repair

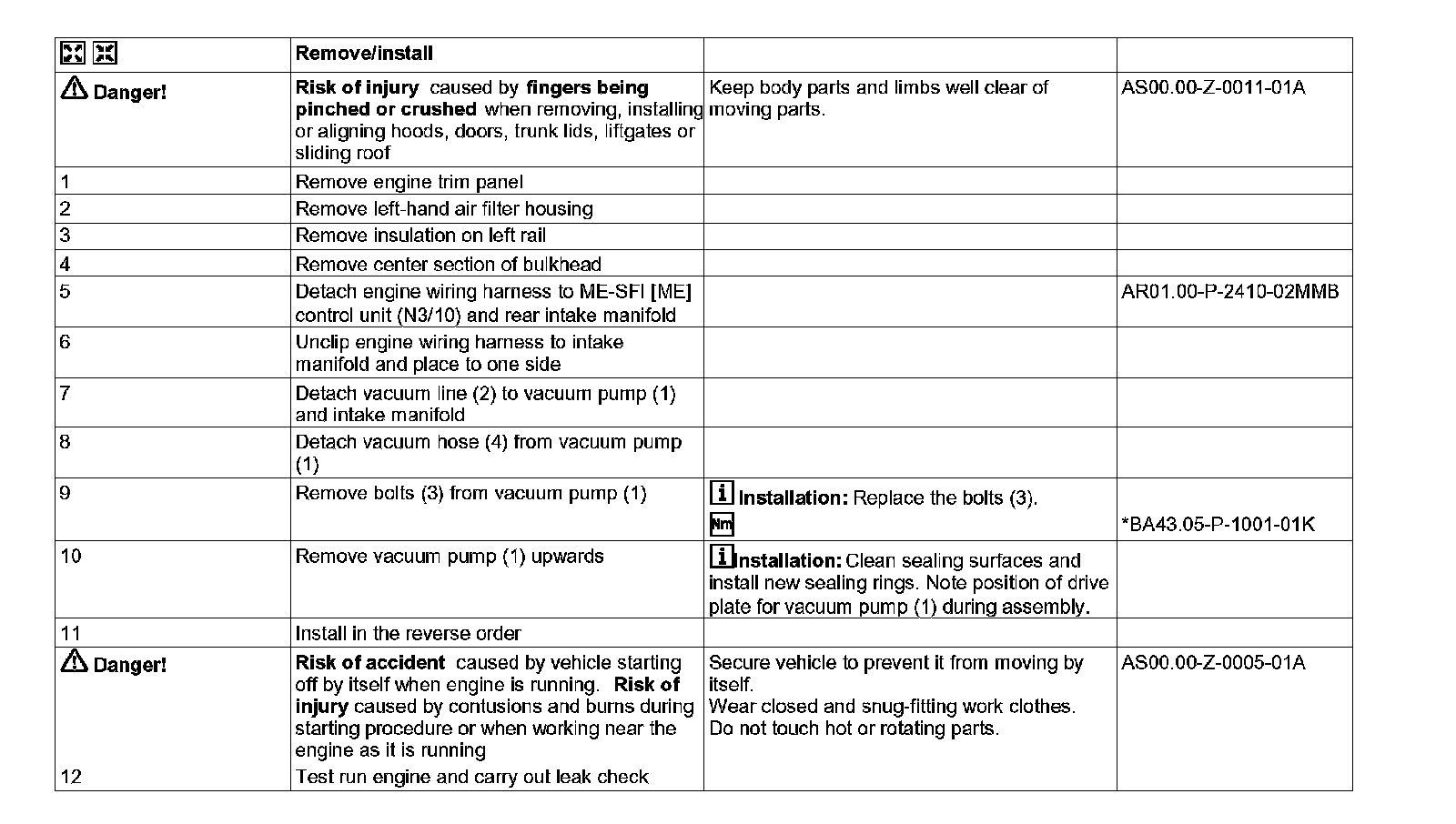

AR43.05-P-1320MMB Remove/Install Vacuum Pump
-MODEL 216, 221 with ENGINE 157, 278

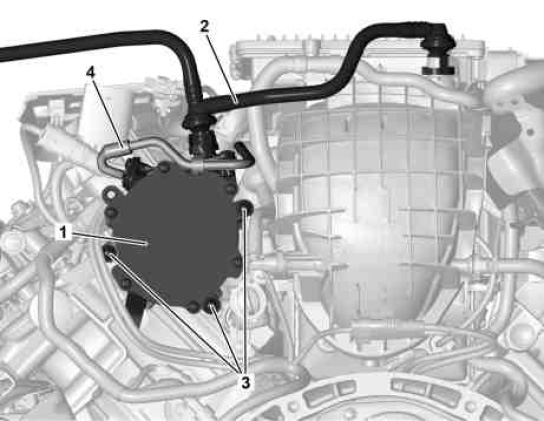

1 Vacuum pump
2 Vacuum line
3 Screw
4 Vacuum hose
