AR42.20-P-0590-01SX Detach/Attach Mechanical Release Cable

AR42.20-P-0590-01SX Detach/attach mechanical release cable

Component Identification:

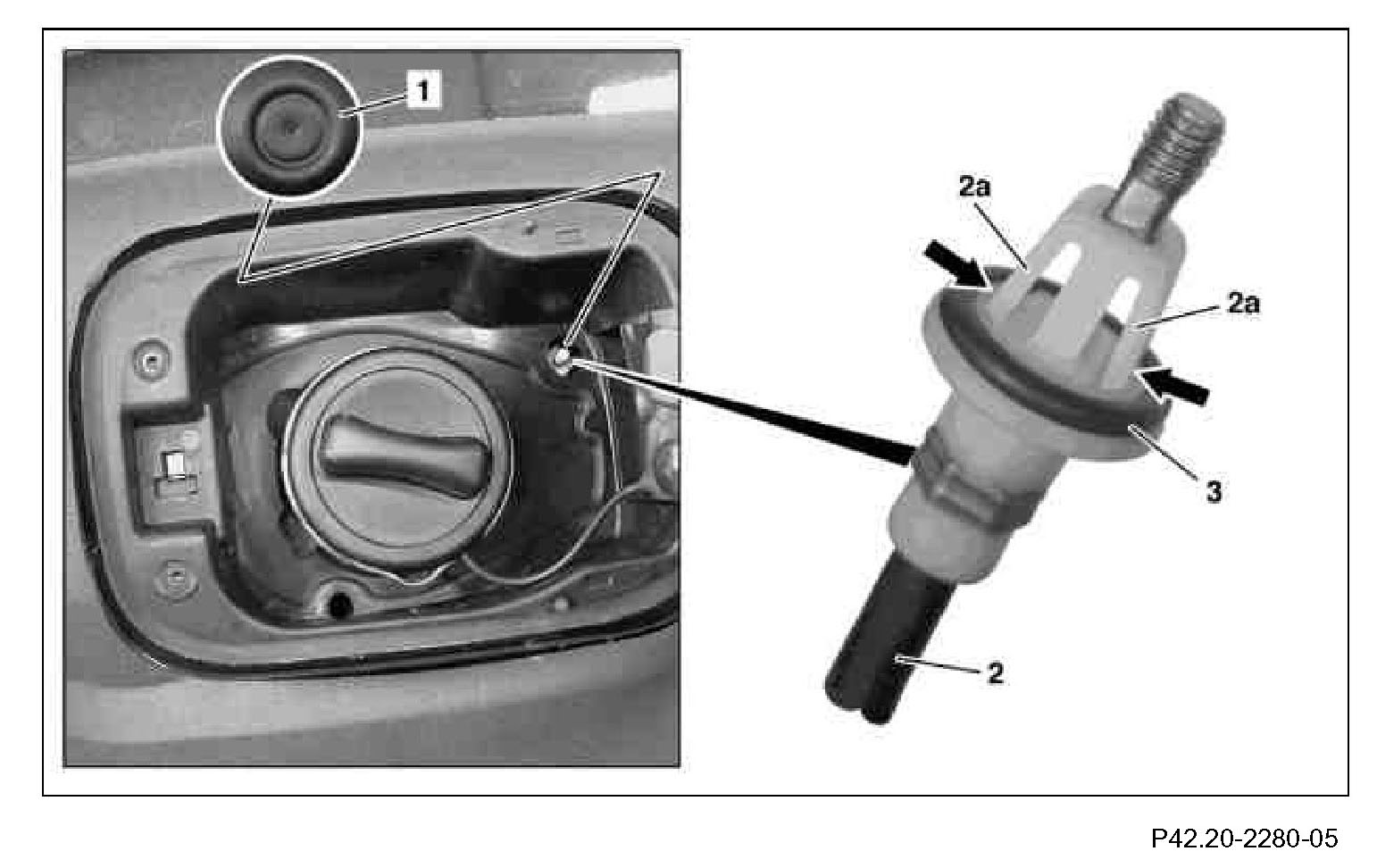

1 Open fuel filler flap.
2 Lever out plug (1).
3 Press catch springs (2a) carefully in the direction of the arrow using a screwdriver and pull out mechanical release cable (2) downwards.

Installation: Replace O-ring (3) if necessary.

Component Identification:

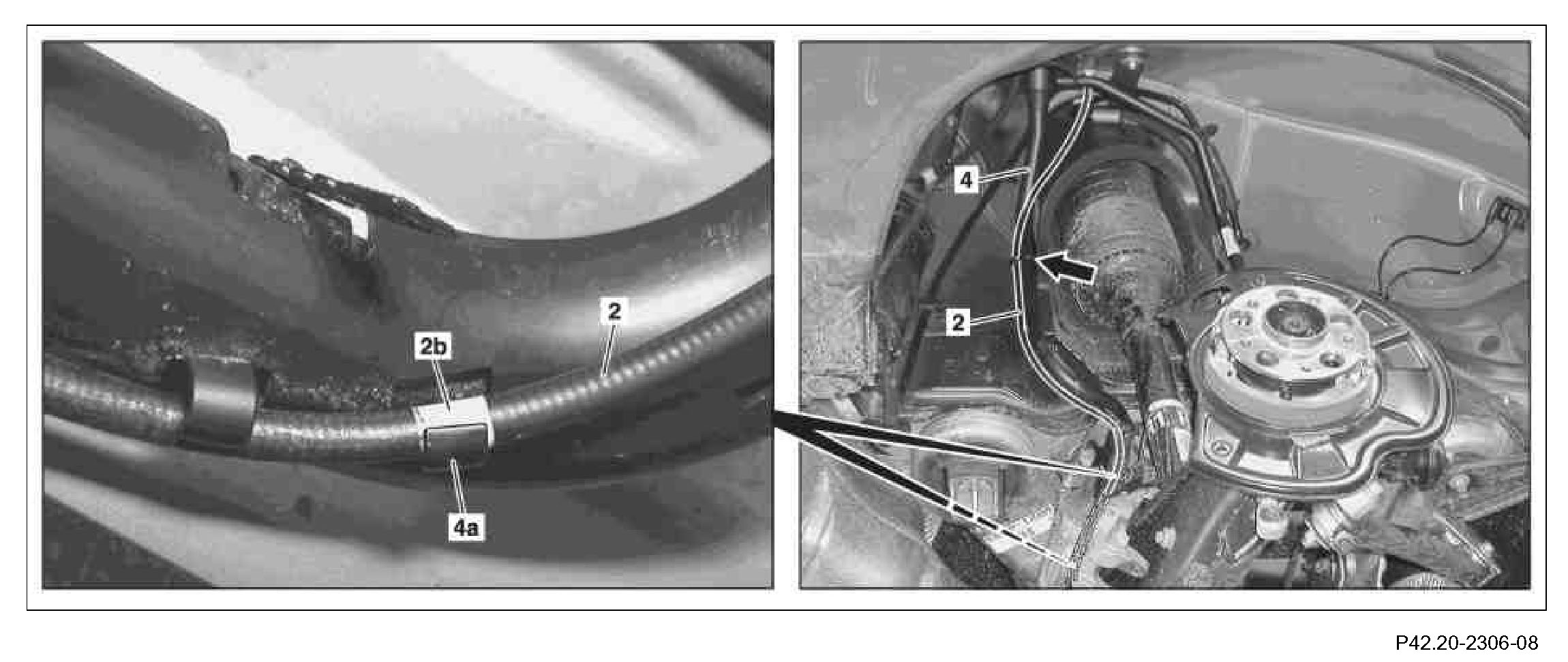

4 Remove cable tie (arrow).
5 Remove mechanical release cable (2) from retaining clamps (4a) on fuel filler pipe (4).

Installation: Align the mechanical release cable (2) such that both colored marks (2b) are located at the retaining clamps (4a).

6 Install in the reverse order.
