Electrical Diagrams

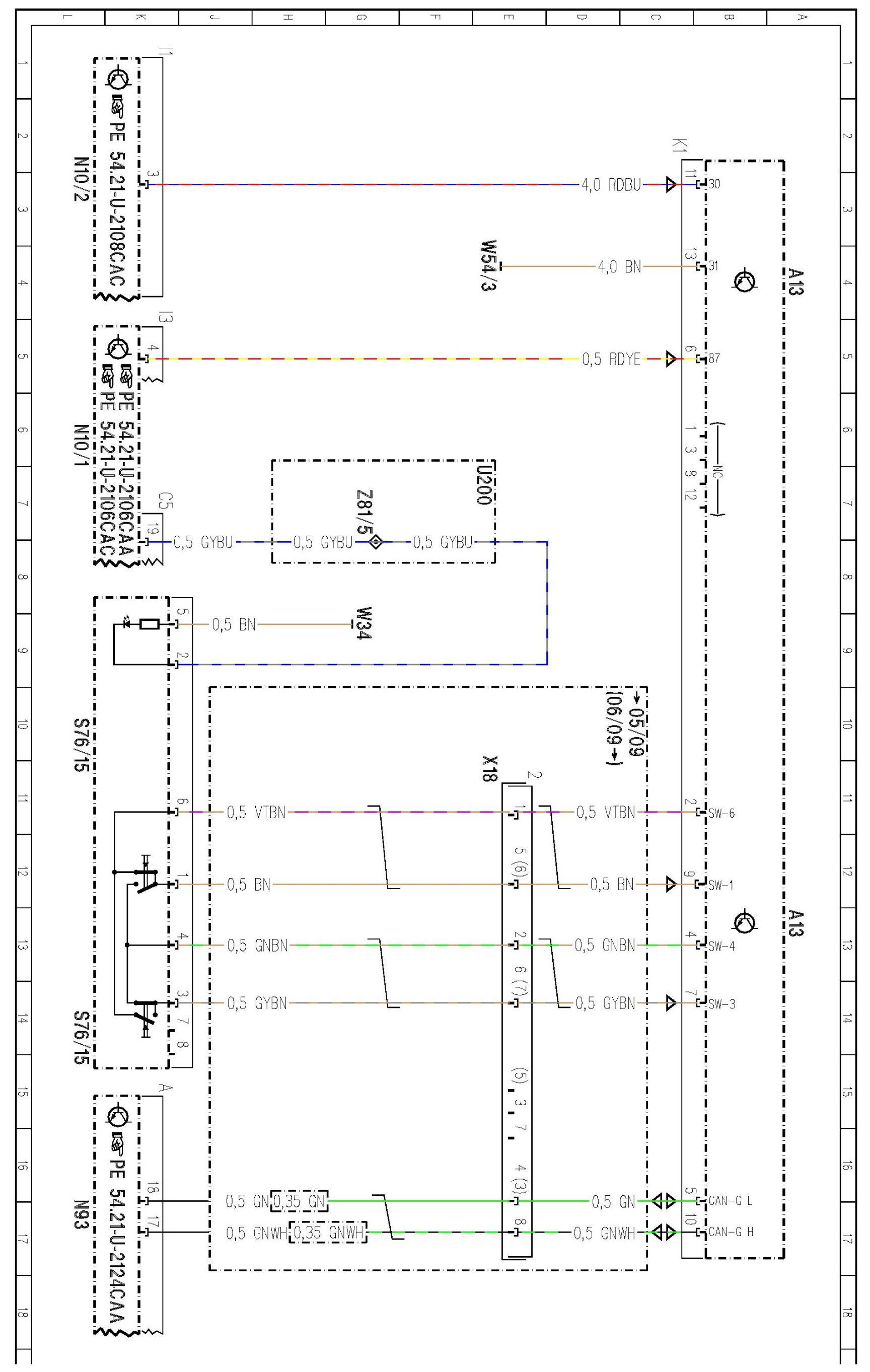

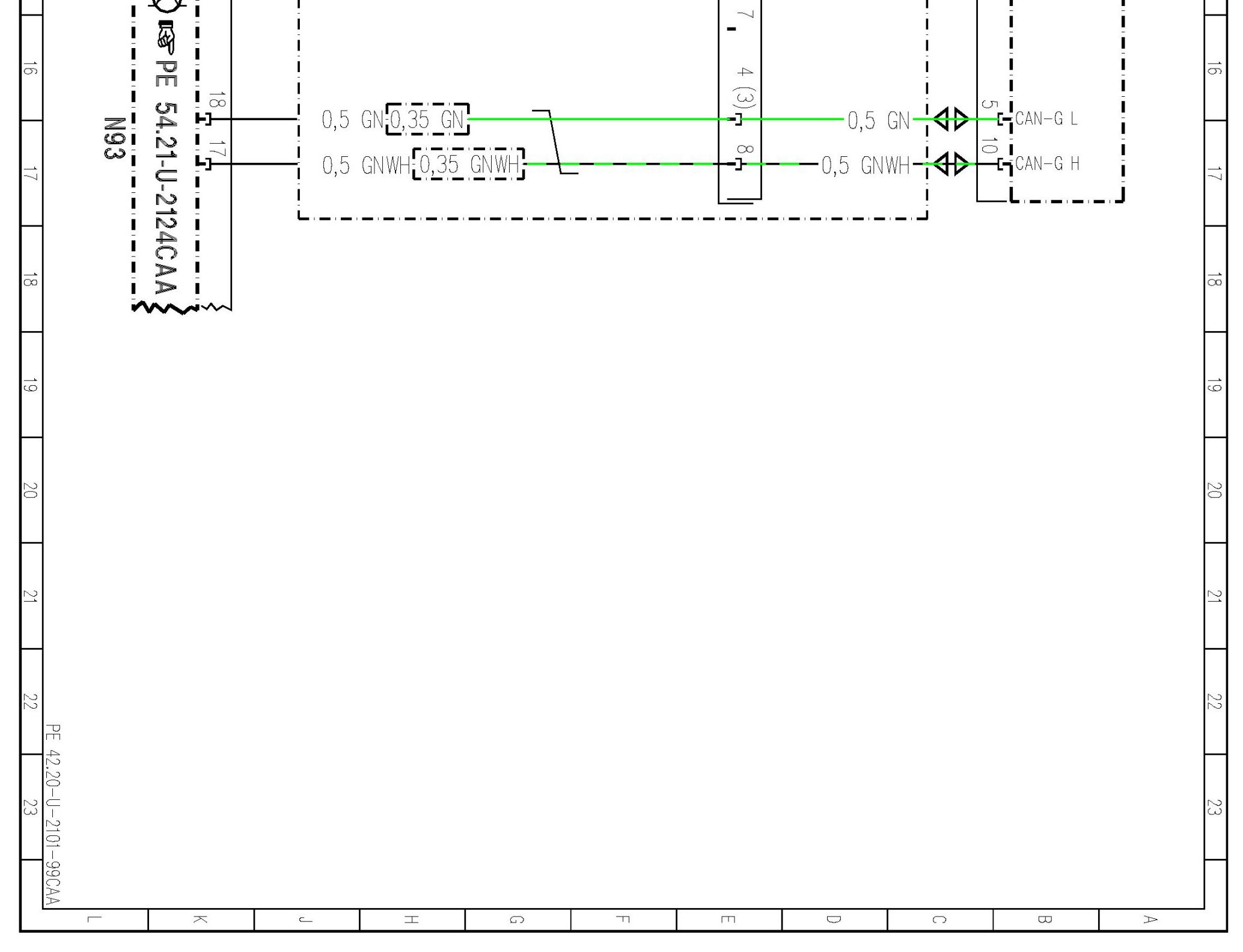

PE42.20-U-2101CAA Electric Parking Brake

MODEL 216

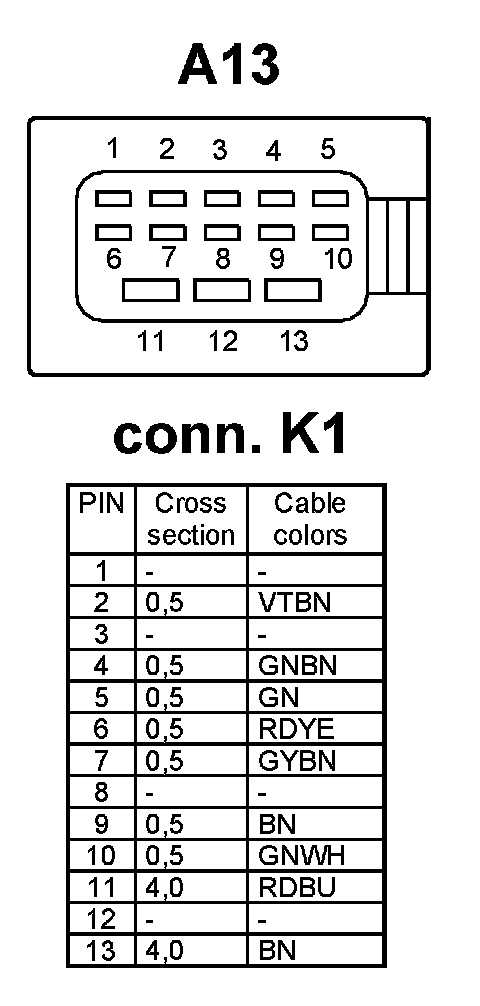

- Control unit A13







































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
