Brake Pedal Assy: Service and Repair

AR29.10-P-0300SX Remove/install pedal assembly
- with TRANSMISSION 722.6/9

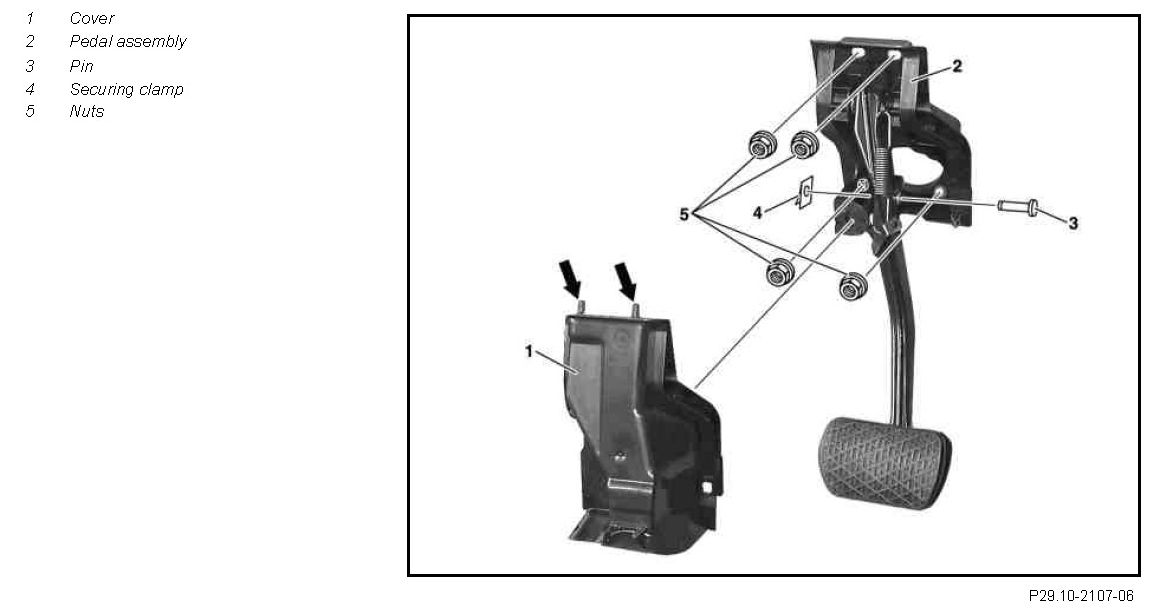

Component Identification:

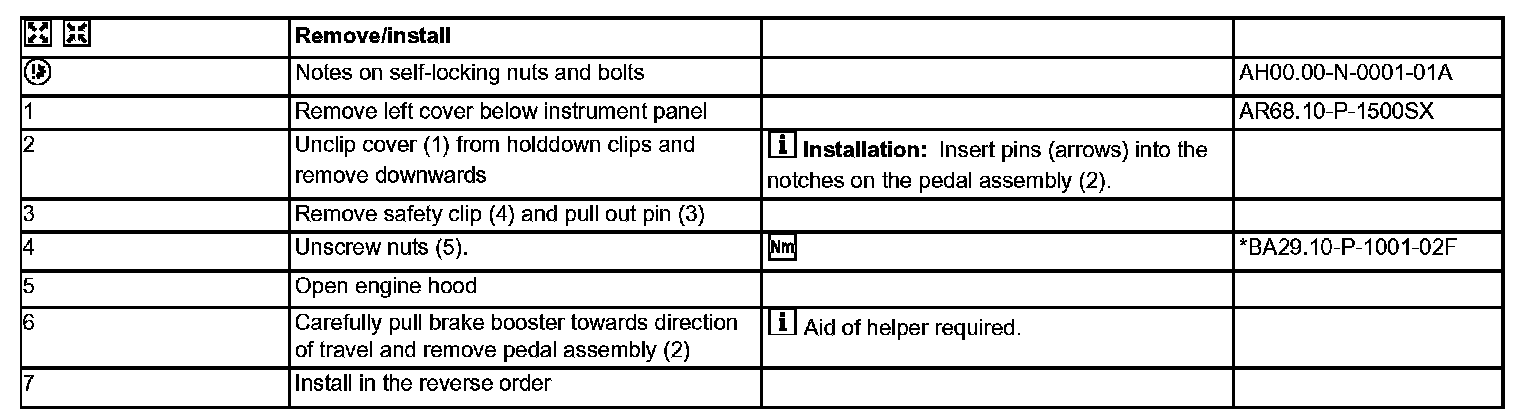

Remove/install Steps 1-7:

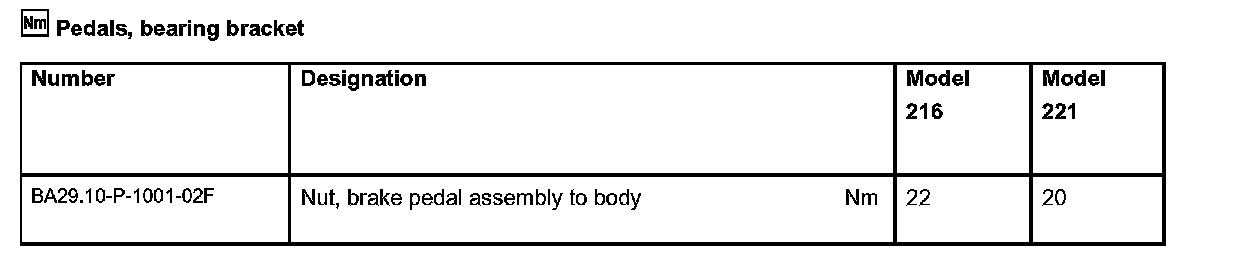

Pedals, bearing bracket:
