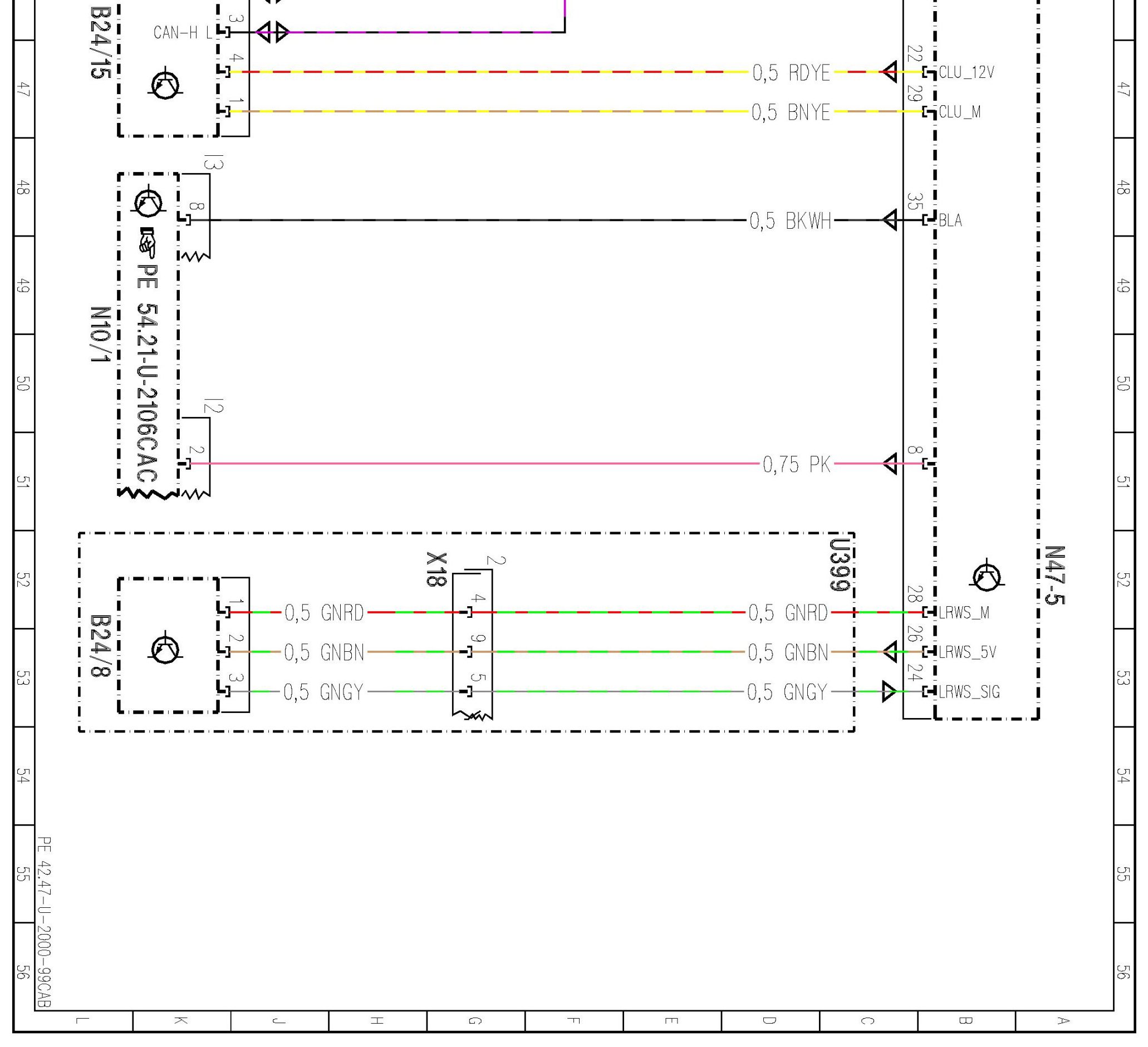

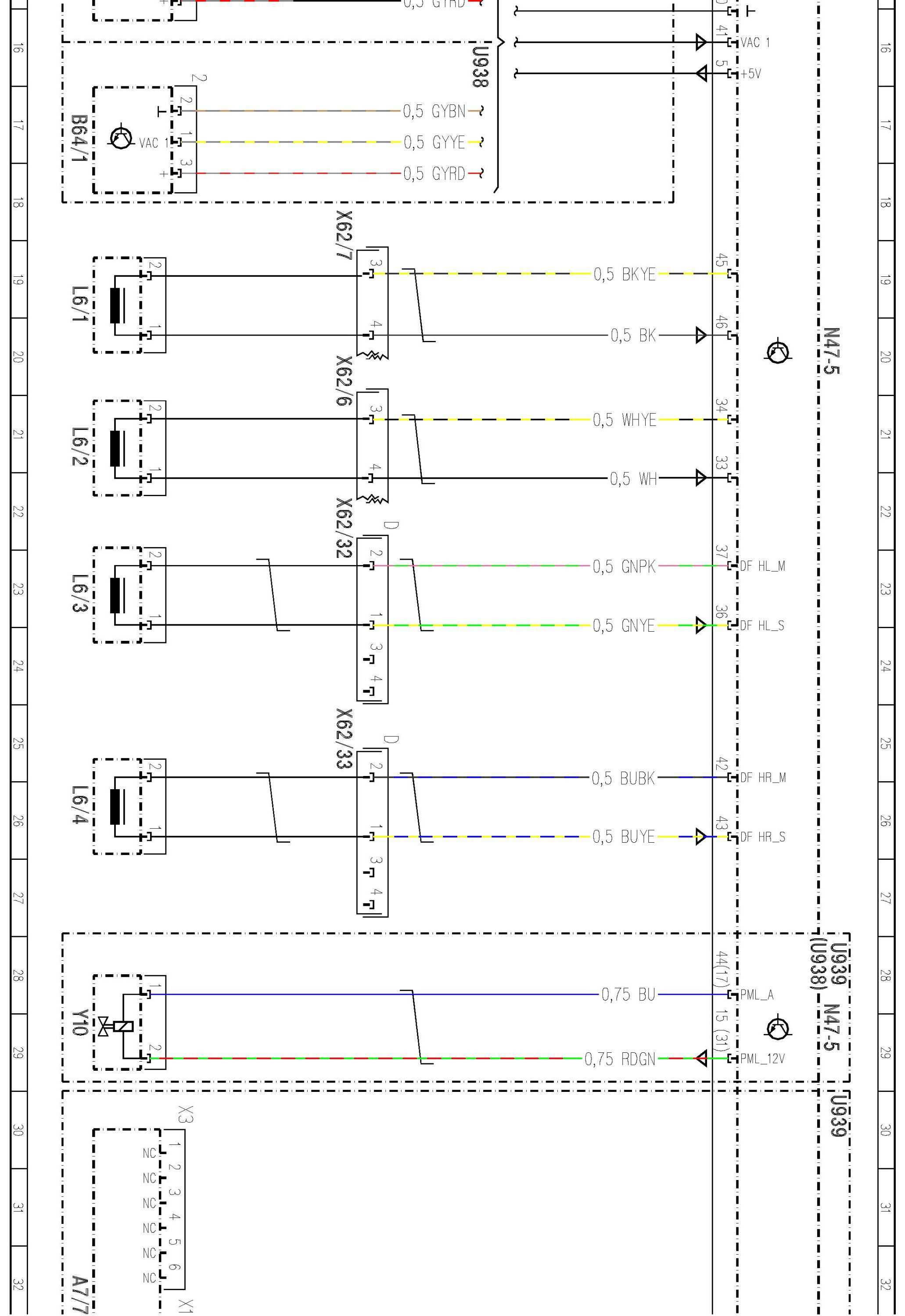

Electrical Diagrams

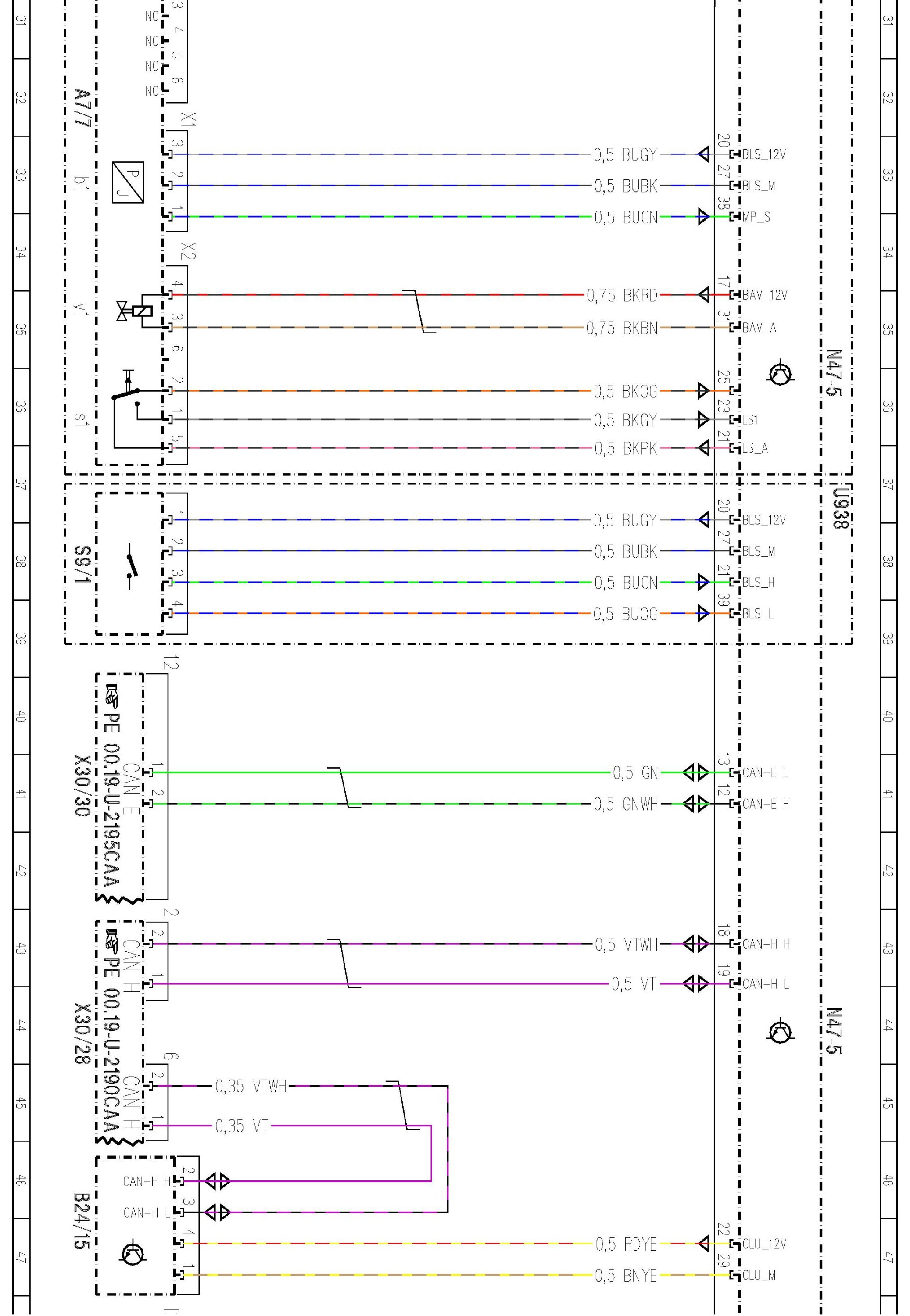

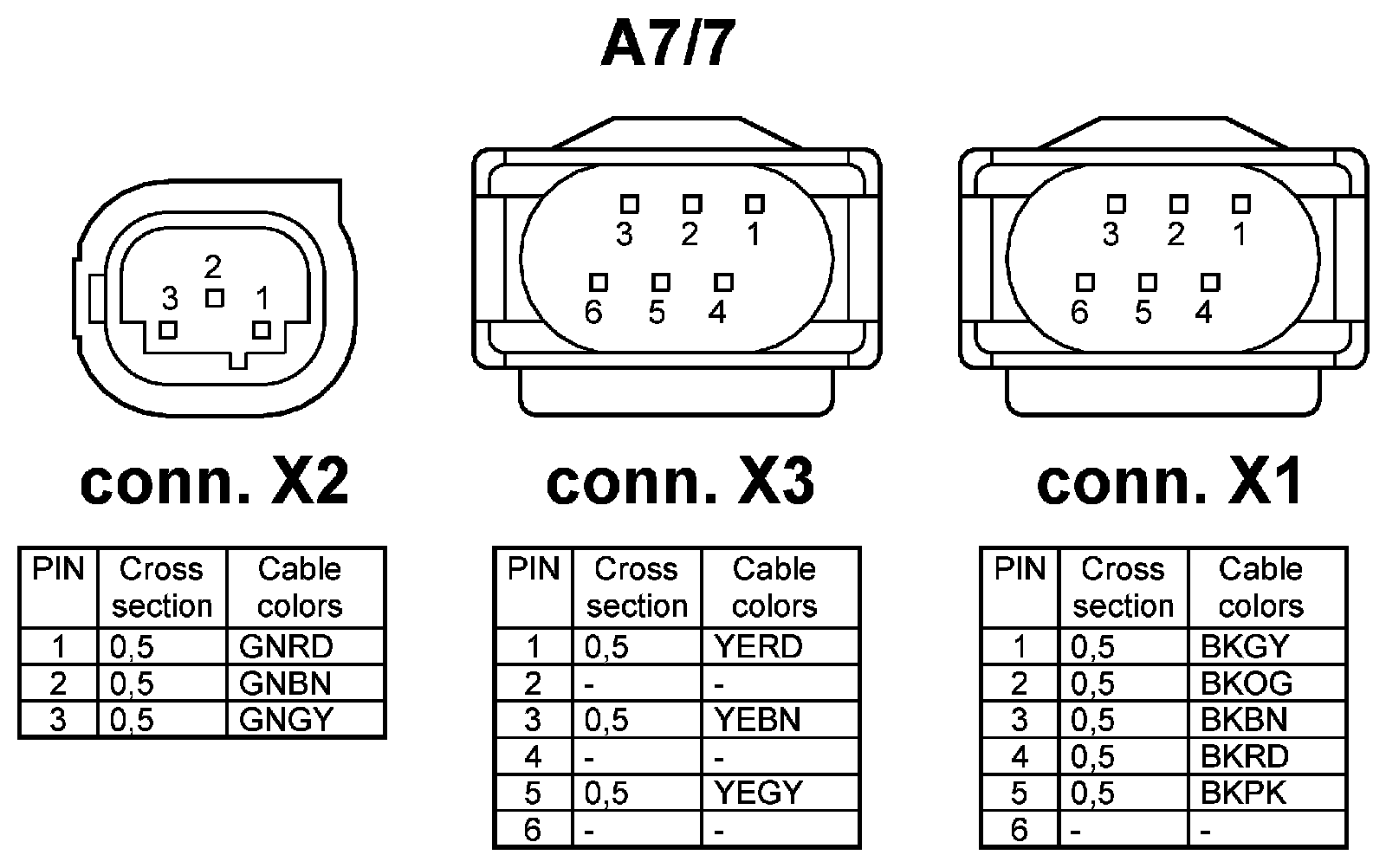

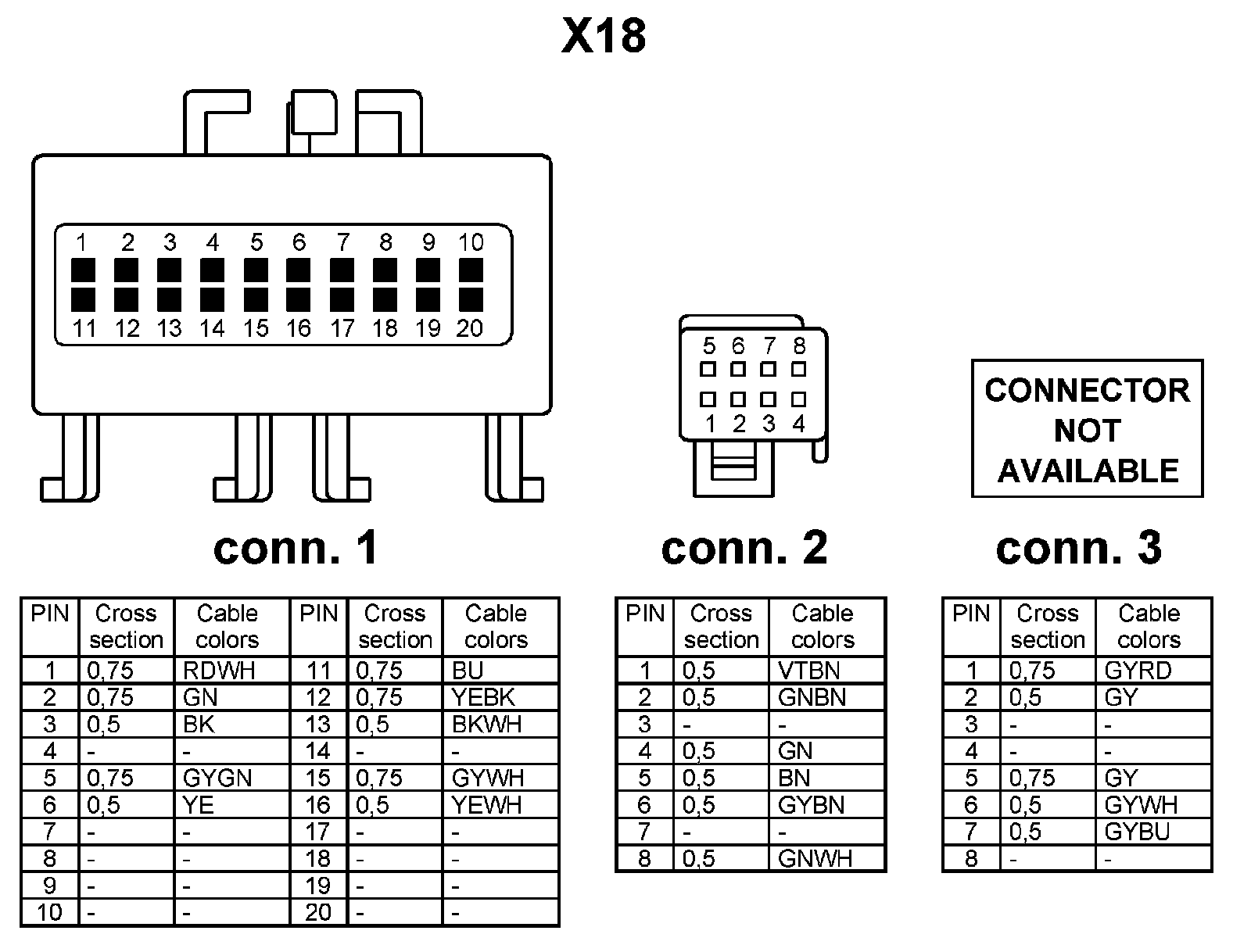

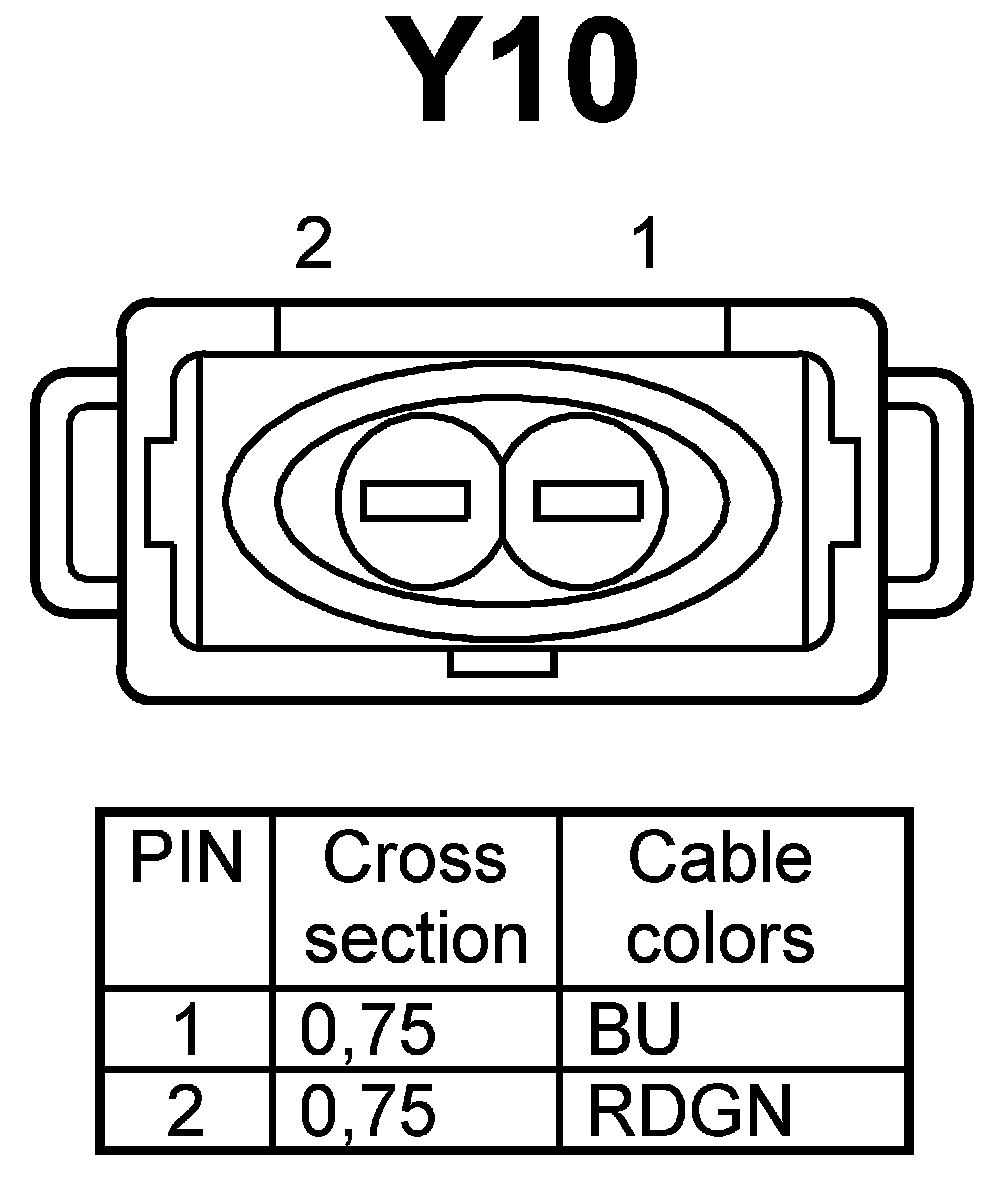

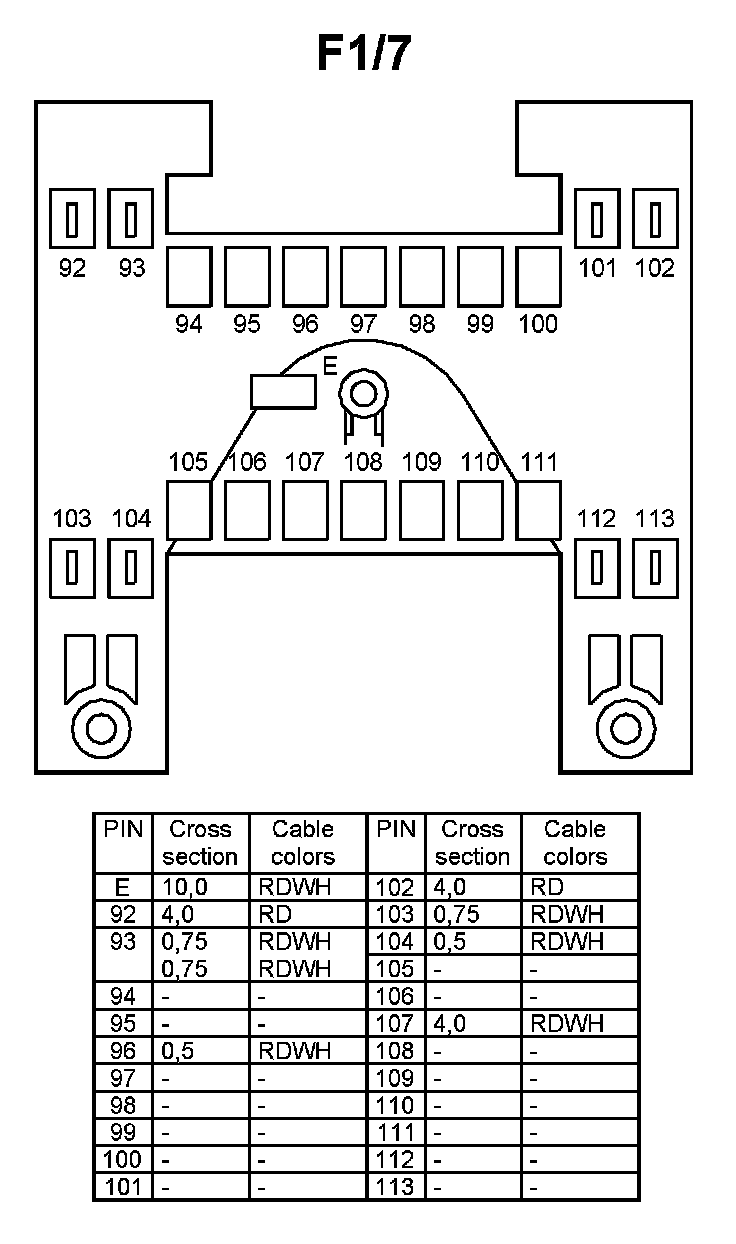

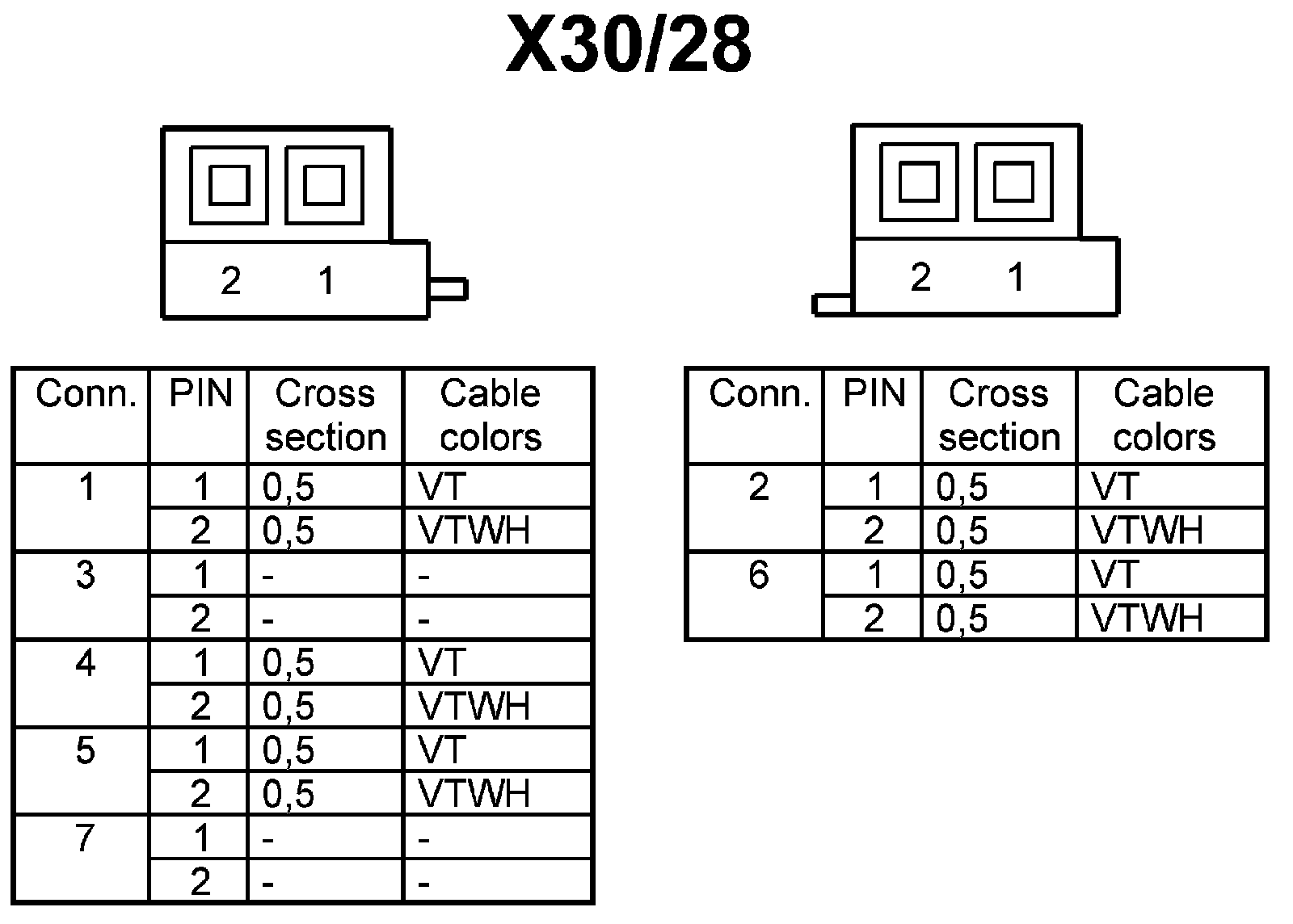

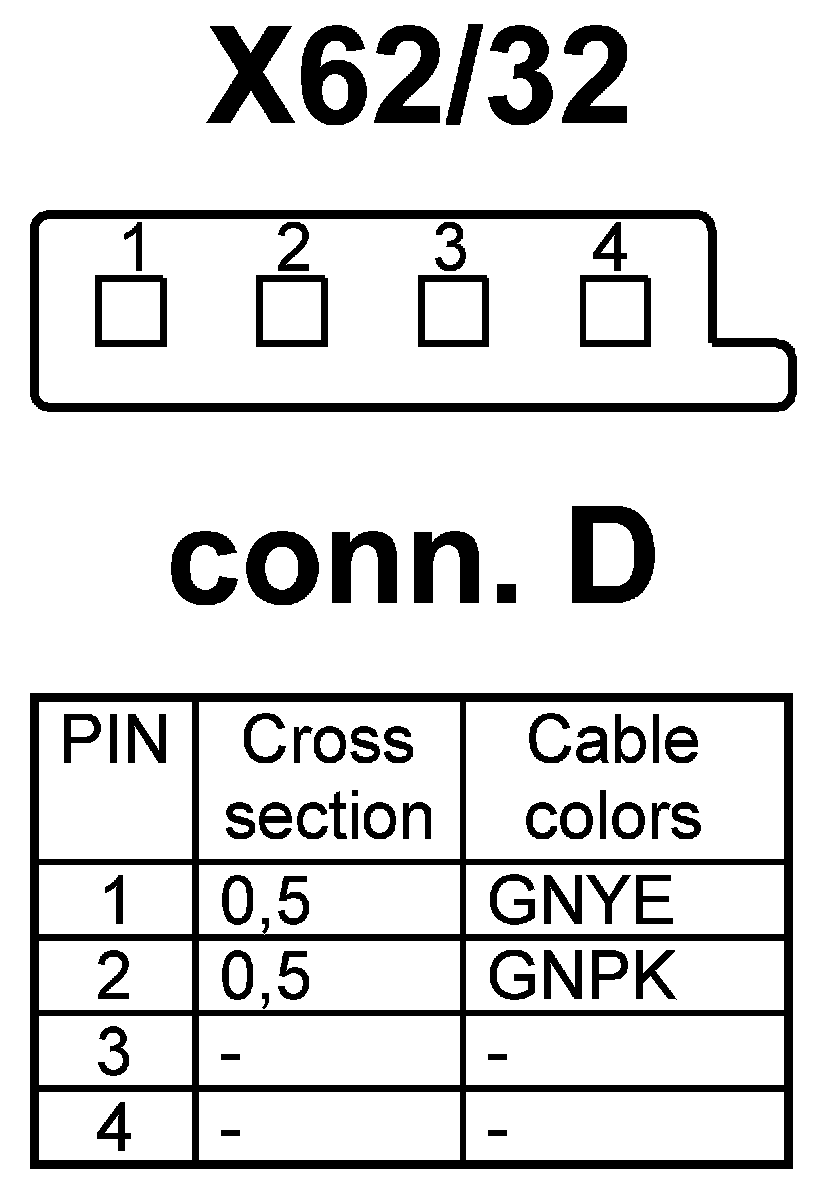

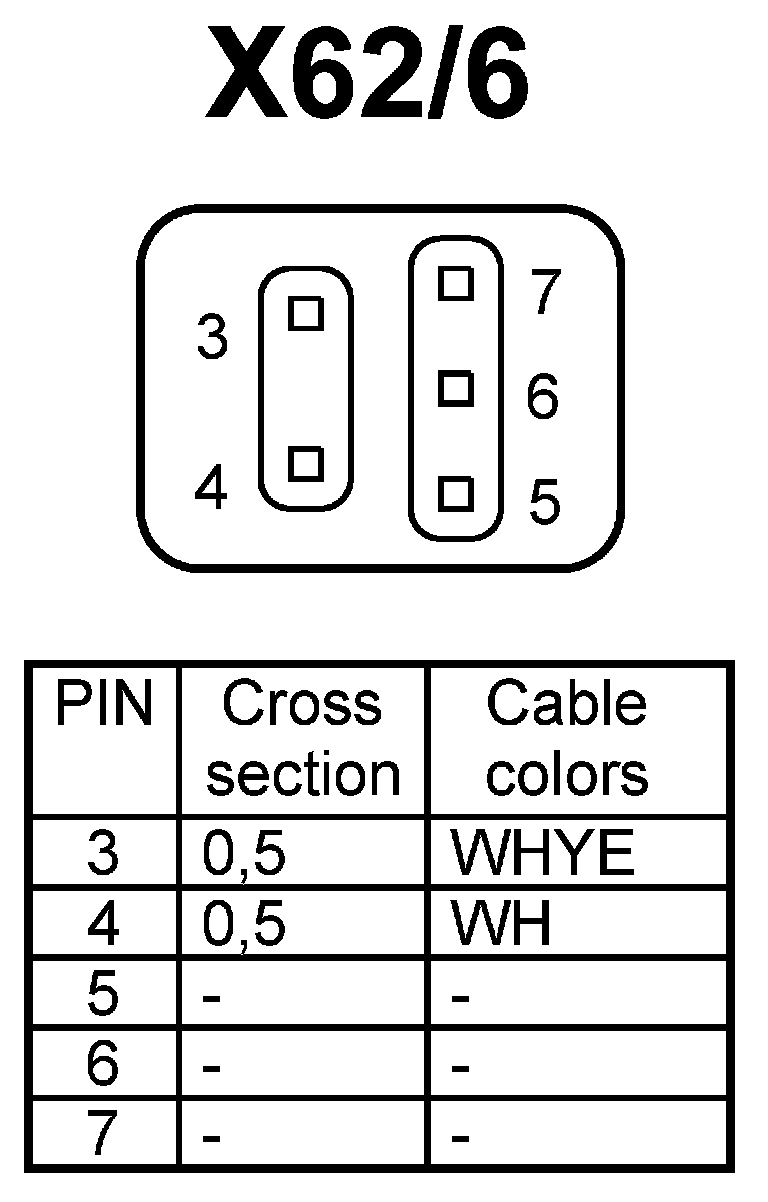

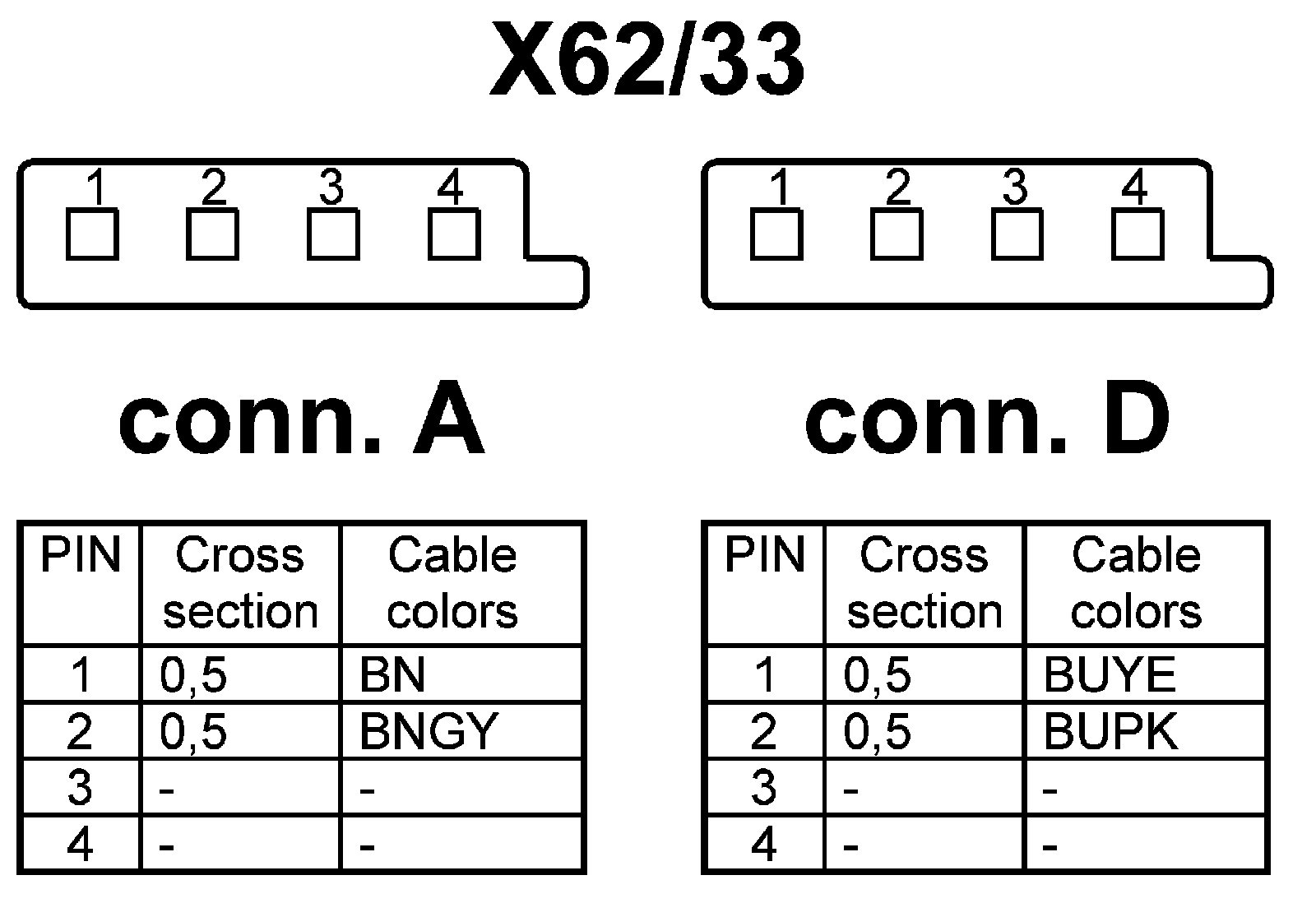

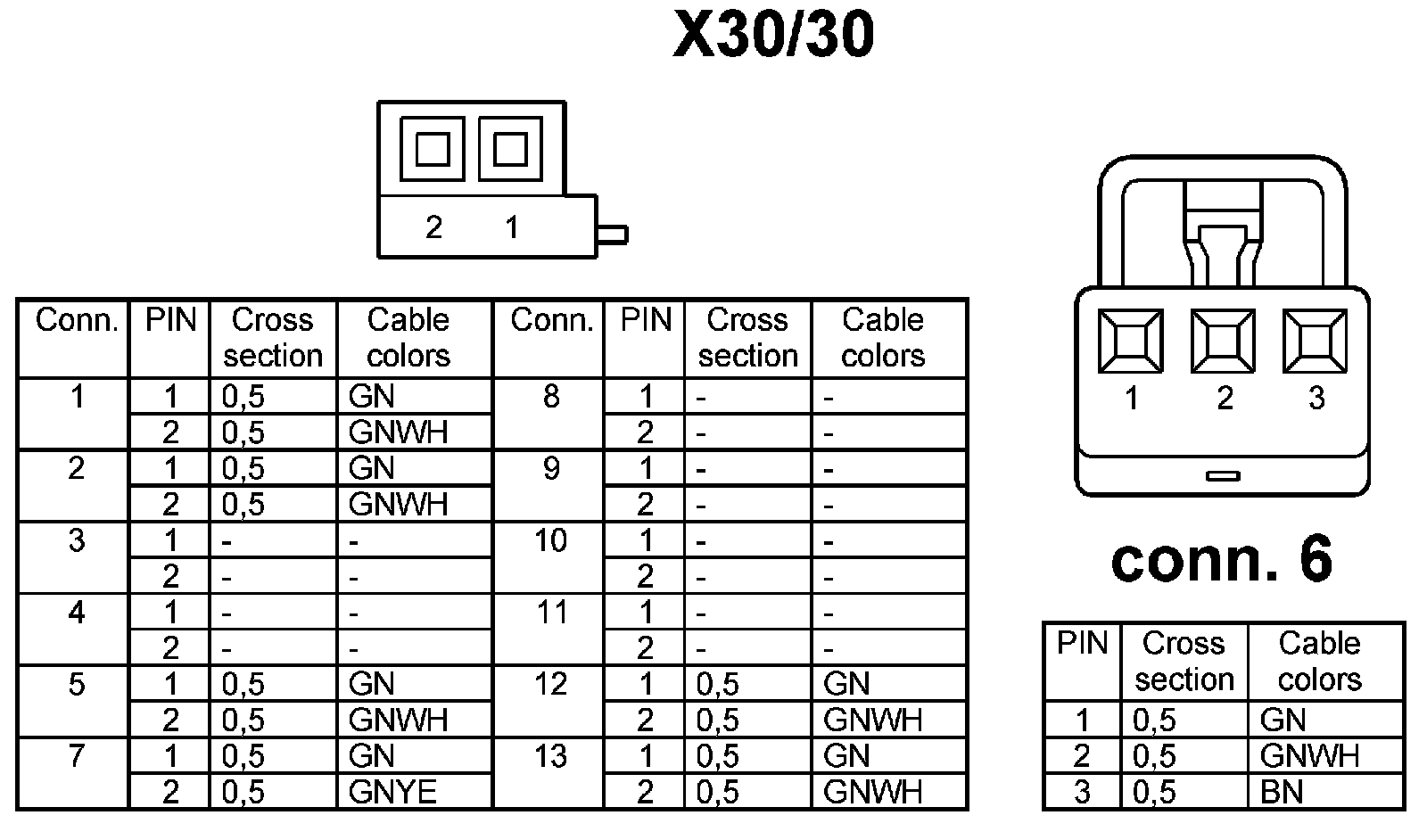

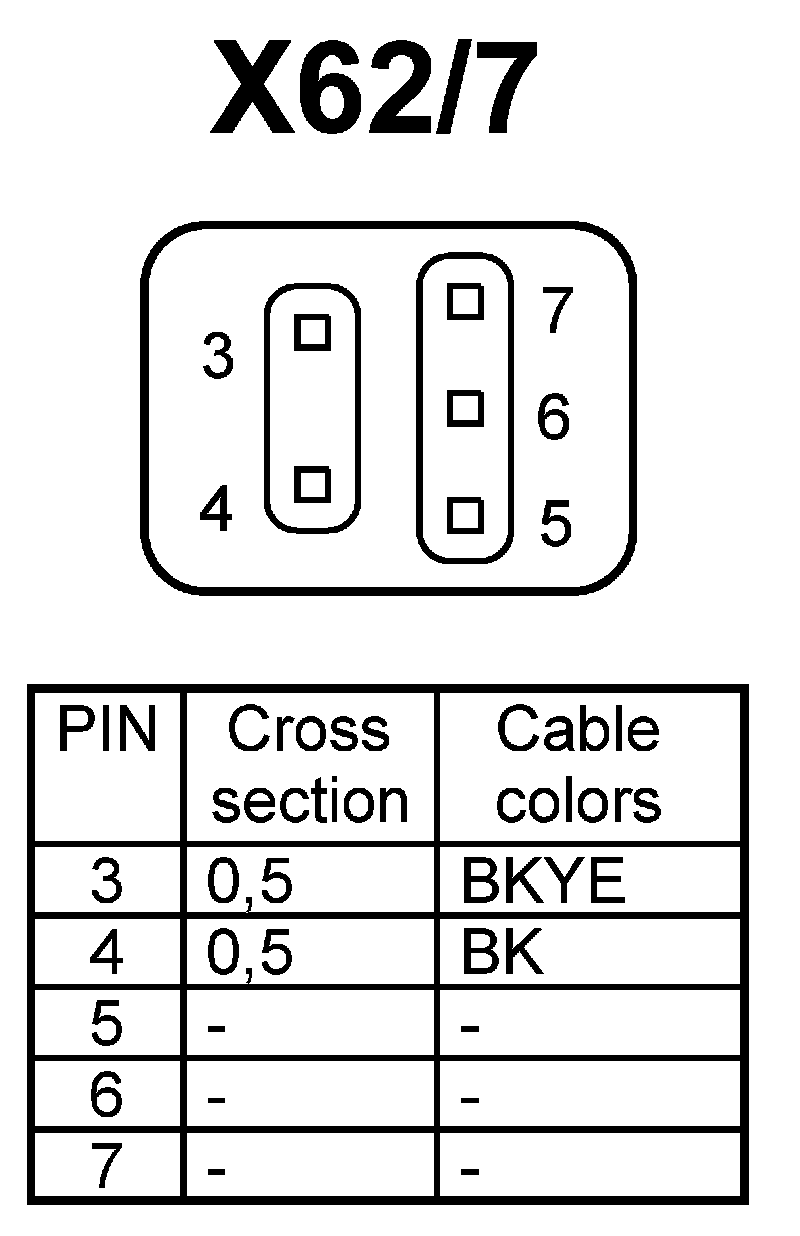

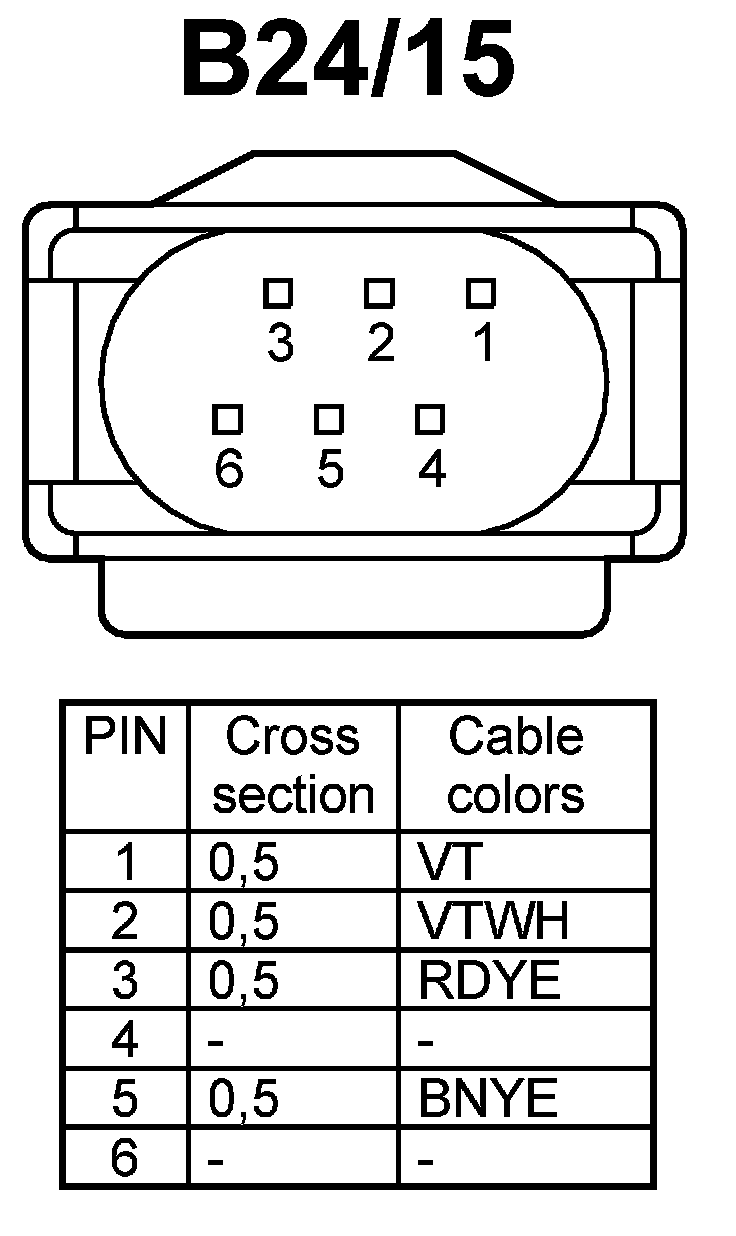

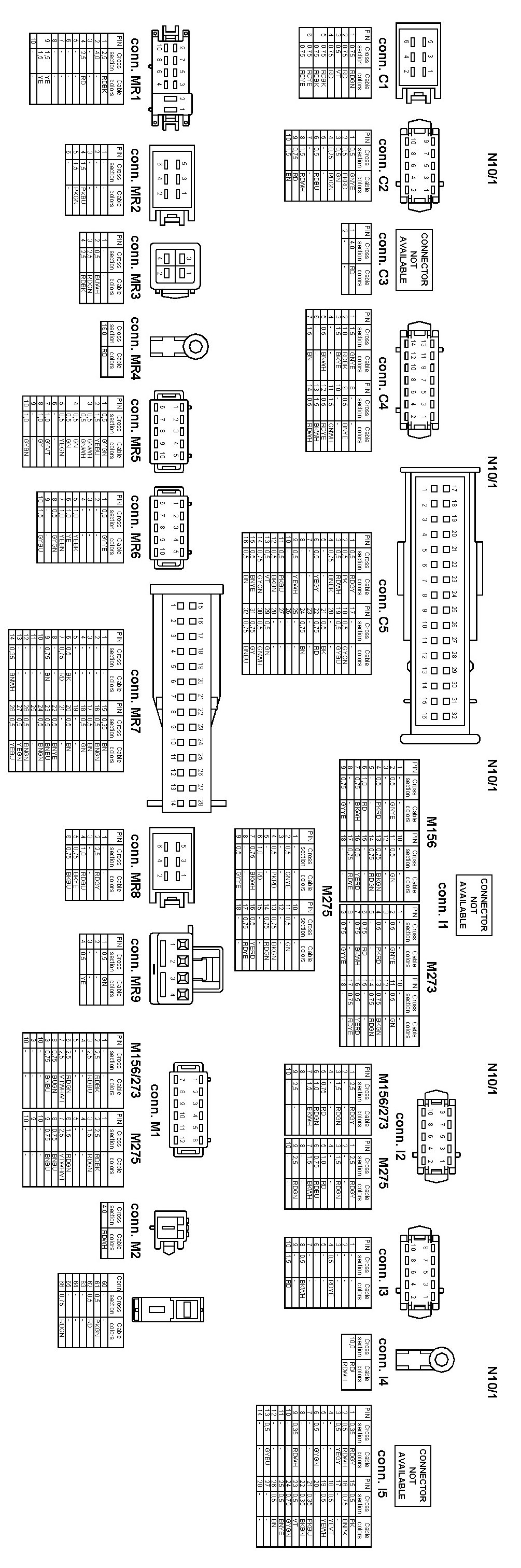

PE42.47-U-2000CAB Adaptive Brake (ABR) System

MODEL 216
- as of Model Year 2011
- Control unit A7/3 and N47-5

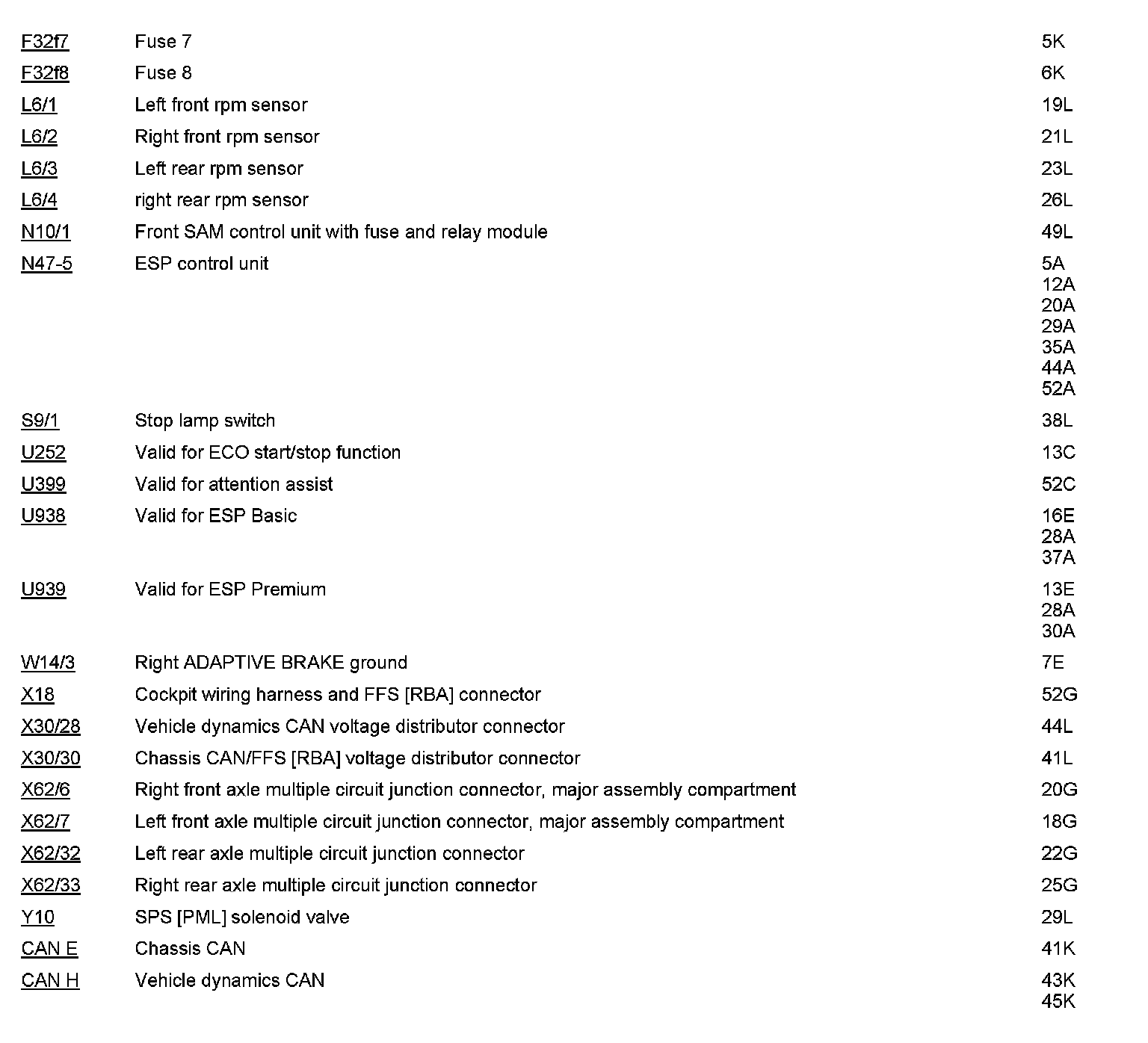

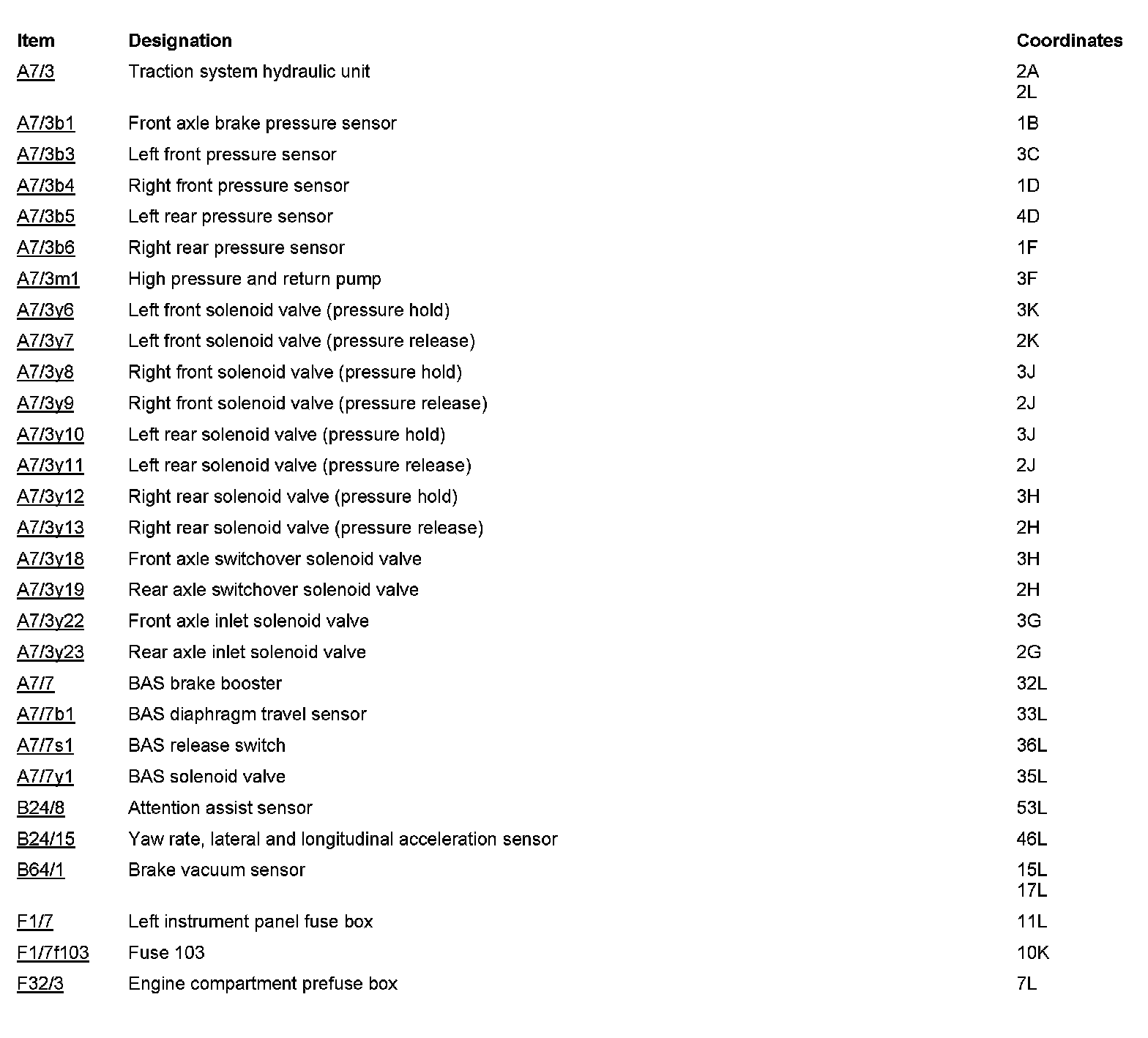

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
