AR91.10-P-1000SC Remove/Install Front Seat
AR91.10-P-1000SC Remove/Install Front Seat
AR91.10-P-1000SC Remove/install Front Seat

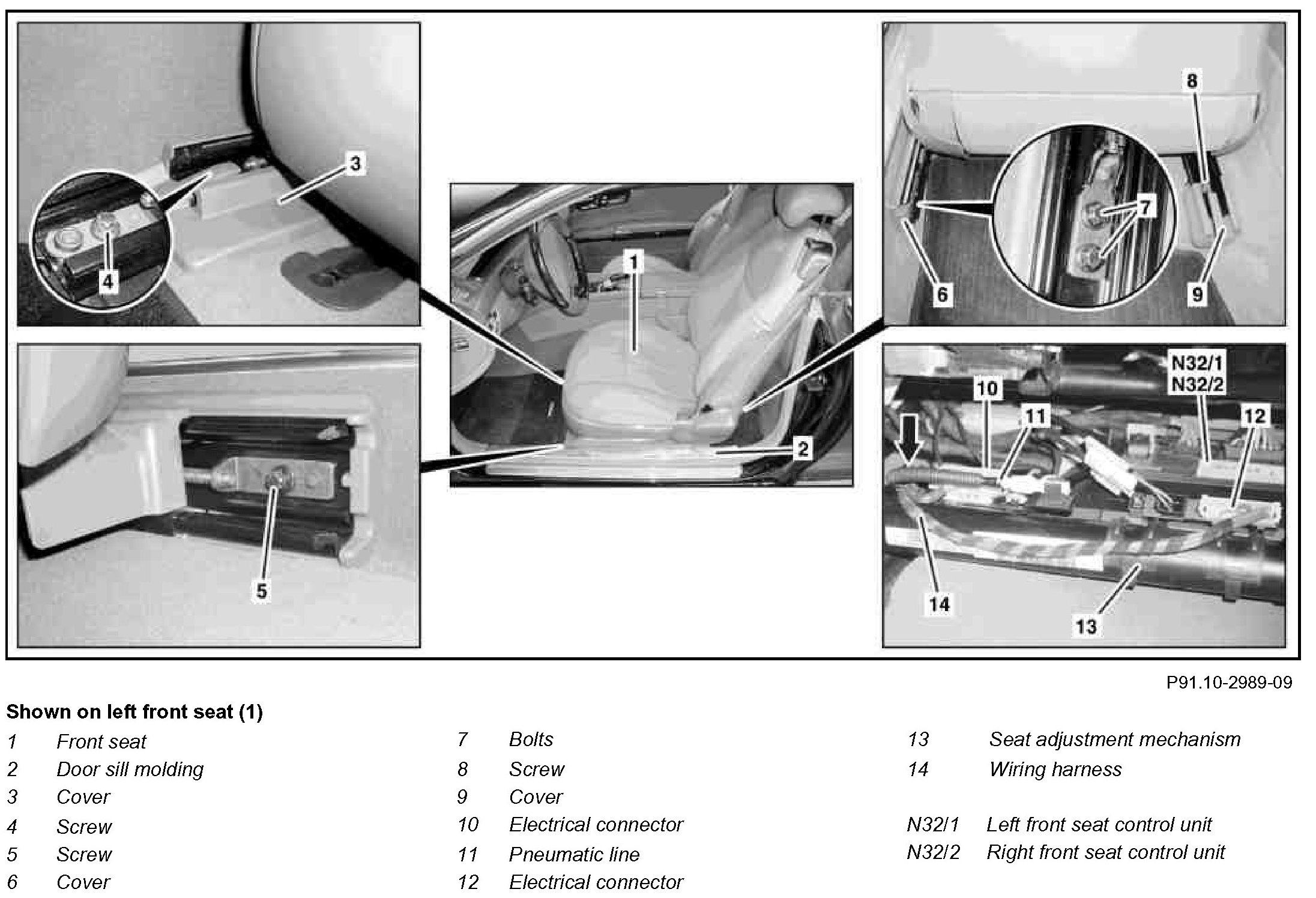

Component Identification:

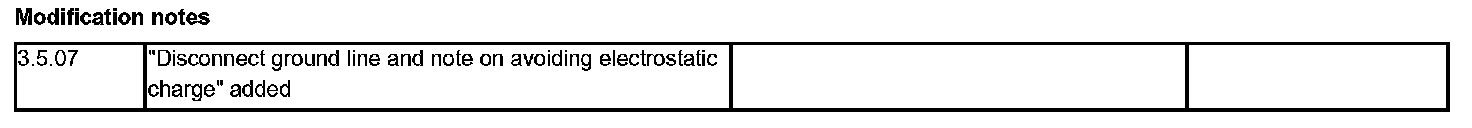

Modification Notes:

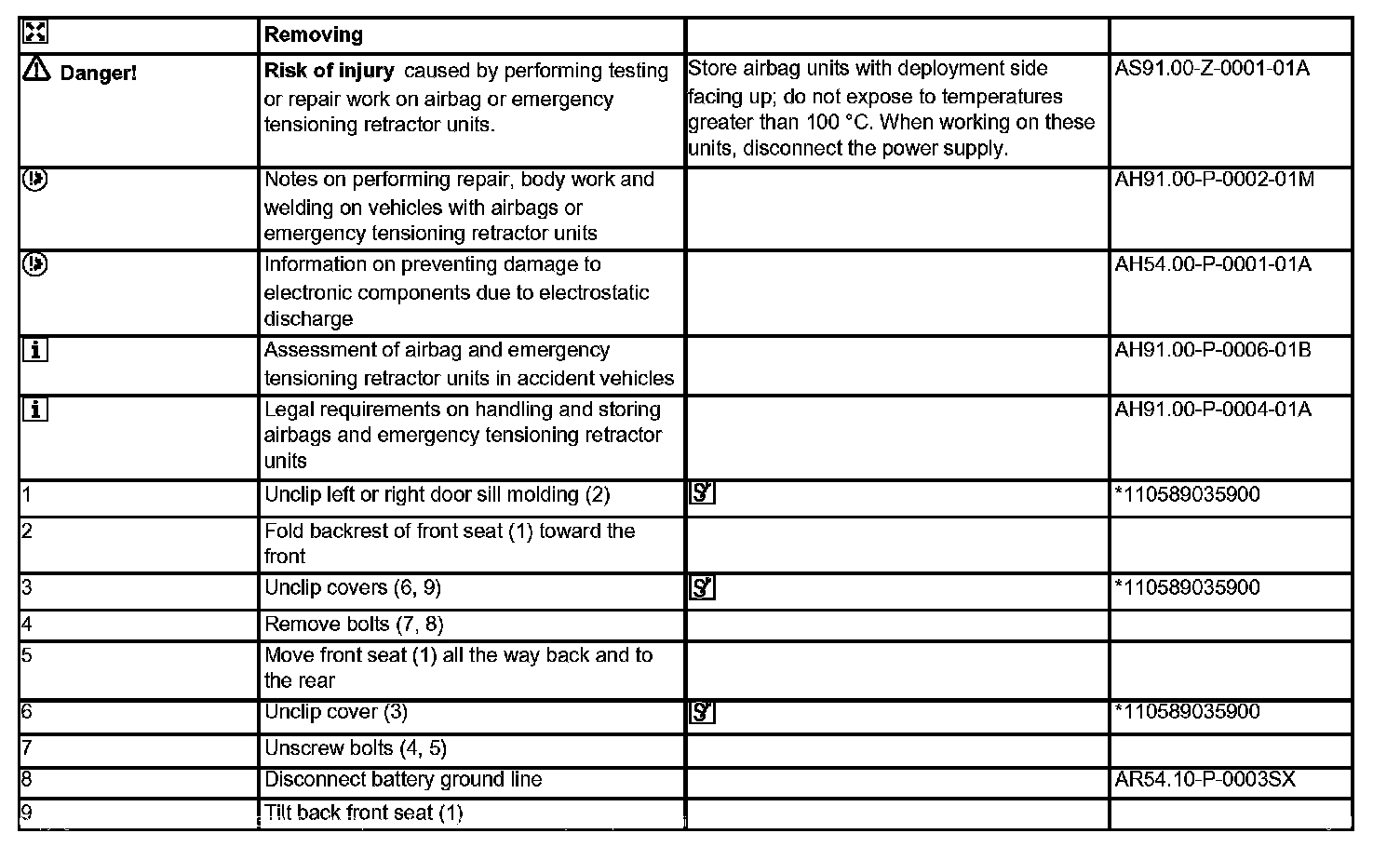

Steps 1-9:

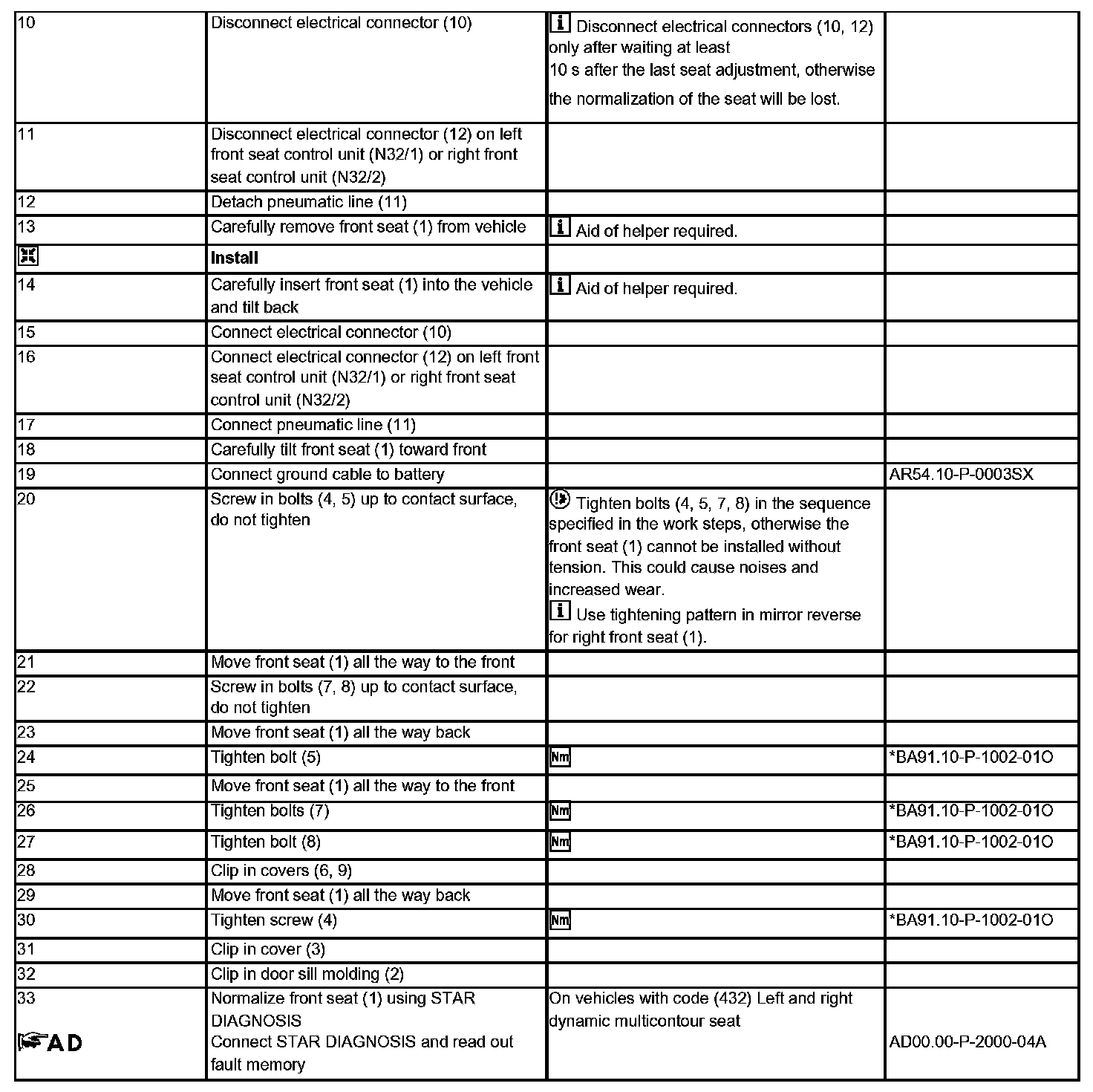

Steps 10-33:

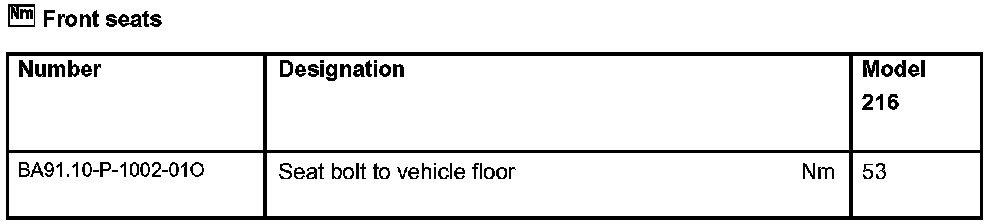

Front Seats:

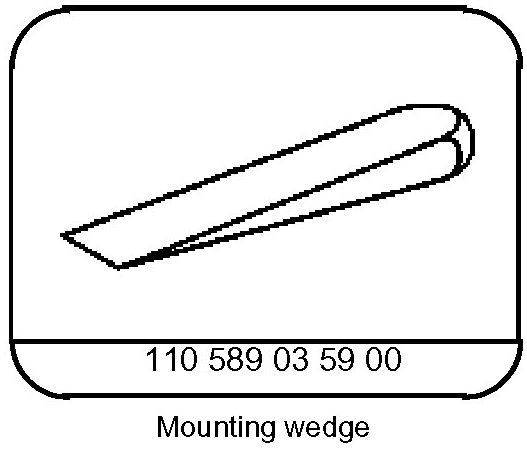

Special Tool:
