AN91.22-P-0001-03SC Retrofit Ski Bag Housing

AN91.22-P-0001-03SC Retrofit Ski Bag Housing

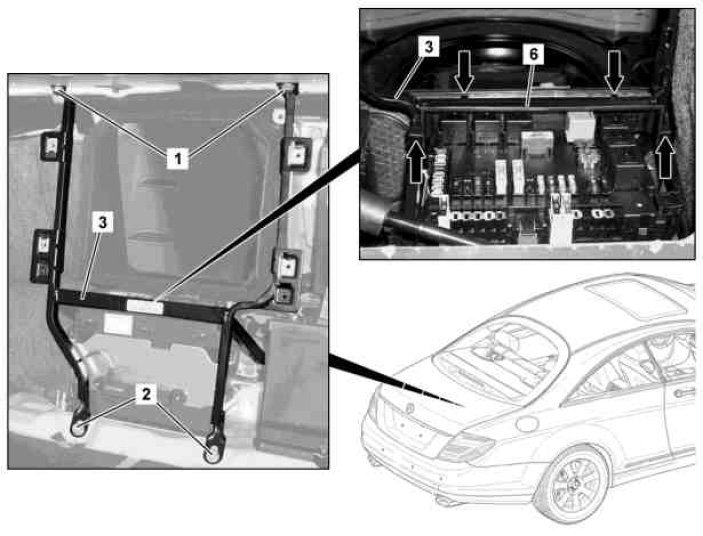

1 Install rear shelf reinforcement (3), tighten bolts (1) and nuts (2).

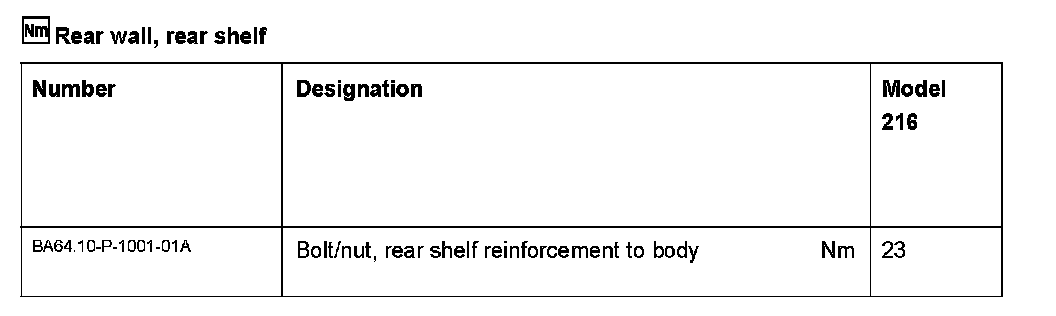

Note torque of bolts (1) and nuts (2).
2 Fit drip protection (6) to strut of rear shelf reinforcement (3).
Ensure correct seating of drip protection (6). Catches (arrow) of drip protection (6) must close tightly around struts of rear shelf reinforcement (3).

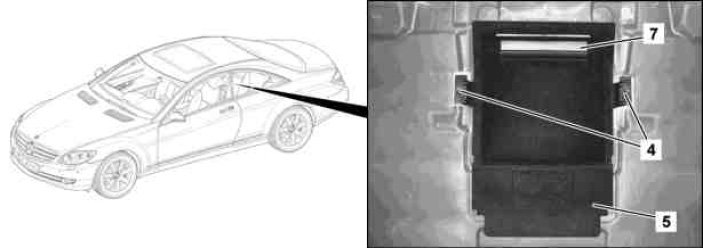

3 Install stowage box/tray (5) with through-loading function and tighten bolts (4).
Flap of stowage box/tray (5) with through-loading function can be opened and closed through operation of handle (7).
