Seat Latch Cable: Adjustments
AR91.10-P-1490SC Adjust The Bowden Cable For The Easy-entry Feature

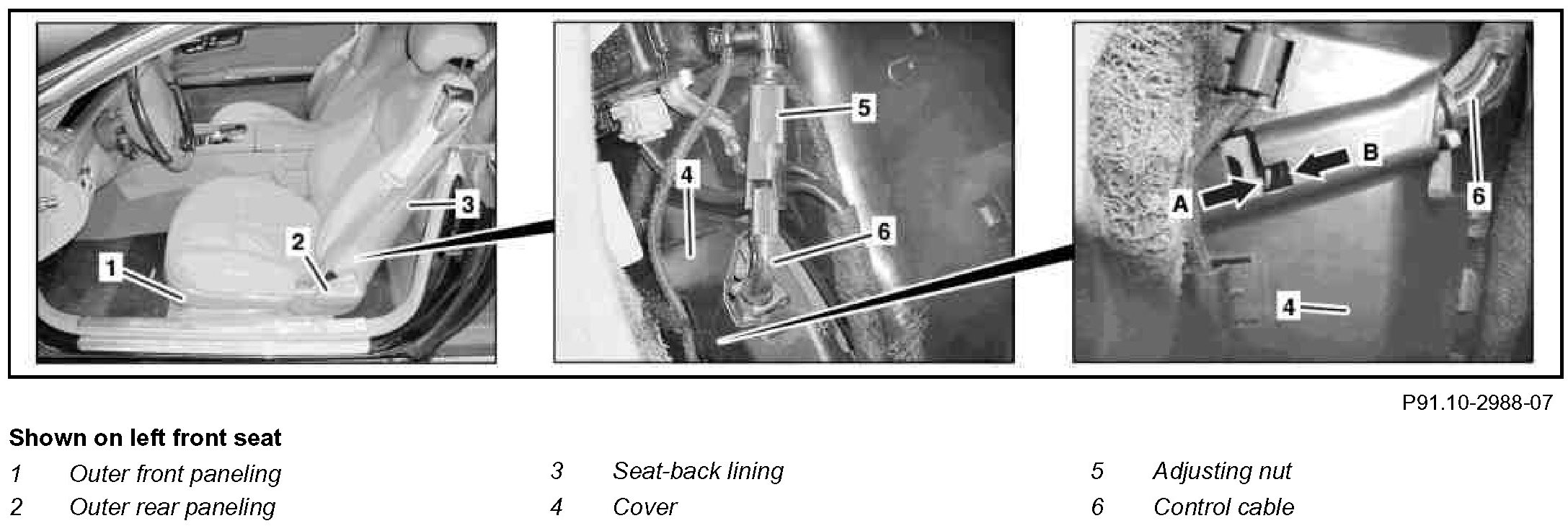

Component Identification:

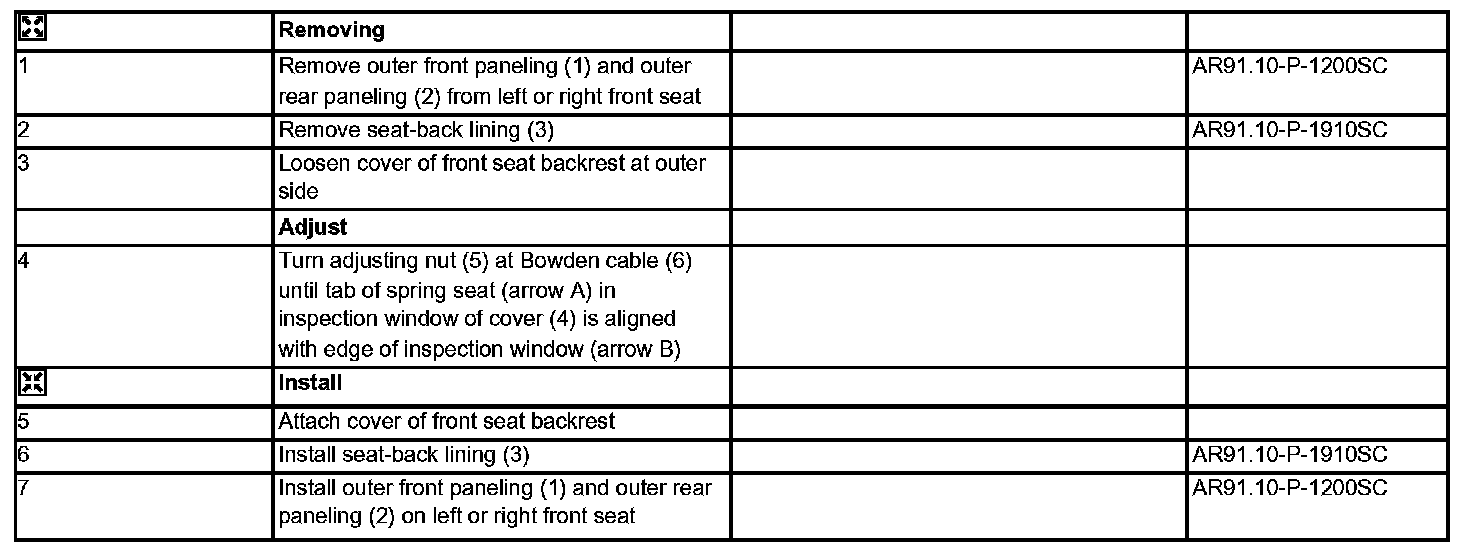

Steps 1-7:
