AR91.18-P-1800SC Remove/Install Front Seat Cushion Covering
AR91.18-P-1800SC Remove/Install Front Seat Cushion Covering
AR91.18-P-1800SC Remove/install Front Seat Cushion Covering

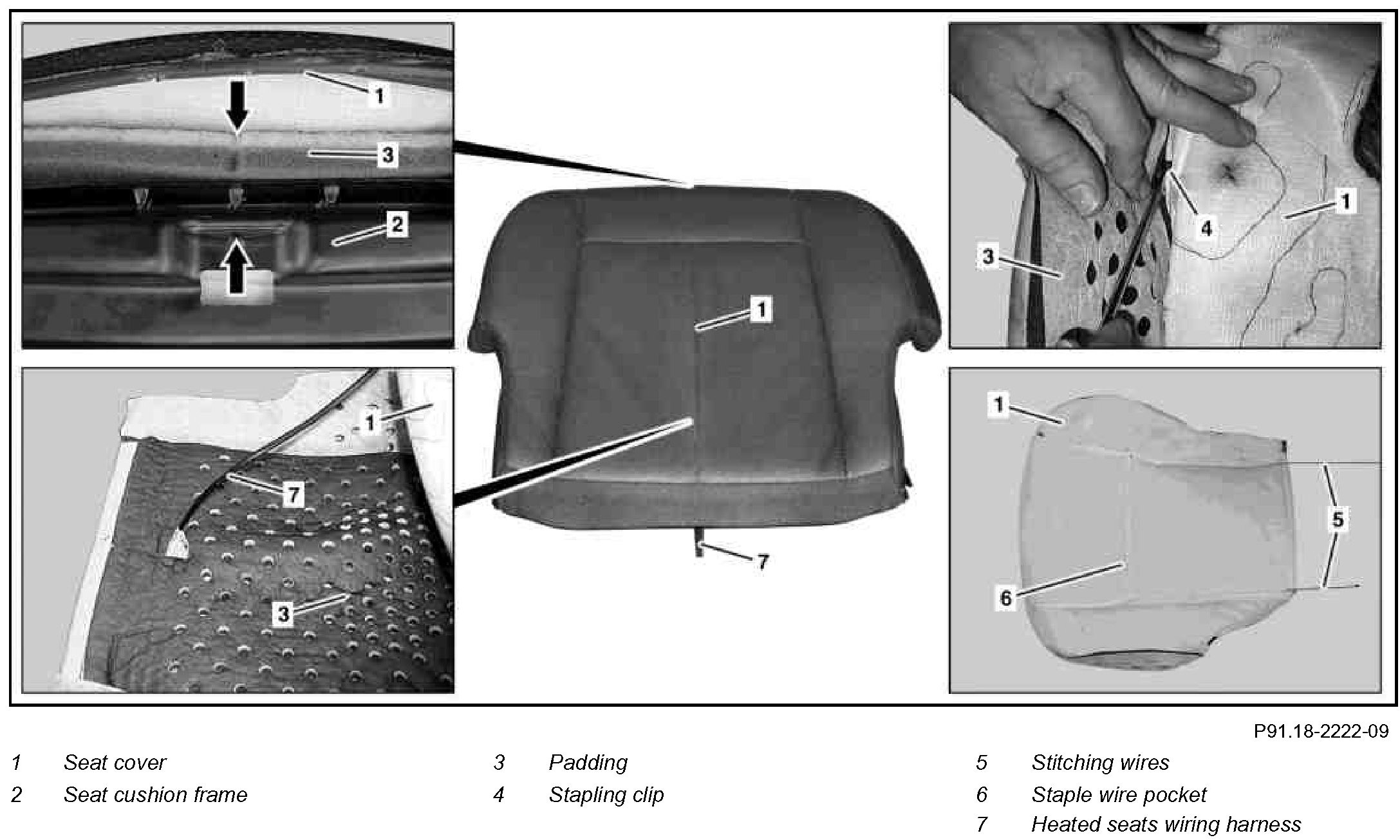

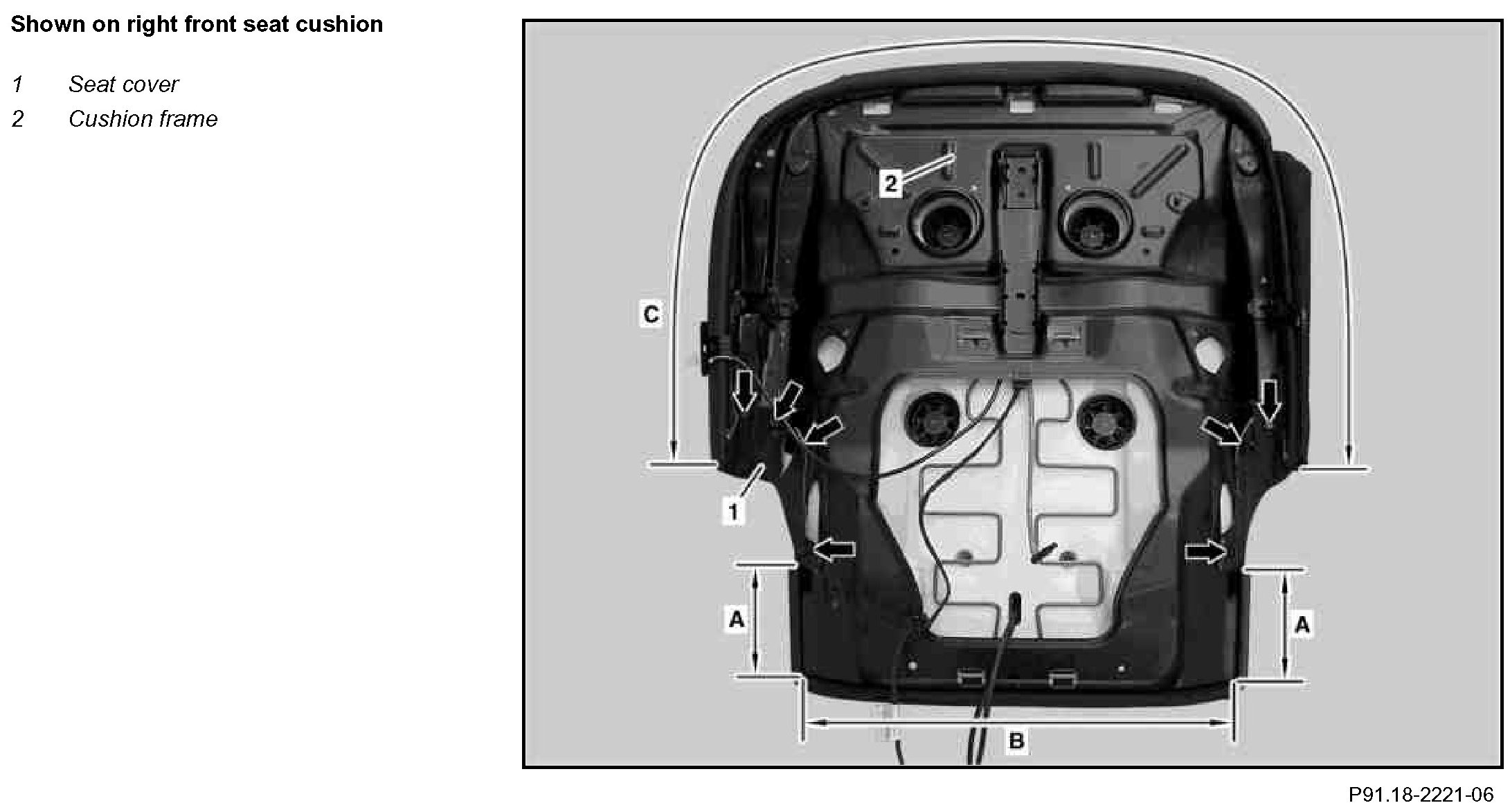

Component Identification:
Component Identification:

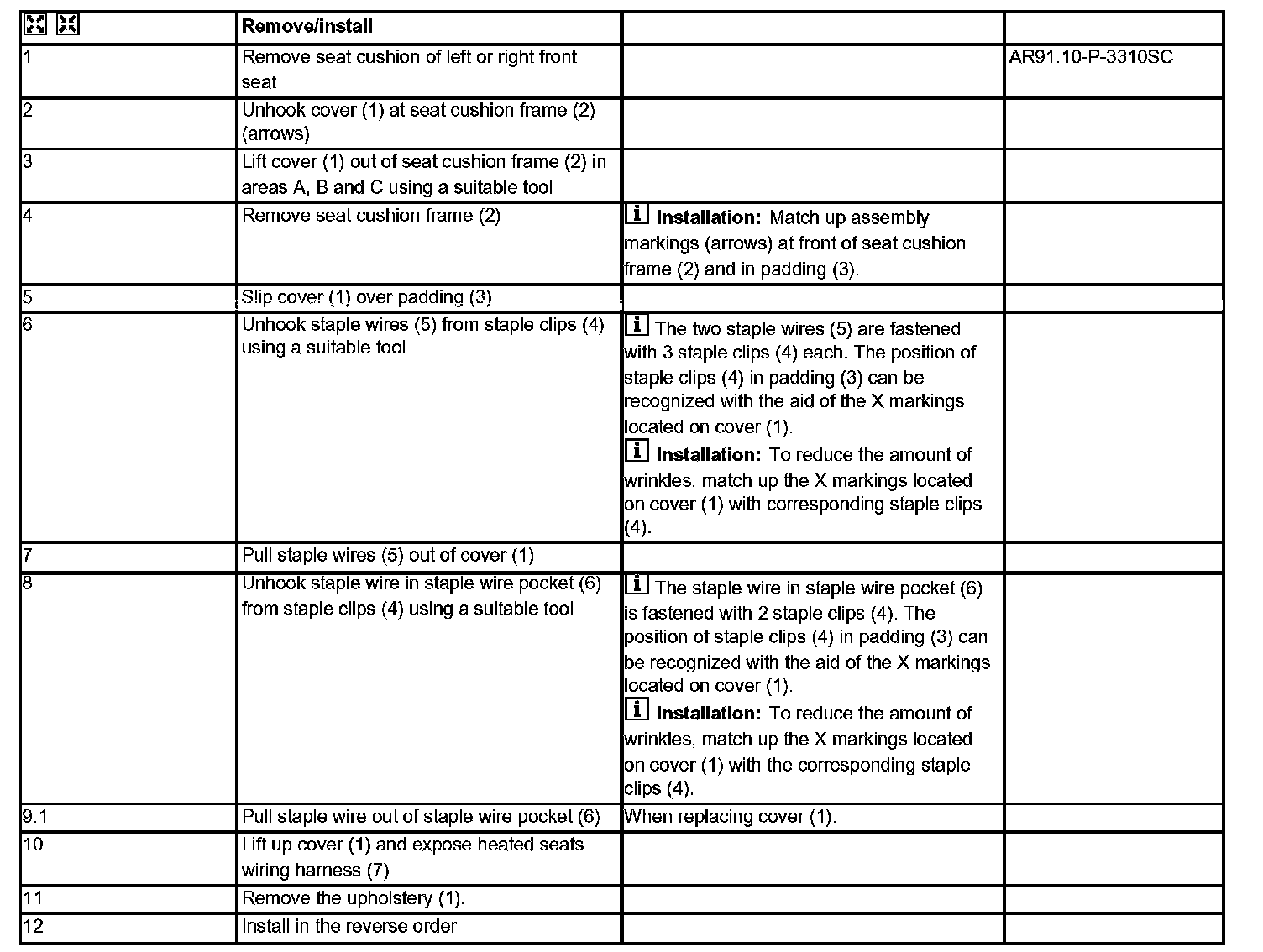

Steps 1-12:
