AR91.12-P-1020SC Remove/Install Rear Seat Cushion
AR91.12-P-1020SC Remove/Install Rear Seat Cushion
AR91.12-P-1020SC Remove/install Rear Seat Cushion

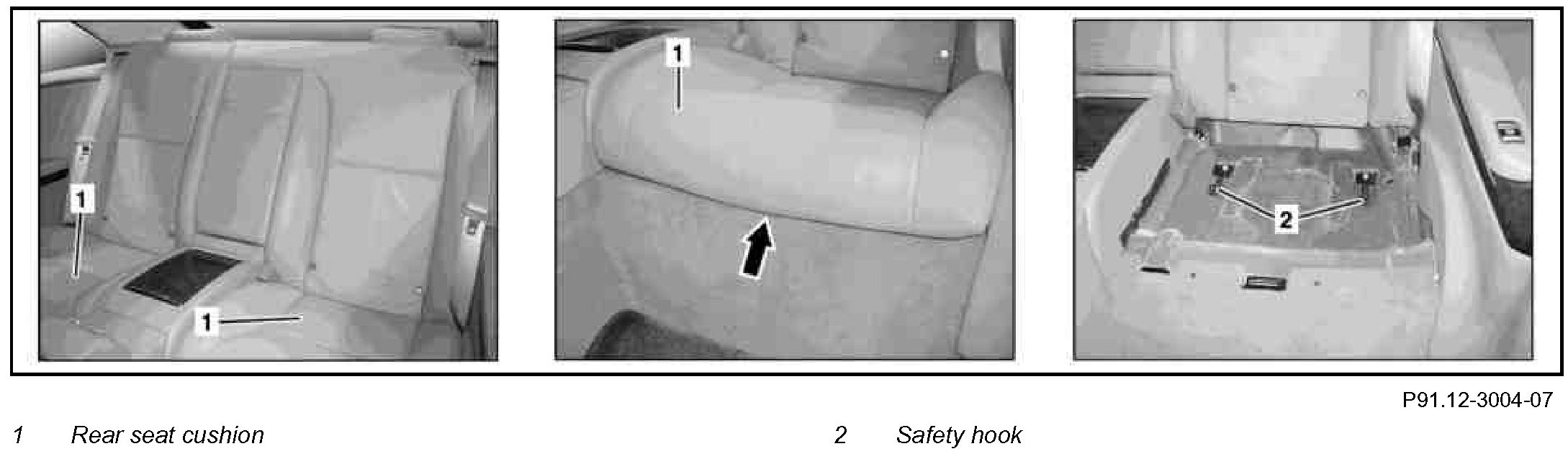

Component Identification:

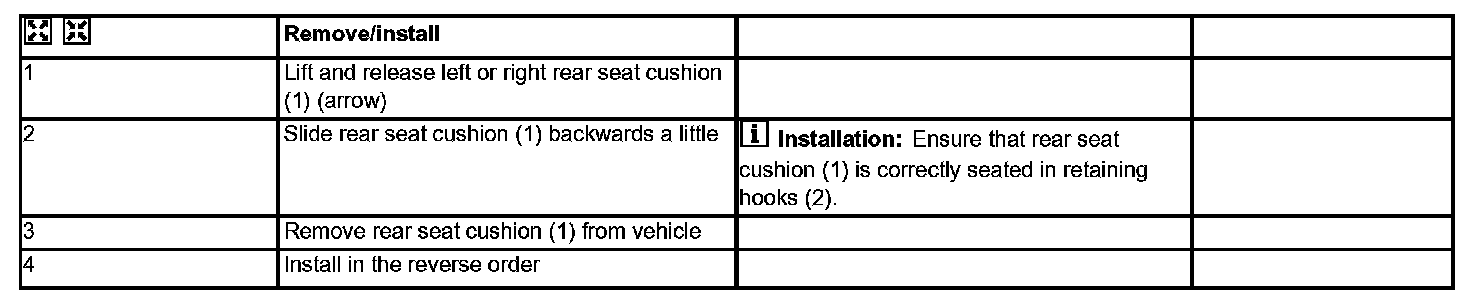

Steps 1-4:
