AR91.10-P-3310SC Remove/Install Seat Cushion
AR91.10-P-3310SC Remove/Install Seat Cushion
AR91.10-P-3310SC Remove/install
Seat Cushion

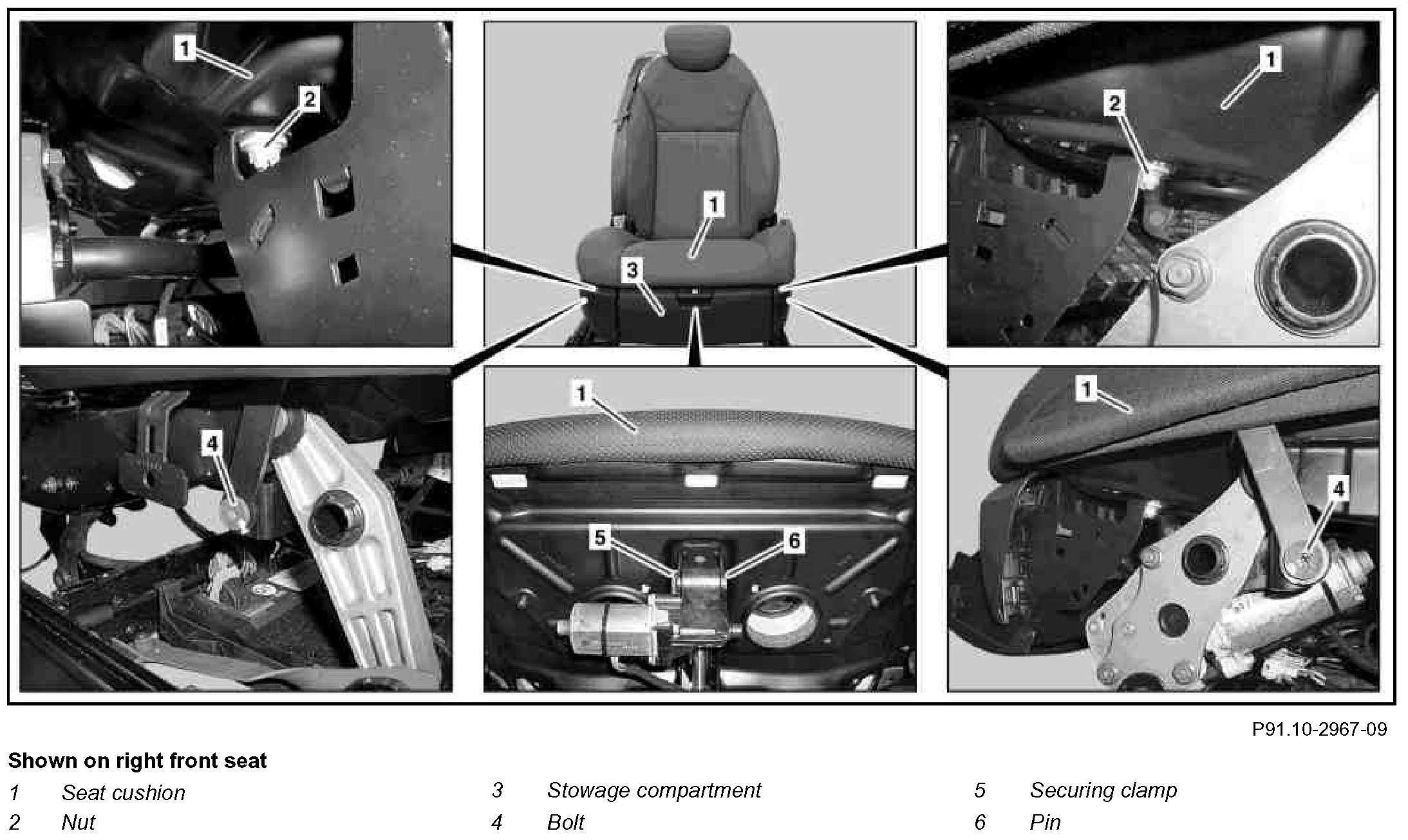

Component Identification:

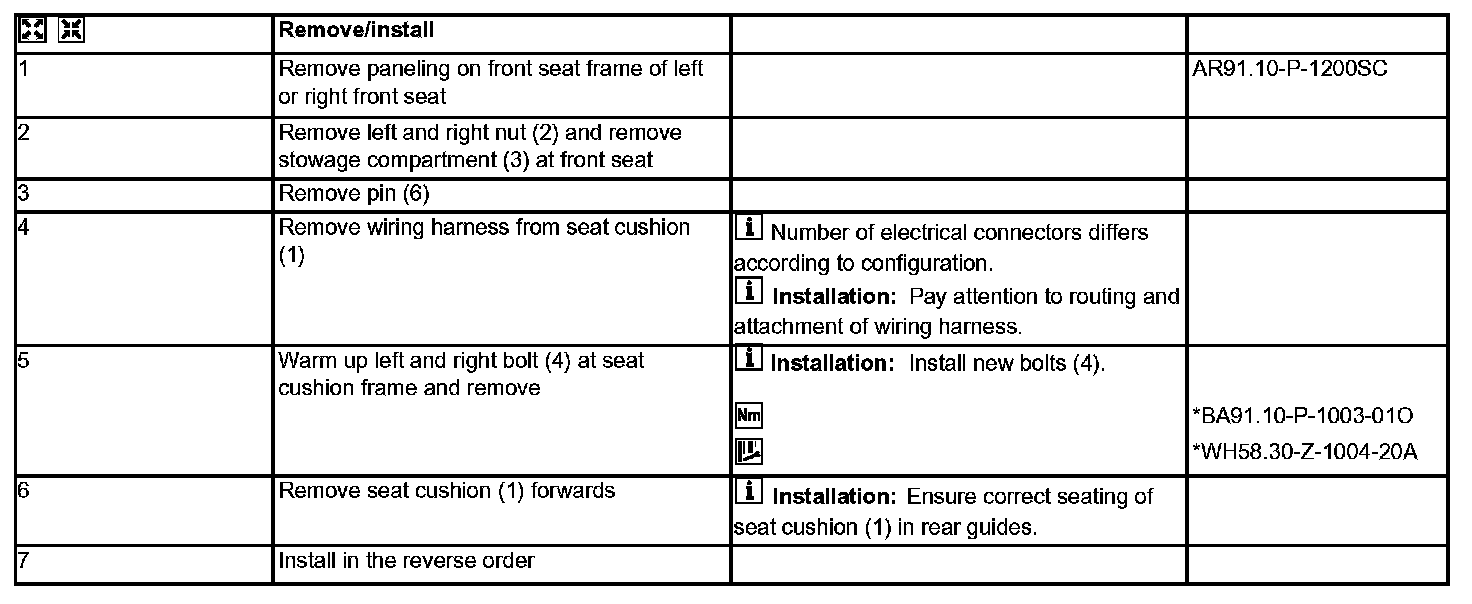

Steps 1-7:
Front Seats:

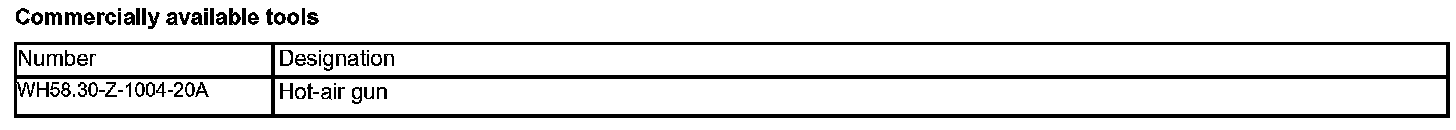

Commercially Available Tools:
