AR91.29-P-6013SC Remove/Install the Drive Motor For Front Seat Height Adjustment



AR91.29-P-6013SC Remove/install The Drive Motor For Front Seat Height Adjustment
- Seat height adjustment motor

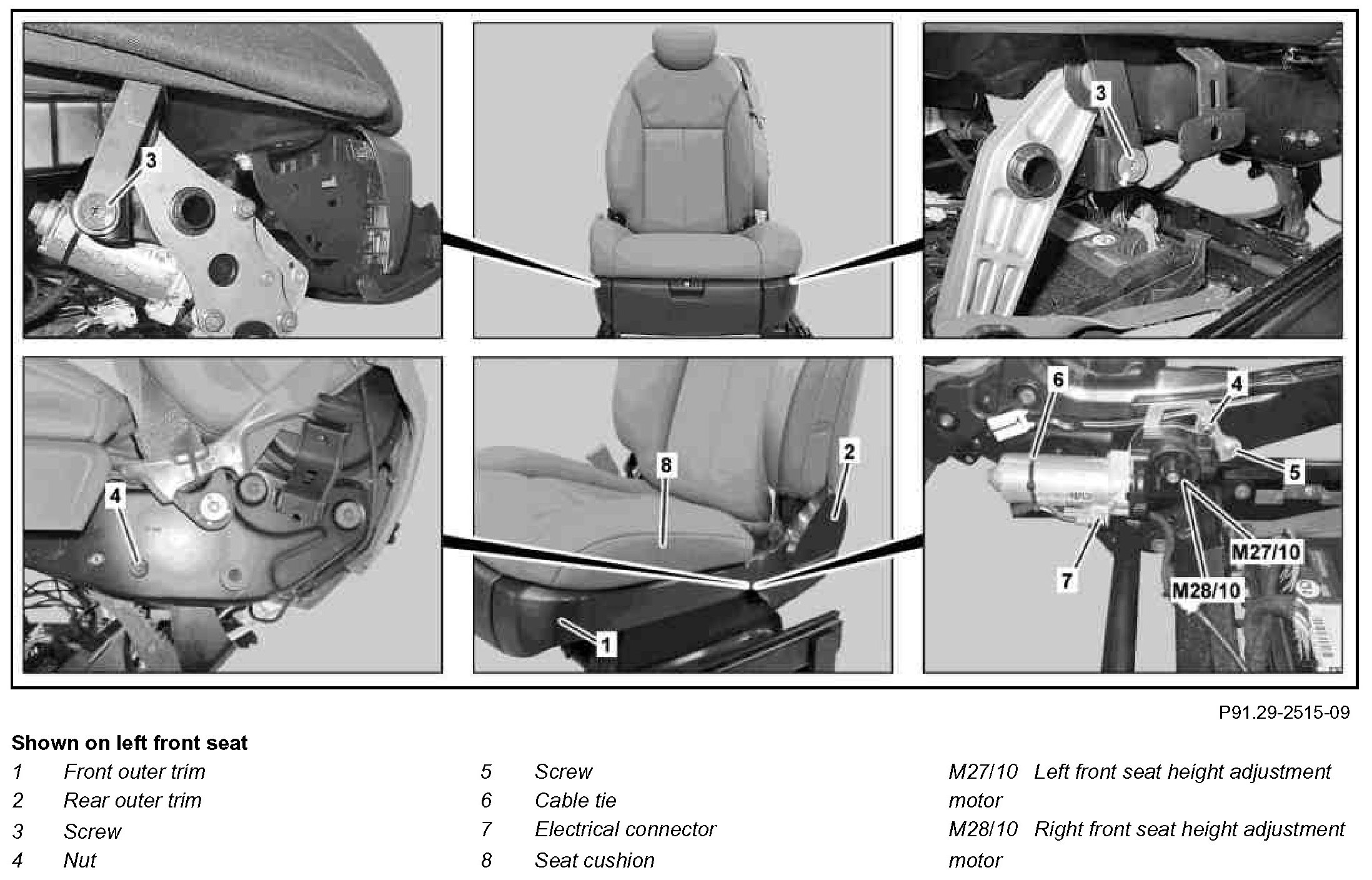

Component Identification:

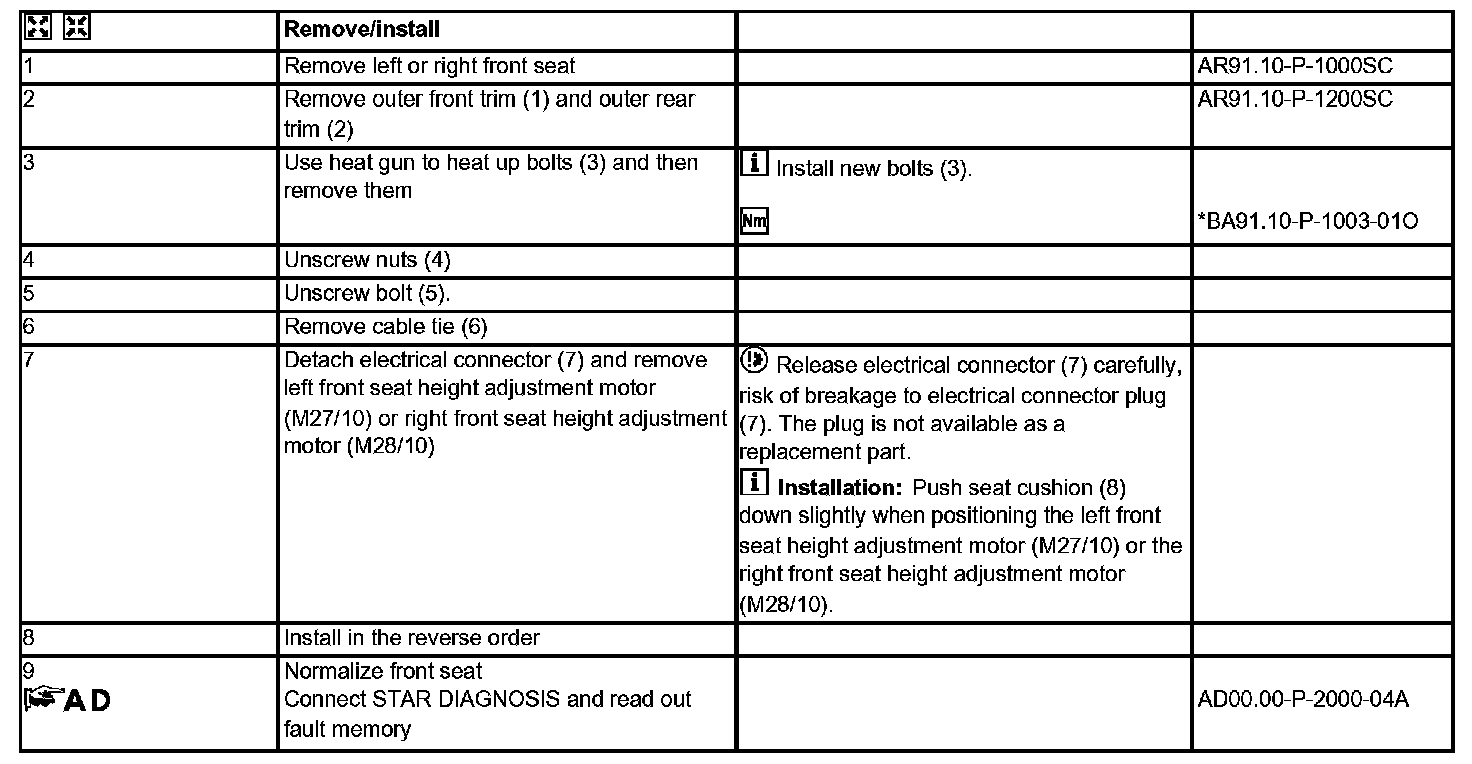

Steps 1-9:

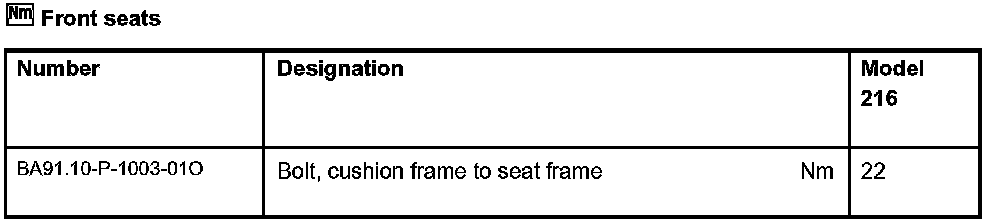

Front Seats:
