AR91.29-P-1431SC Remove/Install Backrest Motor For Front Seat



AR91.29-P-1431SC Remove/install Backrest Motor For Front Seat
- Backrest angle adjustment motor

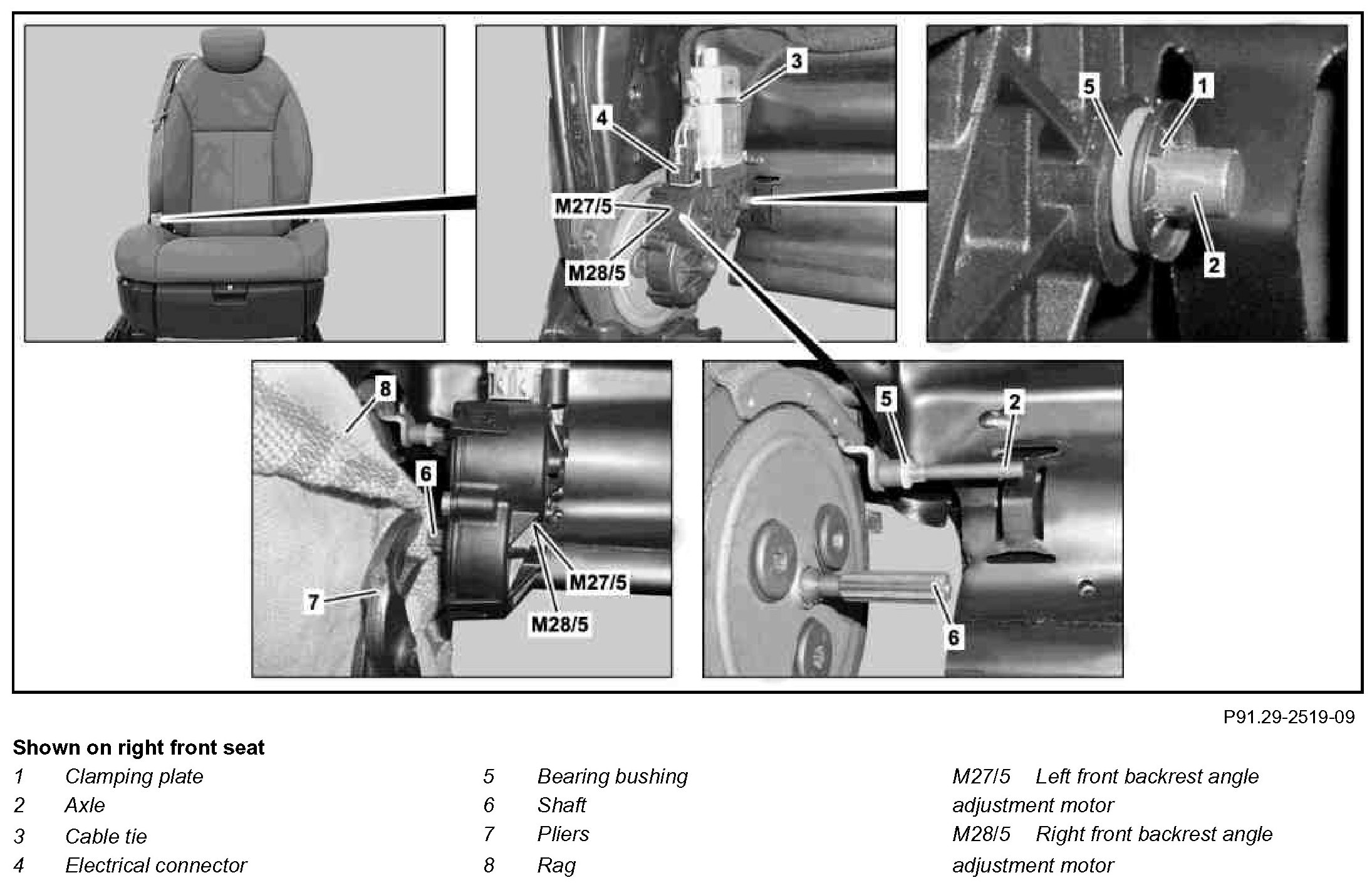

Component Identification:

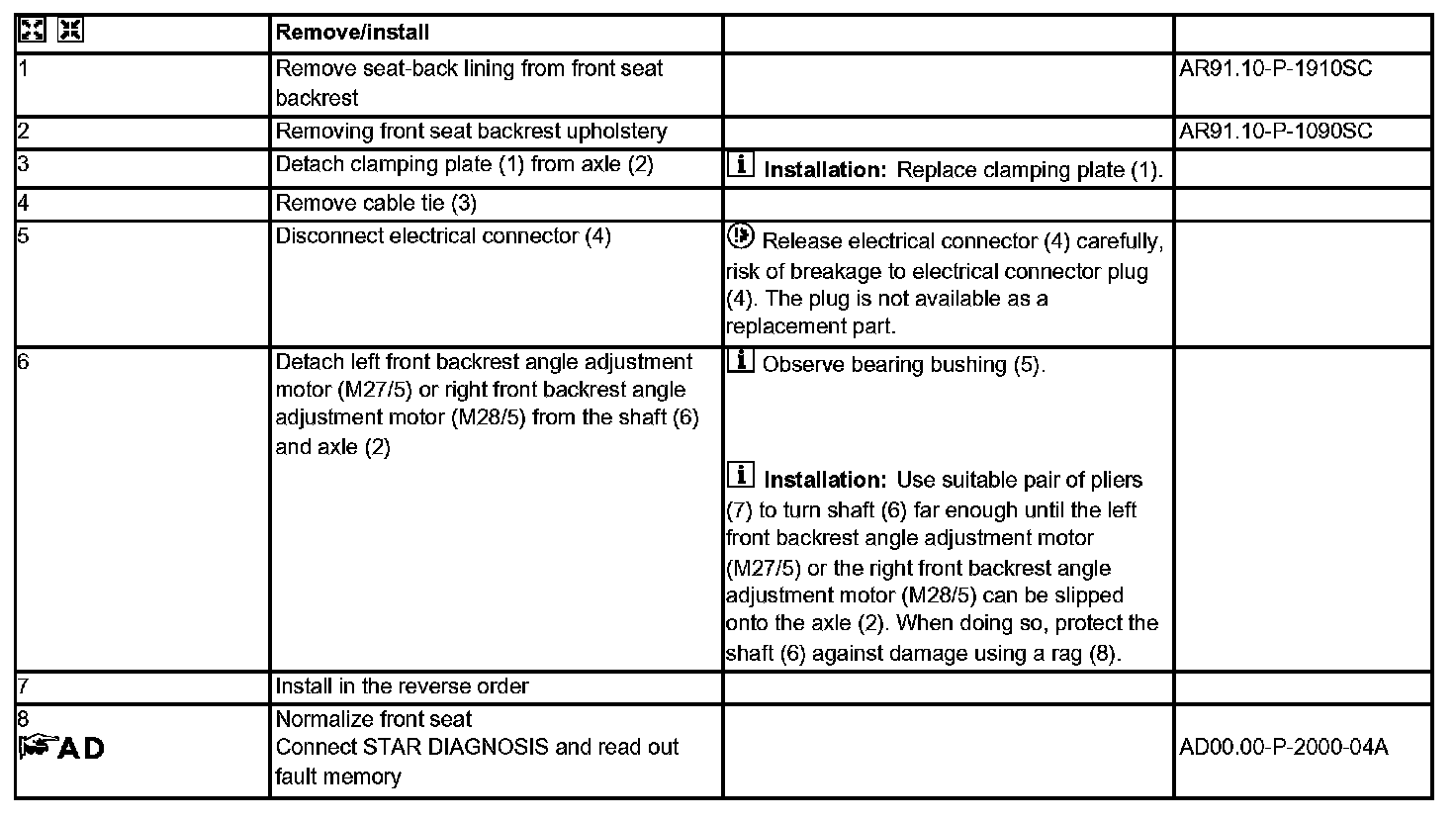

Steps 1-8:
