AR91.29-P-1422SC Remove/Install Seat Cushion Motor For Front Seat



AR91.29-P-1422SC Remove/install Seat Cushion Motor For Front Seat
- Seat cushion inclination motor

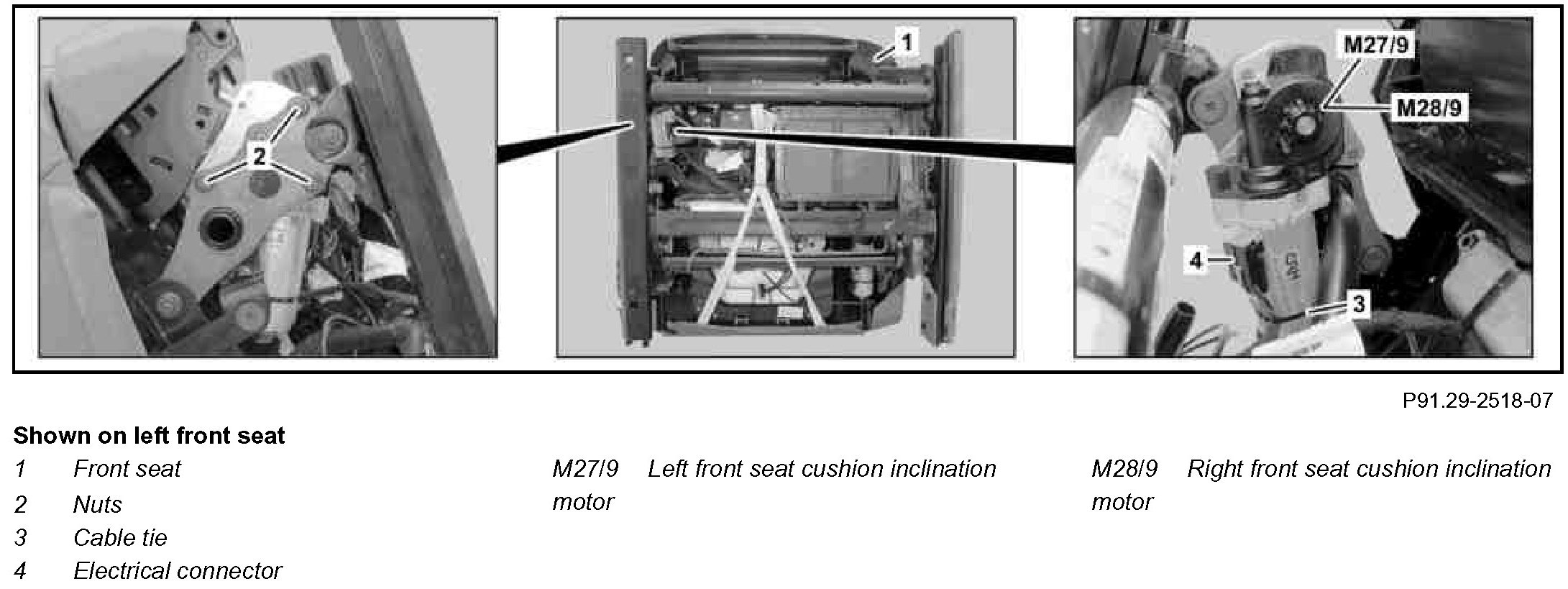

Component Identification:

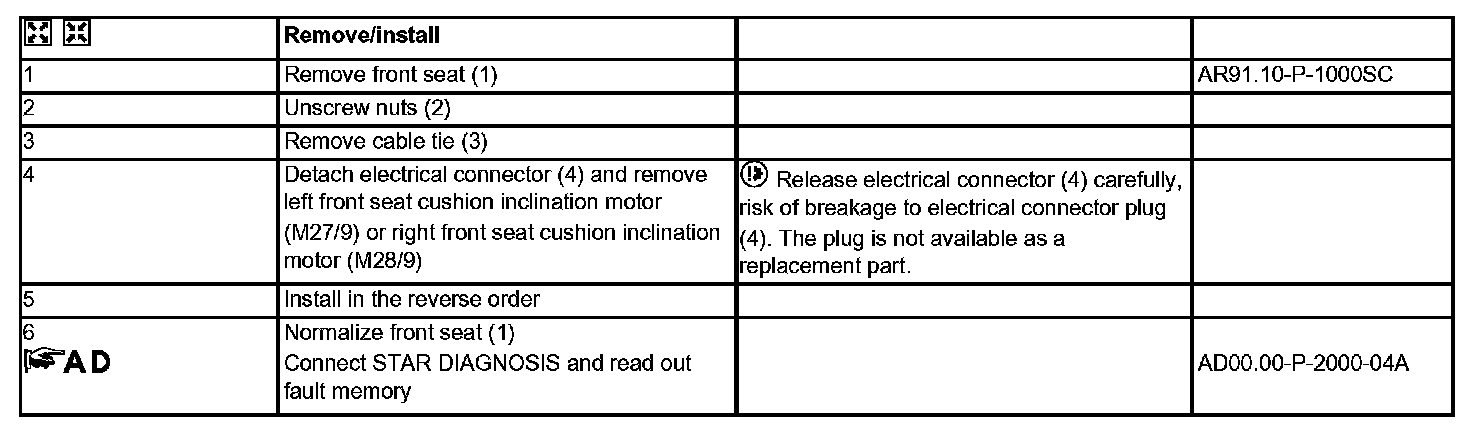

Steps 1-6:
