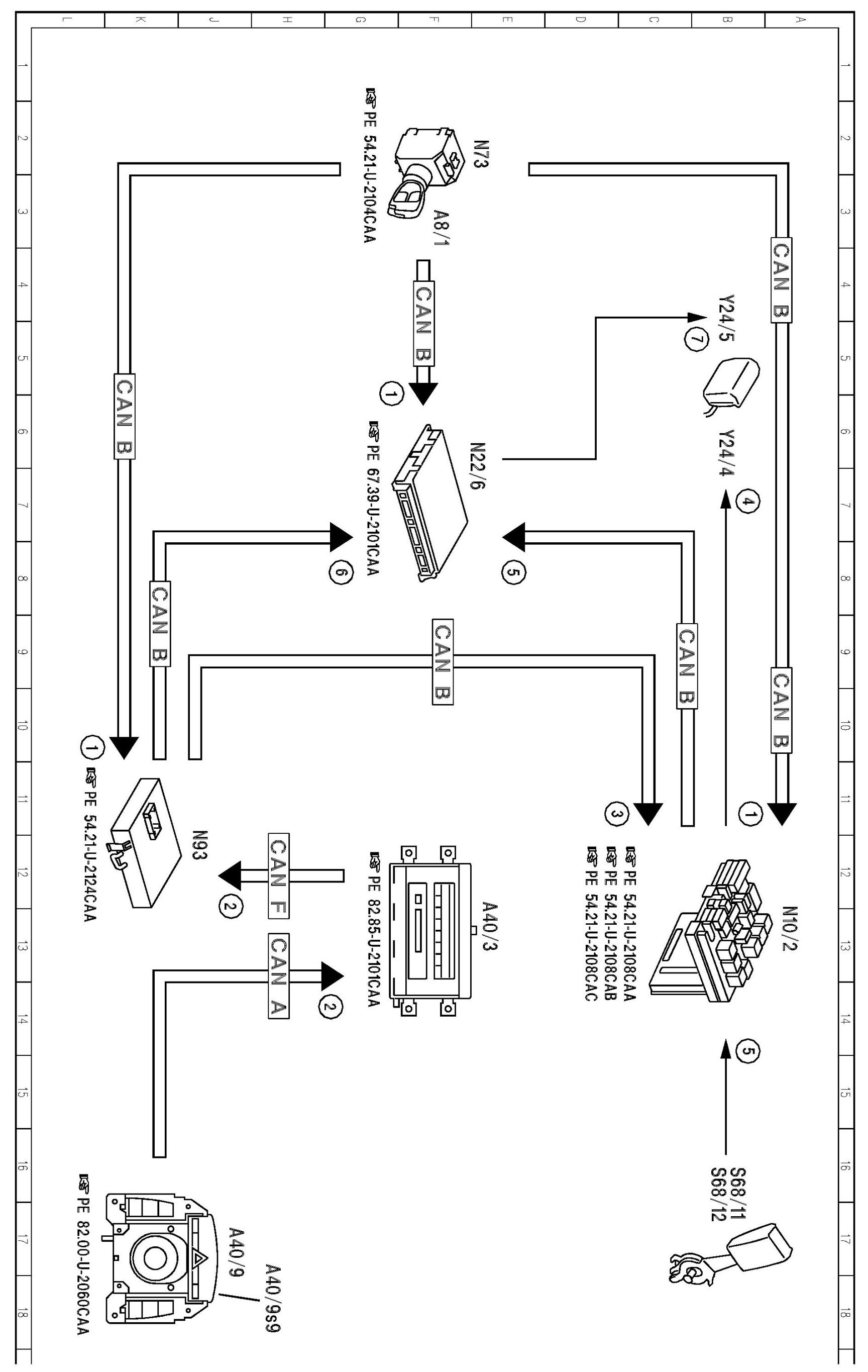

PE91.16-U-2050CAA Electrical Function Diagram For Retractable Rear Head Restraints (RHR)

PE91.16-U-2050CAA Electrical Function Diagram For Retractable Rear Head Restraints (RHR)

MODEL 216
- with CODE (435) Folding head restraints in rear compartment
- as of Model Year 2009

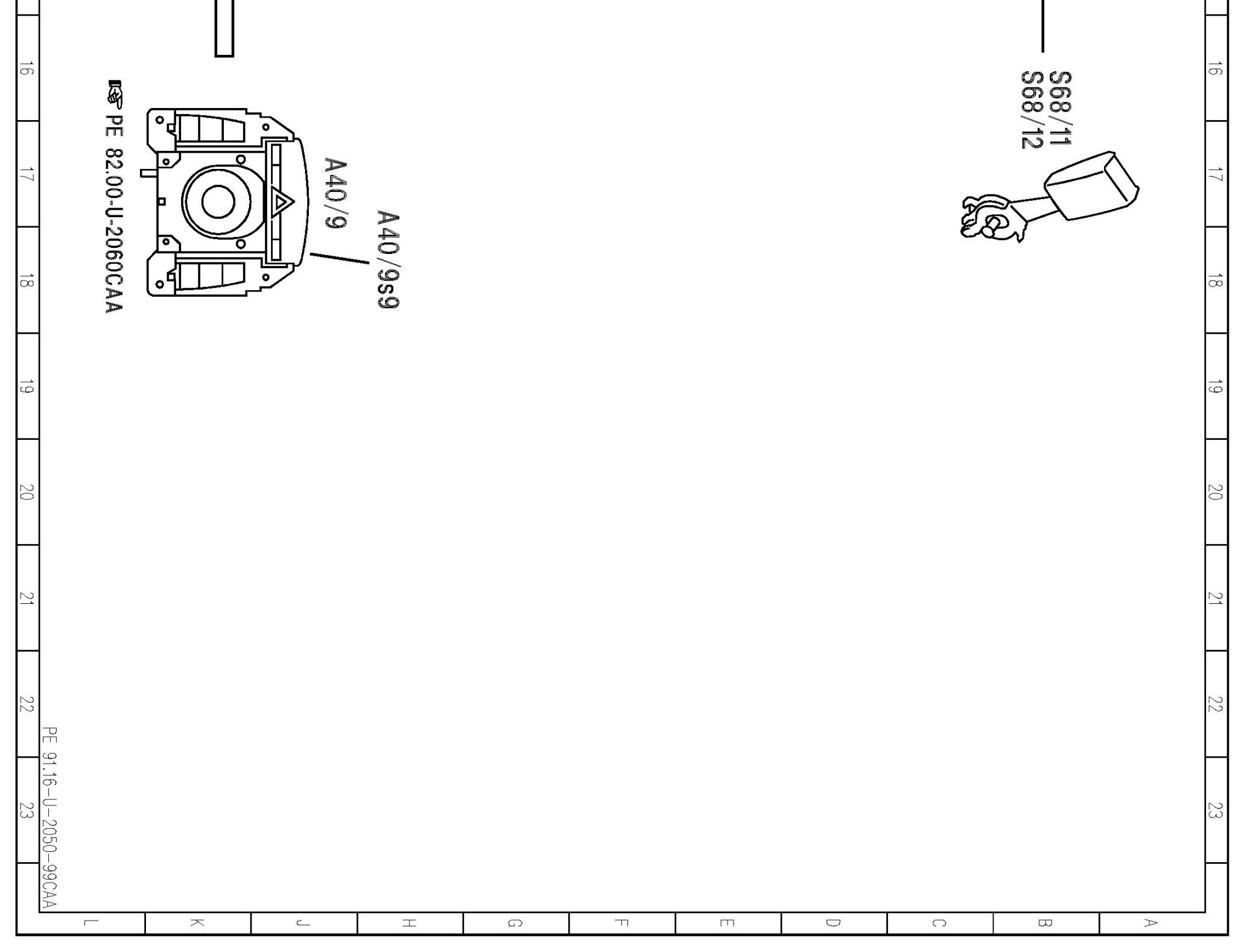

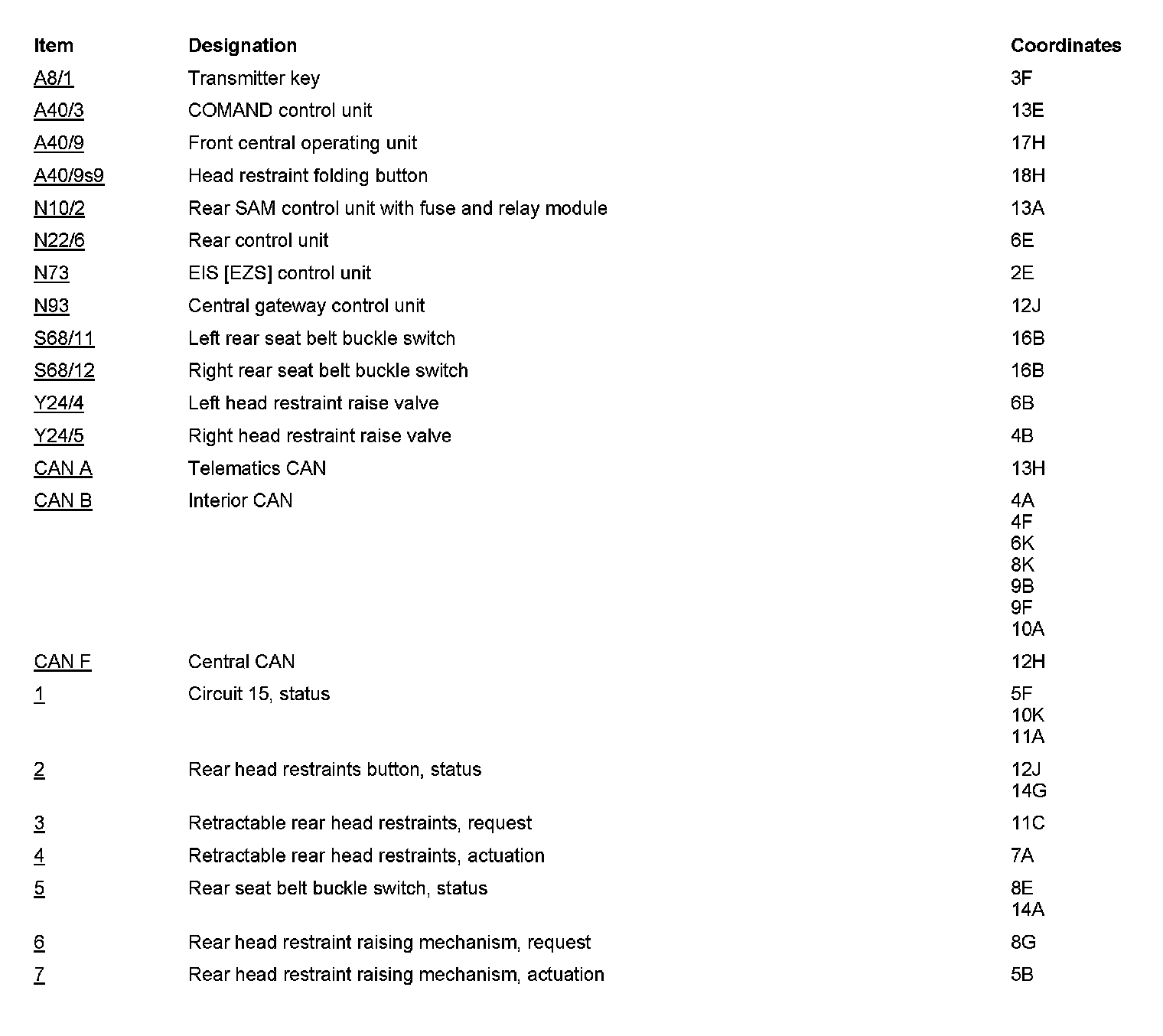

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
