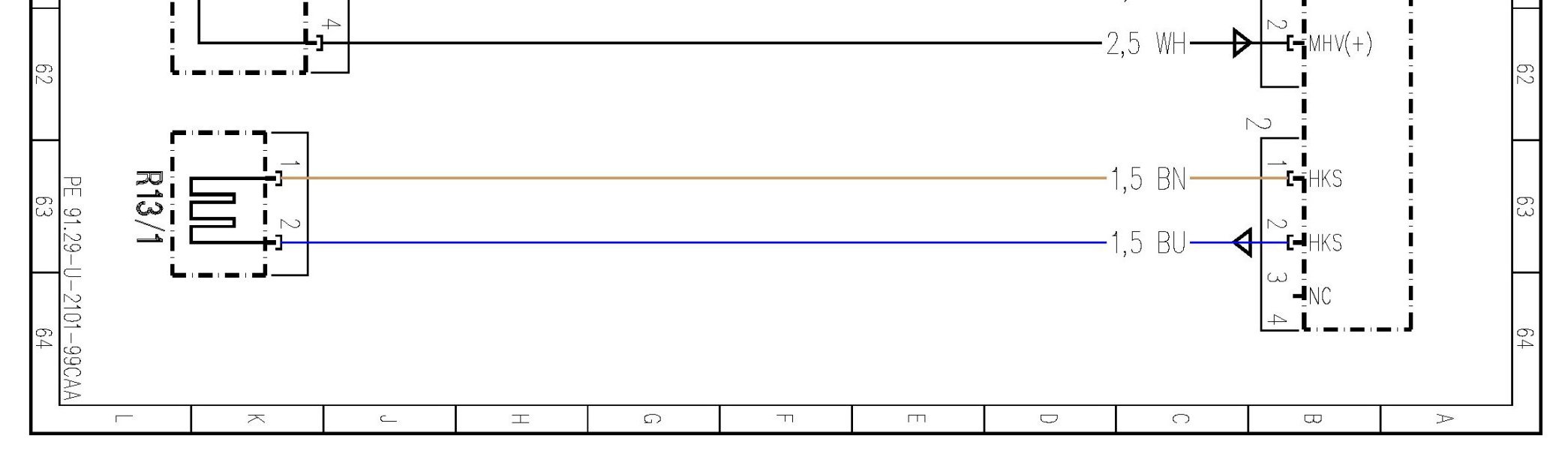

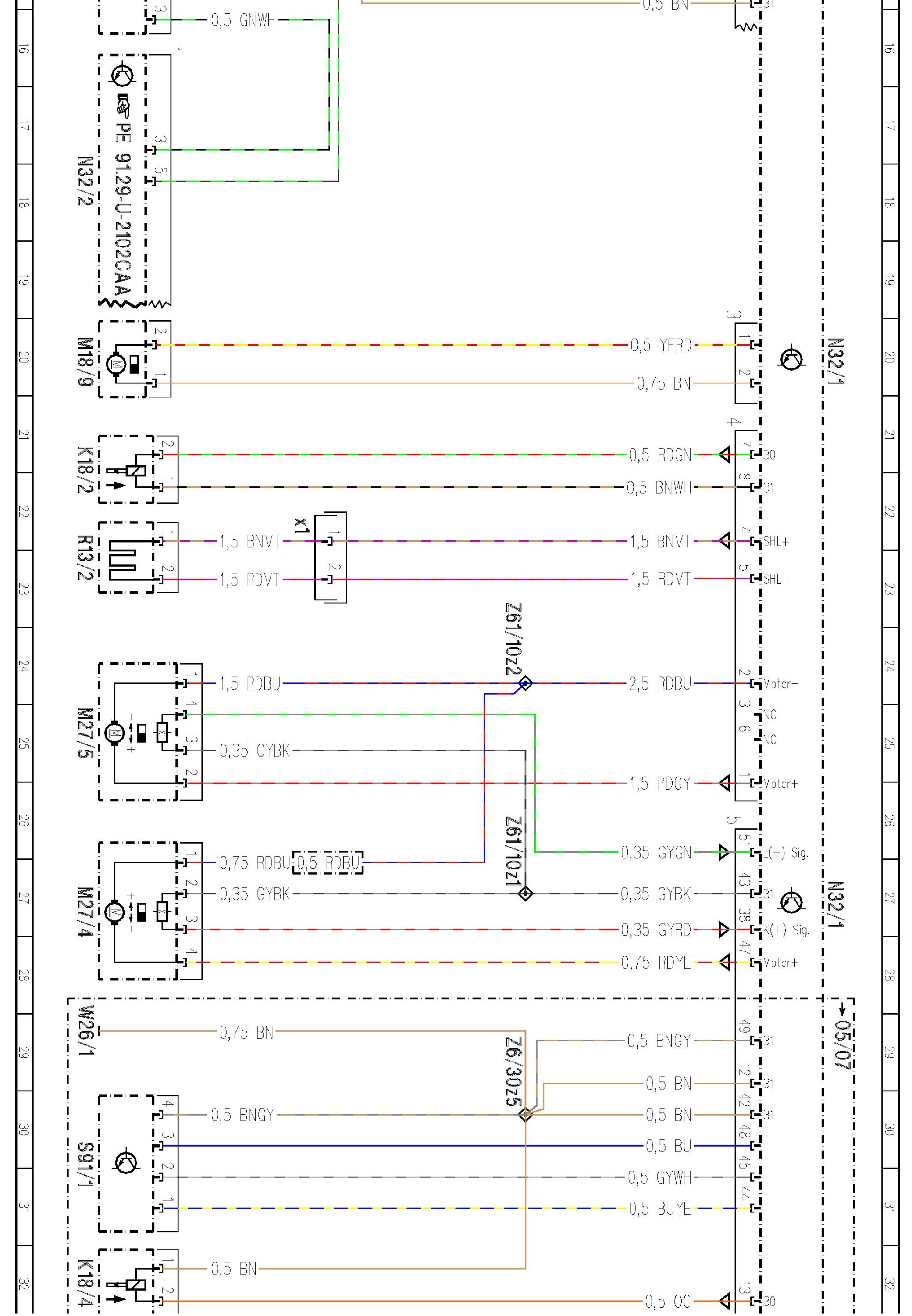

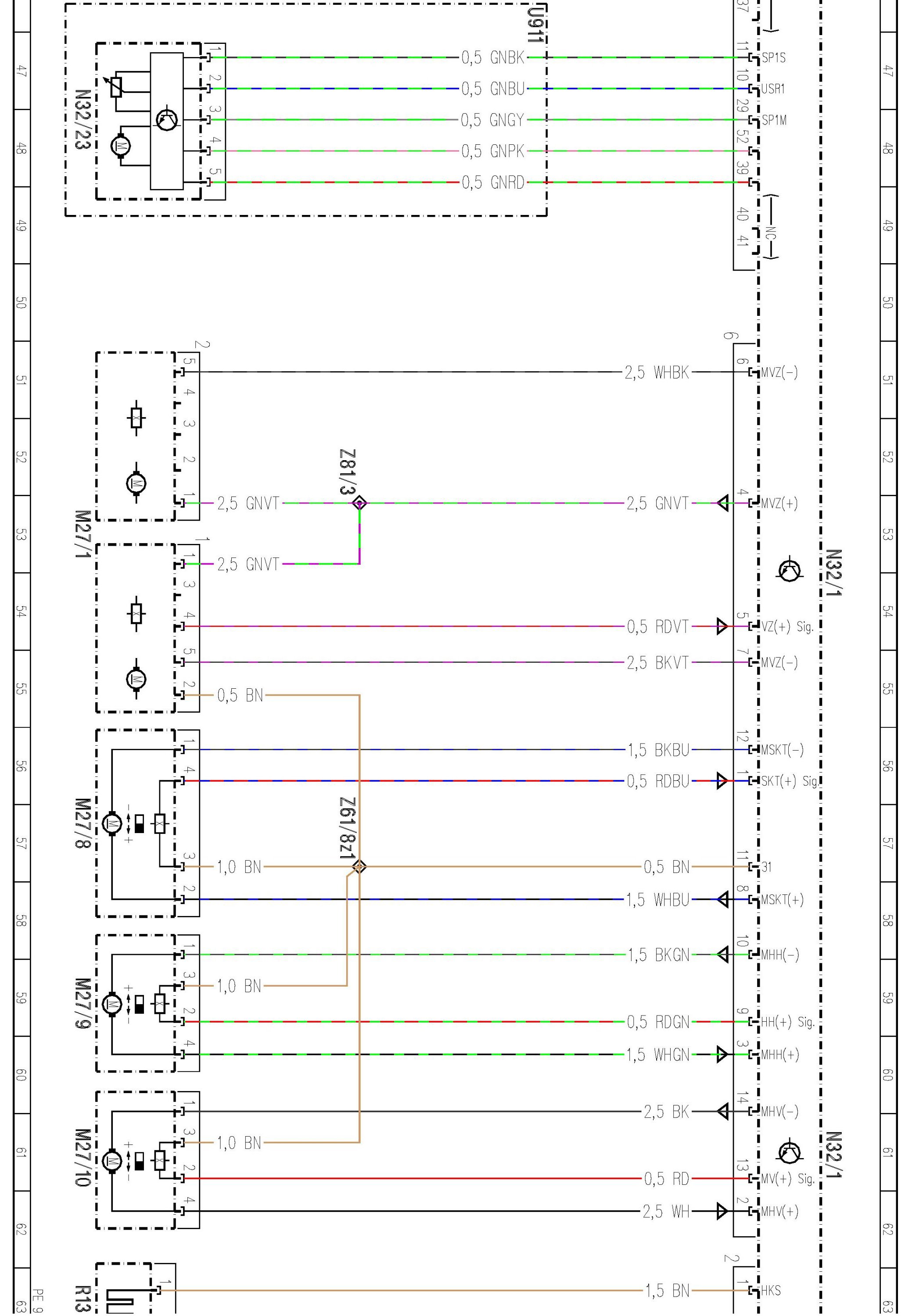

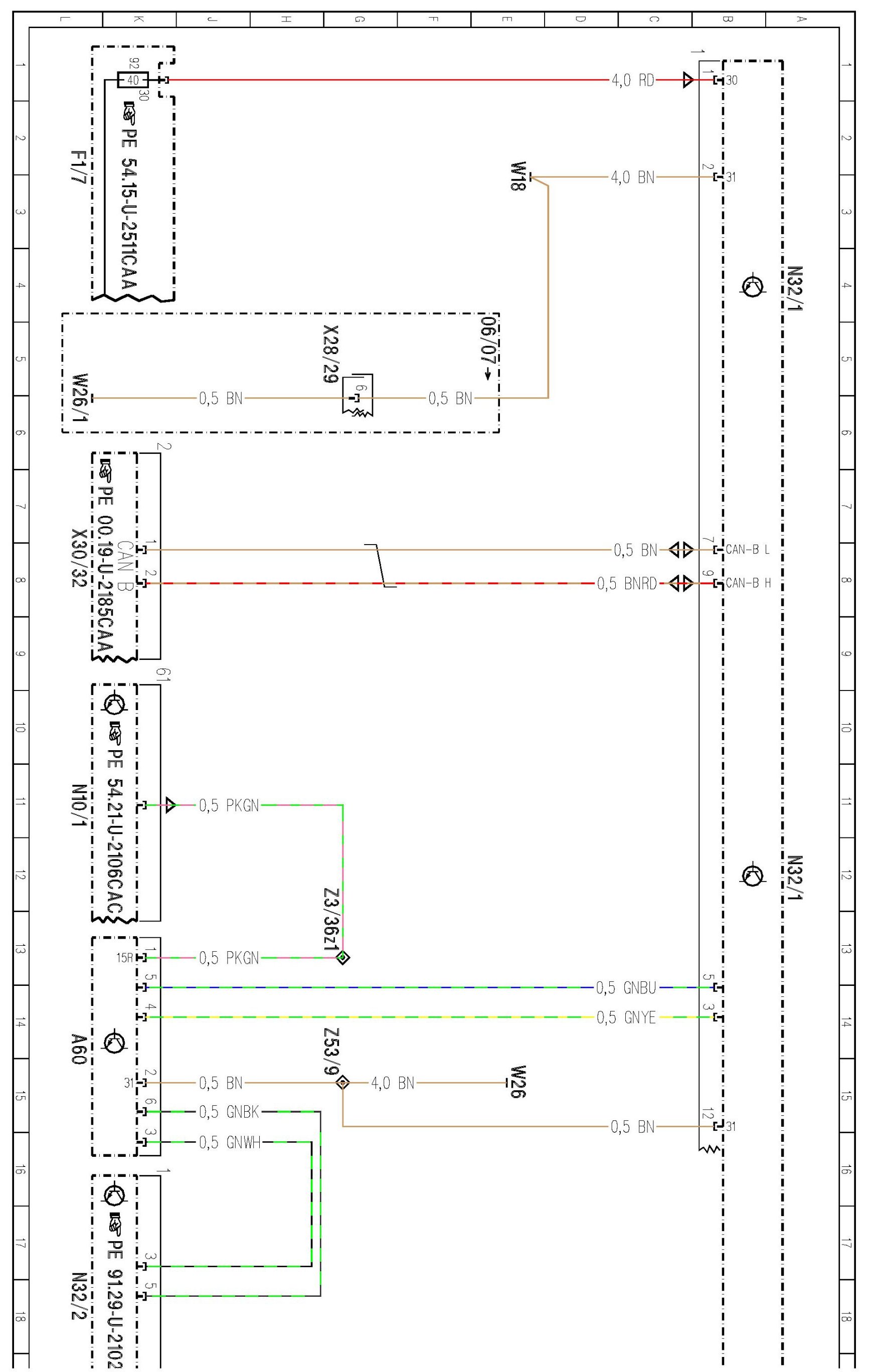

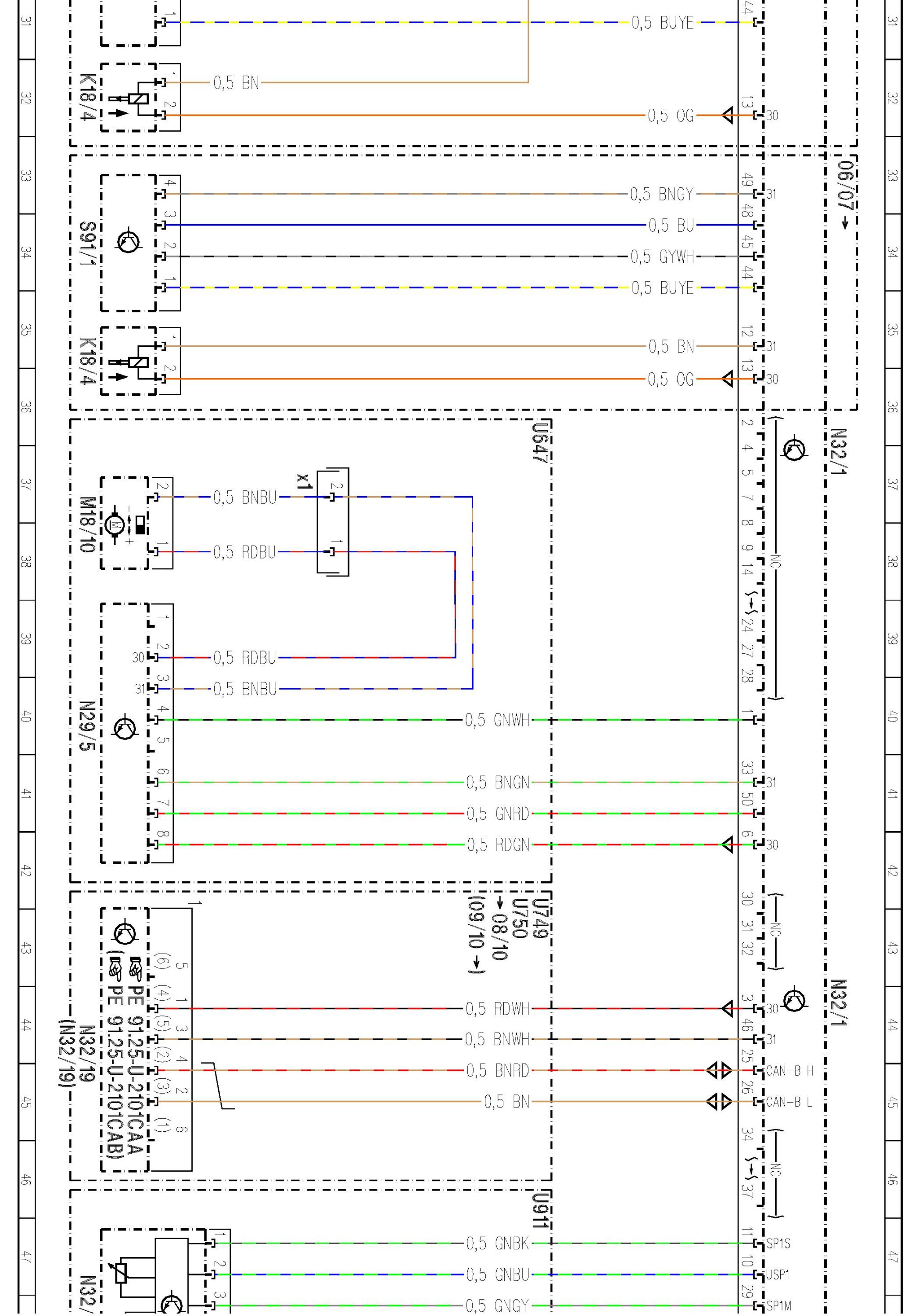

PE91.29-U-2101CAA Left Front Seat Control Module

PE91.29-U-2101CAA Left Front Seat Control Module

MODEL 216
- Control unit N32/1







































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
