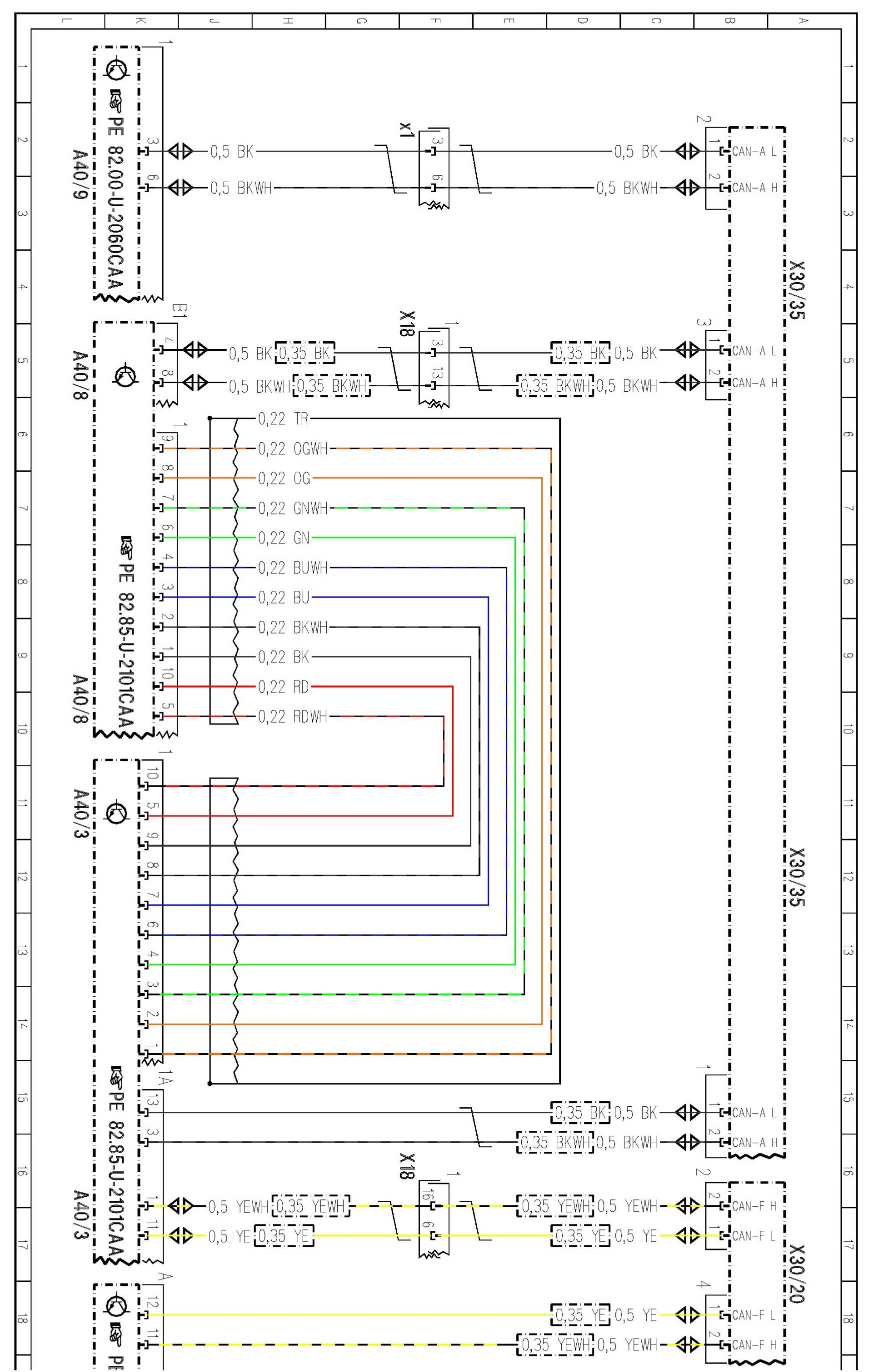

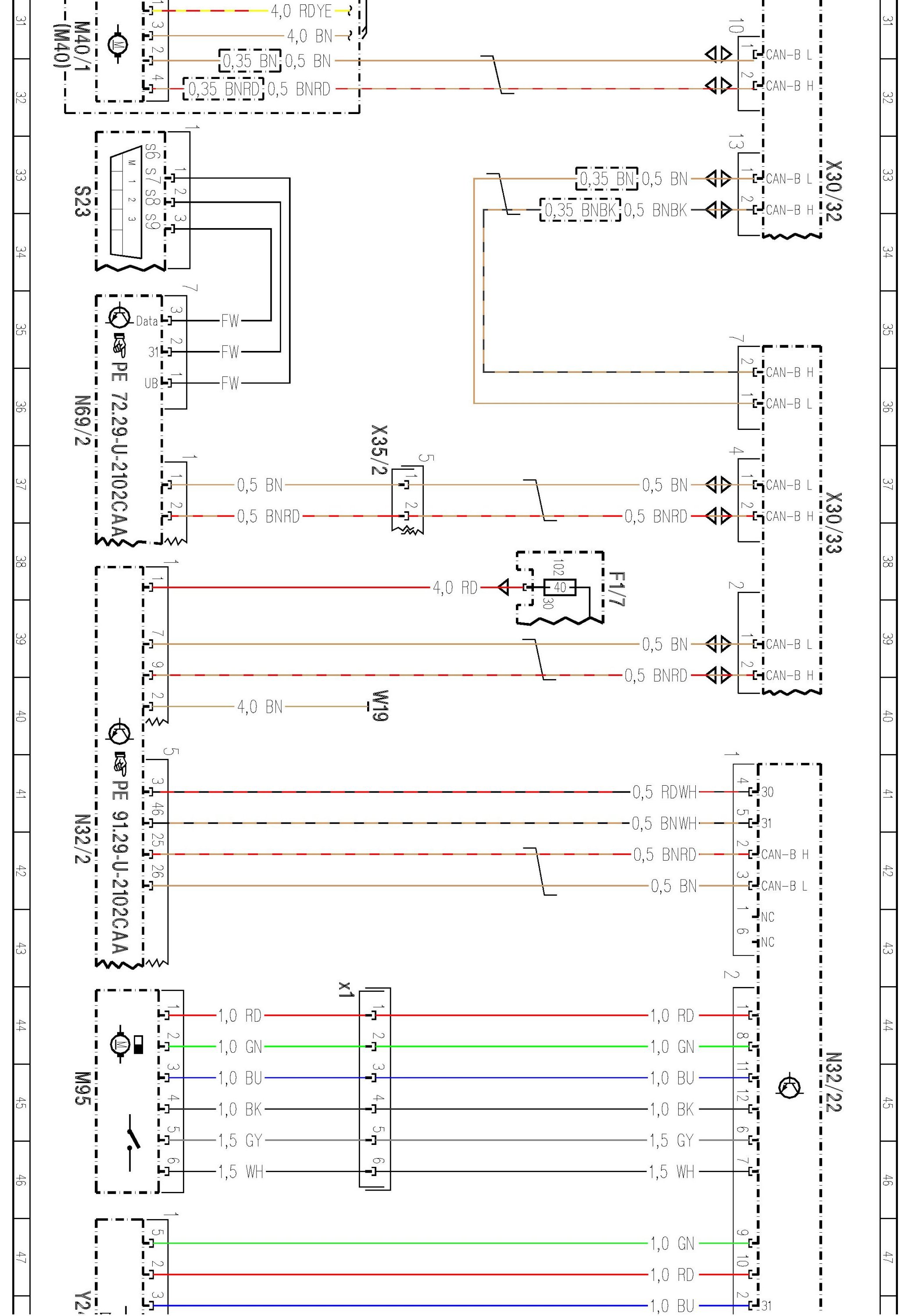

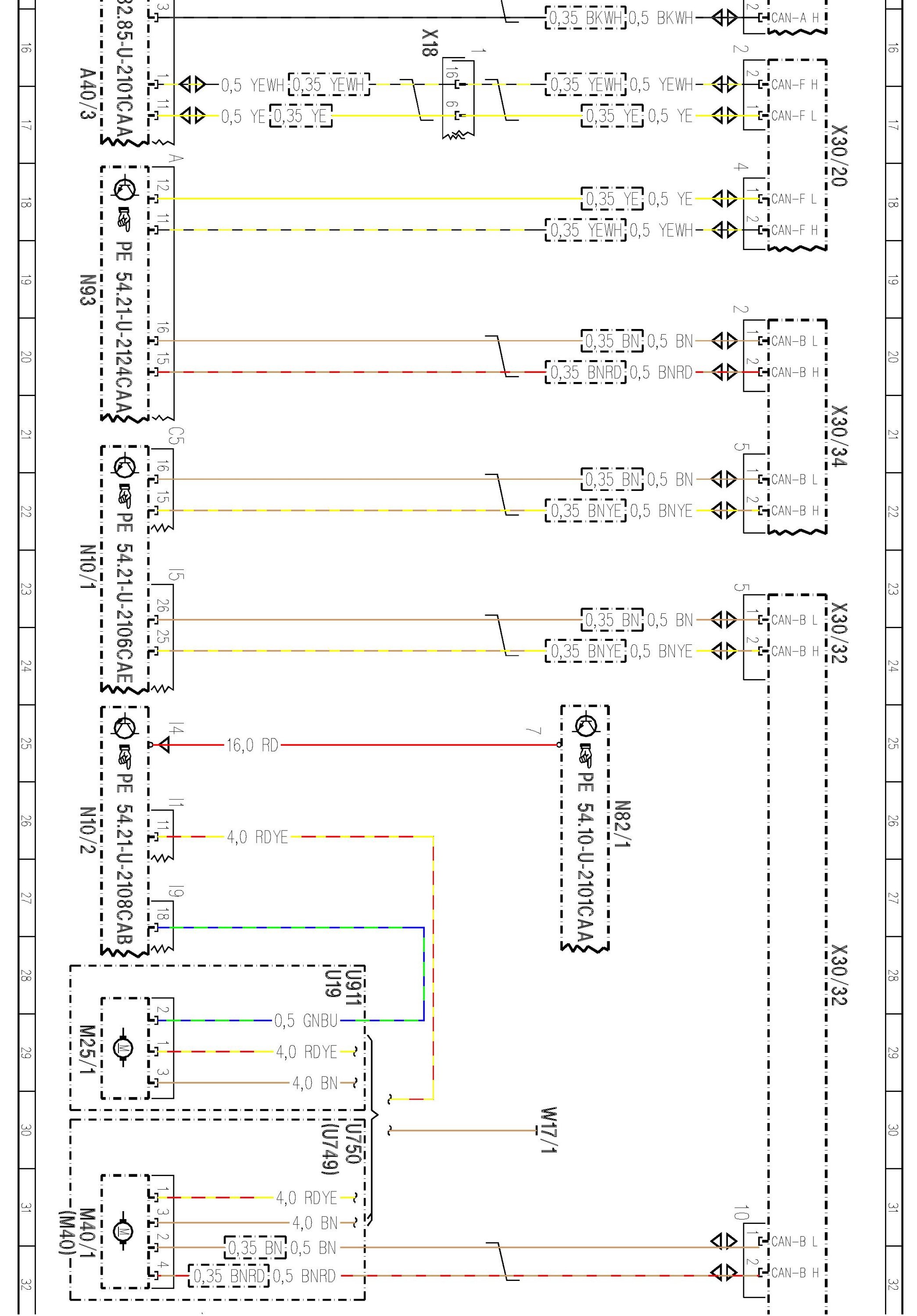

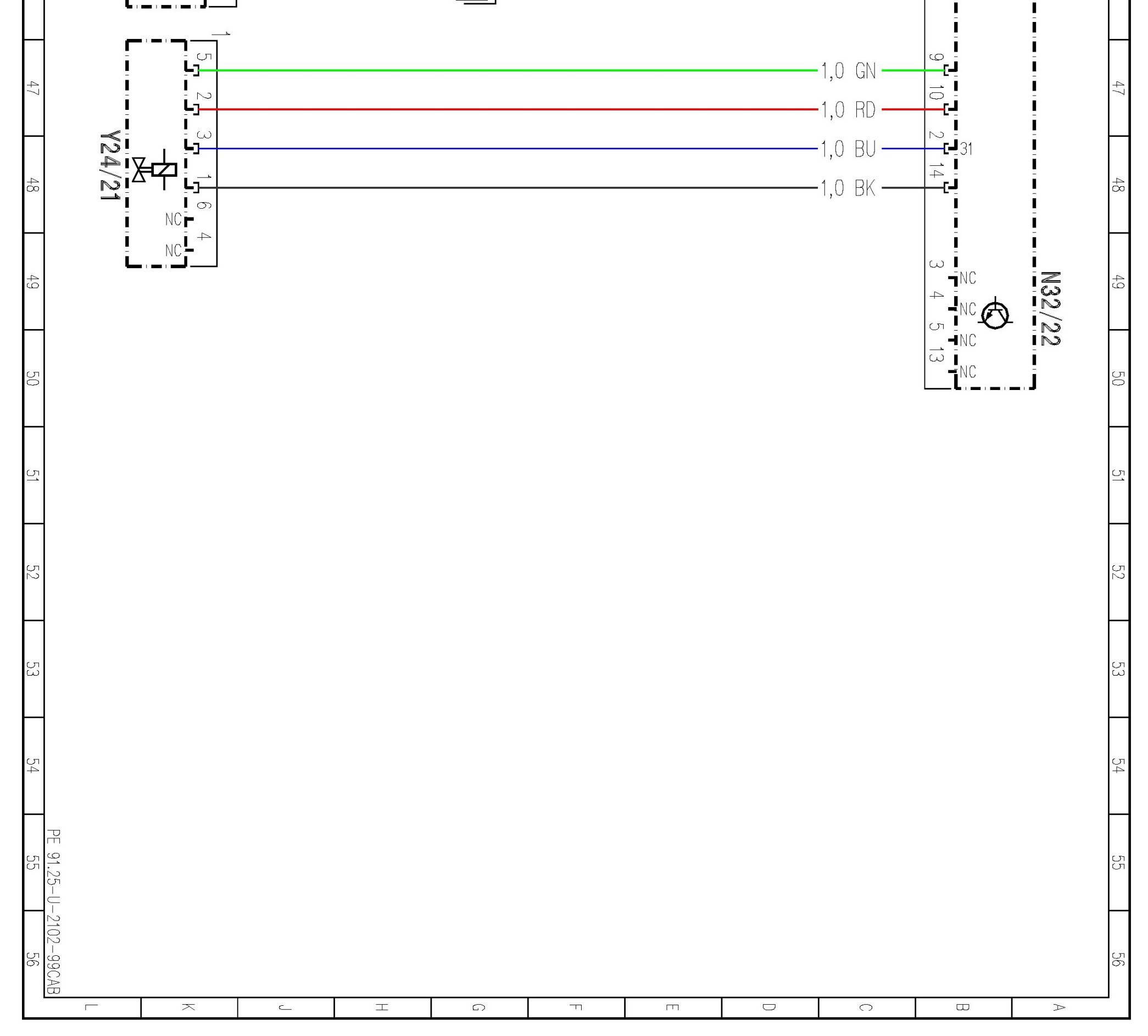

PE91.25-U-2102CAB Right Front Dynamic Seat Control Module

PE91.25-U-2102CAB Right Front Dynamic Seat Control Module

MODEL 216
- with CODE (432) Left and right dynamic multicontour seat
- as of Model Year 2011



























































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
