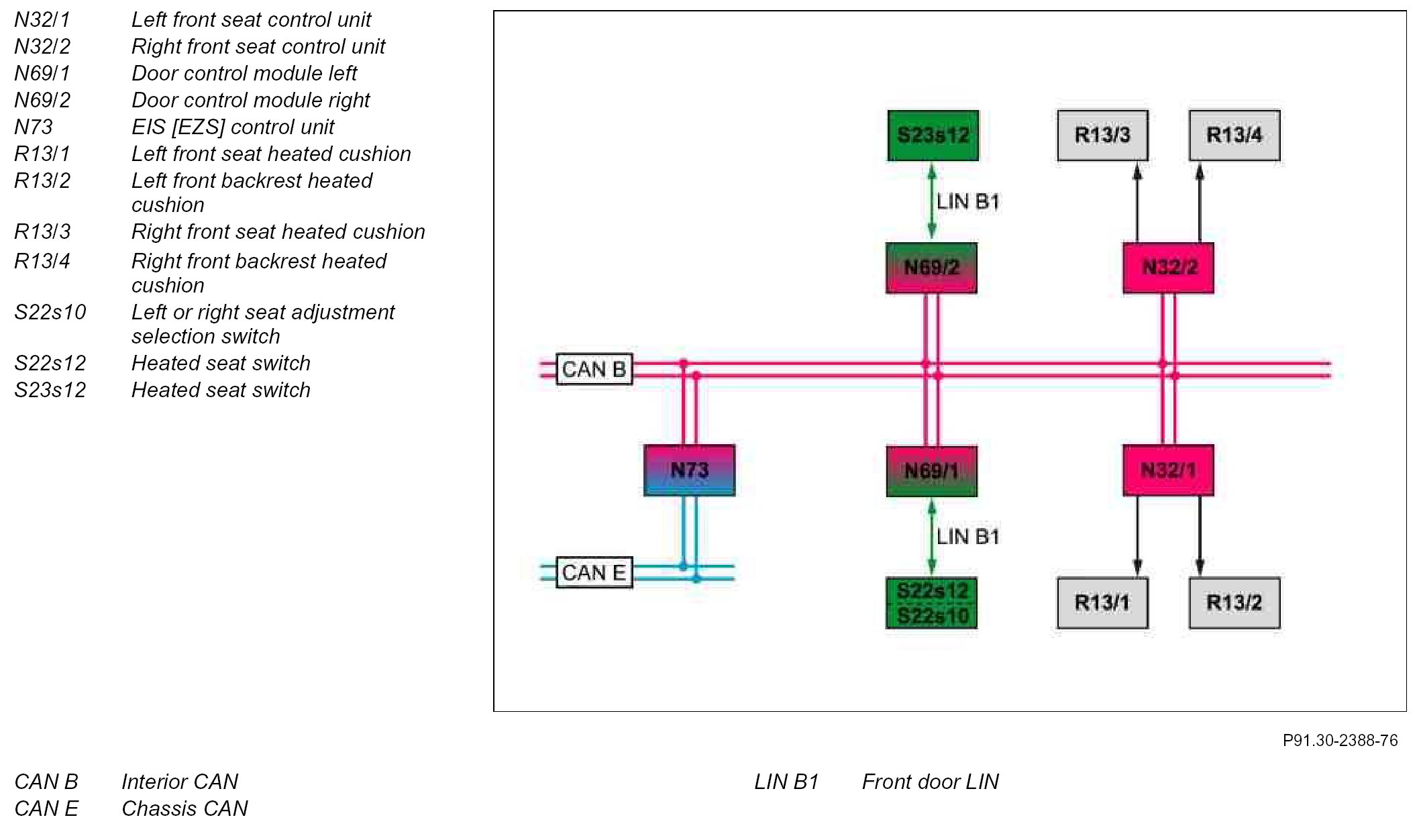

GF91.30-P-0003-03LA Seat Heater (SIH) Block Diagram



GF91.30-P-0003-03LA Seat Heater (SIH) Block Diagram
- with CODE (873) Heated left and right front seats

Component Identification:
