Sunroof / Moonroof Windguard: Service and Repair
AR77.20-P-2500SX Remove/install Wind Deflector

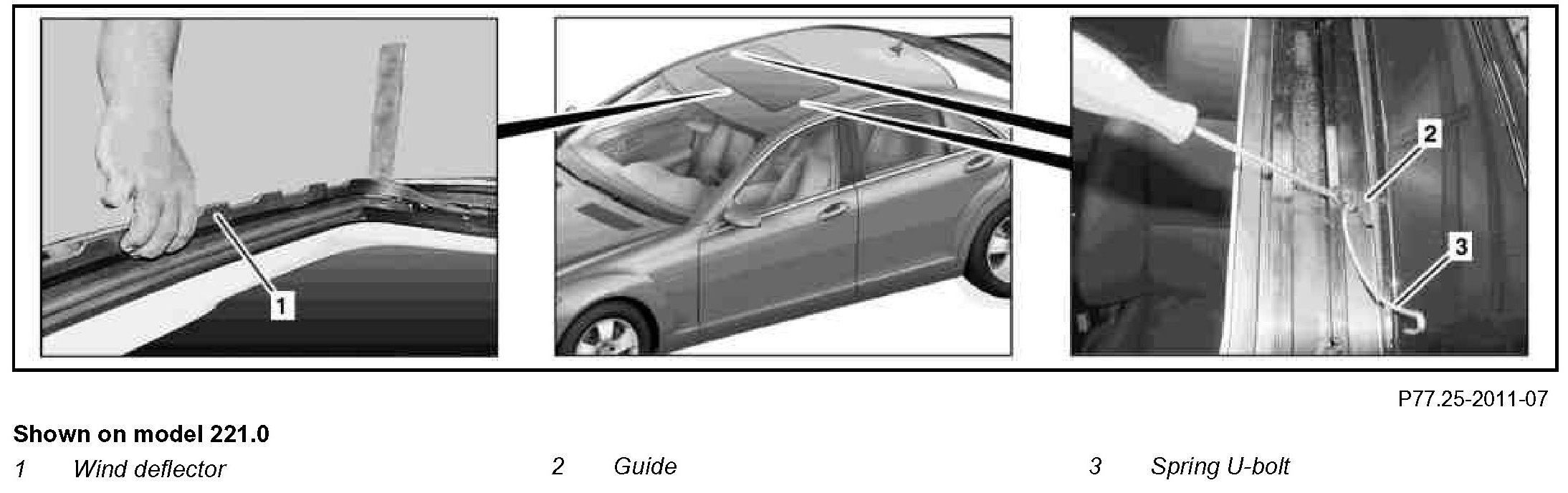

Component Identification:

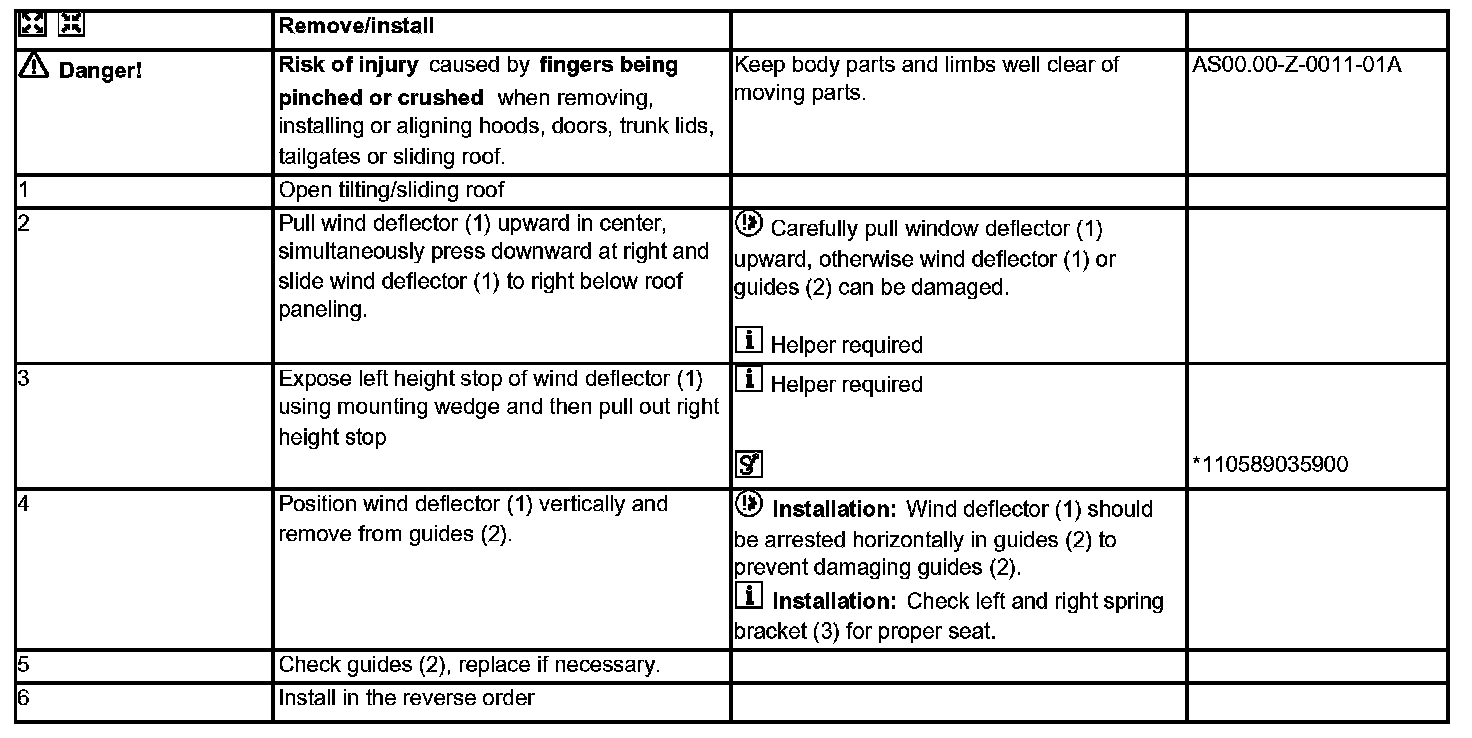

Steps 1-6:
Special Tool:
