Sunroof / Moonroof Lift Mechanism: Service and Repair



AR77.20-P-1700SX Remove/install Pop-up Bracket On Tilting/sliding Roof

Component Identification:




Modification Notes:

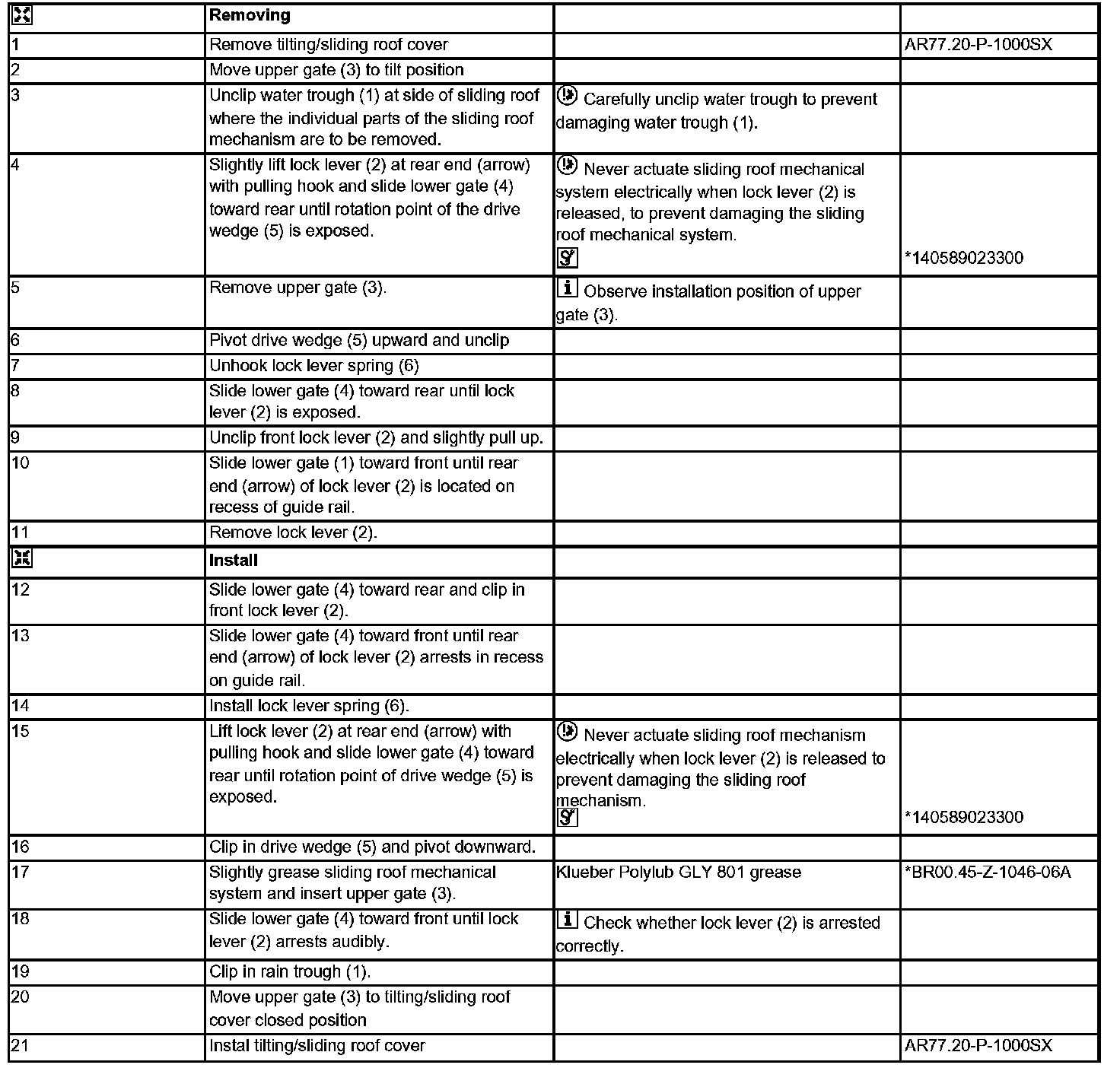

Steps 1-21:

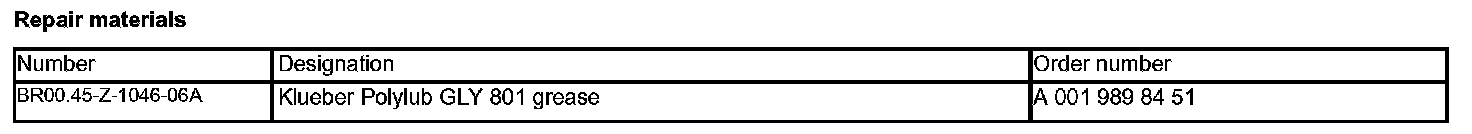

Repair Materials:

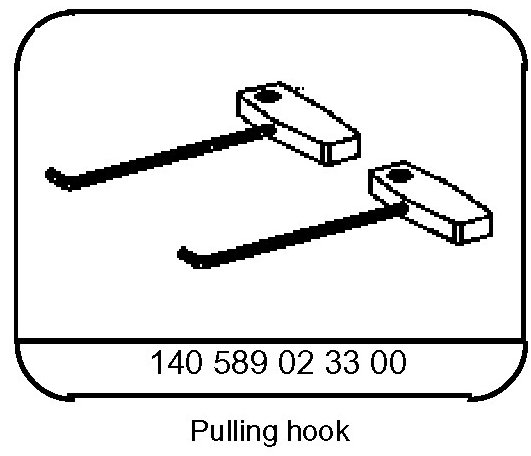

Special Tools:
