AR77.20-P-1000SX Remove/Install Tilting/Sliding Roof Cover
AR77.20-P-1000SX Remove/Install Tilting/Sliding Roof Cover
AR77.20-P-1000SX Remove/install Tilting/sliding Roof Cover

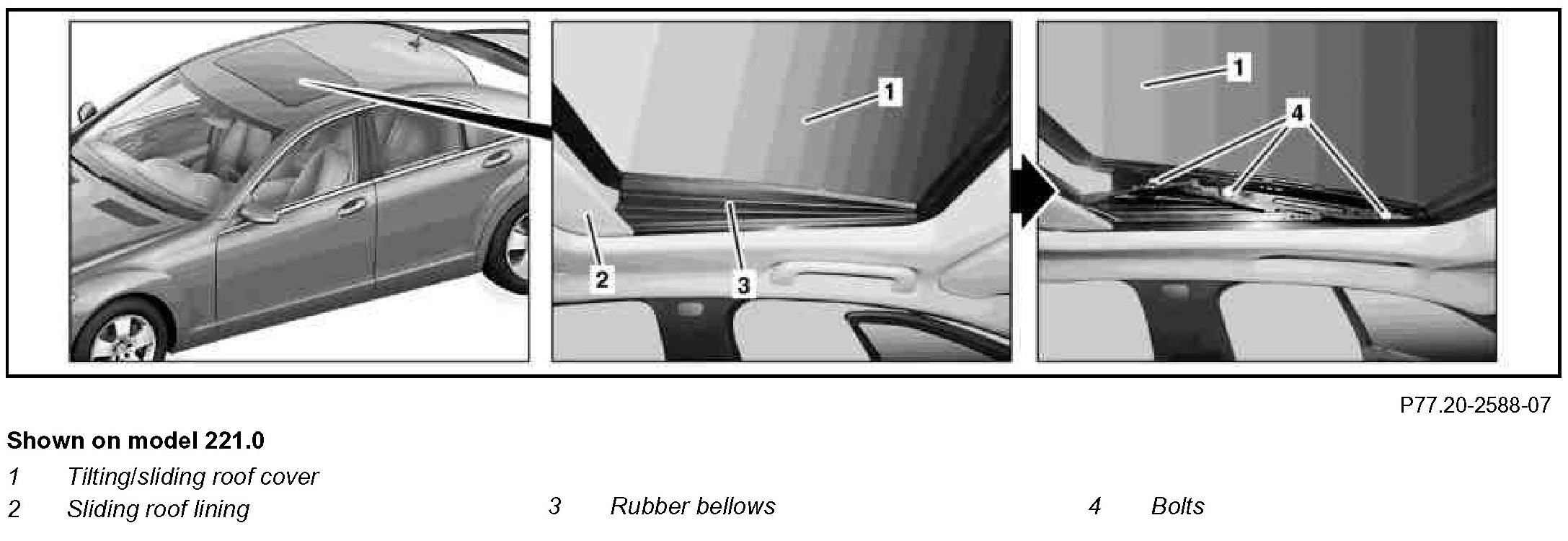

Component Identification:

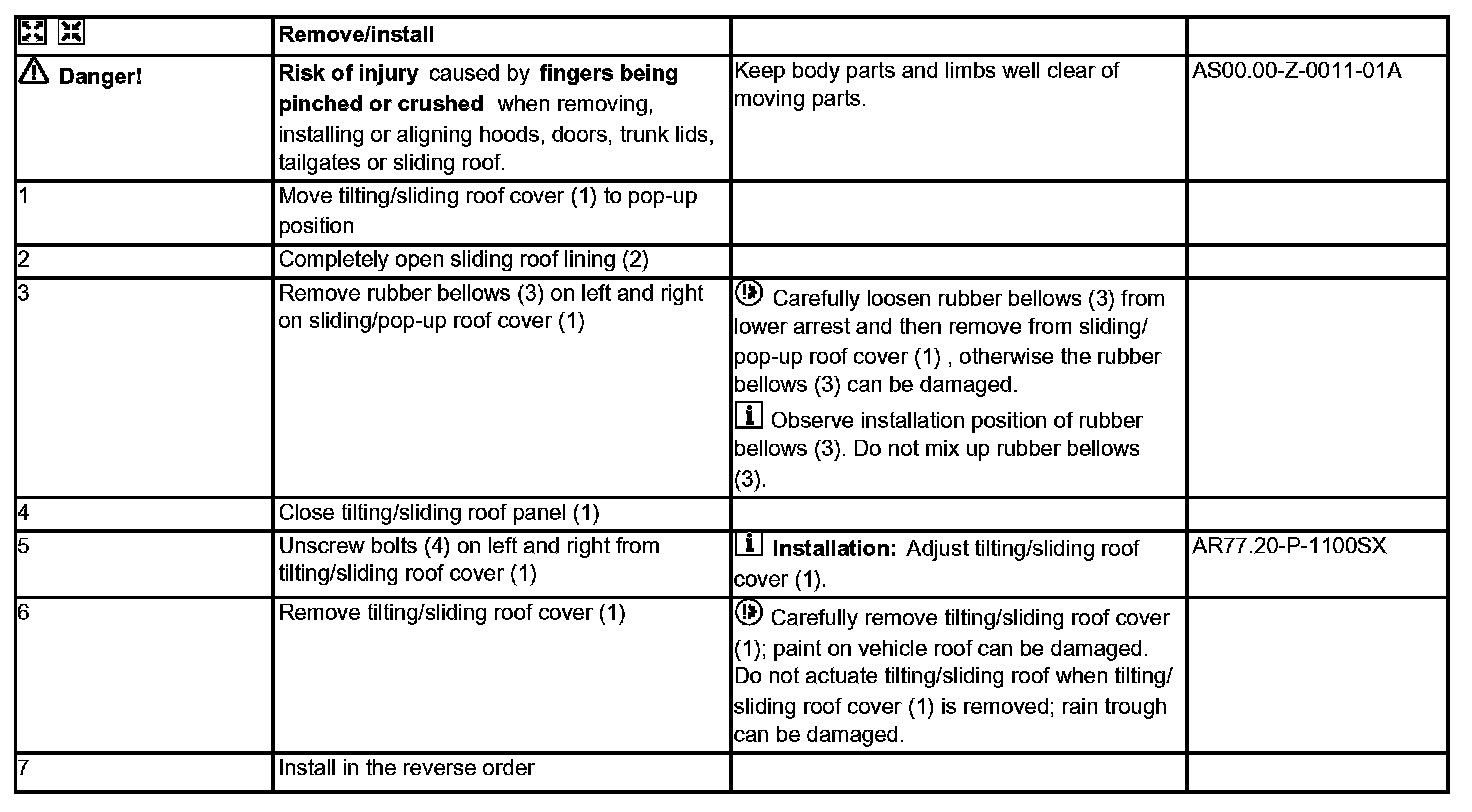

Steps 1-7:
