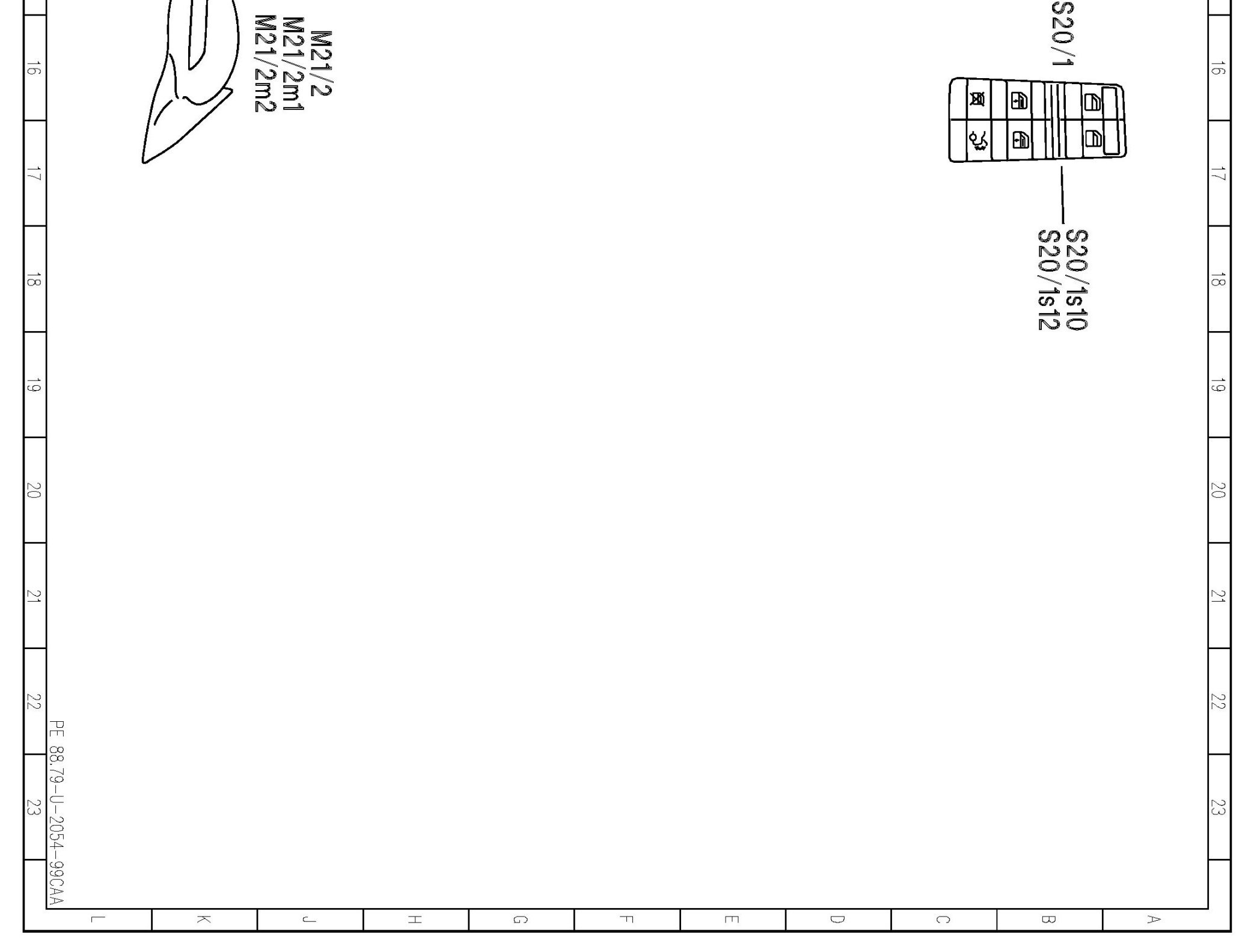

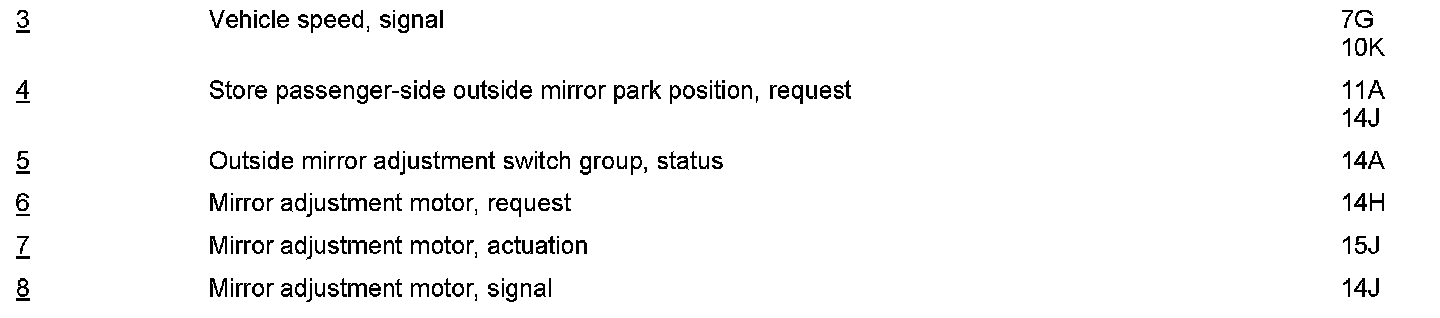

PE88.79-U-2054CAA Electrical Function Schematic For Electric Passenger-Side Outside Mirror Park Position
PE88.79-U-2054CAA Electrical Function Schematic For Electric Passenger-Side Outside Mirror Park Position
MODEL 216
- as of Model Year 2009

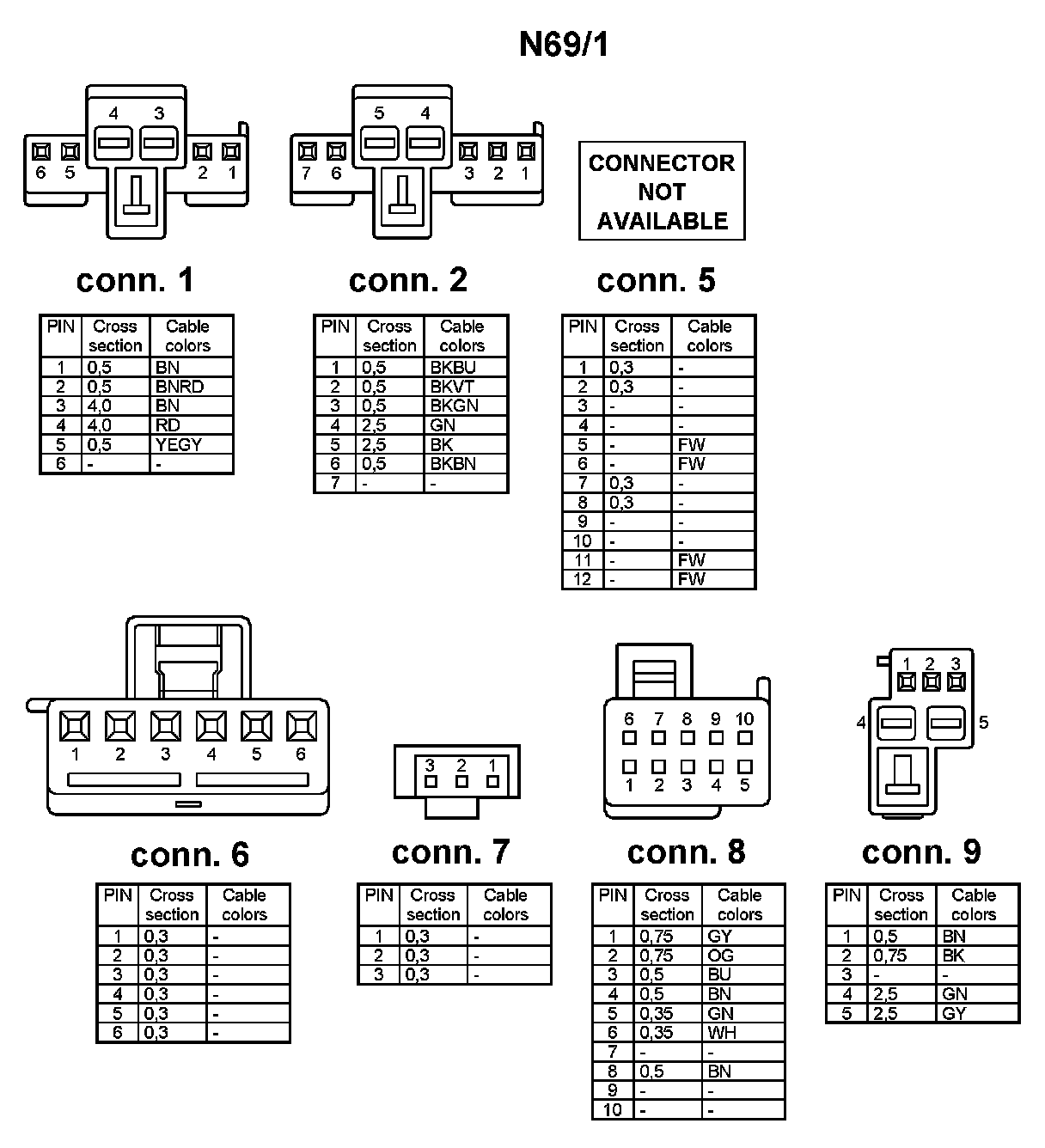

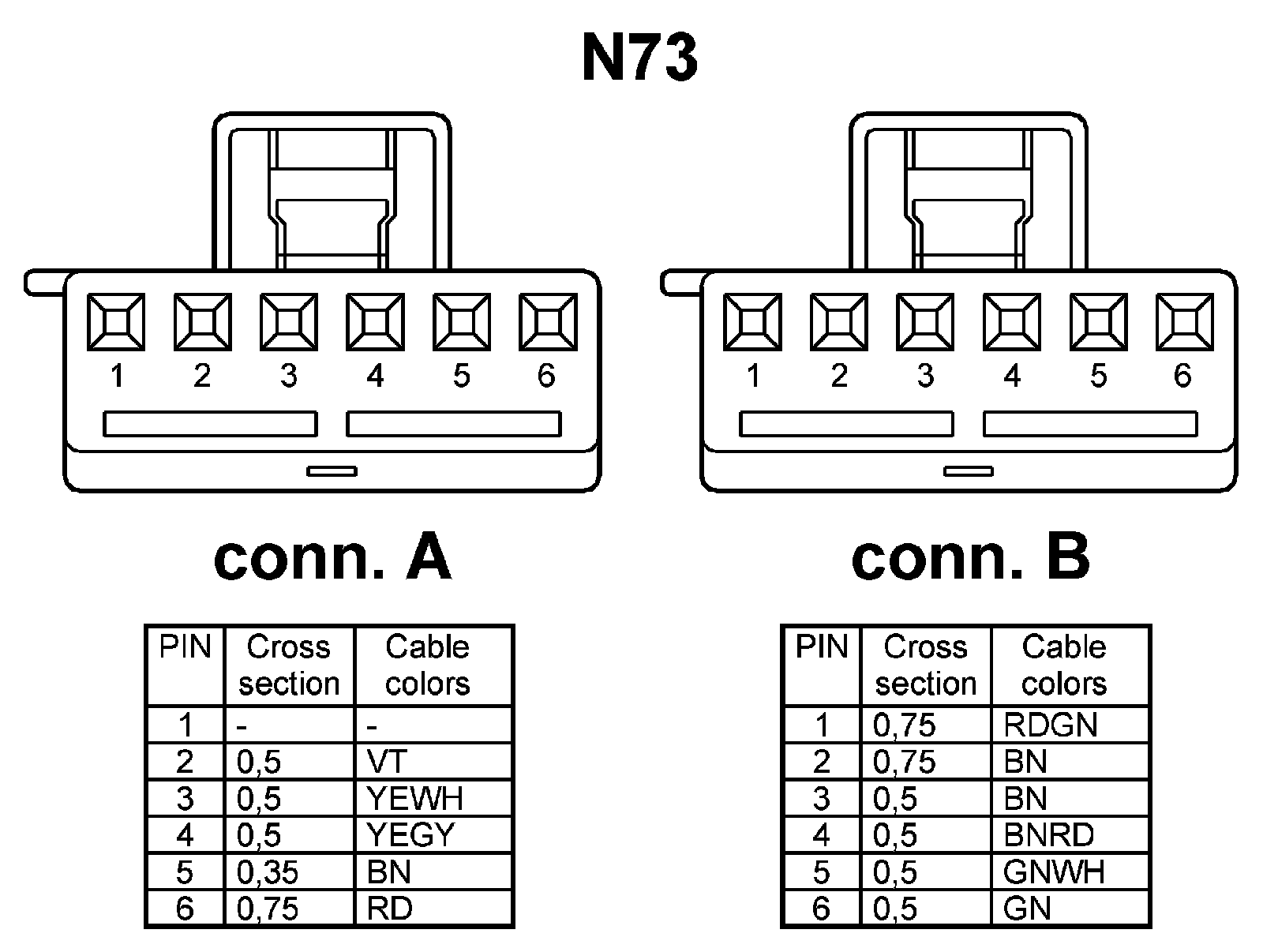

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
