AR68.30-P-4780SC Remove/Install Side Paneling In Rear
AR68.30-P-4780SC Remove/Install Side Paneling In Rear
AR68.30-P-4780SC Remove/install Side Paneling In Rear

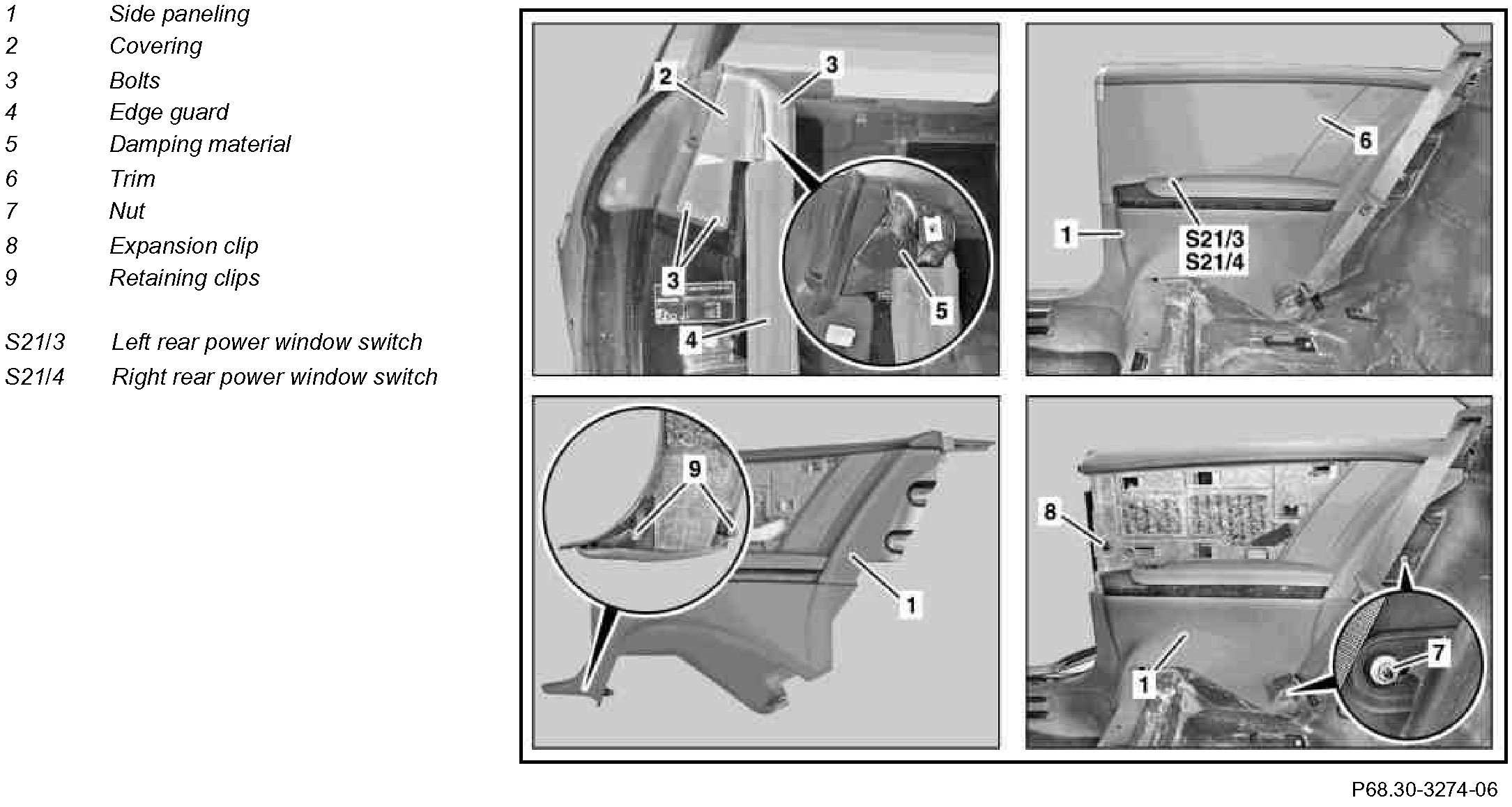

Component Identification:

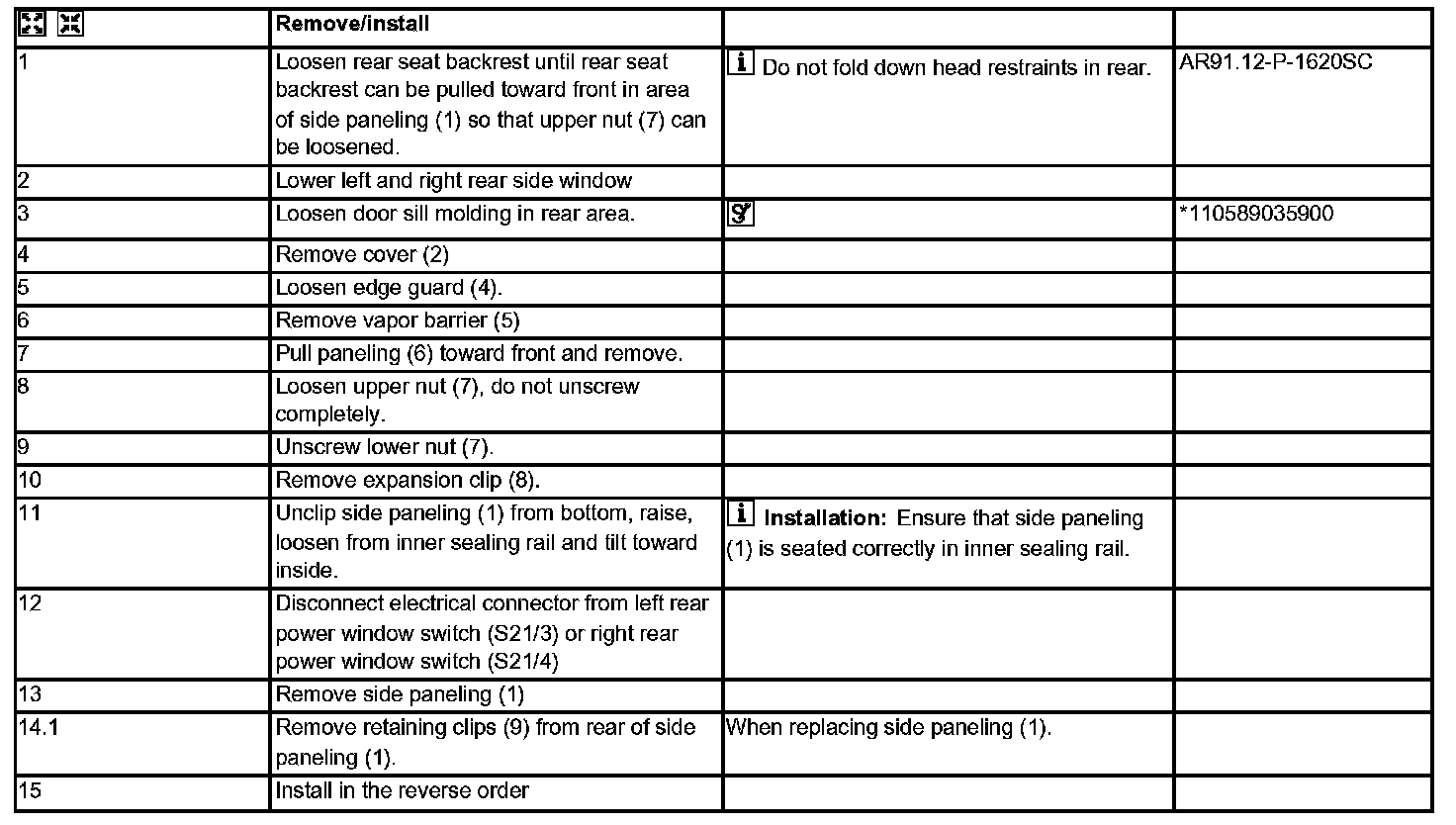

Steps 1-15:

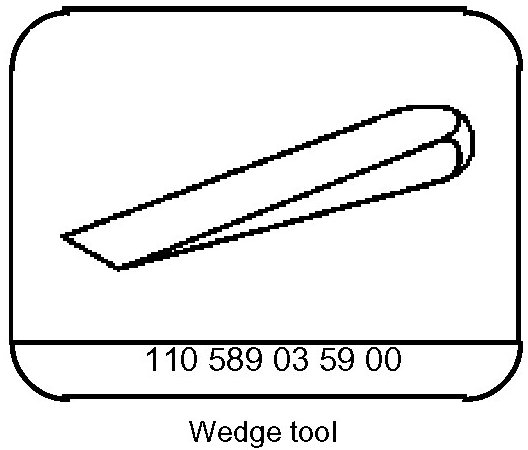

Special Tool:
