AZ82.20-P-0001SCB Retrofit Illuminated Door Sill Molding




AZ82.20-P-0001SCB Retrofit Illuminated Door Sill Molding
MODEL 216.3## 1#

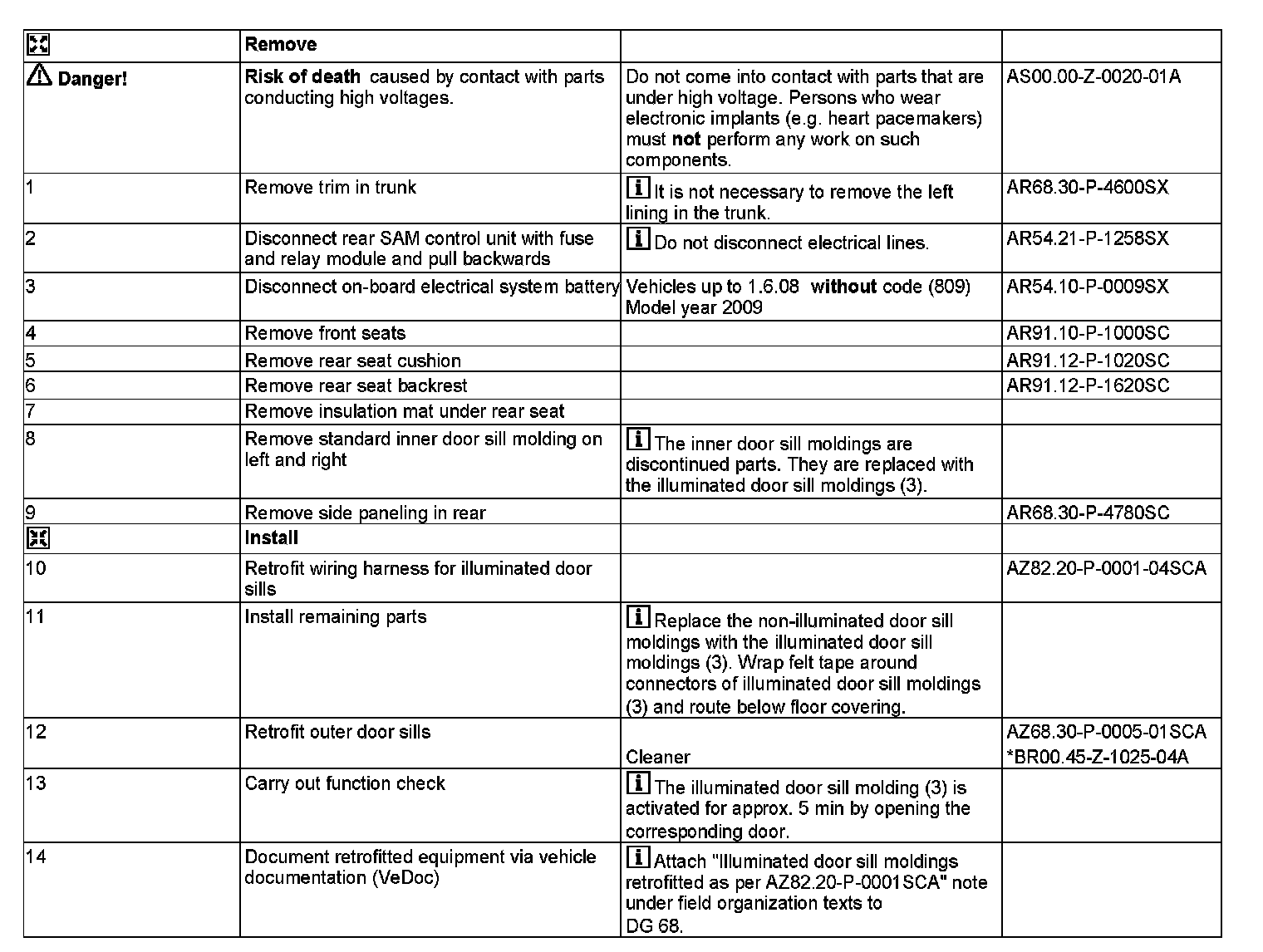

Installation of 2-fold door sill, AMG

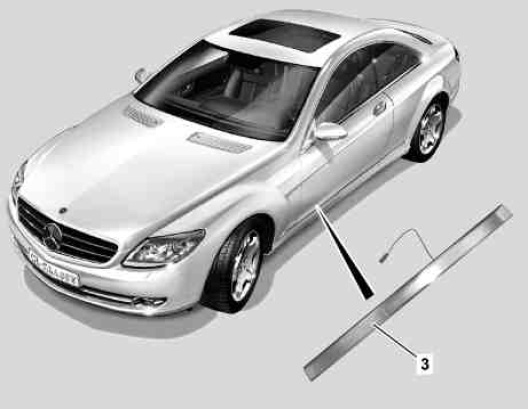

3 Illuminated door sill
