AZ68.30-P-0005SCA Retrofit Unilluminated Door Sill




AZ68.30-P-0005SCA Retrofit Unilluminated Door Sill
MODEL 216

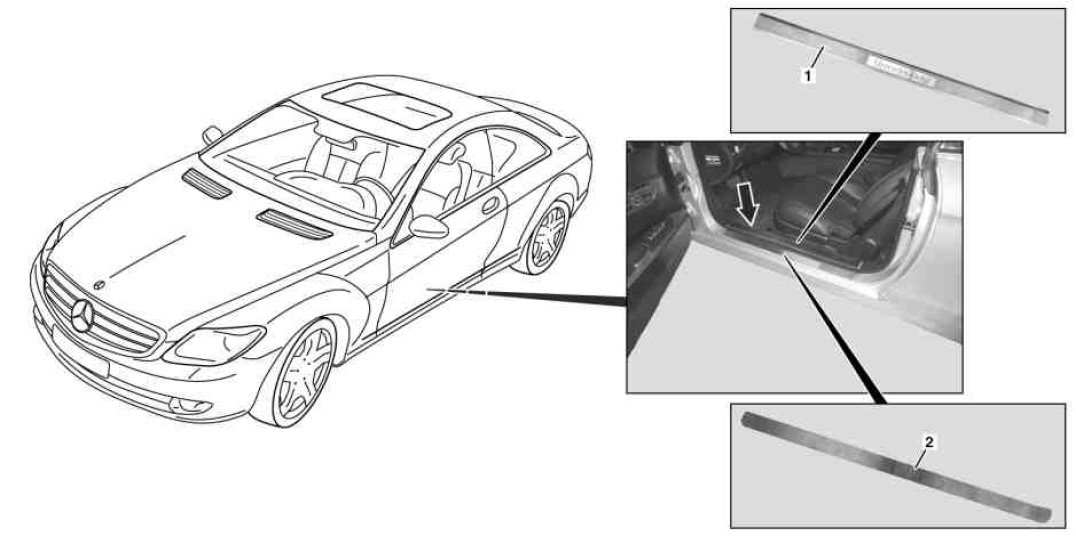

Installation of AMG door sill molding, 2 moldings





1 Inner stainless steel door sill molding
2 Outer stainless steel door sill molding

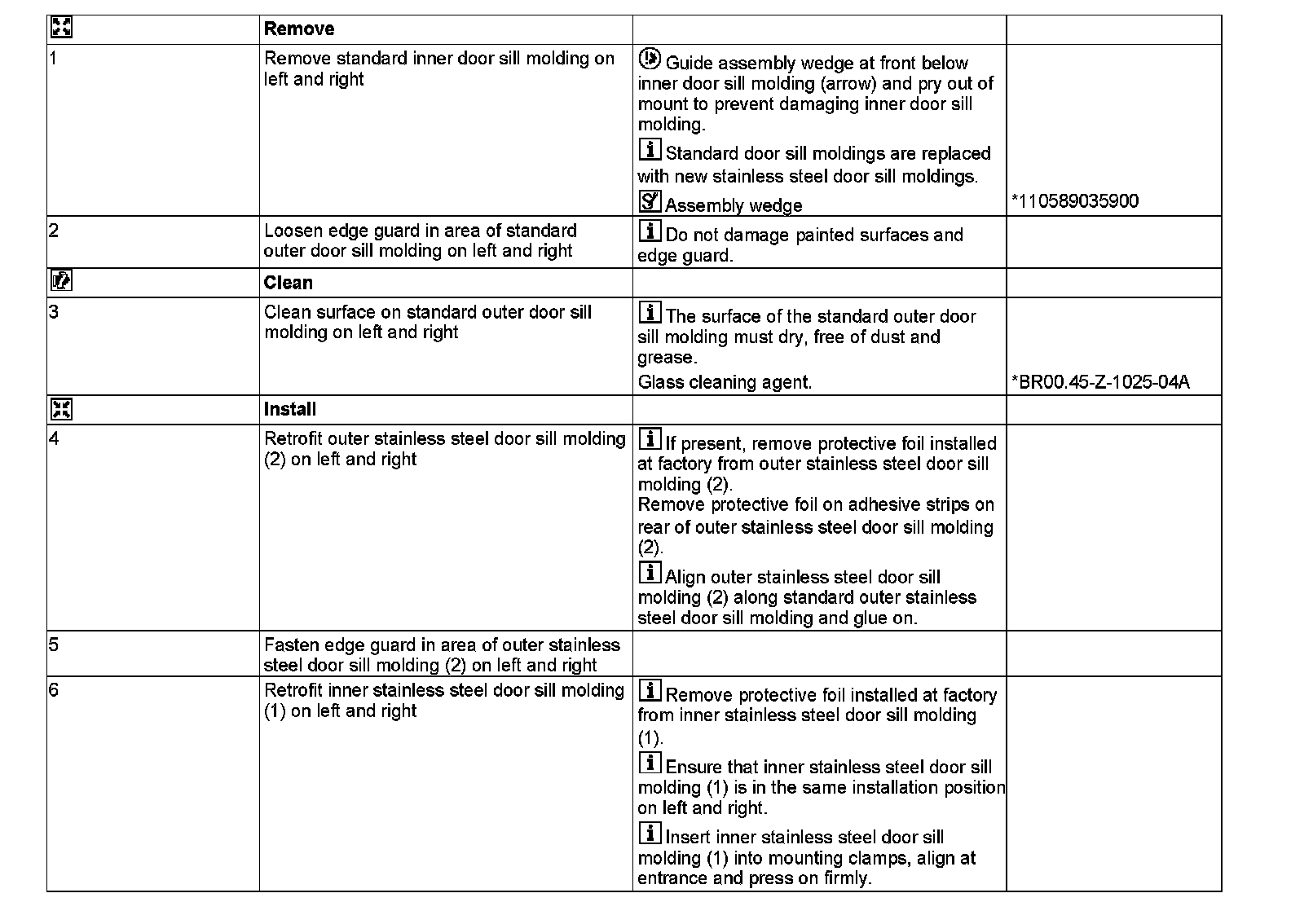

110 589 03 59 00
Mounting wedge
