AZ68.30-P-0005-01SCA Retrofit Outer Door Sill Molding

AZ68.30-P-0005-01SCA Retrofit Outer Door Sill Molding








The following steps are shown on the left side of the vehicle. Installation on the right side of the vehicle is performed correspondingly.

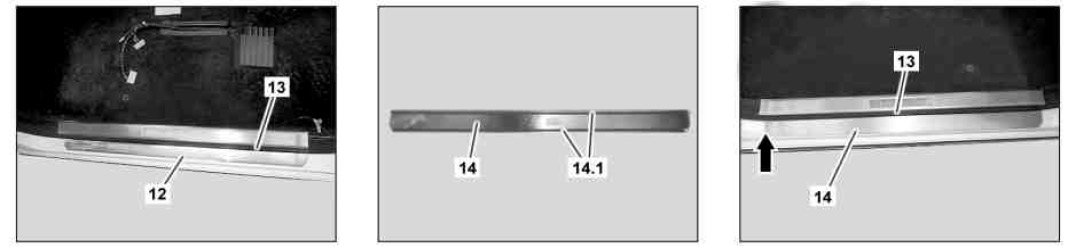

1 Detach edge guard (13) in area of outer door sill (12).

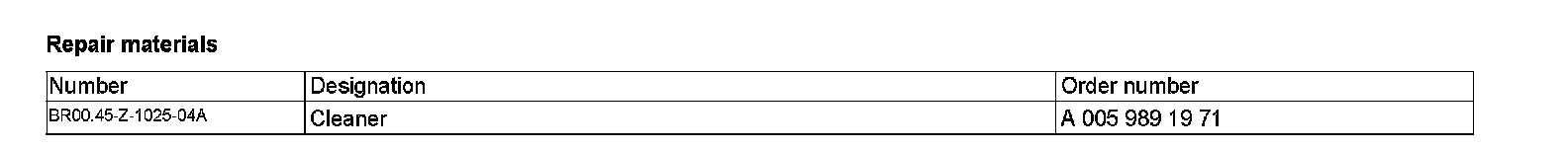

2 Clean surface of standard outer door sill (12) with cleaning agent.
Surface on standard outer rear door sill (12) must be dry, free of dust and grease. This helps to prevent adhesion problems.
Observe manufacturers instructions.
3 Remove carrier foils(14.1) on adhesive strips from rear of accessory outer front door sill (14).
4 Position outer accessory door ill (14) at edge (arrow) on standard outer door sill (12) and glue on.
Uniformly press accessory outer rear door sill (14) to standard outer front door sill (12).
5 Fasten edge guard (13) in area of door sill molding.
