CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Rear Shelf
>>
Service and Repair
Rear Shelf: Service and Repair
AR68.30-P-4580SC Remove/install And Disassemble
Rear Shelf

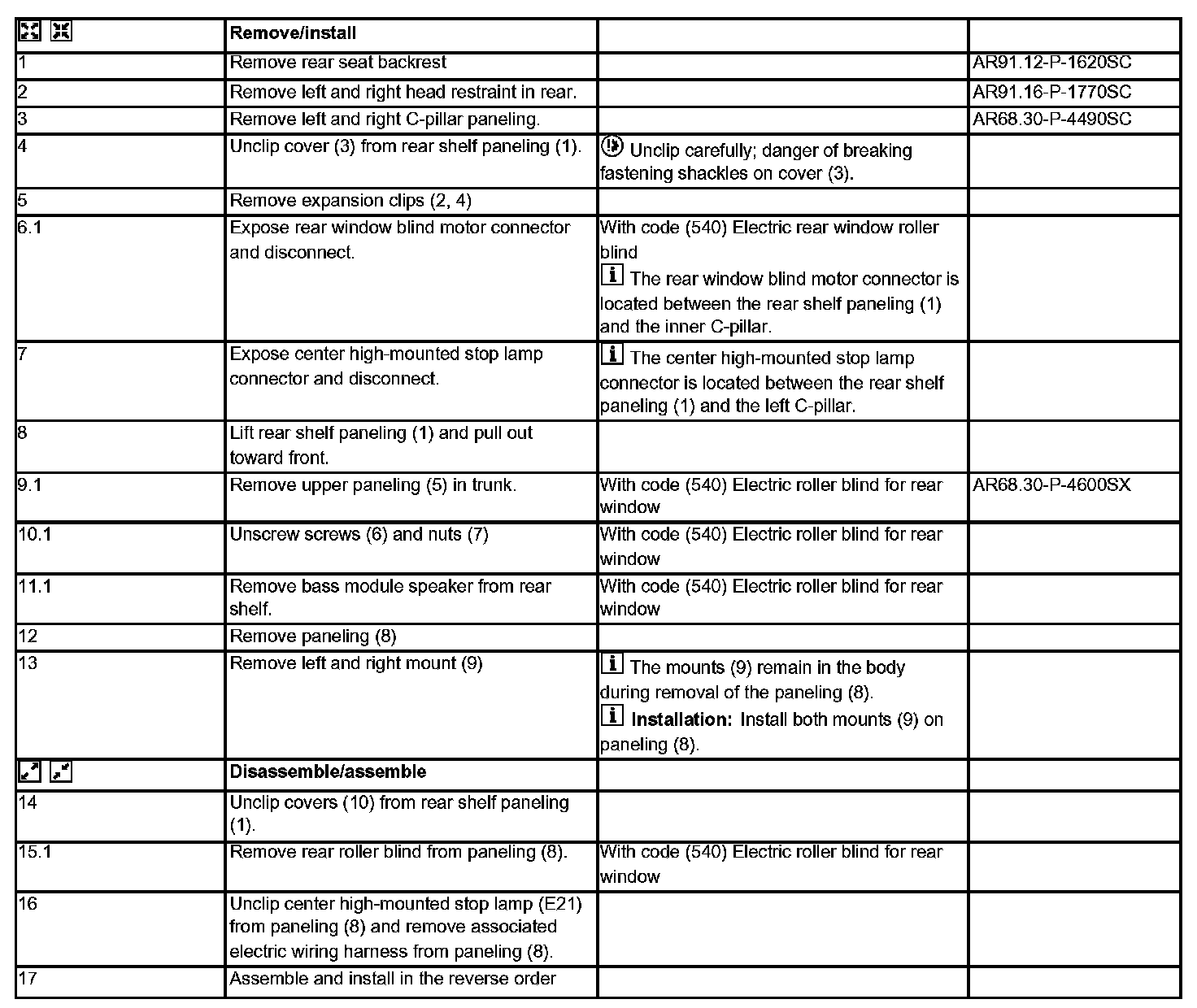

Component Identification:
Steps 1-17:
