AR68.30-P-4300SC Remove/Install Headliner
AR68.30-P-4300SC Remove/Install Headliner
AR68.30-P-4300SC Remove/install
Headliner

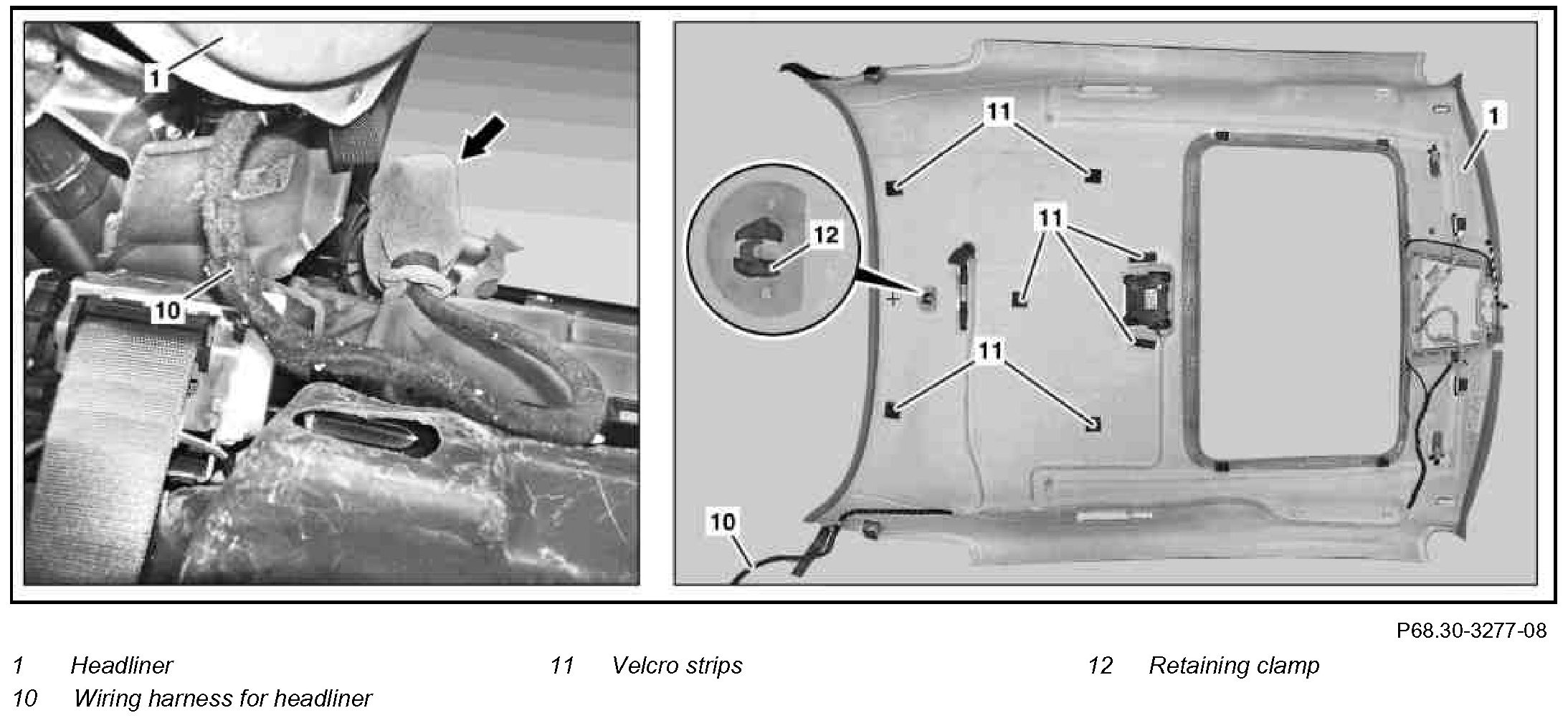

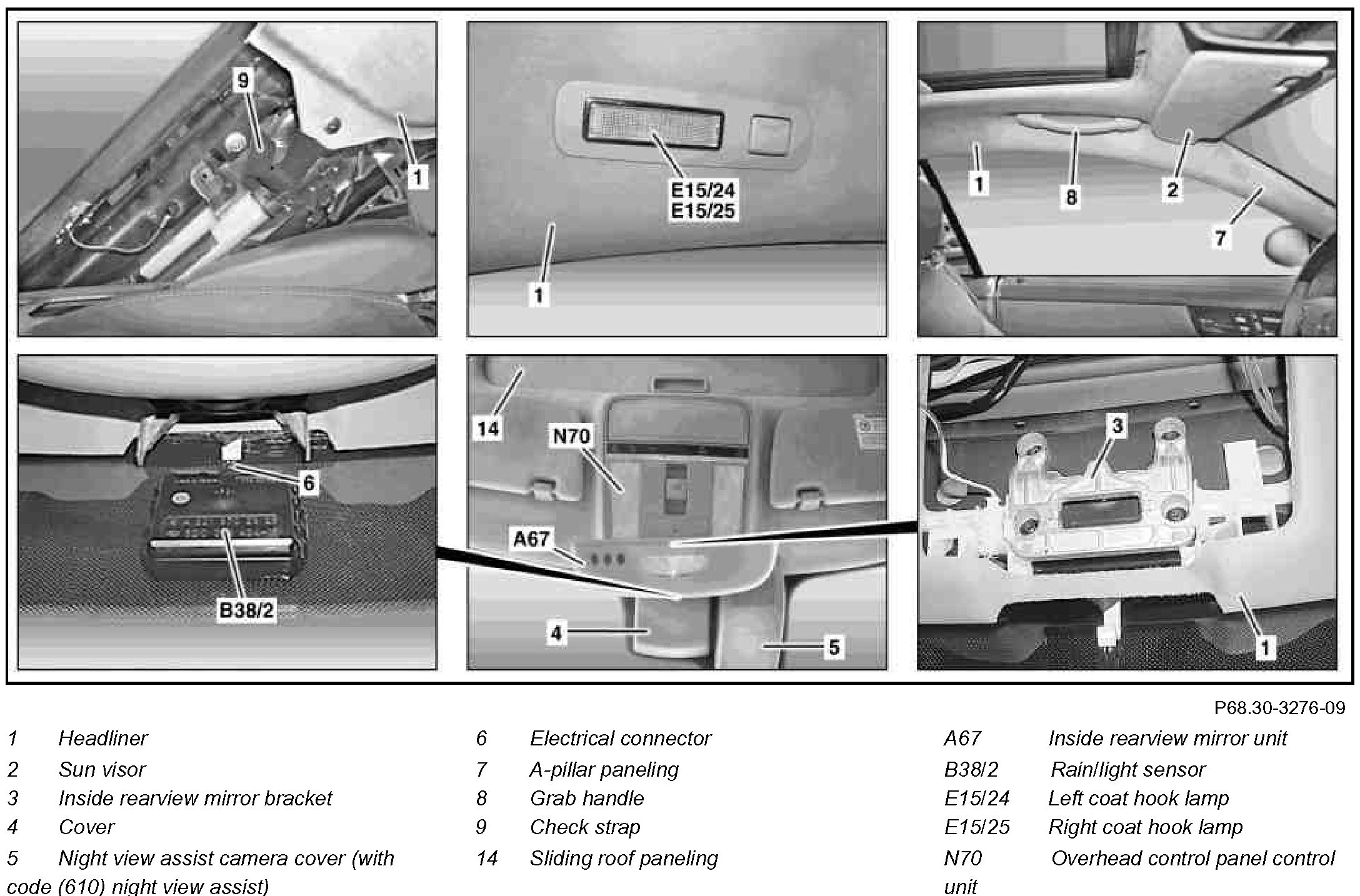

Component Identification:
Component Identification:

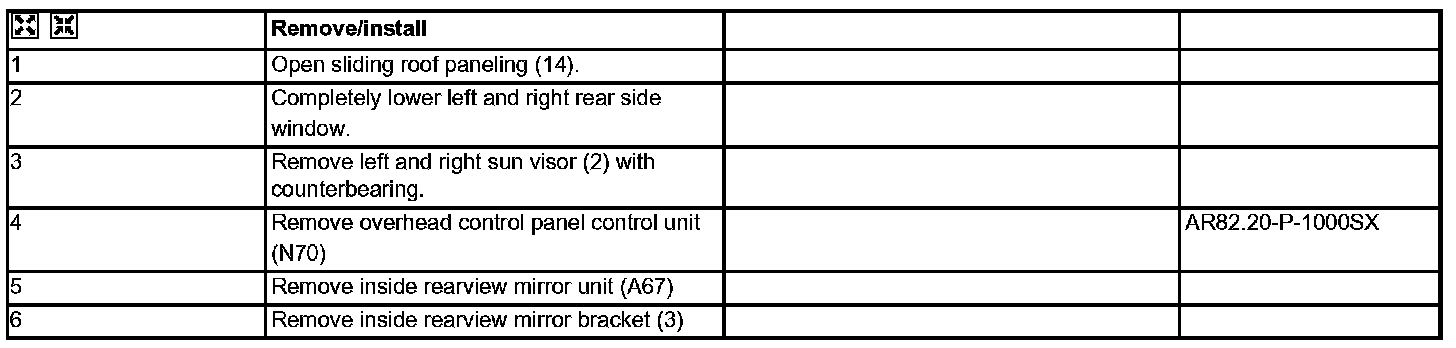

Steps 1-6:

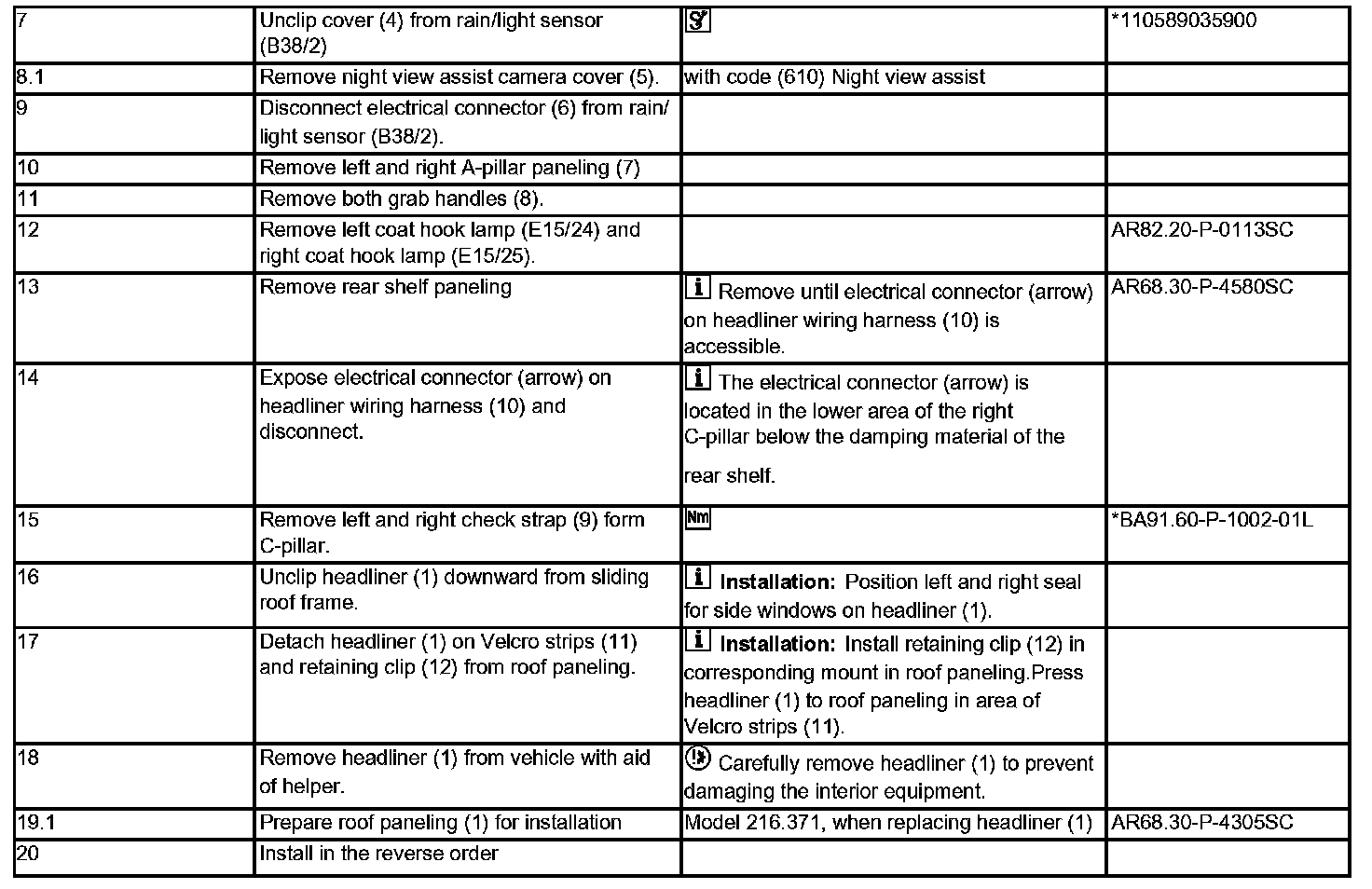

Steps 7-20:

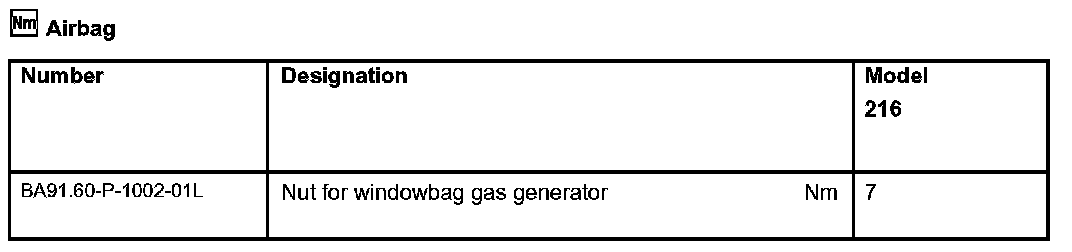

Airbag:

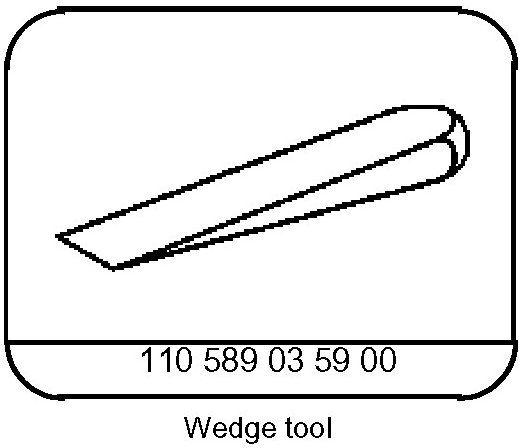

Special Tool:
