Drink Holders: Service and Repair

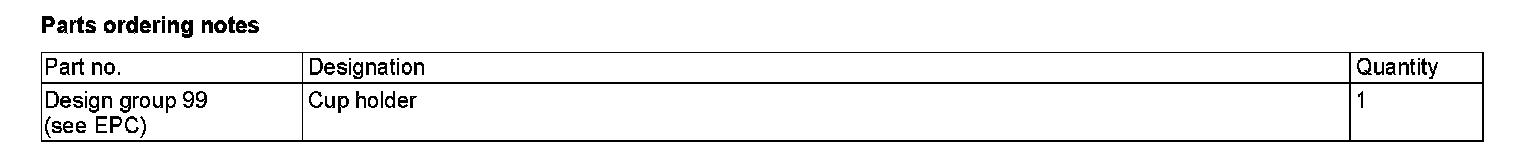

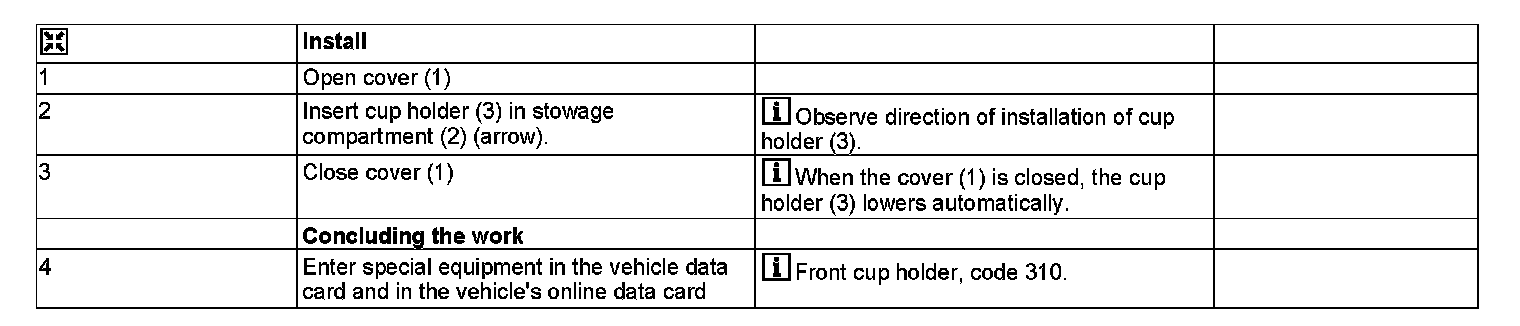

AN68.20-P-0002SC Retrofit Cup Holder
MODEL 216.3## 1#

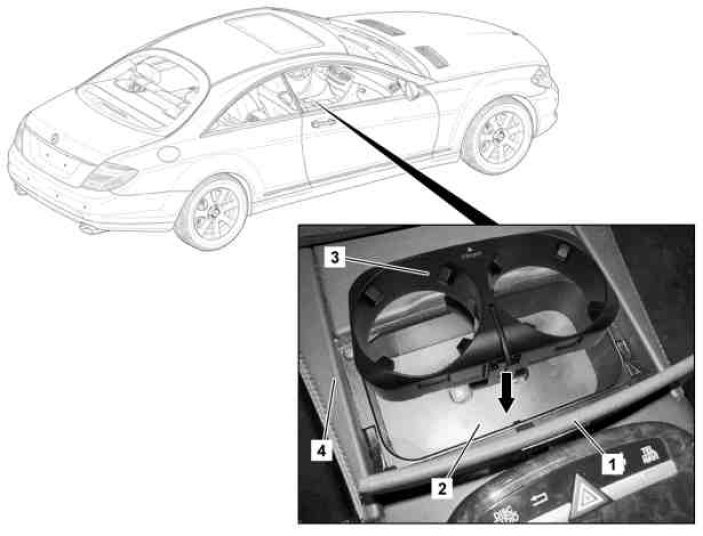

1 Cover
2 Stowage compartment
3 Cup holder
4 Center console
