AR68.10-P-1180SC Remove/Install Trim Strip on Instrument Panel
AR68.10-P-1180SC Remove/Install Trim Strip on Instrument Panel
AR68.10-P-1180SC Remove/install Trim Strip On Instrument Panel

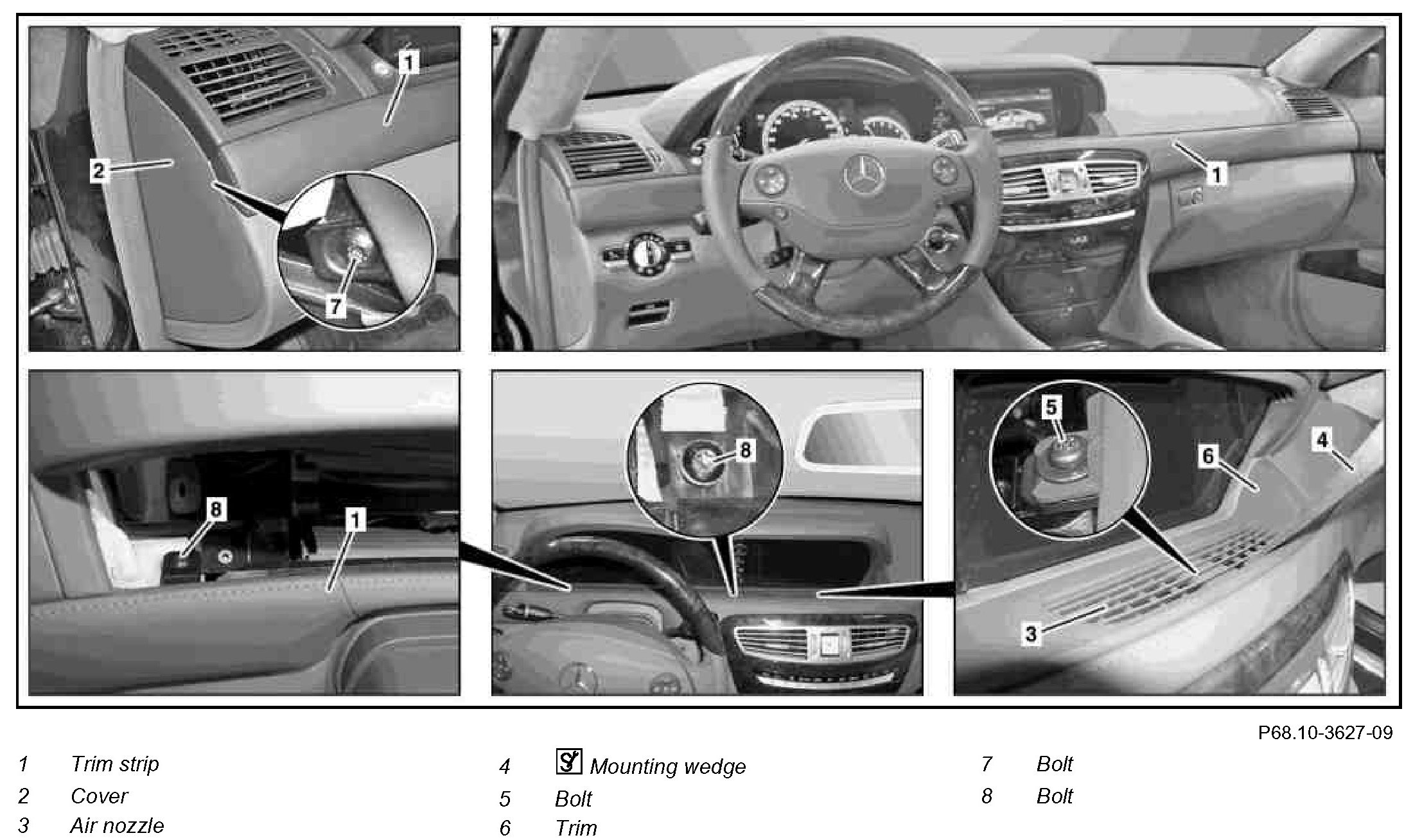

Component Identification:

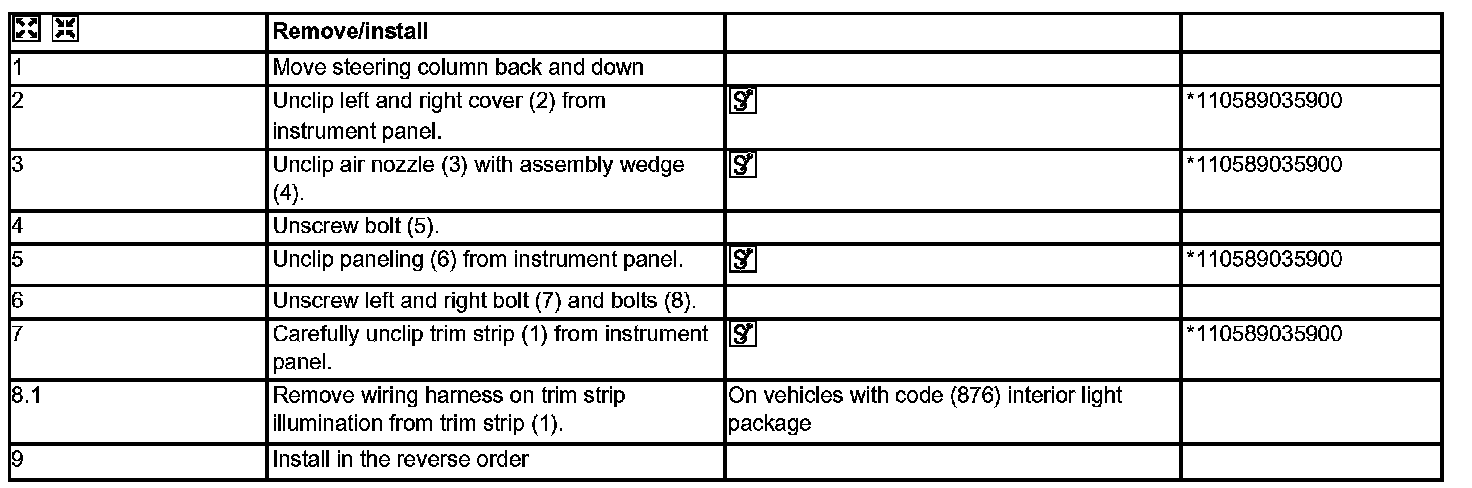

Steps 1-9:

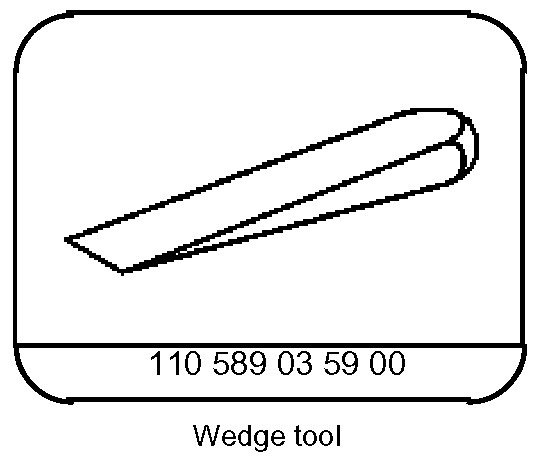

Special Tool:
