AR68.20-P-2000SC Remove/Install Center Console
AR68.20-P-2000SC Remove/Install Center Console
AR68.20-P-2000SC Remove/install Center Console

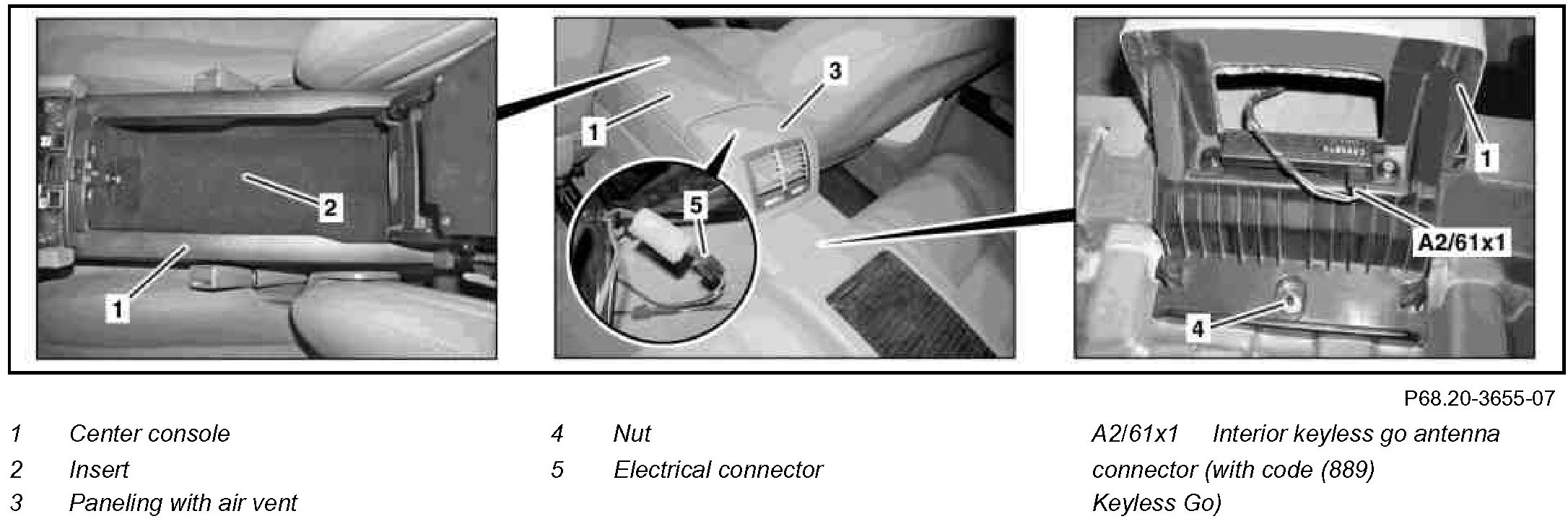

Component Identification:

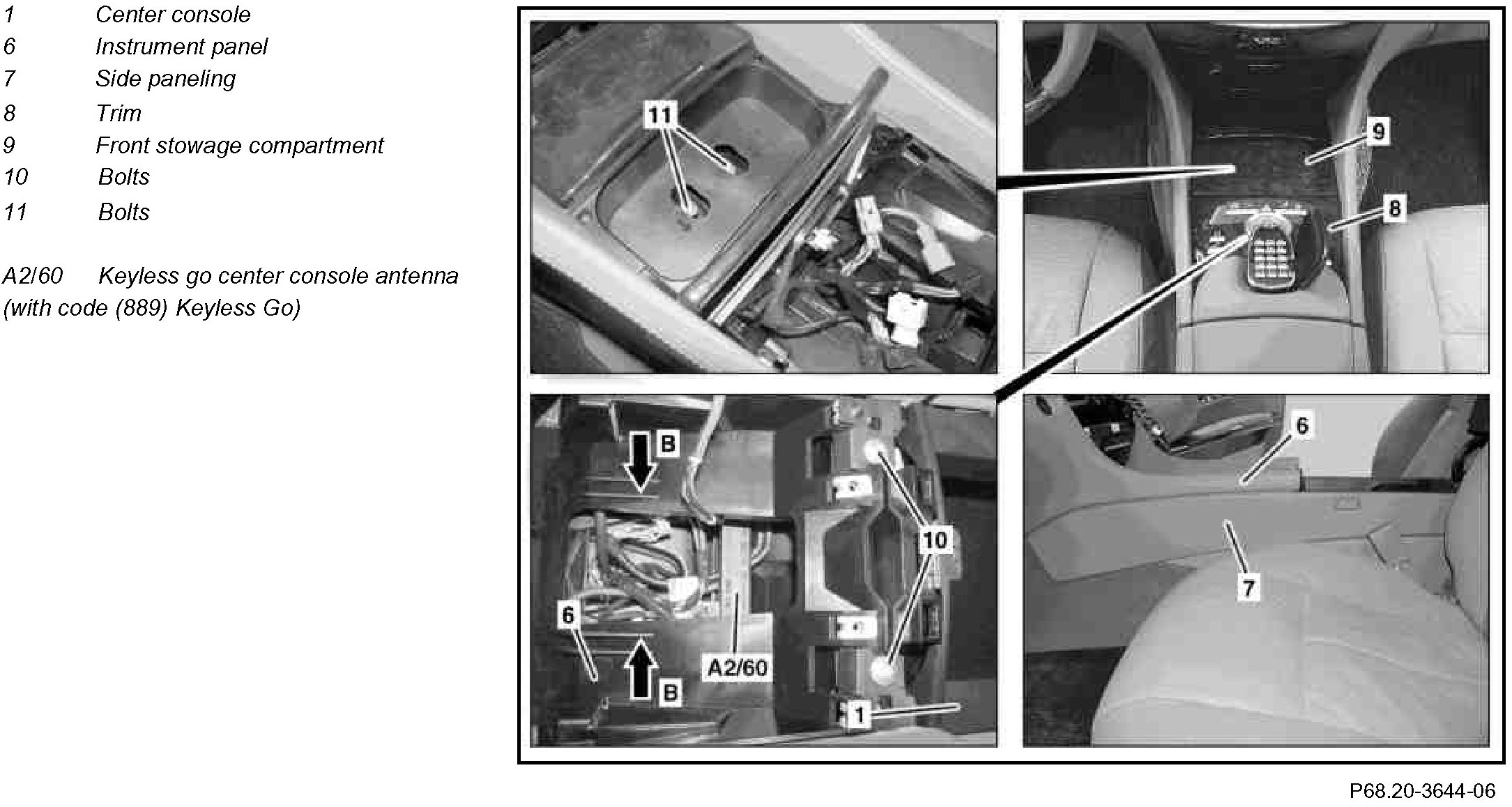

Component Identification:

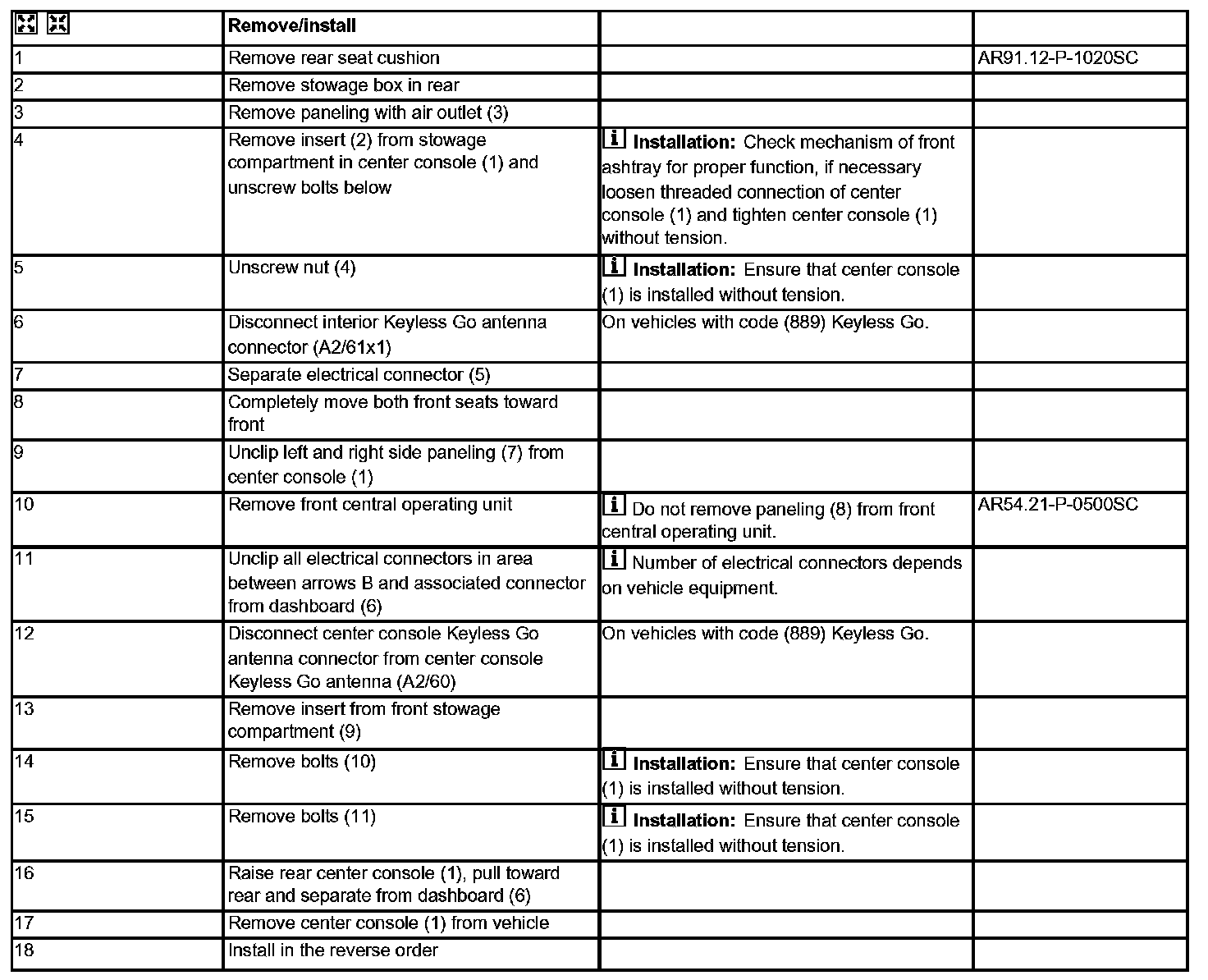

Steps 1-18:
