Home >> Mercedes Benz >> 2012 >> CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> Overhaul

Overhaul



AR68.20-P-2150SC Disassemble/assemble Center Console

Component Identification:

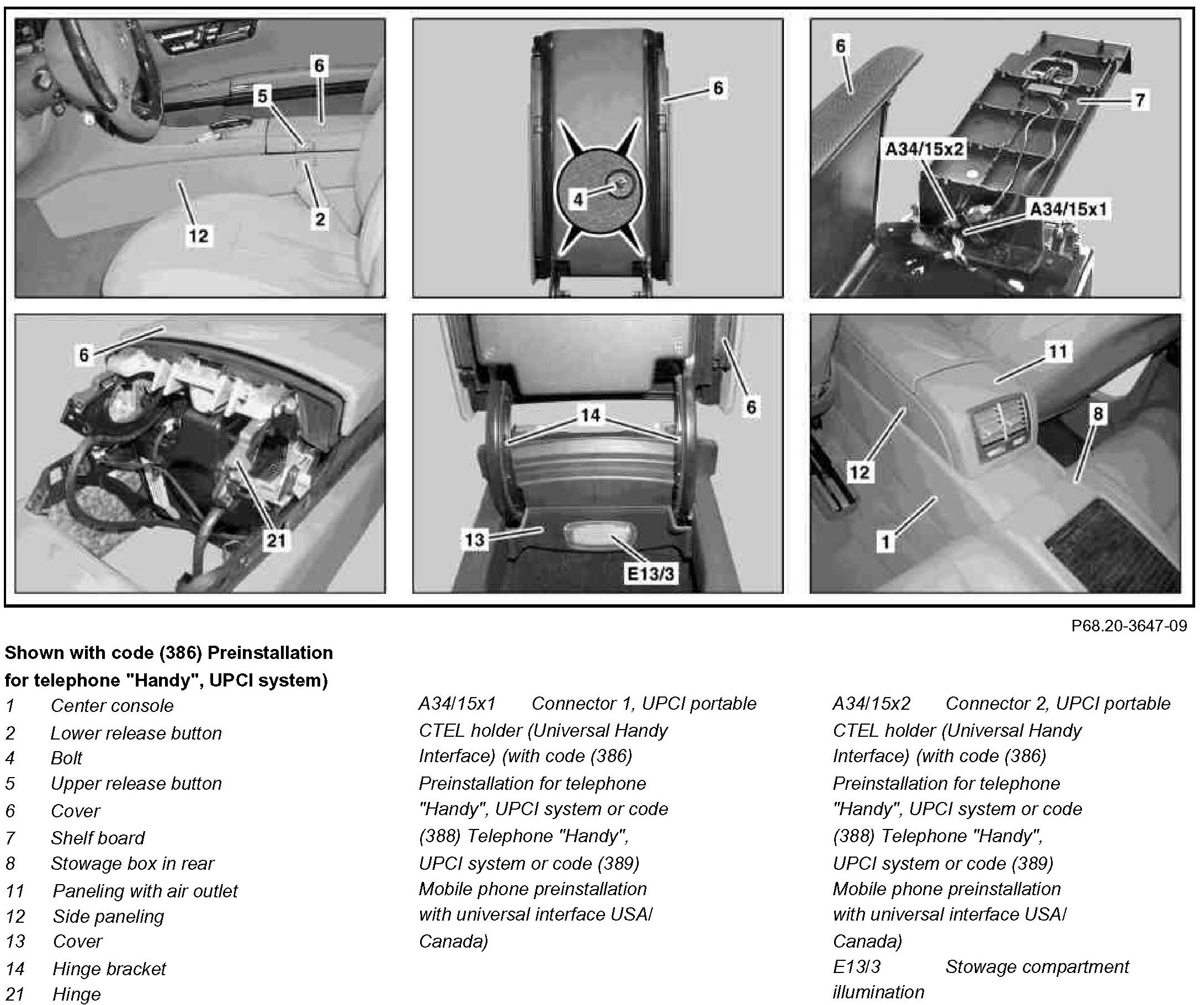

Component Identification:

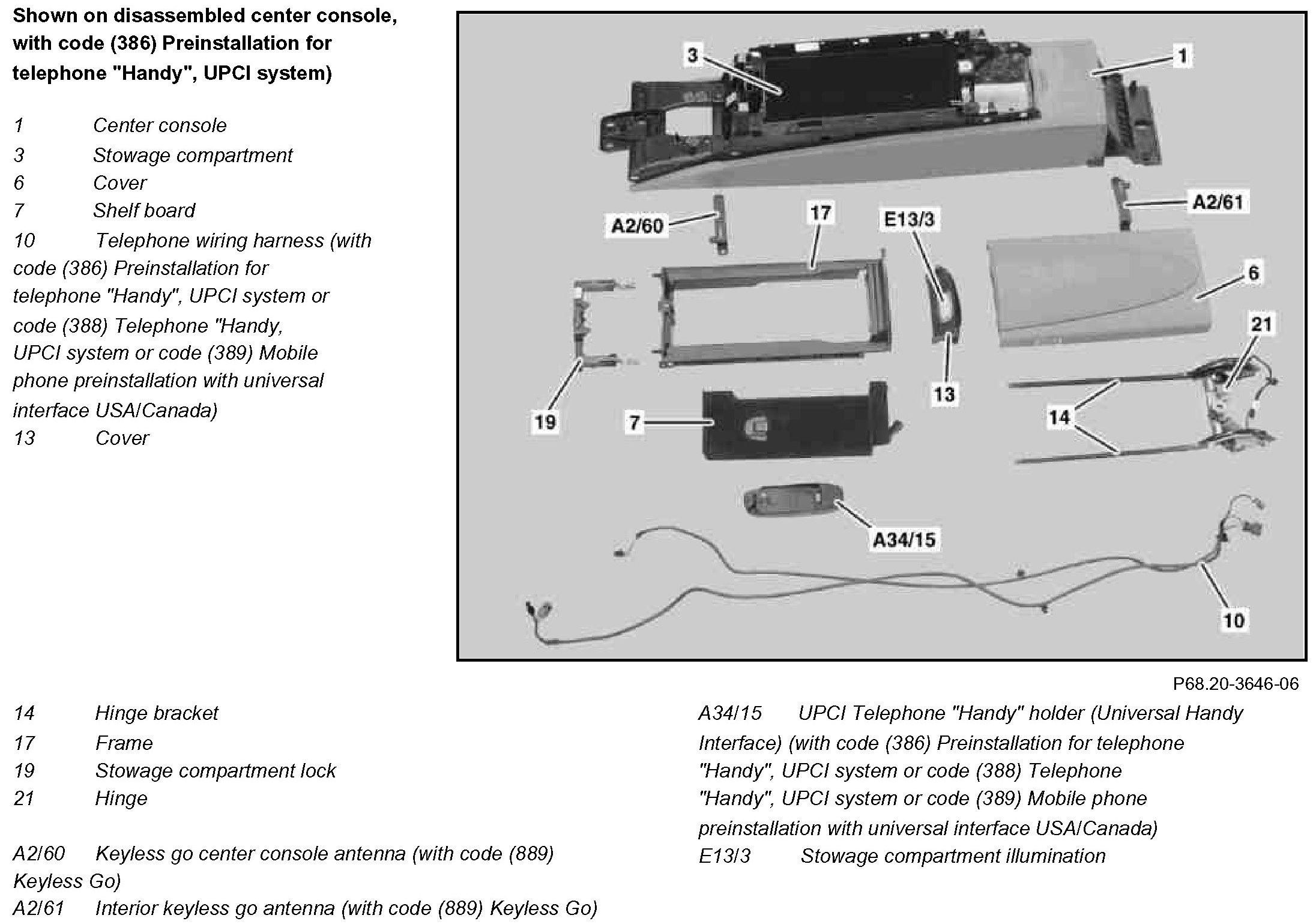

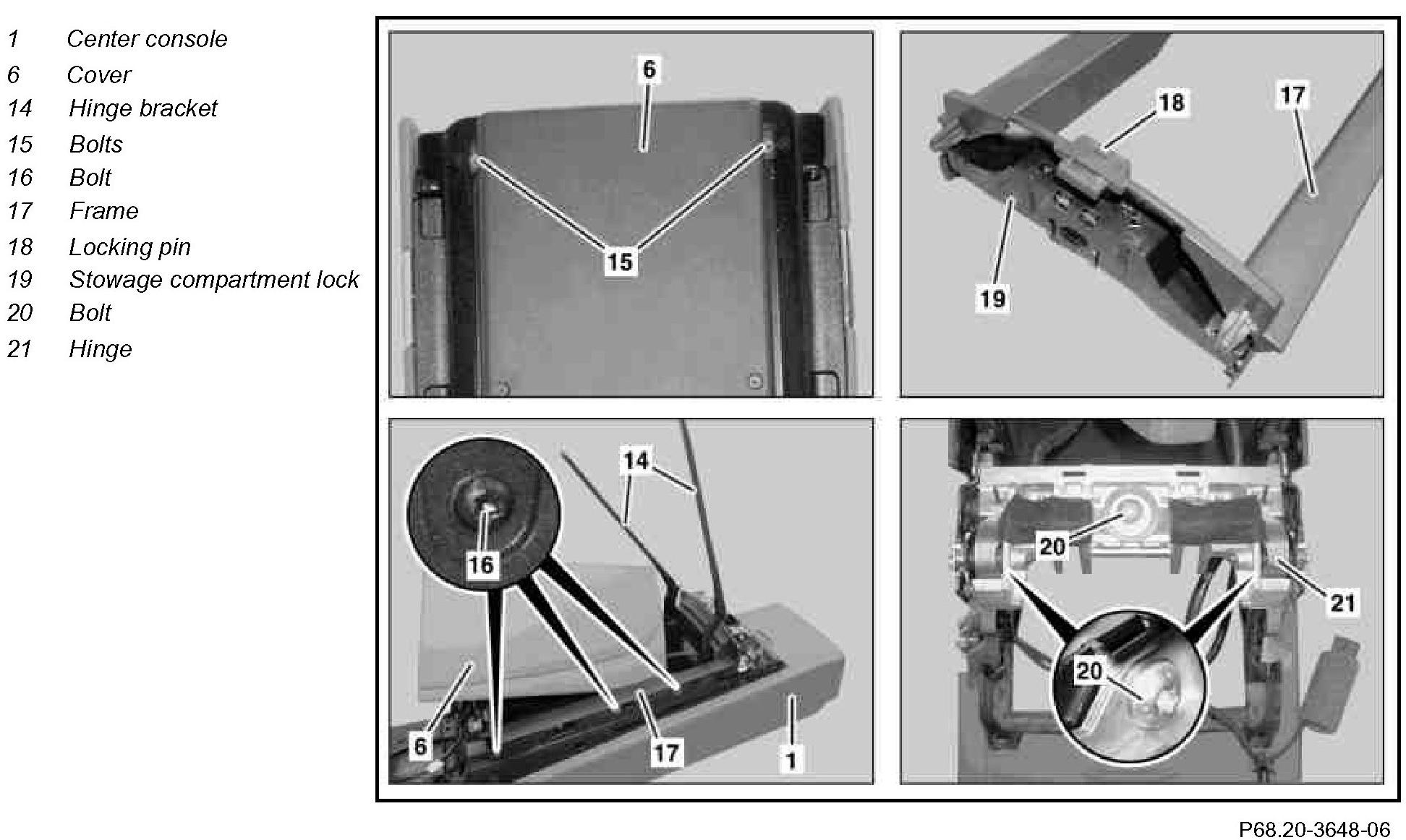

Component Identification:

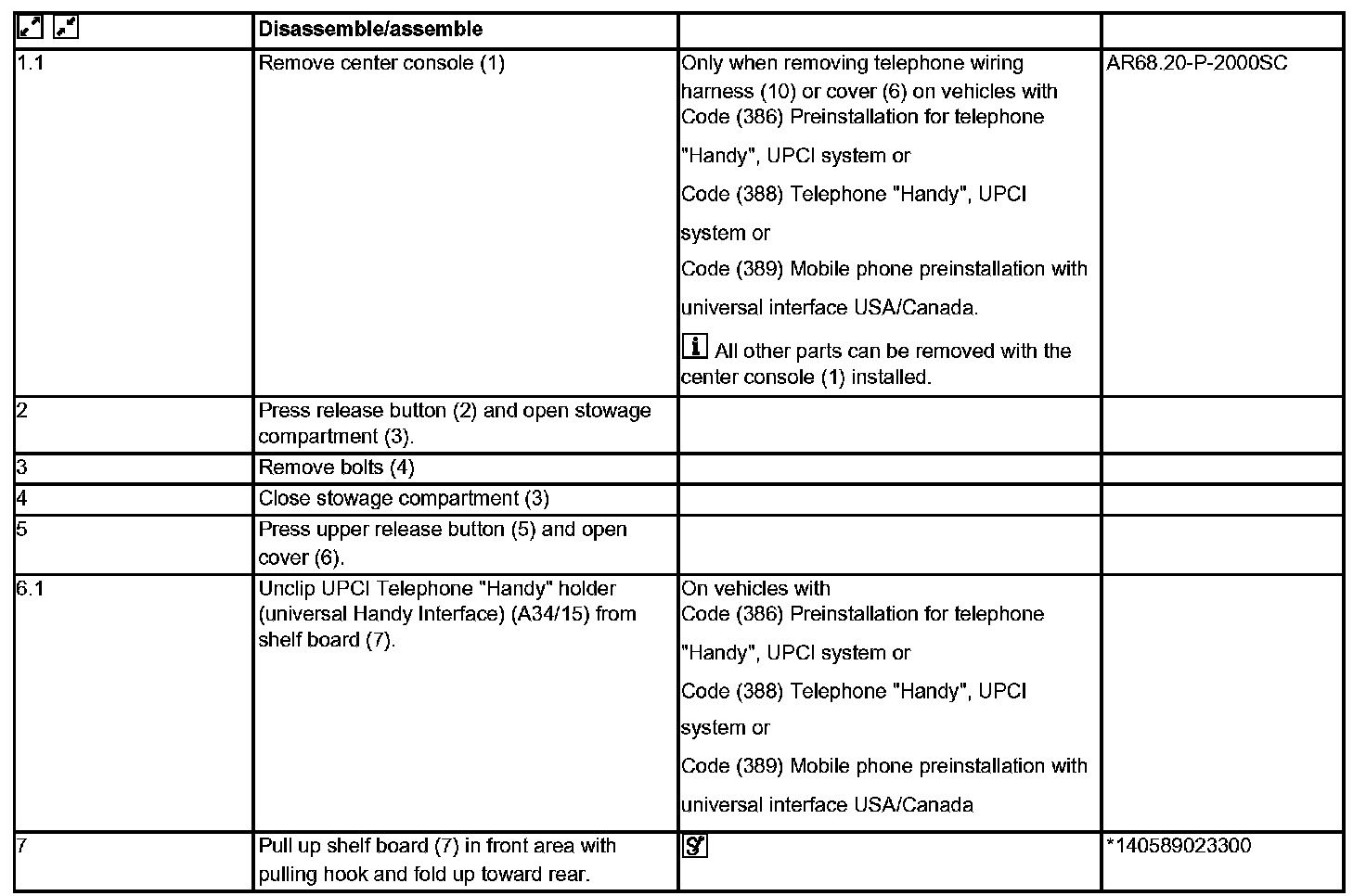

Steps 1.1-7:

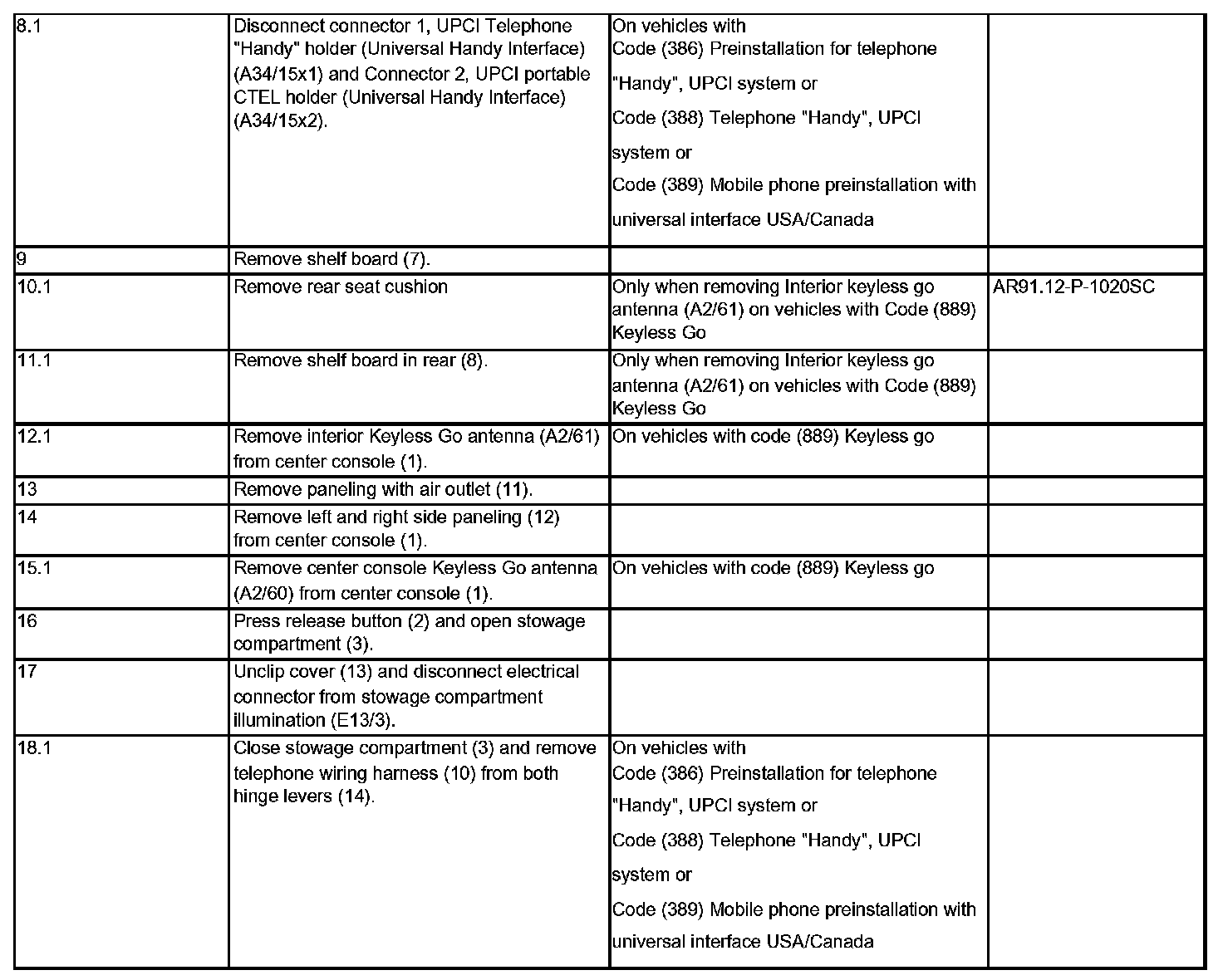

Steps 8.1-18.1:

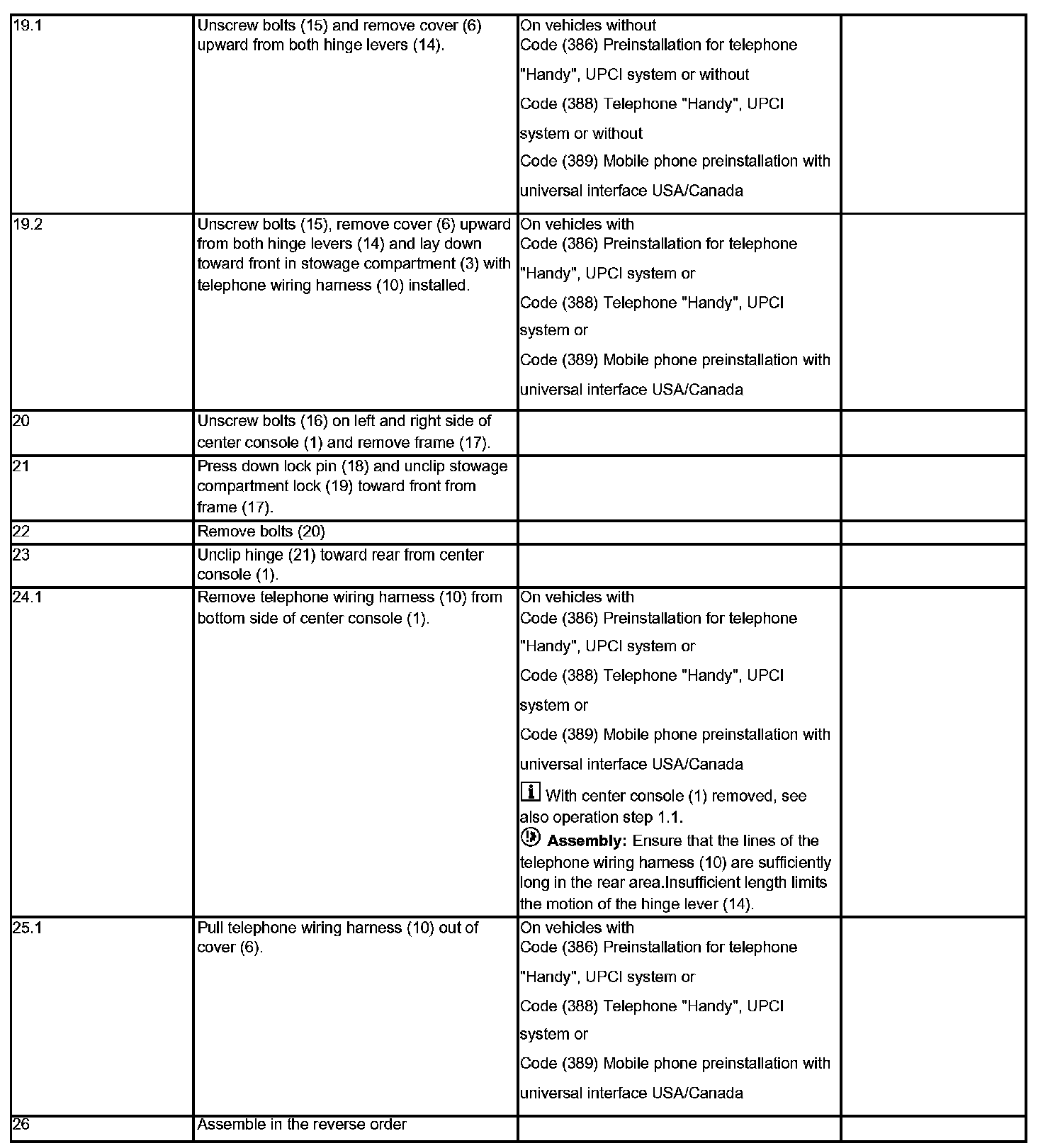

Steps 19.1-26:

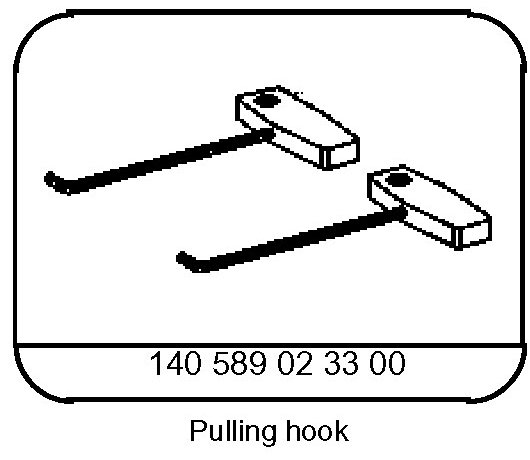

Special Tool:
