Hood Latch Release Cable: Service and Repair



AR88.40-P-3100SC Remove/install Pull Cable For Engine Hood

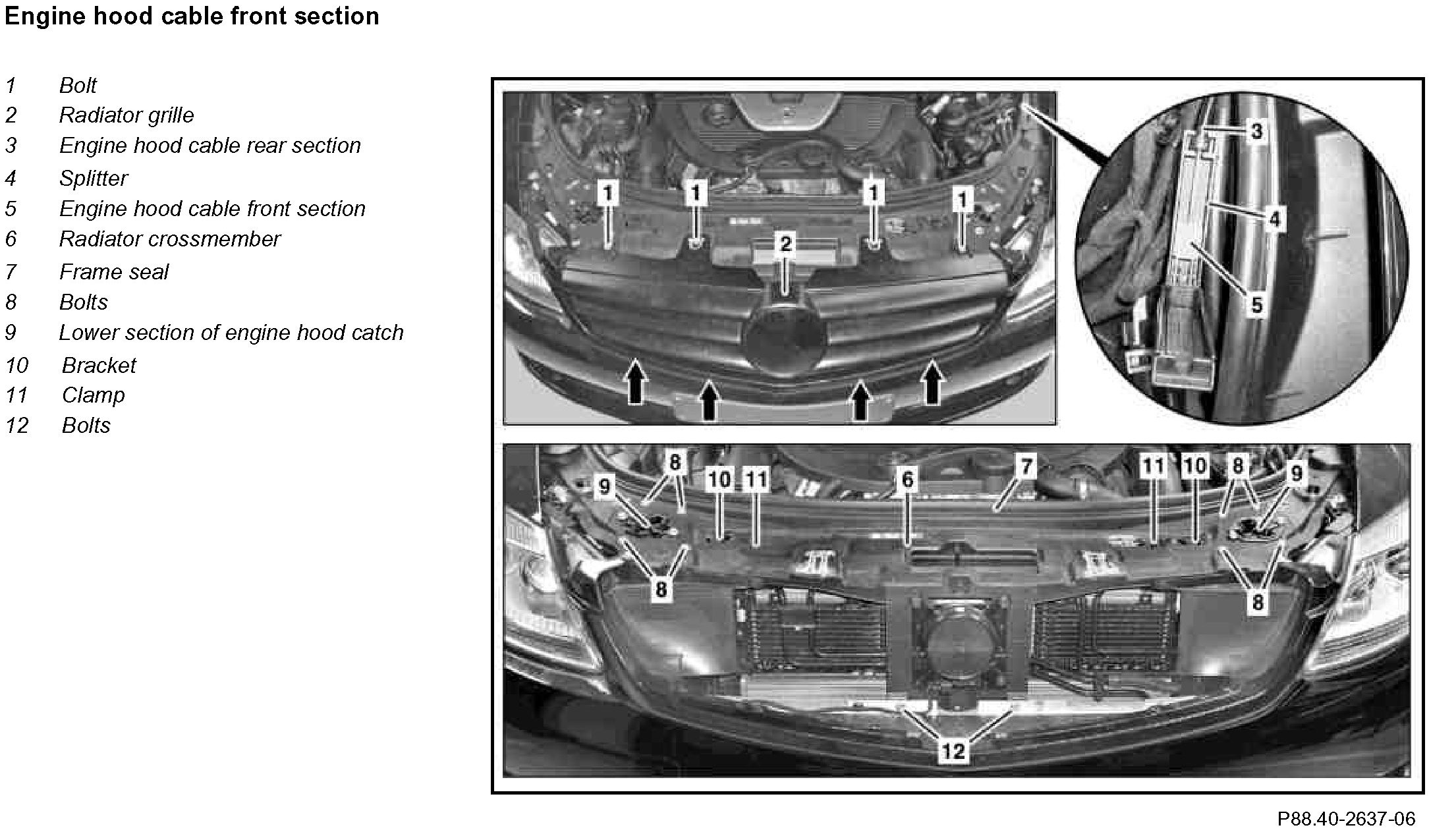

- Engine hood cable front section


Component Identification:

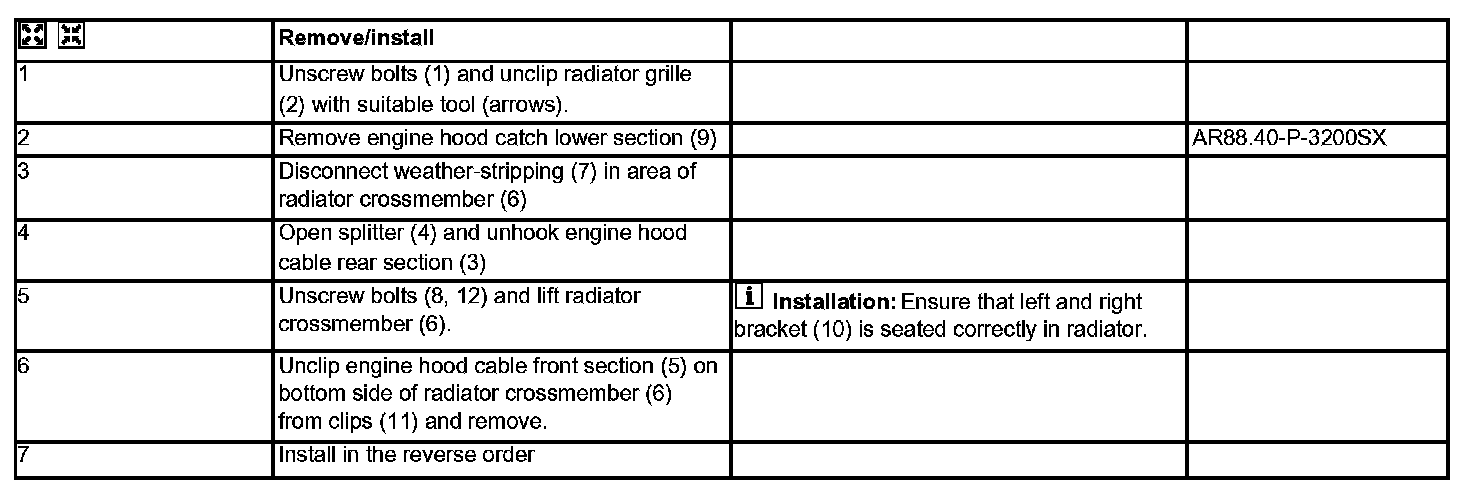

Steps 1-7:
