Fuel Door Release Actuator: Service and Repair
AR80.20-P-2300SX Remove/Install Fuel Filler Flap CL Element

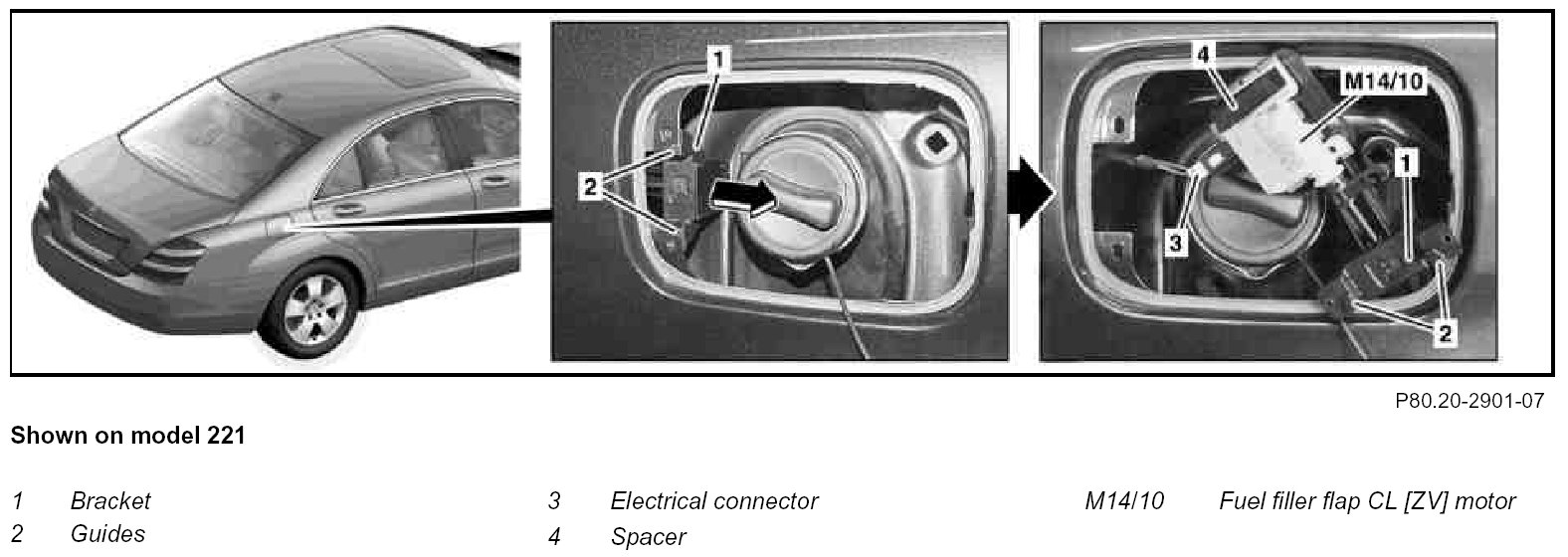

Component Identification:
Modification Notes:

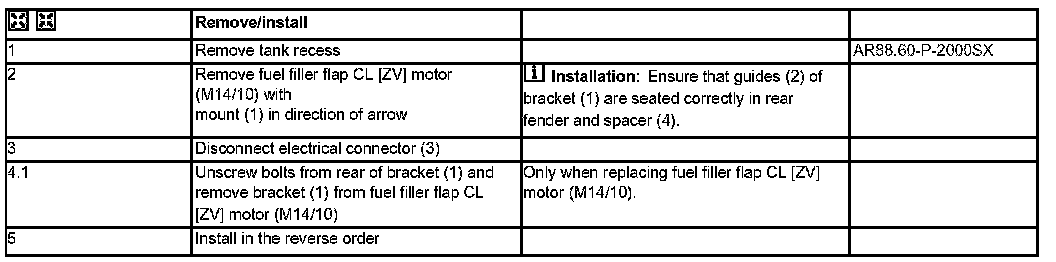

Steps 1 - 5:
