FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2012
>>
CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Doors
>>
Front Door
>>
Front Door Panel
>>
Service and Repair
Front Door Panel: Service and Repair

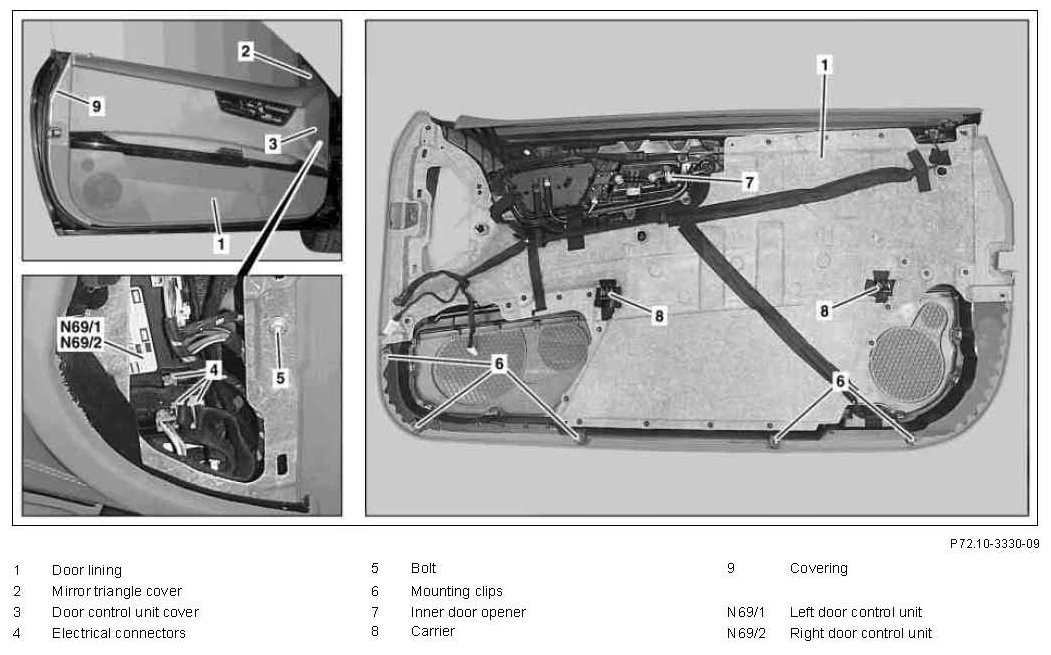

AR72.10-P-1000SC Remove/Install Front Door Lining
Component ID:

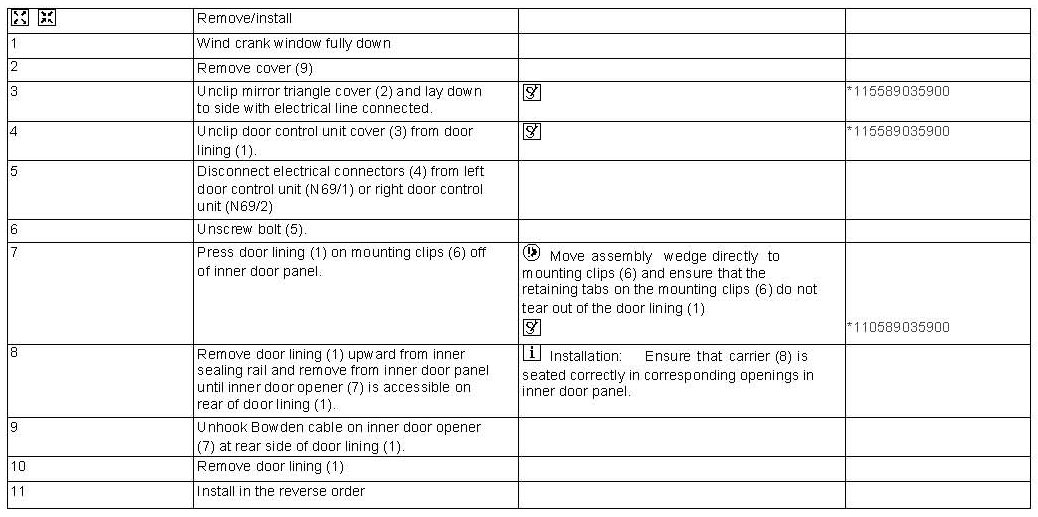

Steps 1-11:

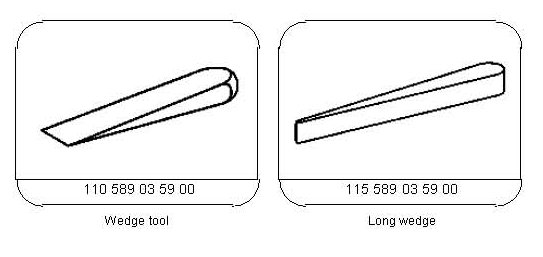

Special Tools:
