Front Door Limiter: Service and Repair
AR72.10-P-2100SC Remove/install Door Holder

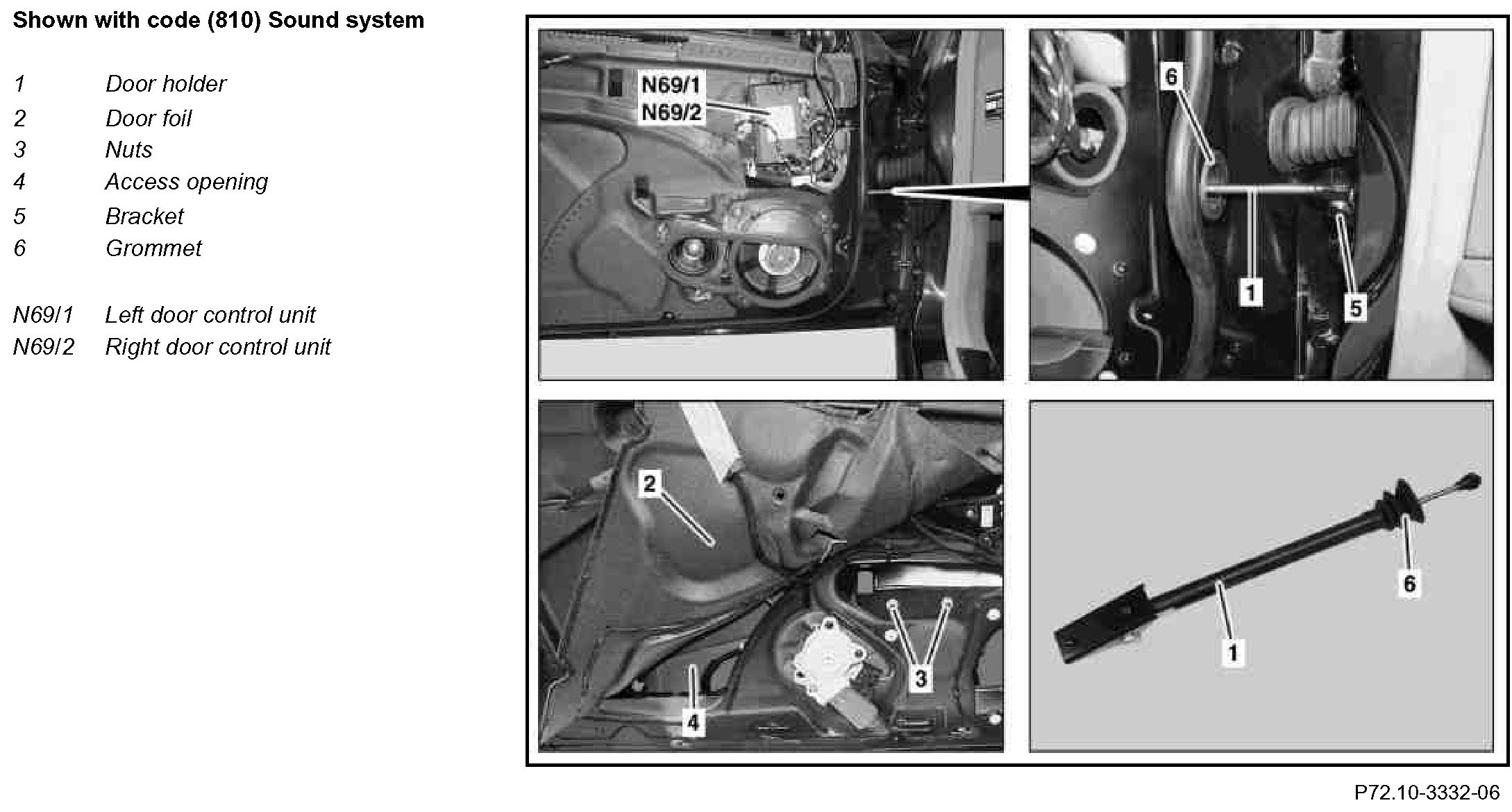

Component Identification:

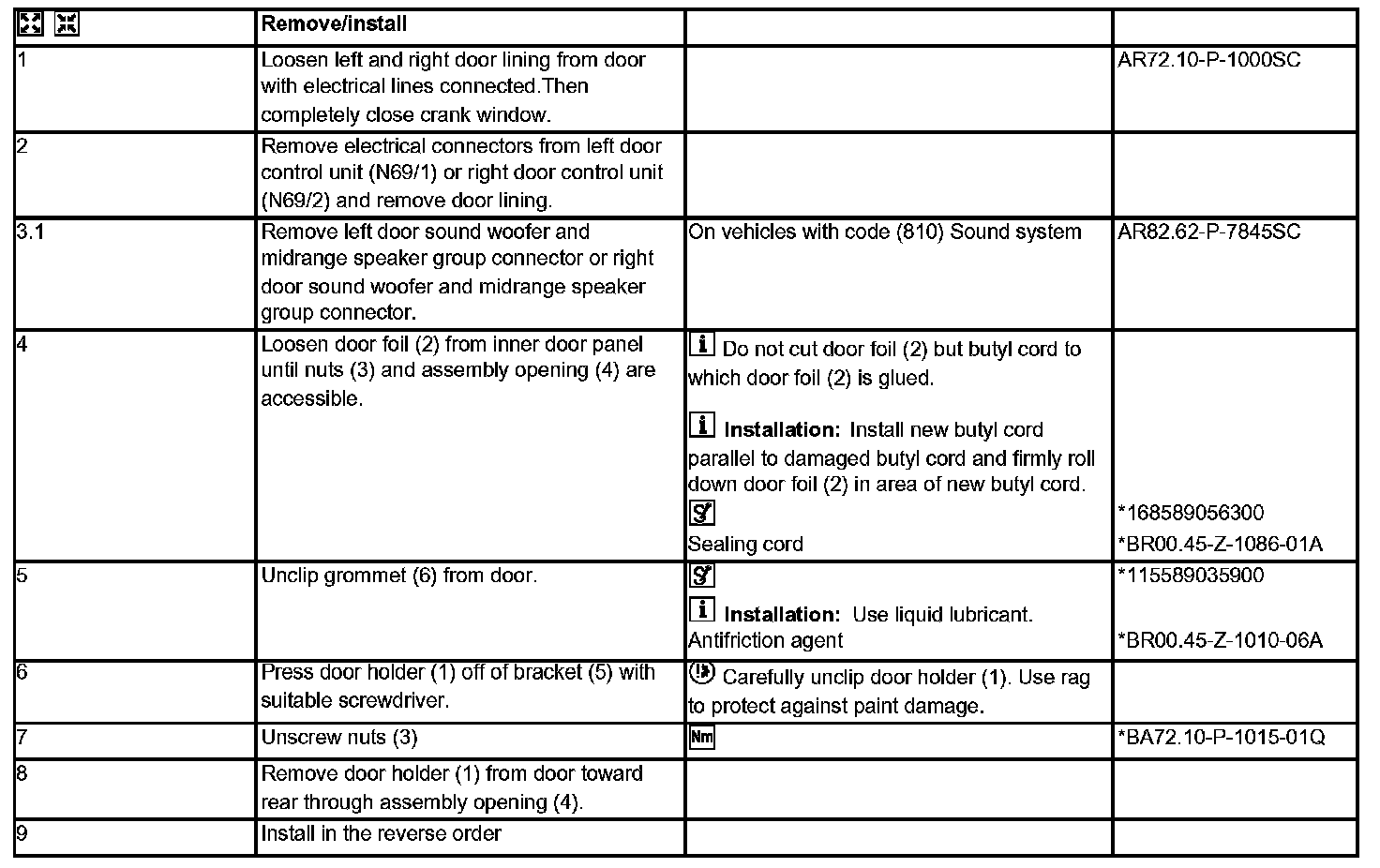

Steps 1-9:

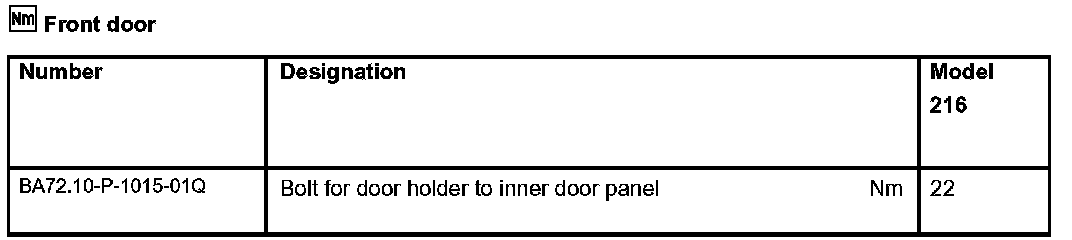

Front Door:

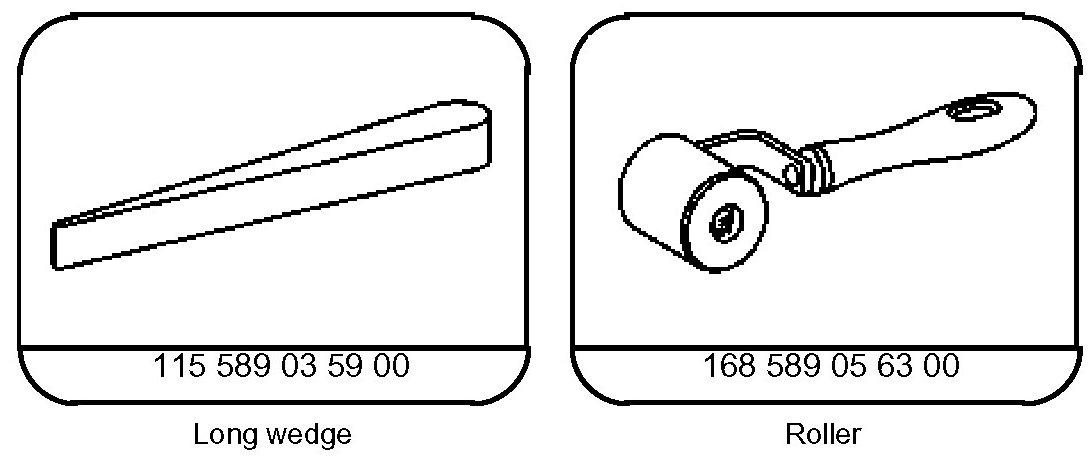

Special Tools:

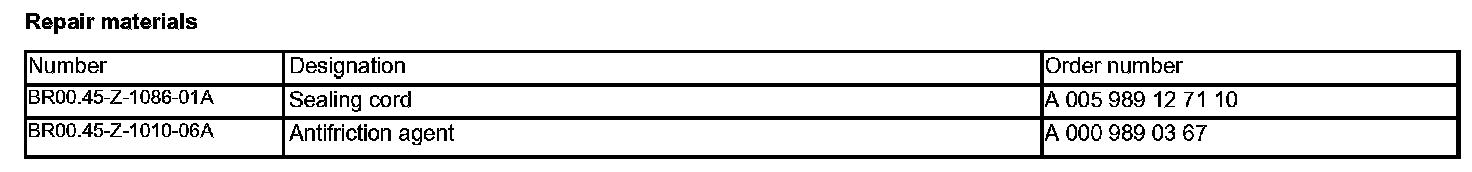

Repair Materials:
