Front Door Latch: Service and Repair
AR72.10-P-4011SC Remove/install Front Door Lock

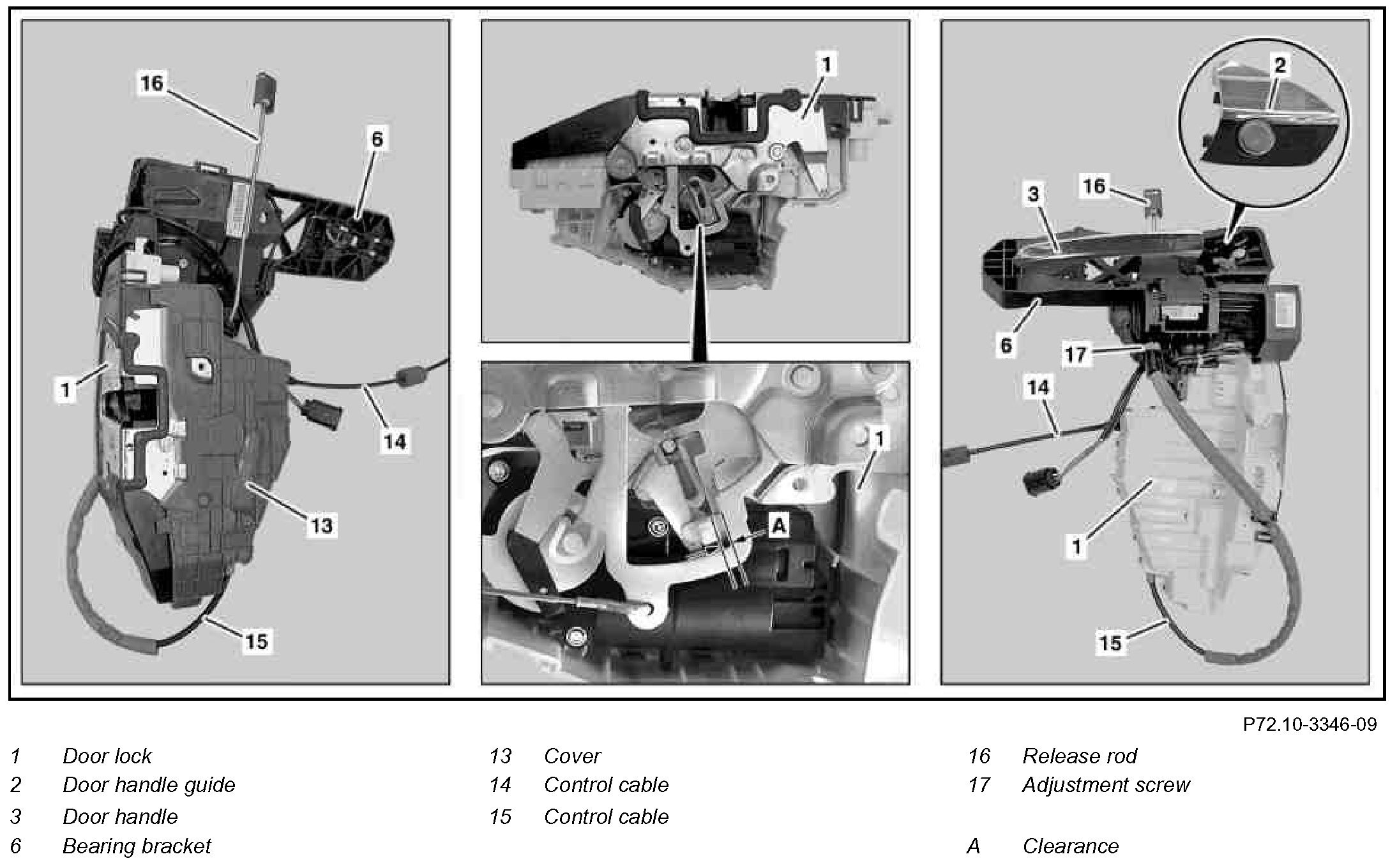

Component Identification:
Component Identification:

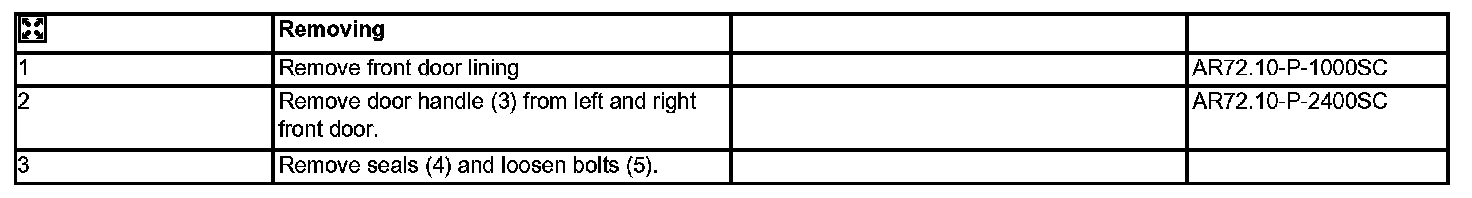

Steps 1-3:

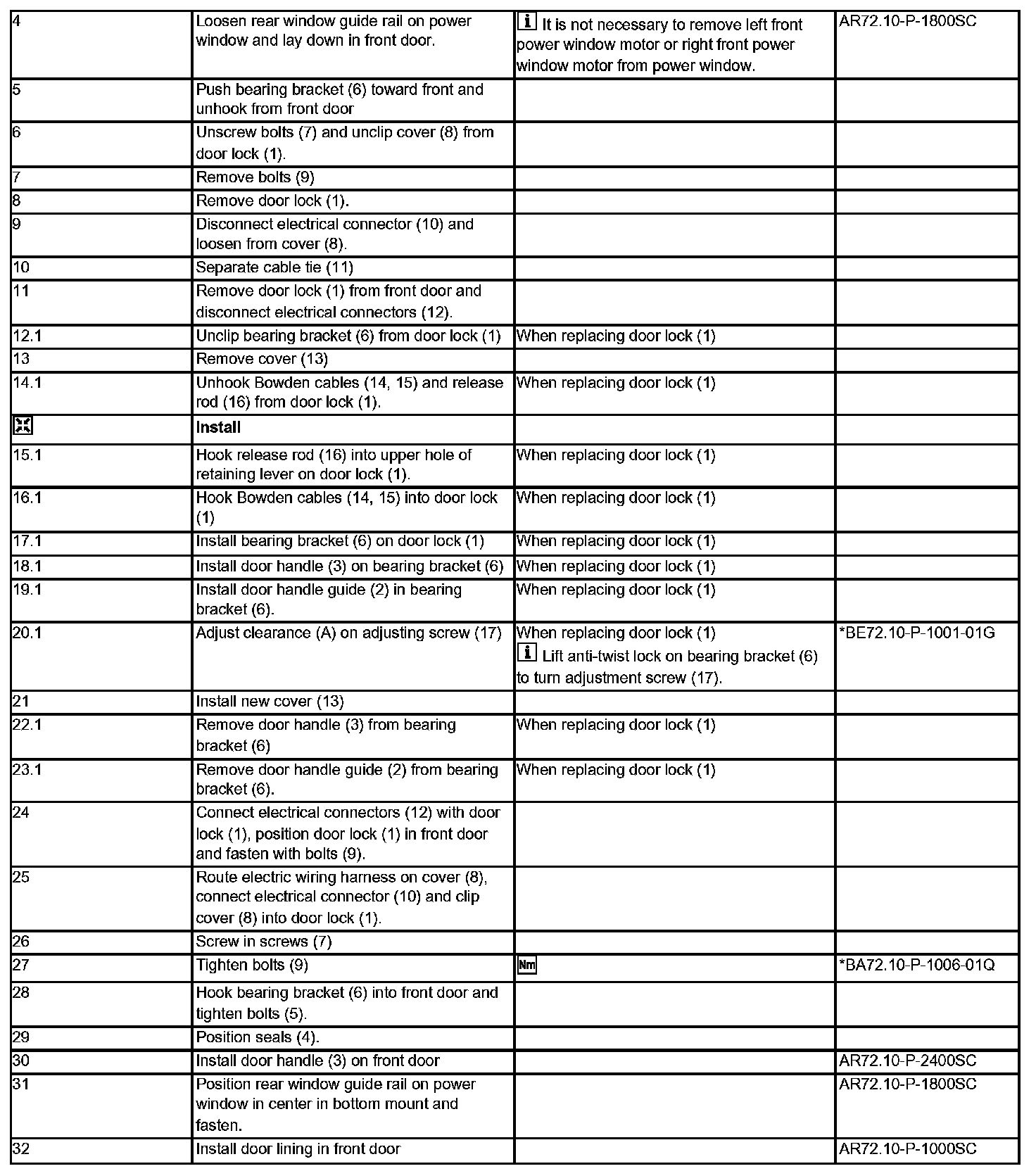

Steps 4-32:

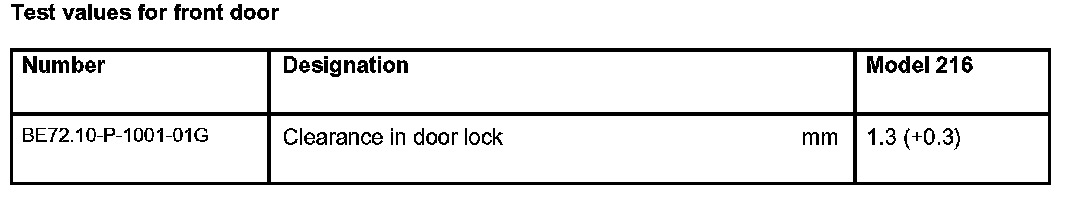

Test Values For Front Door:

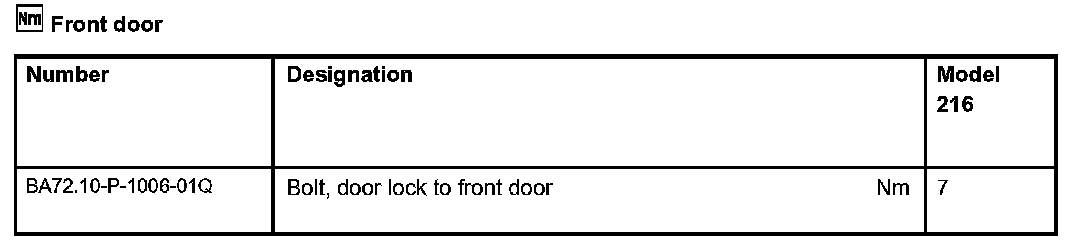

Front Door:
