Cabin Ventilation Grille: Service and Repair

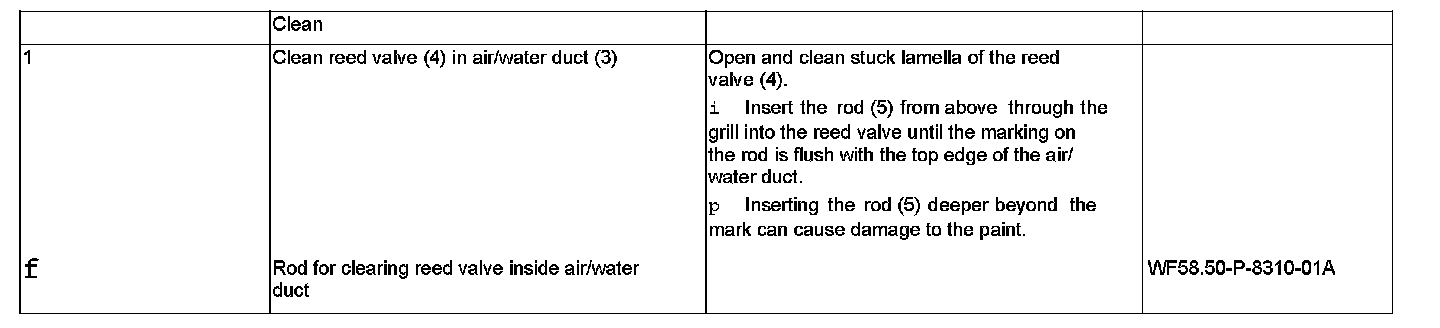

AP83.10-P-8339M Clean Water Drain In Air/Water Duct

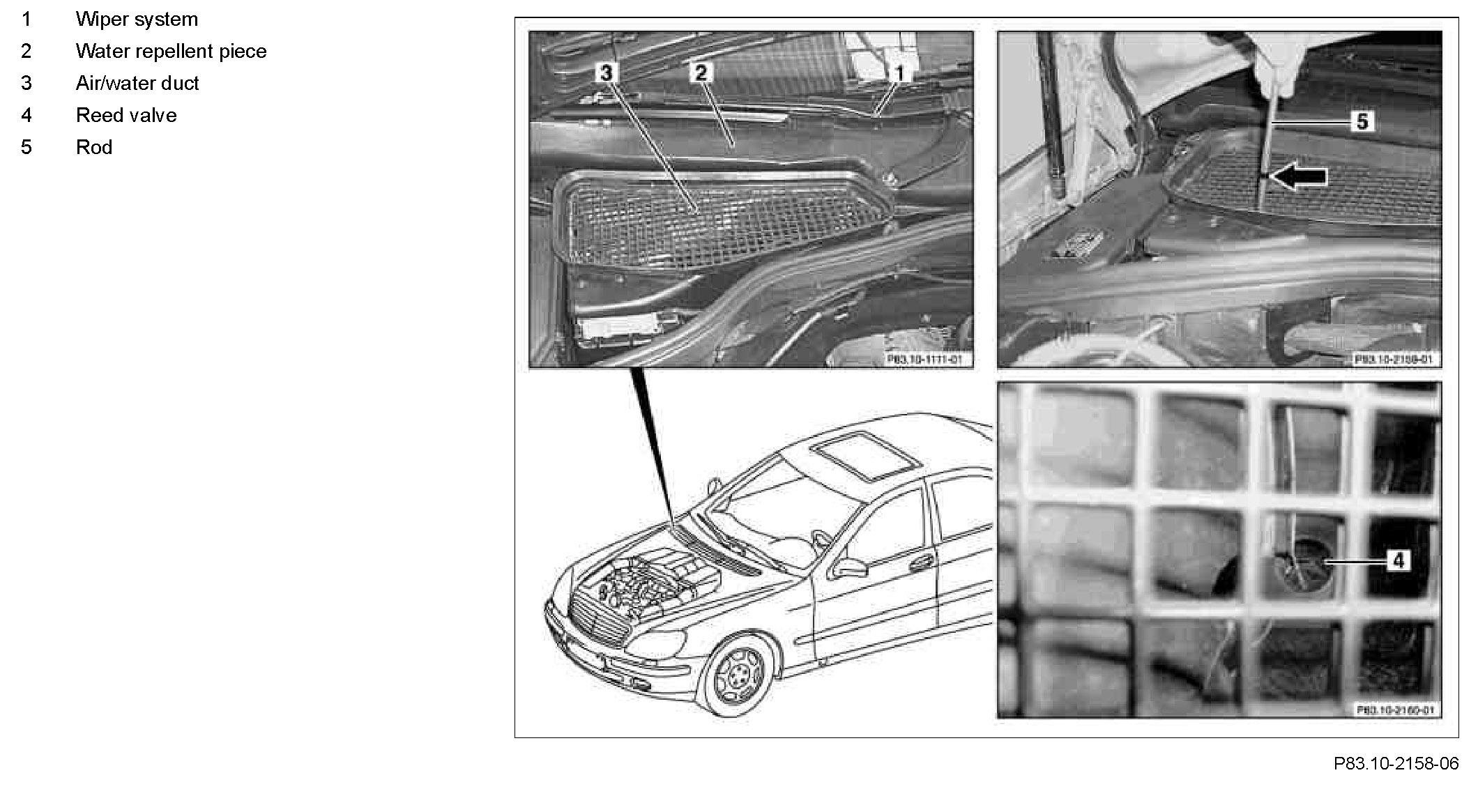

Component Identification:
Step 1:
