AR54.21-P-0501SX Remove/Install Turn/Push Control For Front Central Operating Unit



AR54.21-P-0501SX Remove/Install Turn/Push Control For Front Central Operating Unit

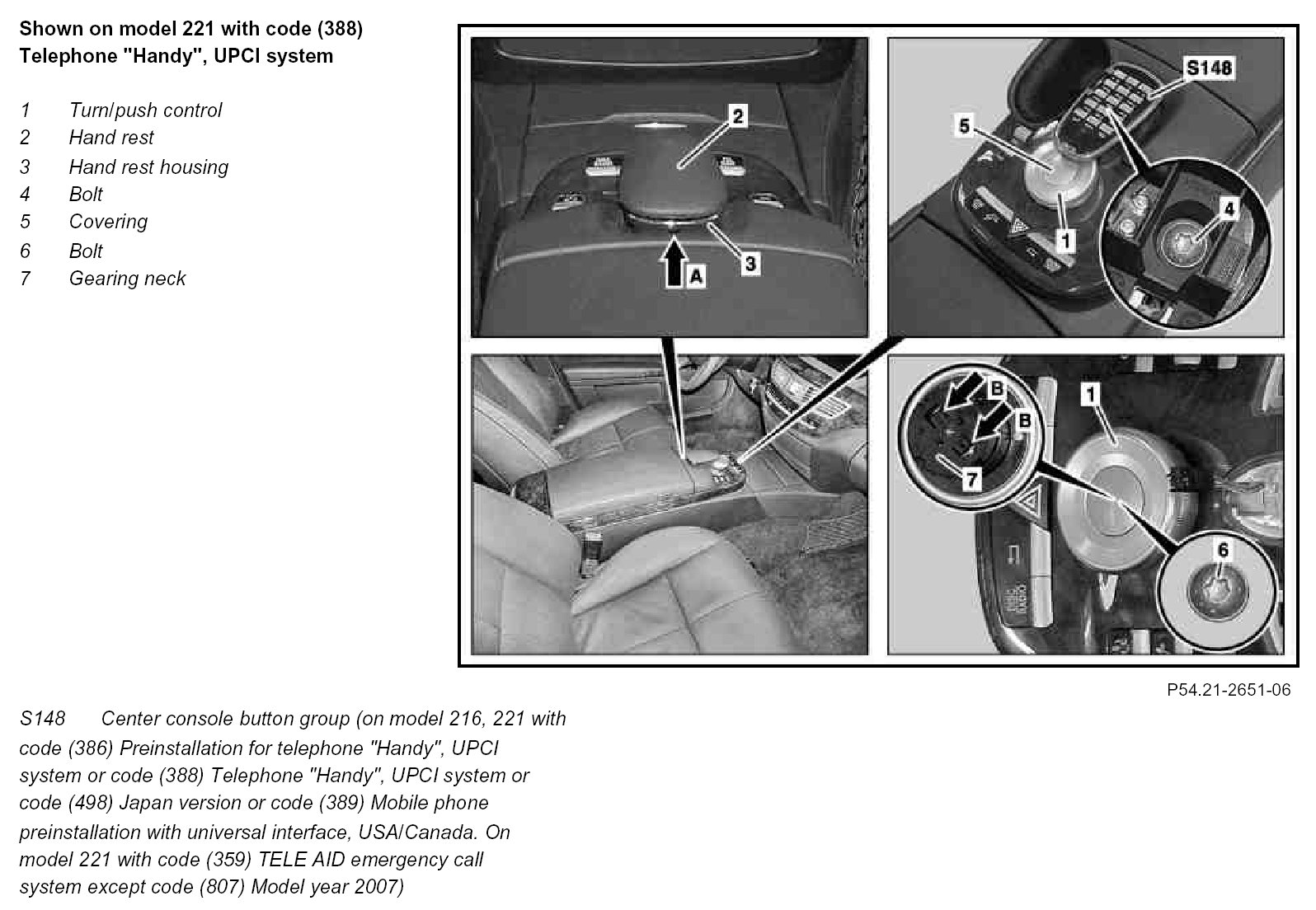

Component Identification:

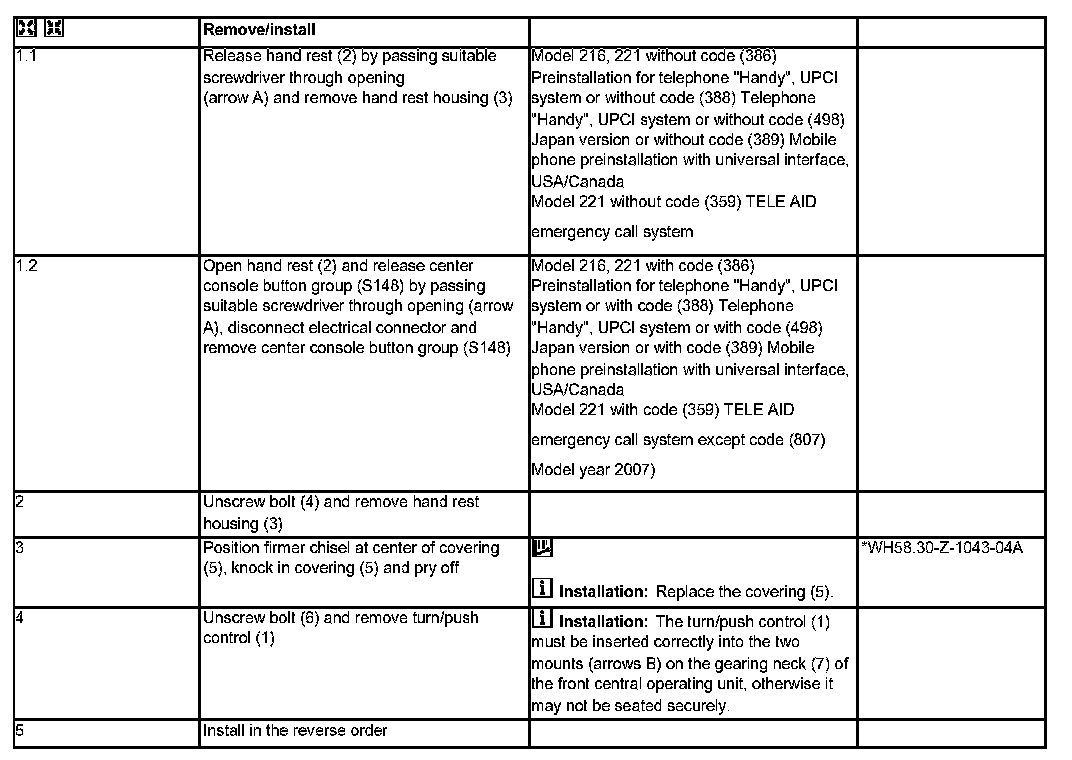

Steps 1.1 - 5:




Commercially Available Tools:
