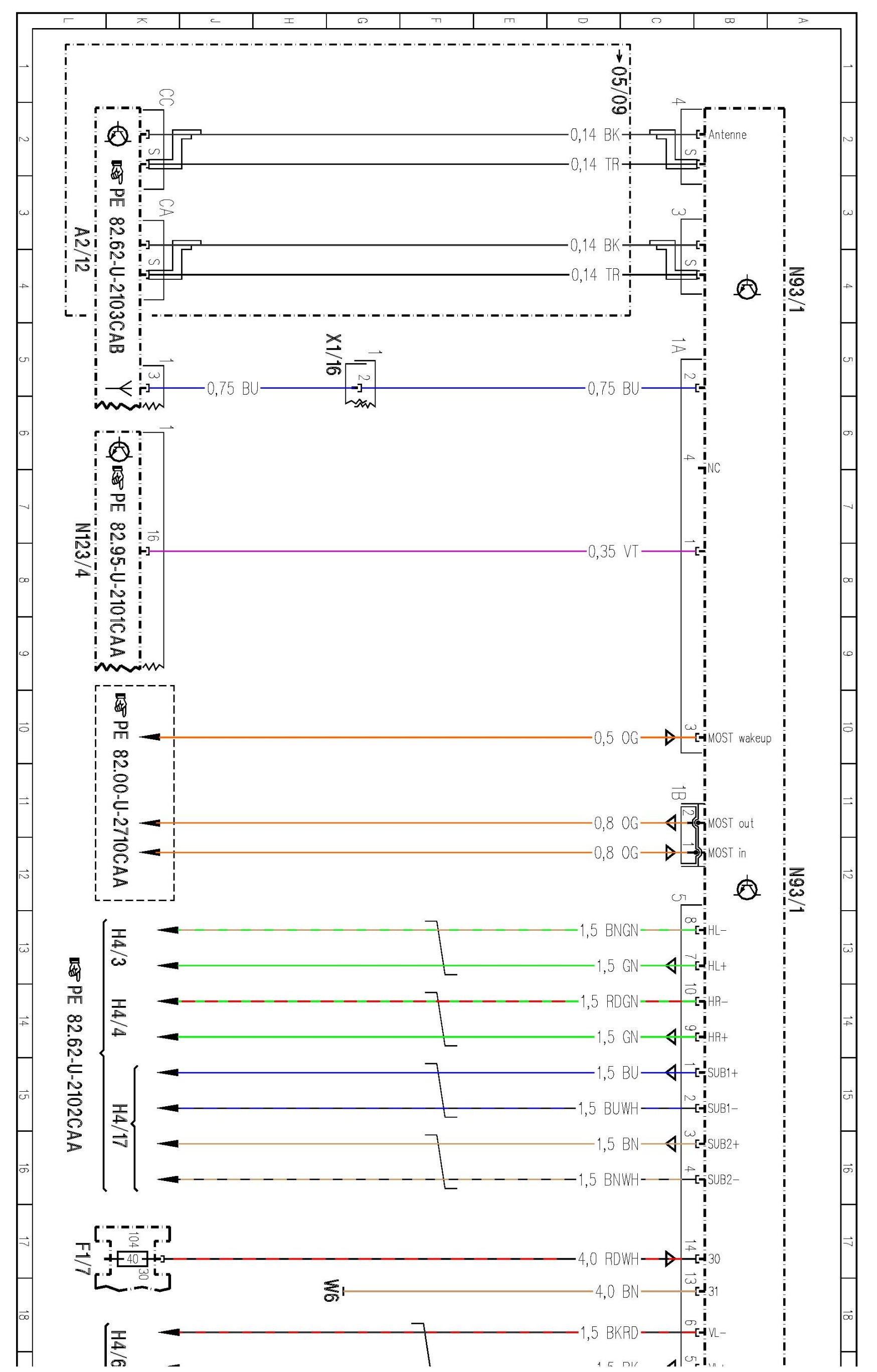

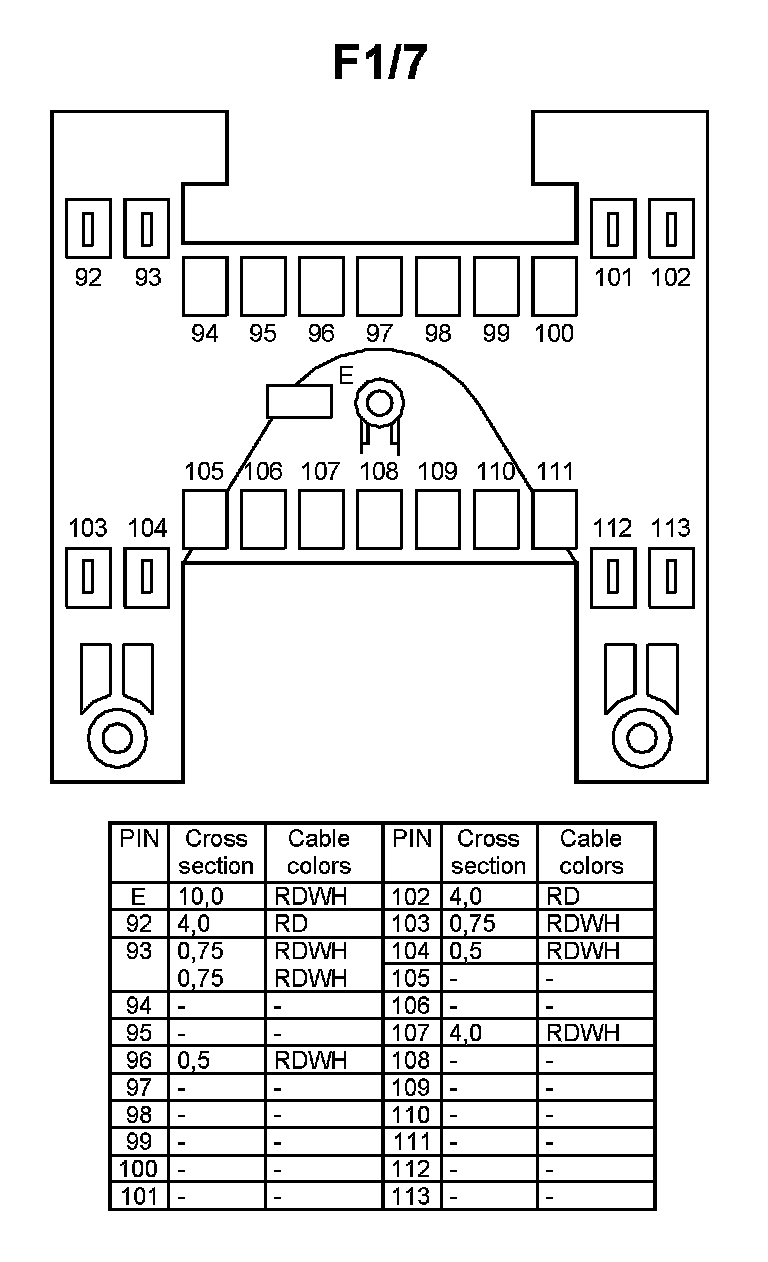

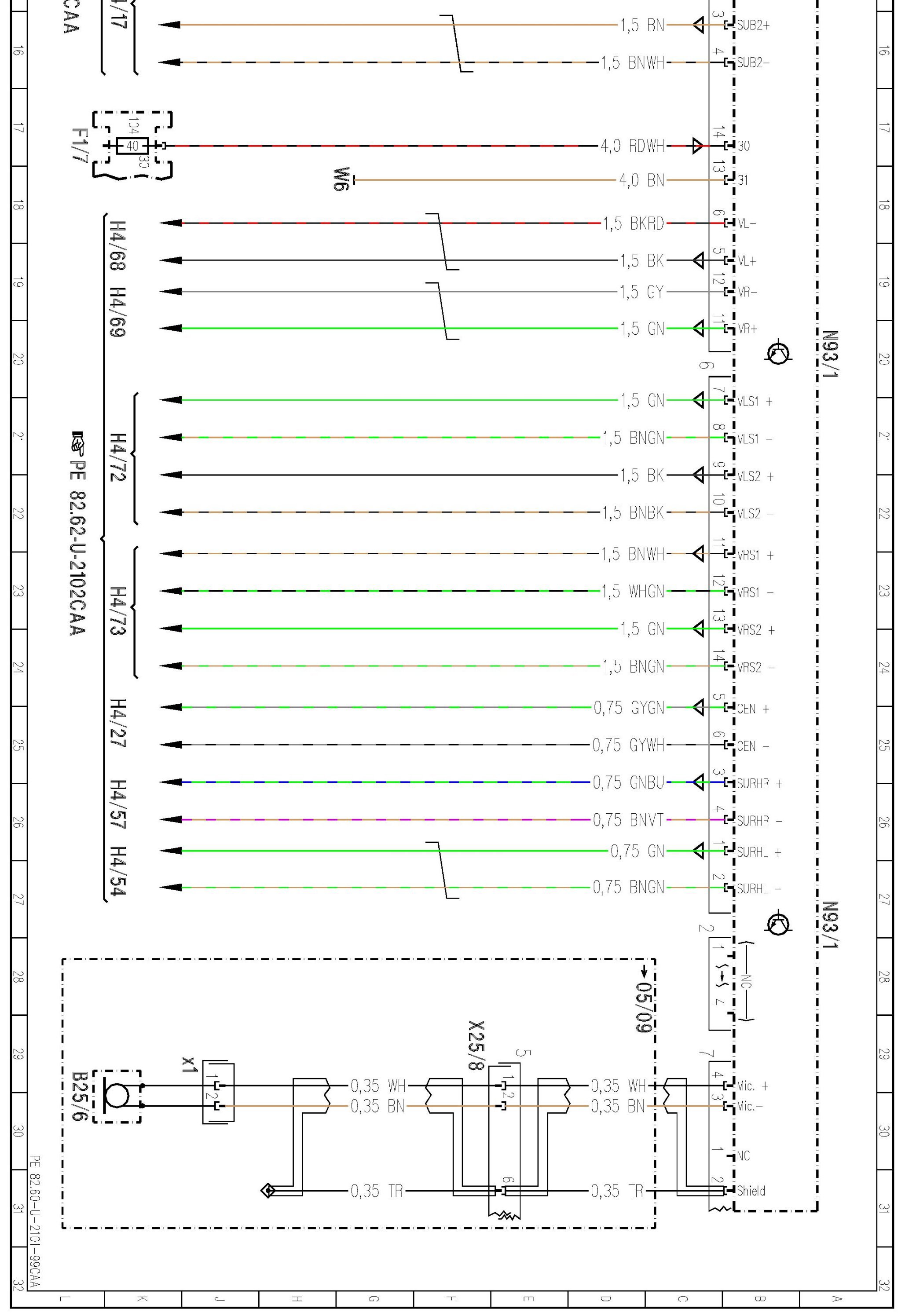

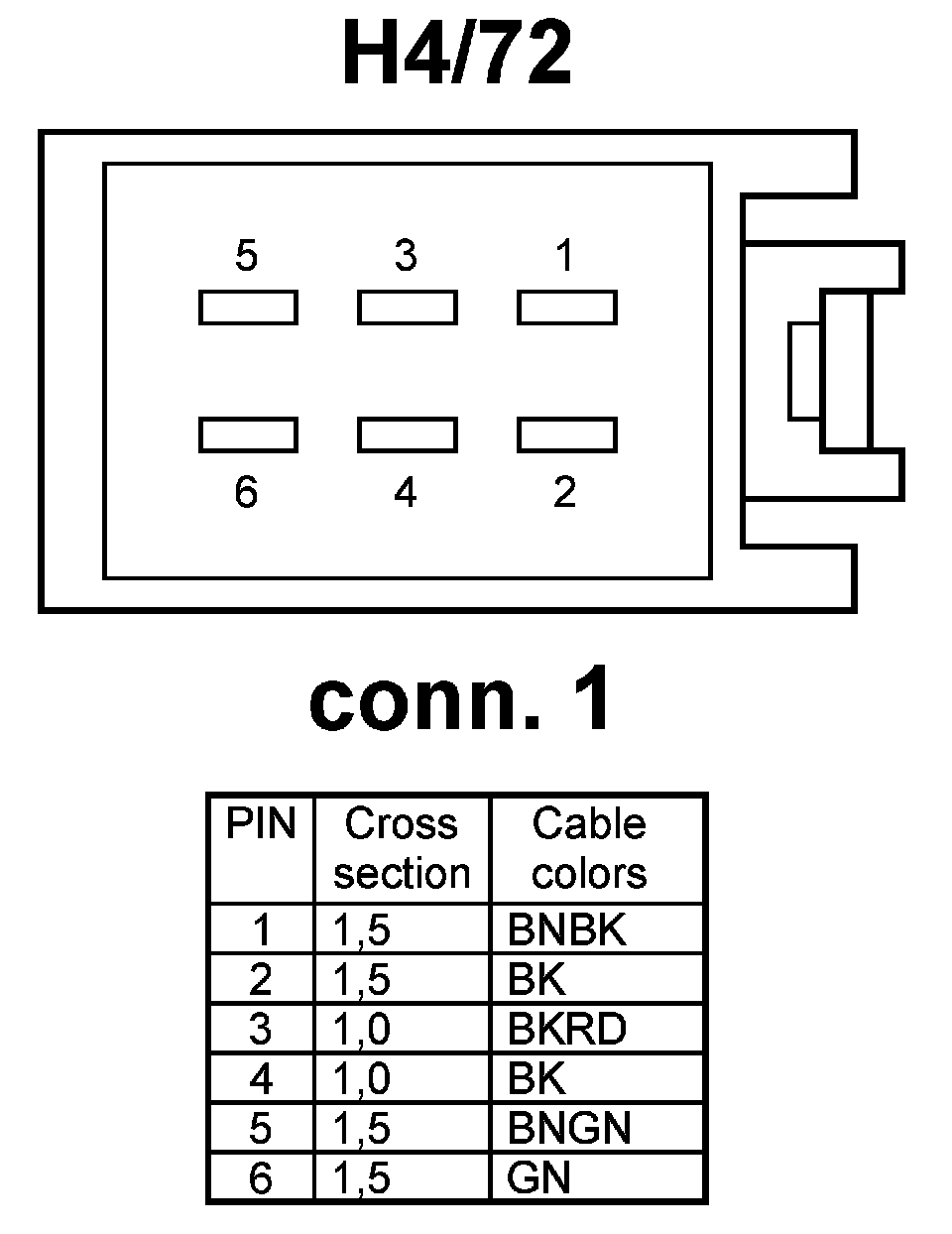

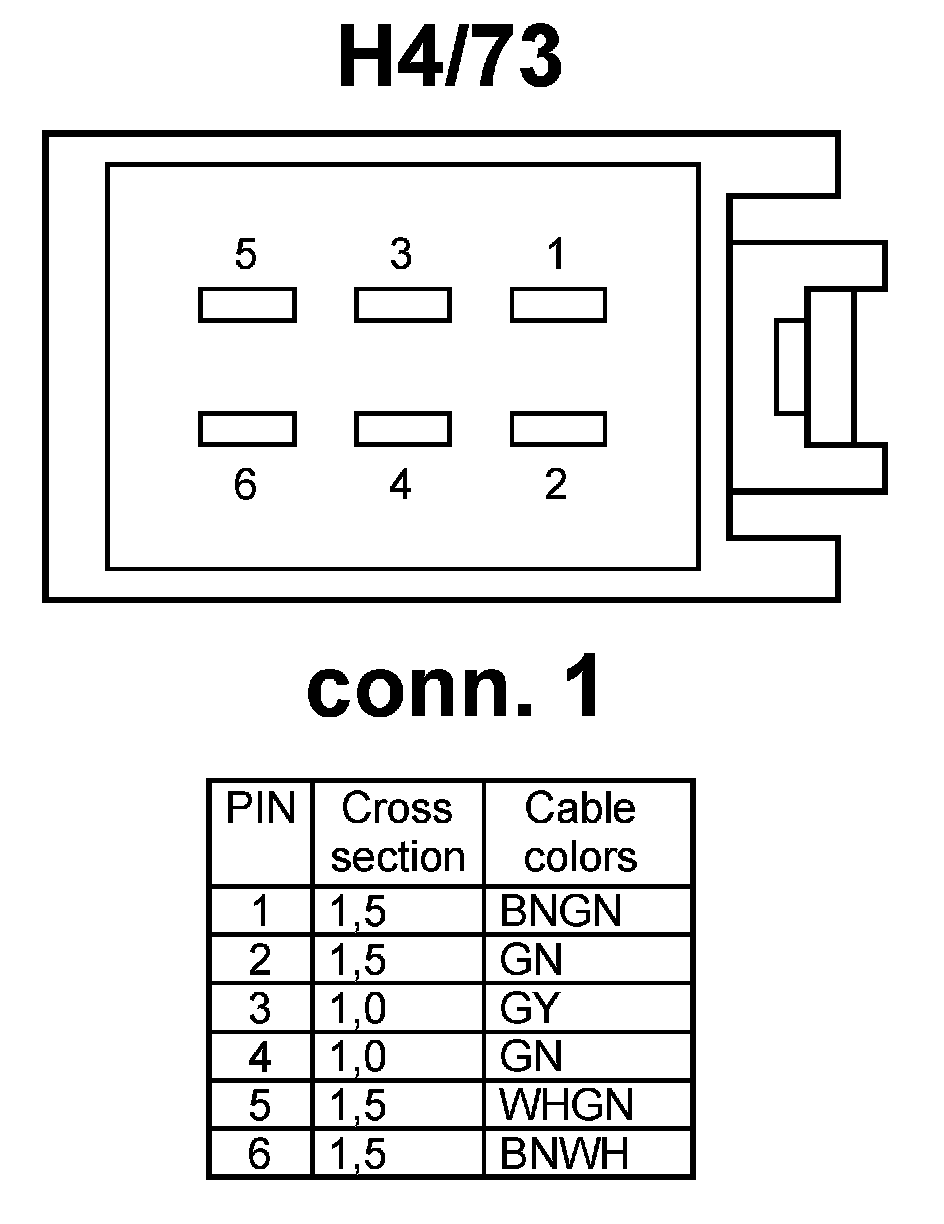

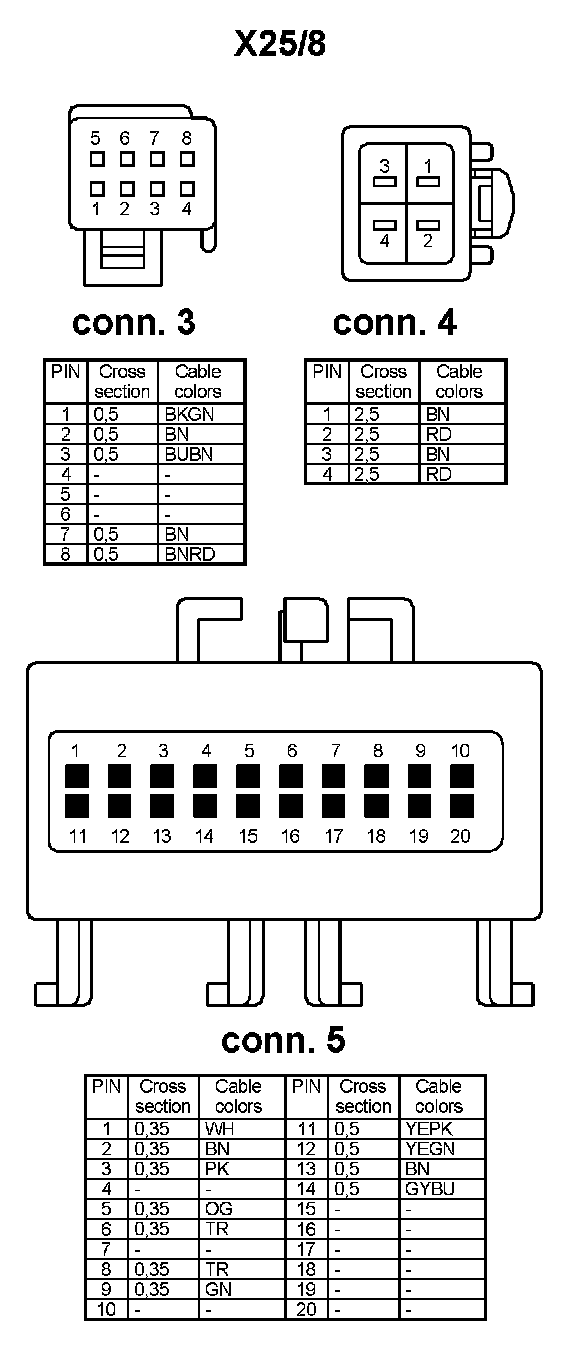

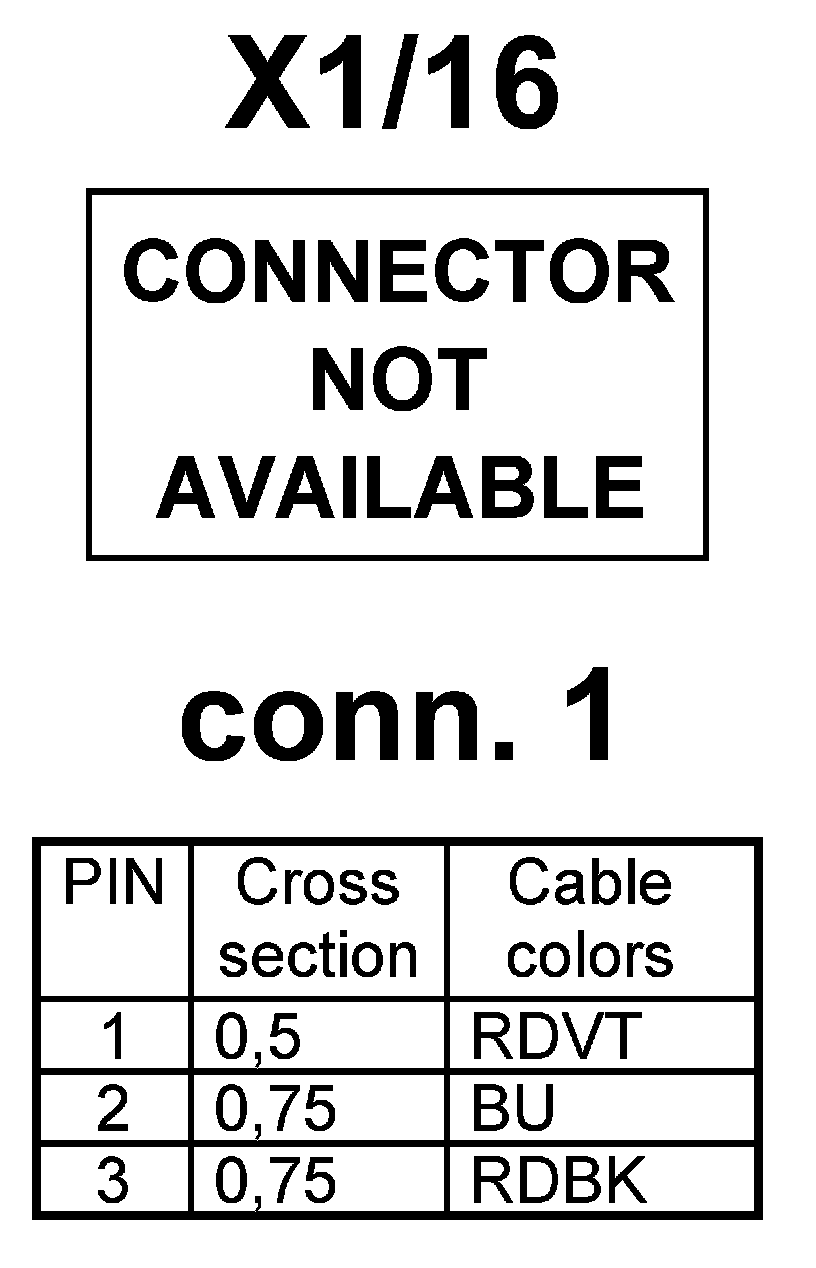

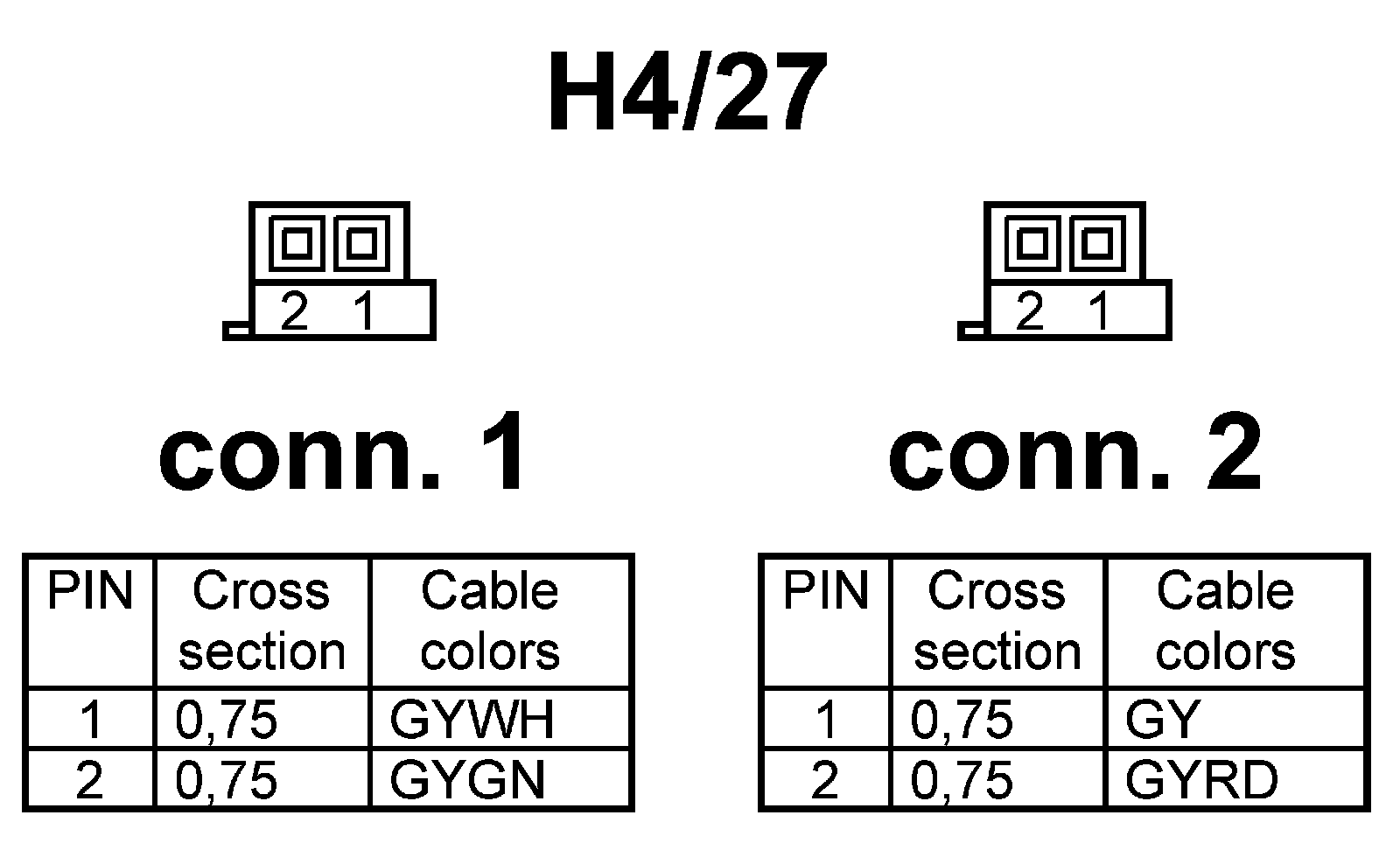

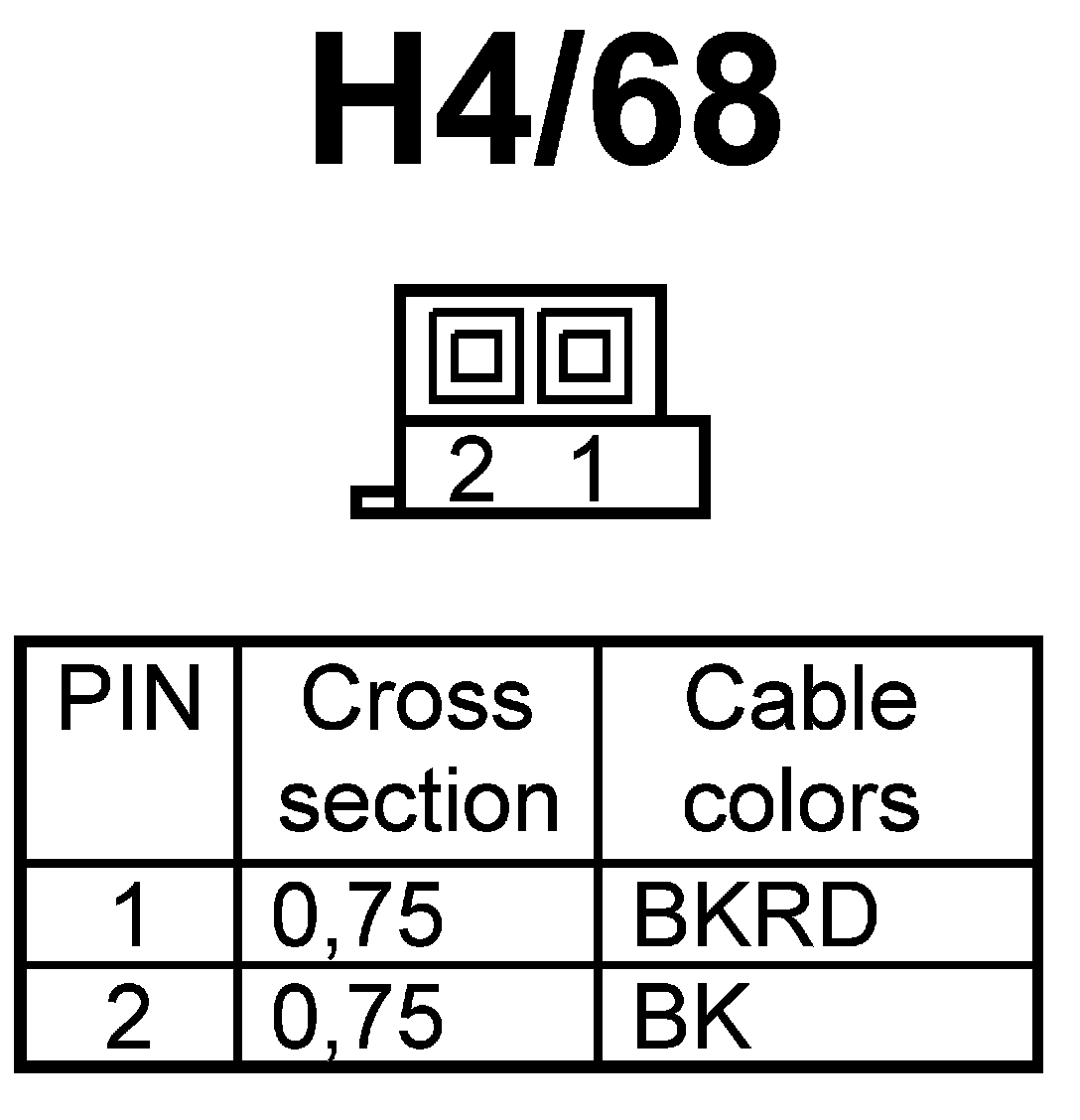

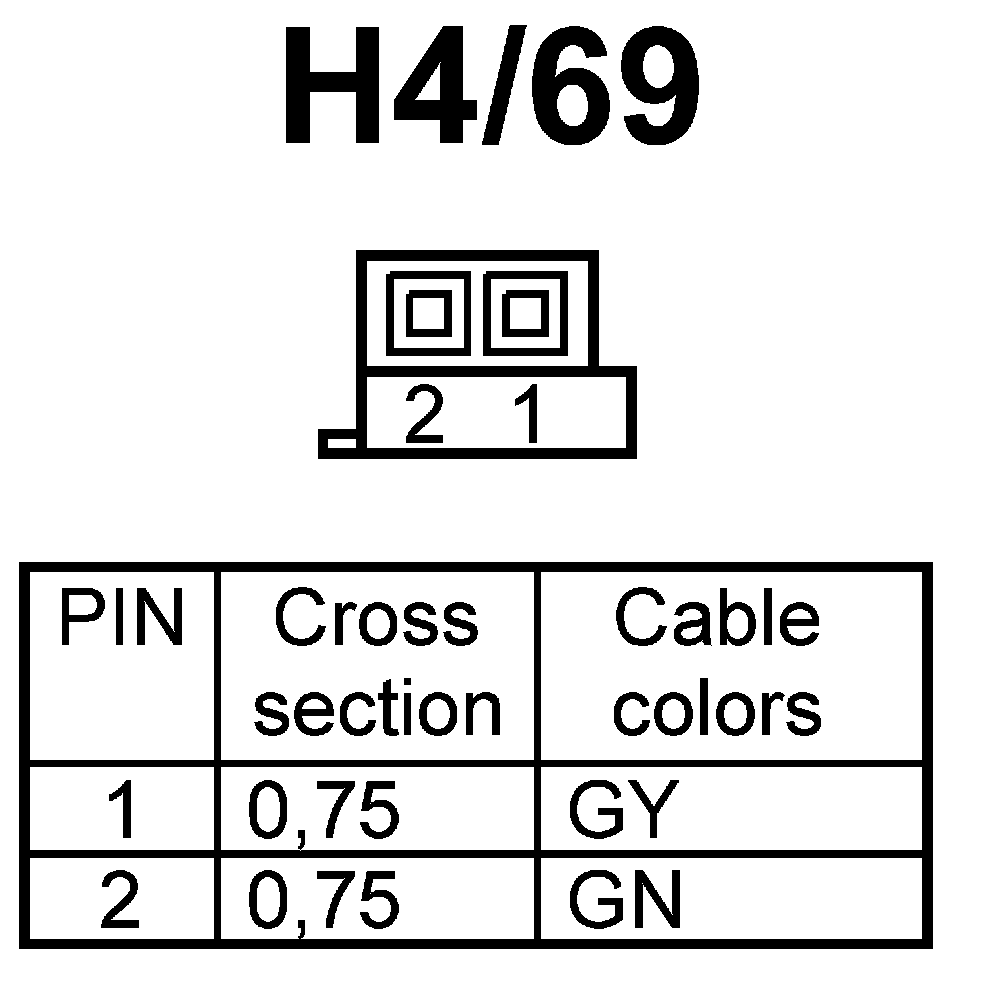

PE82.60-U-2101CAA Radio (RD) Control Module



PE82.60-U-2101CAA Radio (RD) Control Module

MODEL 216

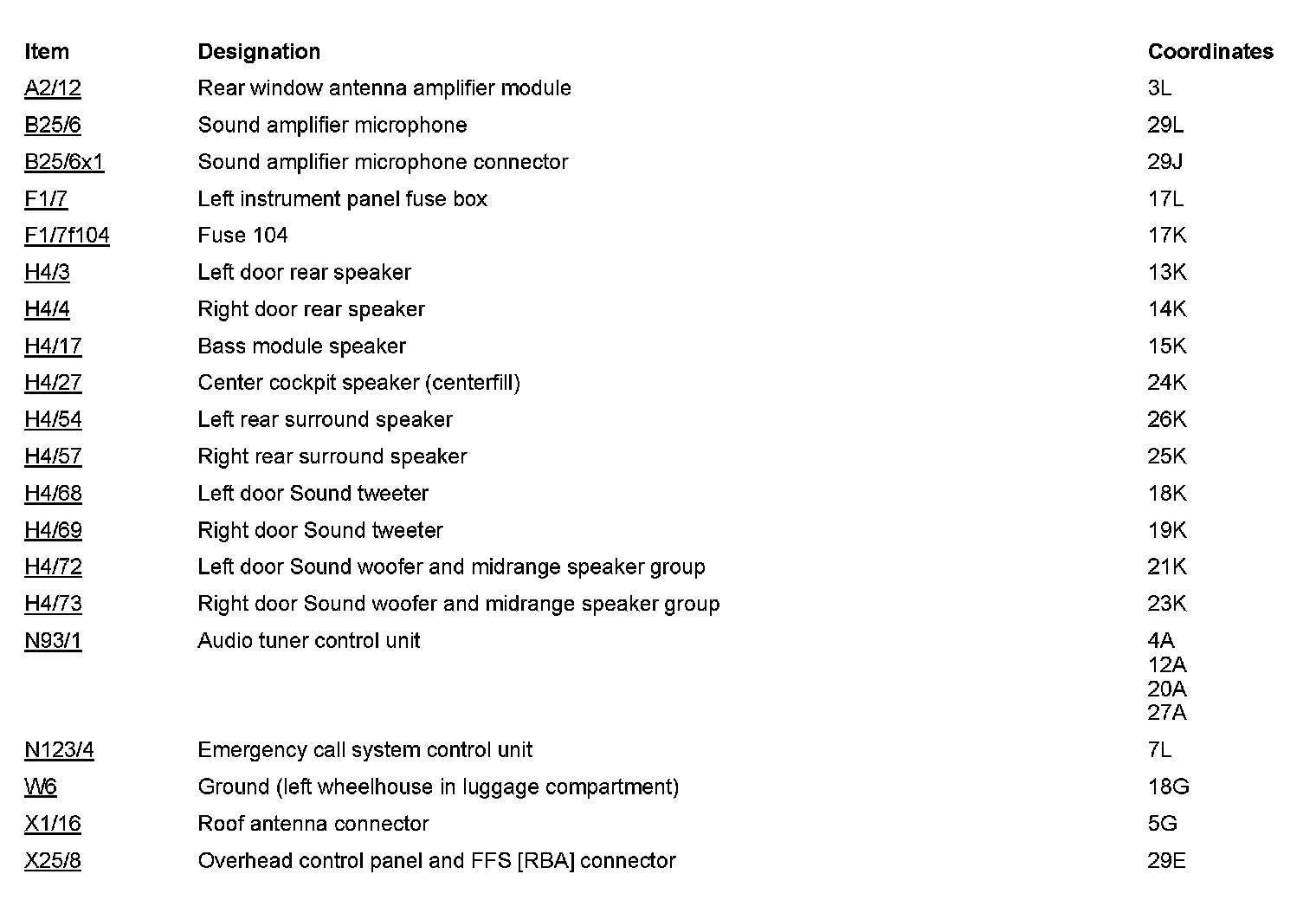

- Control unit N93/1















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
