AZ82.85-P-0005-05SC Retrofit Mercedes-Benz InCar Internet Connecting Cable

AZ82.85-P-0005-05SC Retrofit Mercedes-Benz InCar Internet Connecting Cable
- MODEL 216.3## 1#






1 Open lid of glove box (22).
2 Pull insulating felt (23) to one side.

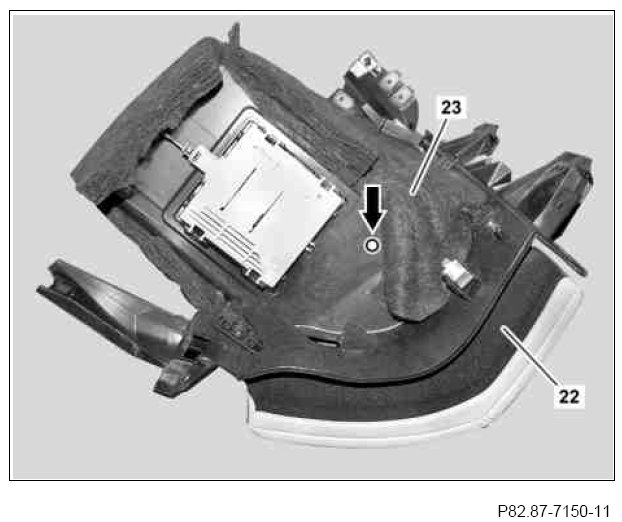

3 Drill hole (arrow) to a diameter of 19 mm on glove box (22), as shown.
Cordless drill/driver
gotis://G_58.0_01.1

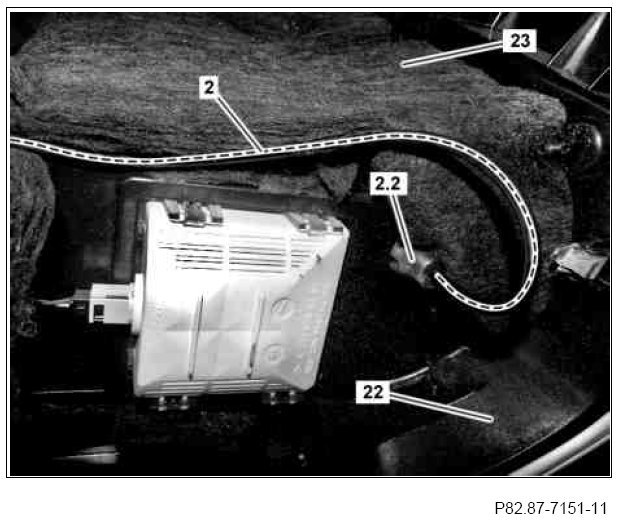

4 Place InCar Internet connecting cable (2) in glove box (22) and route outwards through previously drilled hole.
The grommet (2.2) must engage in the side wall of the glove box (22).

5 Route the InCar Internet connecting cable (2) under the insulating felt (23) to the rear of the glove box (22) and fasten in place using felt tape.
