AN82.60-P-0016-03SC Retrofit Media Interface Power Supply Wiring Harness

AN82.60-P-0016-03SC Retrofit Media Interface Power Supply Wiring Harness
- MODEL 216.3## (except 216.374 /377 /379) 1#






220 589 02 99 00, Wiring harness repair kit

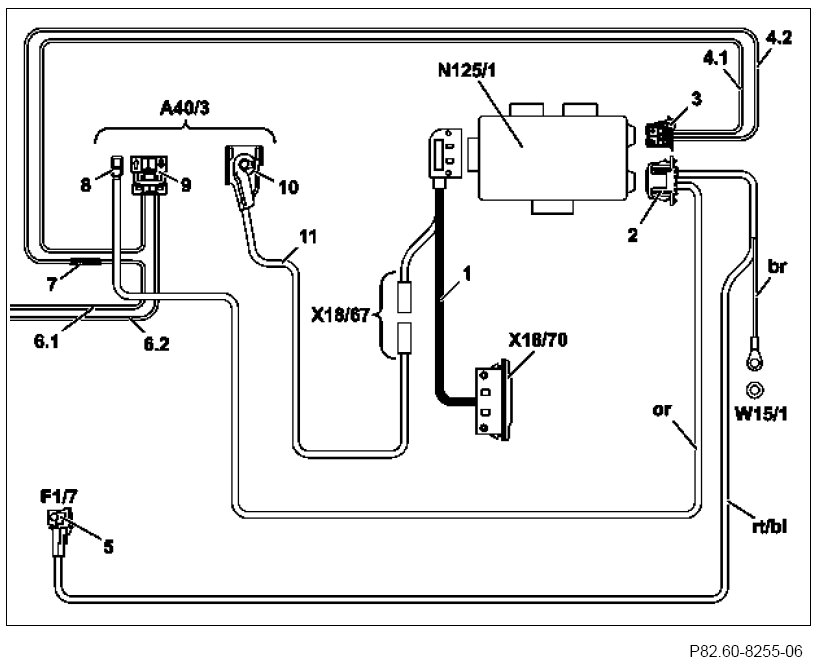

Connection scheme






1 Media interface wiring harness
2 Black 8-pin coupling
3 Black 2-pin coupling for optical fiber
4.1 Optical fiber 3
4.2 Optical fiber 4
5 Blue fuse carrier
6.1 Optical fiber 1 (vehicle wiring harness)
6.2 Optical fiber 2 (vehicle wiring harness)
7 Adapter
8 Contact
9 Black 2-pin coupling for optical fiber
10 Black 40-pin coupling
11 Video signal line
A40/3 COMAND control unit
F1/7 Left instrument panel fuse box
N125/1 Media interface control unit
W15/1 Ground (right footwell)
X18/67 Media interface connector 1
X18/70 Media interface connector
br Brown line
or Orange line for wake-up signal
rt/bl Red/blue line for power supply

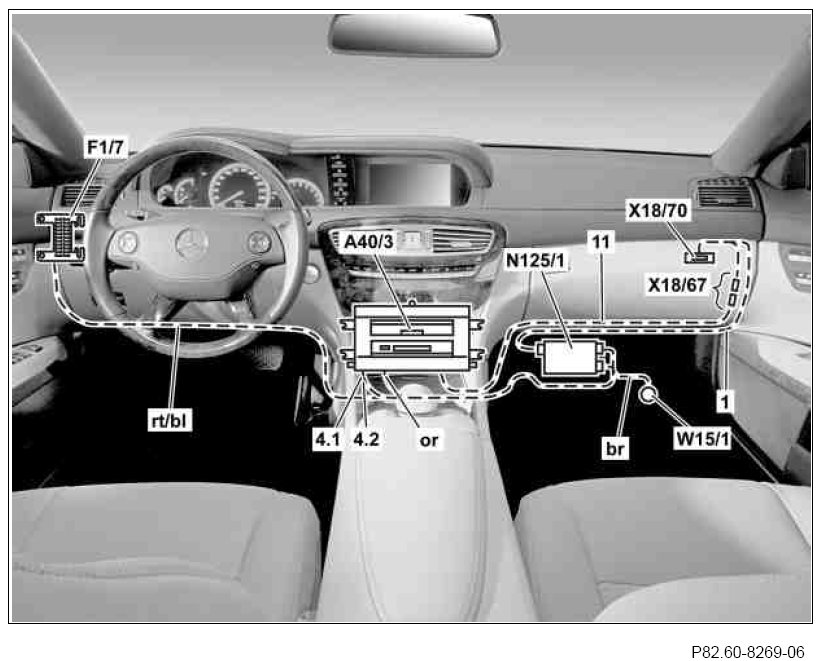

Routing diagram






1 Media interface wiring harness
4.1 Optical fiber 3
4.2 Optical fiber 4
11 Video signal line
A40/3 COMAND controller unit
F1/7 Left instrument panel fuse box
N125/1 Media interface control unit
W15/1 Ground (right footwell)
X18/67 Media interface connector 1
X18/70 Media interface connector
br Brown line
or Orange line for wake-up signal
rt/bl Red/blue line for power supply

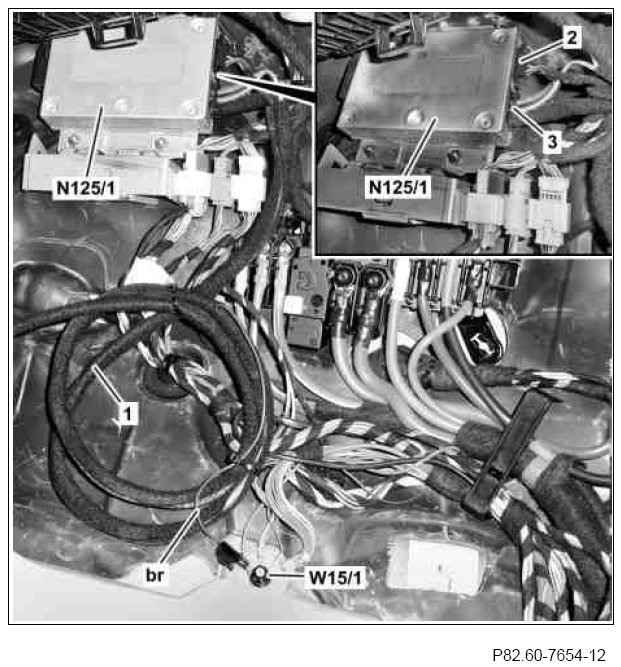

1 Connect black 2-pin coupling for optical fiber (3) to media interface control unit (N125/1).
2 Connect black 8-pin coupling (2) to media interface control unit (N125/1).
3 Route media interface wiring harness (1) to right footwell ground (W15/1).
The media interface wiring harness (1) consists of the optical fibers, the brown line (br), the orange line and the red/ blue line.

4 Connect brown line (br) to right footwell ground (W15/1).

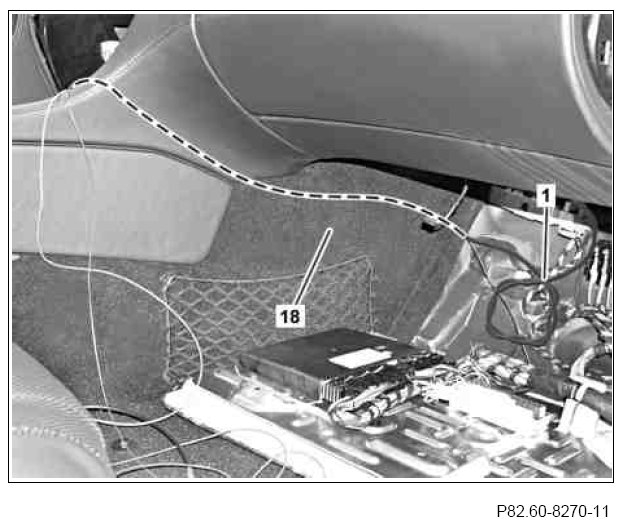

5 Carefully press right front floor covering (18) to one side and route media interface wiring harness (1) with optical fibers, the orange line and red/blue line in slot of COMAND controller unit.
6 Form a loop with excess length of media interface wiring harness (1) in front passenger footwell and fix in place with cable tie.
Do not kink optical fibers and do not route them over sharp edges or in radii smaller than 25 mm, as otherwise the quality of the data transfer will be affected.






7 Position footrest (22) and tighten using nuts (23).
8 Fold forward right front floor covering (18).

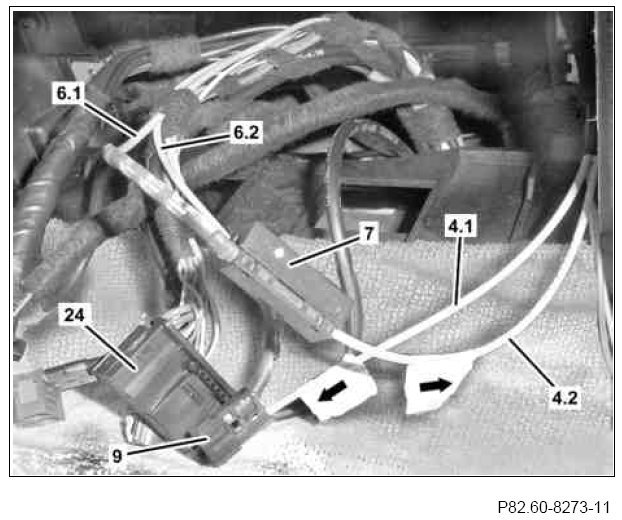

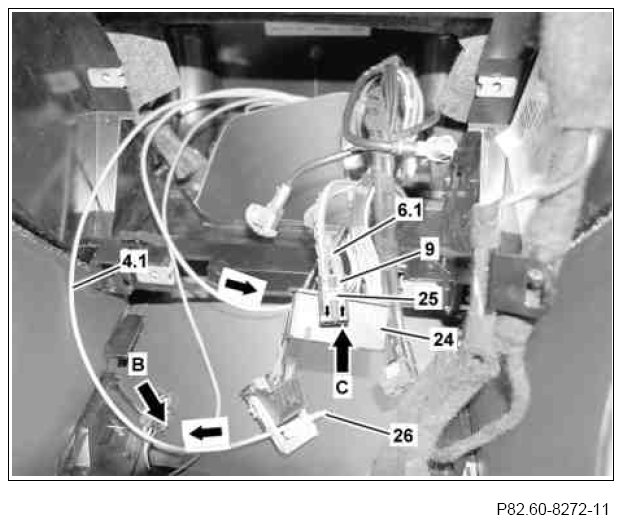

9 Remove black 2-pin coupling for optical fiber (9) of vehicle's optical fiber from black 22-pin coupling (24).
10 Remove blue fuse (25) from black 2-pin optical fiber coupling (9).
11 Remove optical fiber 1 (6.1) from input contact cavity (arrow C) of black 2-pin optical fiber coupling (9).
Pay attention to arrows on the black 2-pin optical fiber coupling (9).

12 Remove covering (26) from optical fiber 3 (4.1) of media interface wiring harness, install optical fiber 3 (4.1) into input contact cavity (arrow C) of black 2-pin optical fiber coupling (9) and install blue fuse (25) into the black 2-pin optical fiber coupling (9).
The optical fiber 3 (4.1) was marked with an arrow (arrow B) in accordance with the signal flow when preparing the media interface wiring harness.
The arrow on the input contact cavity (arrow C) of the black 2- pin optical fiber coupling (9) and the arrow (arrow B) previously made on the optical fiber 3 (4.1) must point in the same direction.






13 Install optical fiber 1 (6.1) removed from black 2-pin optical fiber coupling (9) into adapter (7) included in package contents.
14 Install optical fiber 4 (4.2) of media interface wiring harness in adapter (7) and lock adapter (7).
15 Remove protective sheaths from optical fiber 1 (6.1) and attach to optical fiber 3 (4.1).
16 Install black 2-pin optical fiber coupling (9) in black 22-pin coupling (24).

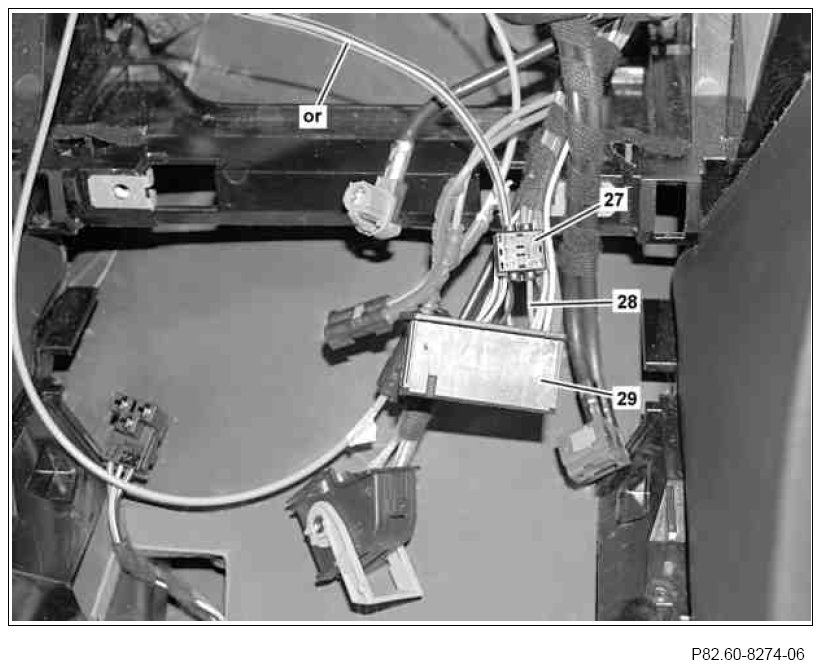

17 Connect orange line for wake-up signal (or) of media interface wiring harness with potential distributor (27) to orange line (28) of vehicle wiring harness.
The orange line (28) is located in contact cavity "9" of the black 22-pin coupling (29).
The potential distributor (27) can be found in the wiring harness repair kit.

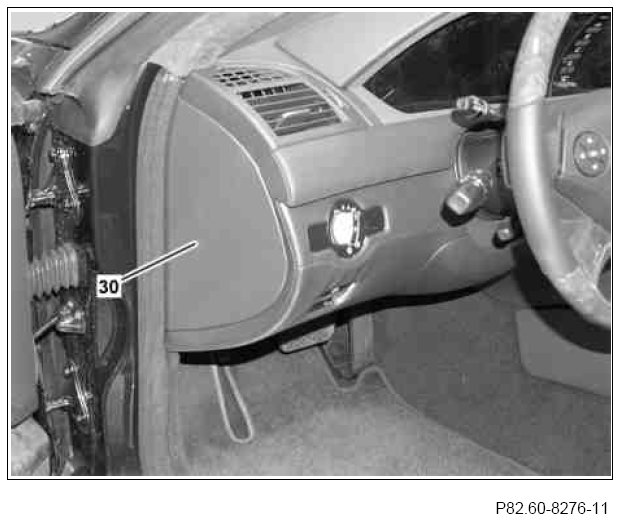

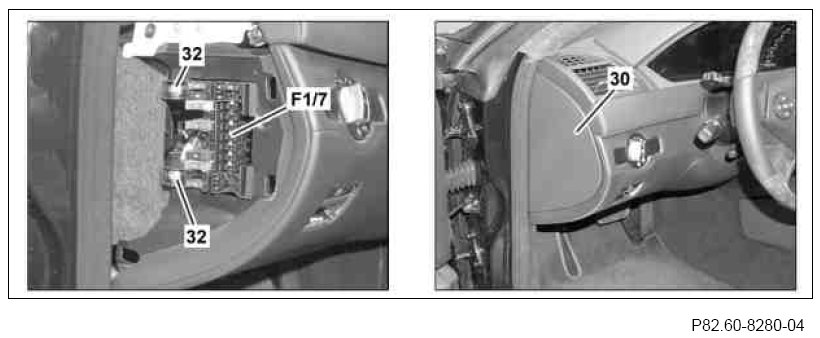

18 Remove cover (30).

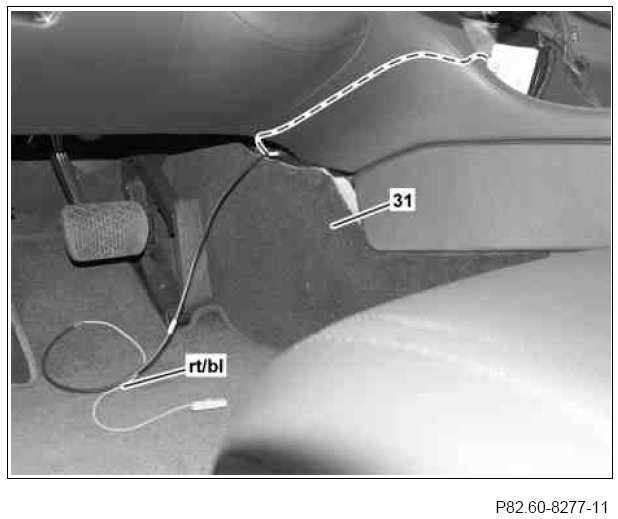

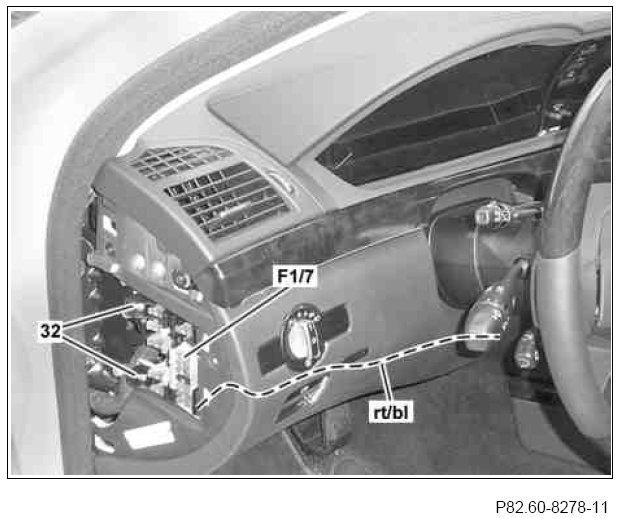

19 Pull left front floor covering (31) carefully to one side and route red/blue line for power supply (rt/bl) in driver footwell as shown.
20 Align left front floor covering (31).
21 Wrap red/blue line for power supply (rt/bl) with felt tape over a length of 1000 mm, beginning at blue fuse carrier.

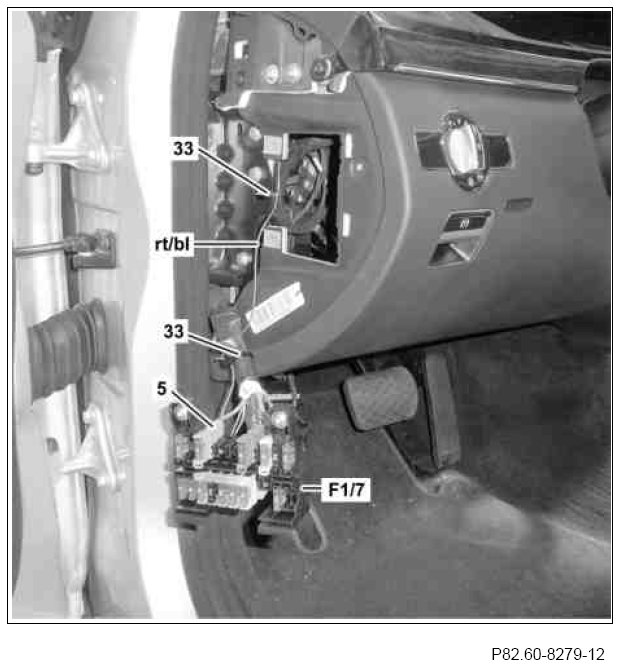

22 Remove screws/bolts (32) of left instrument panel fuse box (F1/7) and place left instrument panel fuse box (F1/7) to one side with electrical lines connected.
23 Route red/blue line for power supply (rt/bl) along vehicle wiring harness to left instrument panel fuse box (F1/7) and fix in place with cable tie.






24 Insert blue fuse carrier (5) in slot "100" of left instrument panel fuse box (F1/7).
25 Form a loop with excess length of red/blue line for power supply (rt/bl) and fix in place with cable tie (33) at vehicle wiring harness.






26 Position left instrument panel fuse box (F1/7) and tighten with screws/bolts (32).
27 Install cover (30).
