Home >> Mercedes Benz >> 2012 >> CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Entertainment Systems >> Auxiliary Input / Output Jack >> Service and Repair >> AZ82.60-P-0022SC Retrofit Video Jack

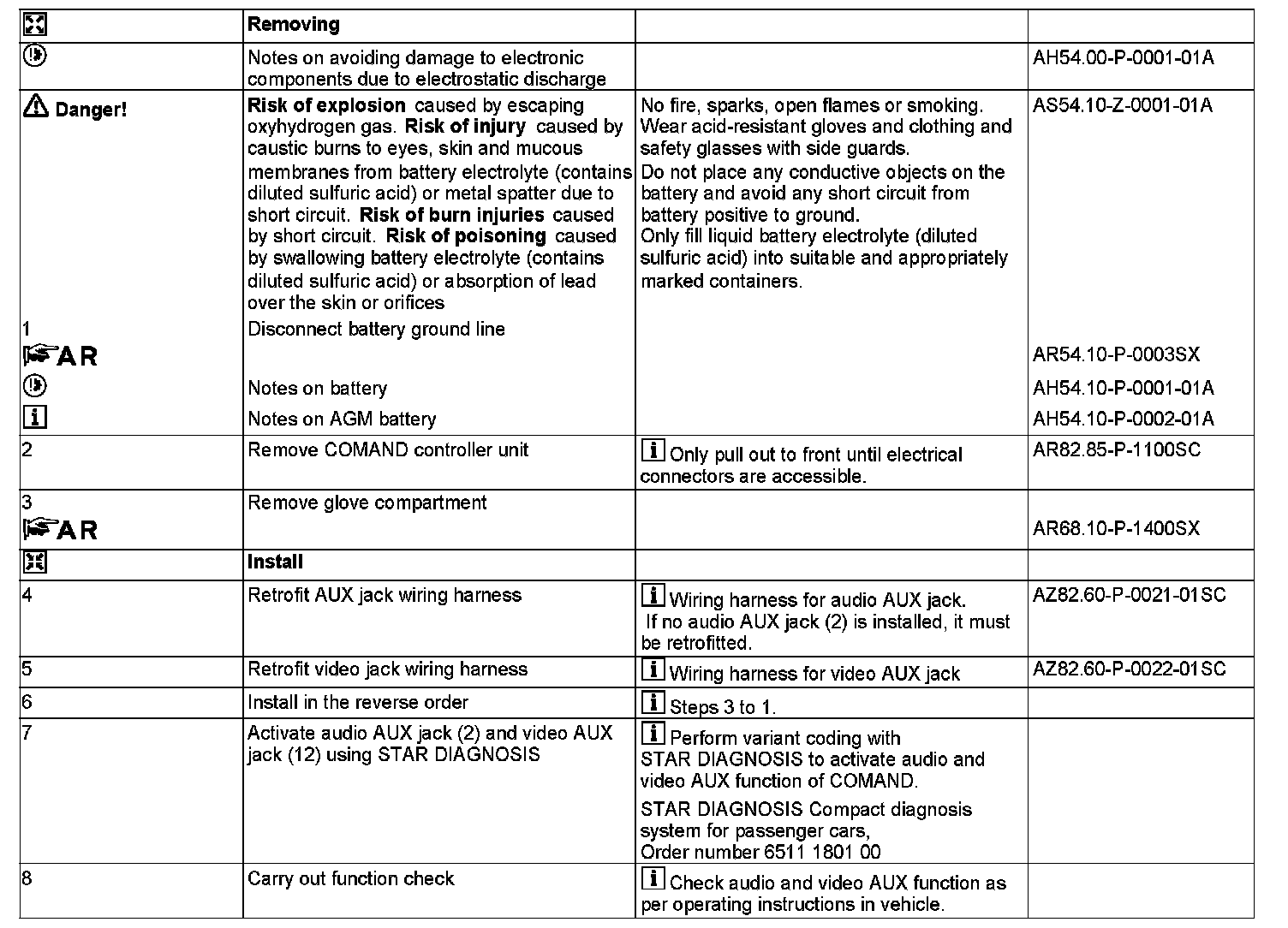

AZ82.60-P-0022SC Retrofit Video Jack




AZ82.60-P-0022SC Retrofit Video Jack
MODEL 216.3





2 Audio AUX jack
8 Glove compartment
12 Video AUX jack
