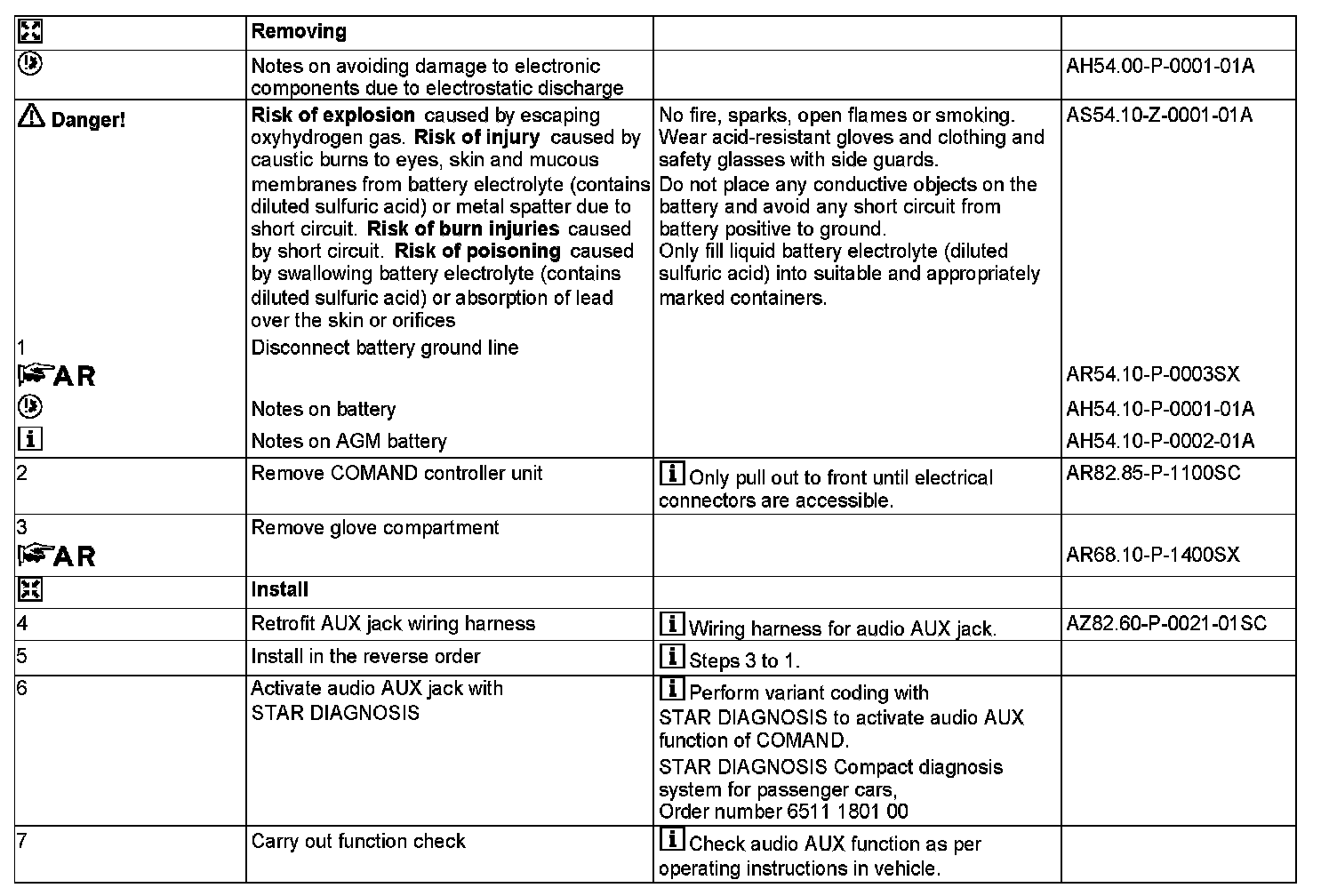

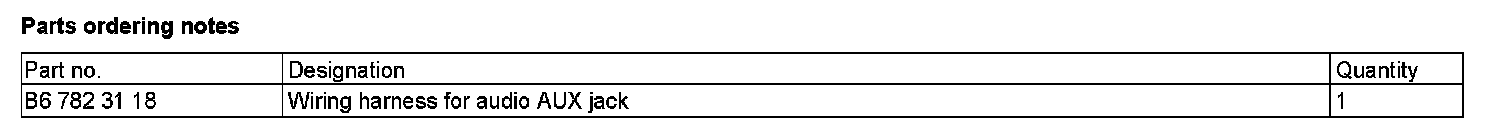

AZ82.60-P-0021SC Retrofit AUX Socket
AZ82.60-P-0021SC Retrofit AUX Socket
AZ82.60-P-0021SC Retrofit AUX Socket

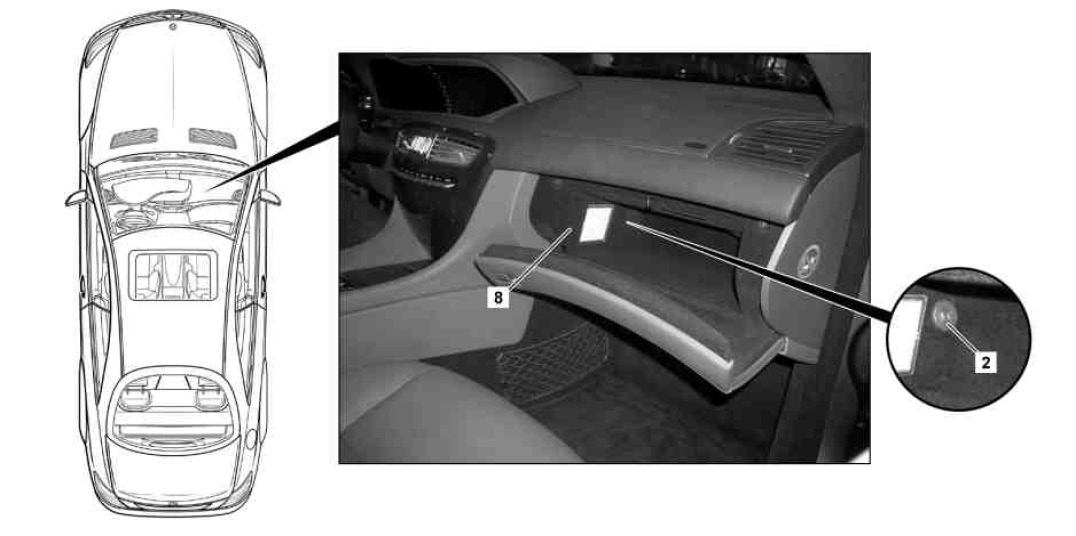

MODEL 216.3
2 Audio AUX jack
8 Glove compartment
